Description

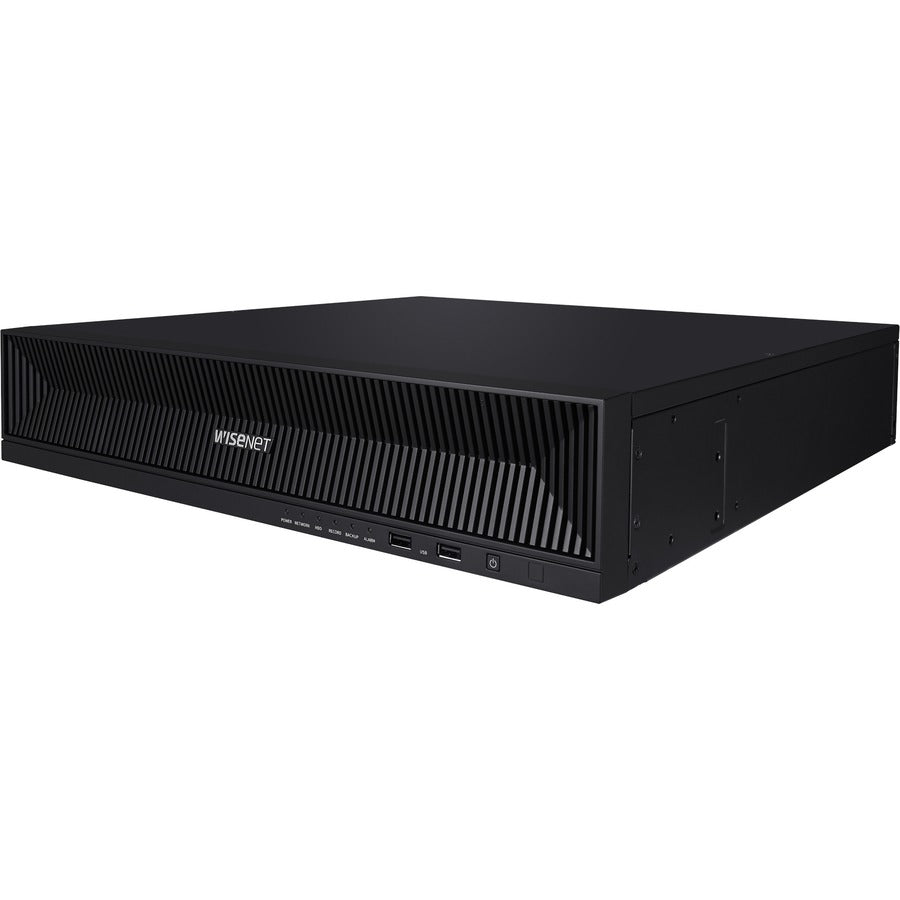

The Wisenet XRN-1620B2 24TB Network Video Recorder delivers enterprise-grade 4K surveillance recording, powerful analytics, and seamless system management for medium to large-scale deployments. Engineered with an Intel-based platform, it supports up to 16 channels, 32MP resolution, and 140Mbps recording bandwidth for high-performance video capture.
This NVR includes 24TB of pre-installed storage and supports up to 8 internal SATA drives (80TB max), ensuring long-term retention for high-resolution streams. It features H.265/H.264/MJPEG compression, Dual stream recording, WiseStream optimization, and AI search compatibility with Wisenet AI cameras for rapid forensic review.
With HDMI/VGA dual output, a plugin-free Web UI, dynamic event support, and QR-code P2P setup, the XRN-1620B2 offers a streamlined, future-ready surveillance backbone suitable for government, enterprise, and commercial environments.
| Category | Details |
|---|---|
| Channels | 16CH network camera inputs |
| Max Camera Resolution | Up to 32MP |
| Recording Bandwidth | 140 Mbps |
| Playback Bandwidth | 32 Mbps |
| Compression | H.265, H.264, MJPEG |
| Display Output | HDMI (3840×2160 @ 30Hz), VGA (1920×1080 @ 30Hz) |
| Multi-Monitor Support | HDMI & VGA dual monitor (FHD), HDMI single (UHD) |
| Supported HDDs | 8 × SATA (up to 10TB each, 80TB max) |
| Pre-installed Storage | 24TB HDD |
| Backup Formats | BU/Exe/AVI (GUI), JPG/AVI (Network) |
| AI Search | Compatible with Wisenet AI cameras |
| Event Types | Alarm Input, Video Loss, Camera Events, Dynamic Events, User Events |
| Event Actions | Email, Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, Shutdown |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTSP, NTP, HTTP, DHCP, SNMP, ONVIF Profile-S, SUNAPI |
| Security | IP filtering, Access logs, 802.1x, Encryption, Signed firmware |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Mobile Support | iOS, Android |
| Redundancy | ARB, Failover N+1 |
| Interfaces | 2 × RJ-45, 4 × Alarm In / 2 × Alarm Out, 3 × USB, 1 × Audio Out |
| Operating System | Embedded Linux |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | 130W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in) |
| Weight | 5.71 kg (12.59 lb) |
