Description

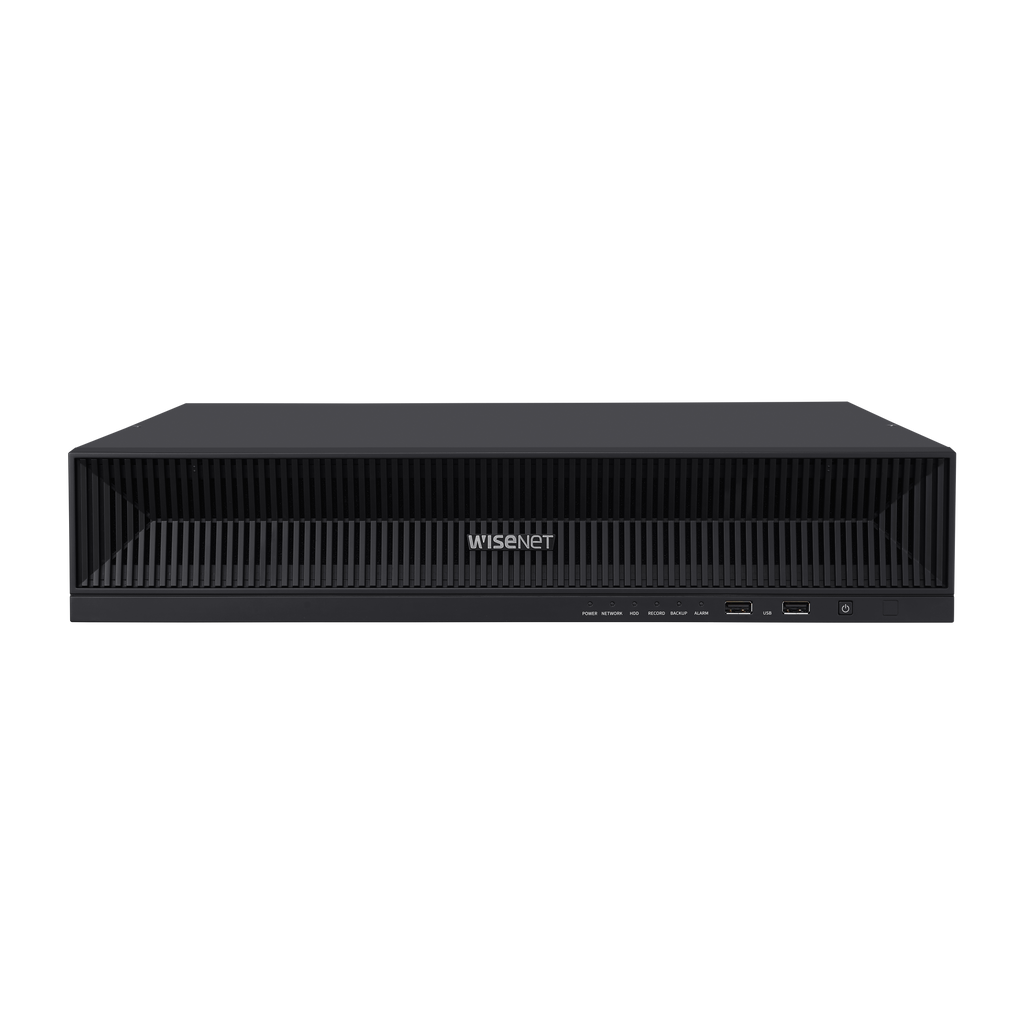

The Wisenet XRN-1620SB1 is a high-performance 16-channel network video recorder engineered for professional 4K surveillance environments. With a powerful 140Mbps recording throughput, support for up to 32MP camera resolution, and Intel-based processing, it delivers reliable performance for medium to large security deployments.
This model includes 24TB of pre-installed storage (4 × SATA bays, max 24TB) and features 16 built-in PoE/PoE+ ports with a 200W PoE budget, eliminating the need for external PoE switches. Advanced features include AI search when paired with Wisenet AI cameras, dynamic event support, dual-monitor HDMI/VGA output, and efficient compression with H.265/H.264/MJPEG and WiseStream technology.
Ideal for retail, commercial, enterprise, and industrial sites, the XRN-1620SB1 offers easy setup, plugin-free web UI 2.0, mobile access via P2P QR code, ARB failover, RAID-1 support, and multi-channel playback for fast event investigations.
| Category | Specification |
|---|---|
| Model | Wisenet XRN-1620SB1-24TB |
| Channels | 16 channels |
| Camera Resolution Support | CIF to 32MP |
| Recording Bandwidth | Max. 140Mbps |
| Playback Bandwidth | Max. 32Mbps |
| Compression | H.265, H.264, MJPEG |
| Video Outputs | HDMI (4K UHD), VGA (1080p) |
| Monitor Modes | HDMI/VGA dual display, clone/expand modes |
| PoE Ports | 16 × PoE/PoE+ RJ-45 (10/100Mbps) |
| PoE Budget | 200W |
| Network Ports | 2 × RJ-45 LAN/WAN (1Gbps) |
| Storage Bays | 4 × SATA (up to 6TB per bay) |
| Pre-installed Storage | 24TB HDD |
| Max Storage Capacity | 24TB |
| RAID Support | RAID-1 |
| Event Support | Motion, video loss, analytics, defocus, audio, dynamic event, user events |
| AI Search | Supported with Wisenet AI cameras |
| Simultaneous Playback | Up to 64 channels (local 16CH, remote 16CH per user) |
| Users | Max. 4 users (1 local, 3 remote) |
| Mobile Support | iOS / Android (P2P QR code setup) |
| Protocols | IPv4/6, TCP/IP, RTP/RTSP, HTTP/HTTPS, DHCP, SNMP, ONVIF Profile S, SUNAPI |
| Audio | 16CH network audio, G.711 / G.726 / AAC |
| Alarm I/O | 4 in / 2 out |
| USB Ports | 3 total (2 × USB 2.0 front, 1 × USB 3.0 rear) |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max. 310W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in) |
| Weight | 5.76 kg (12.7 lb) |
| Body Material | Metal, black finish |
