Description

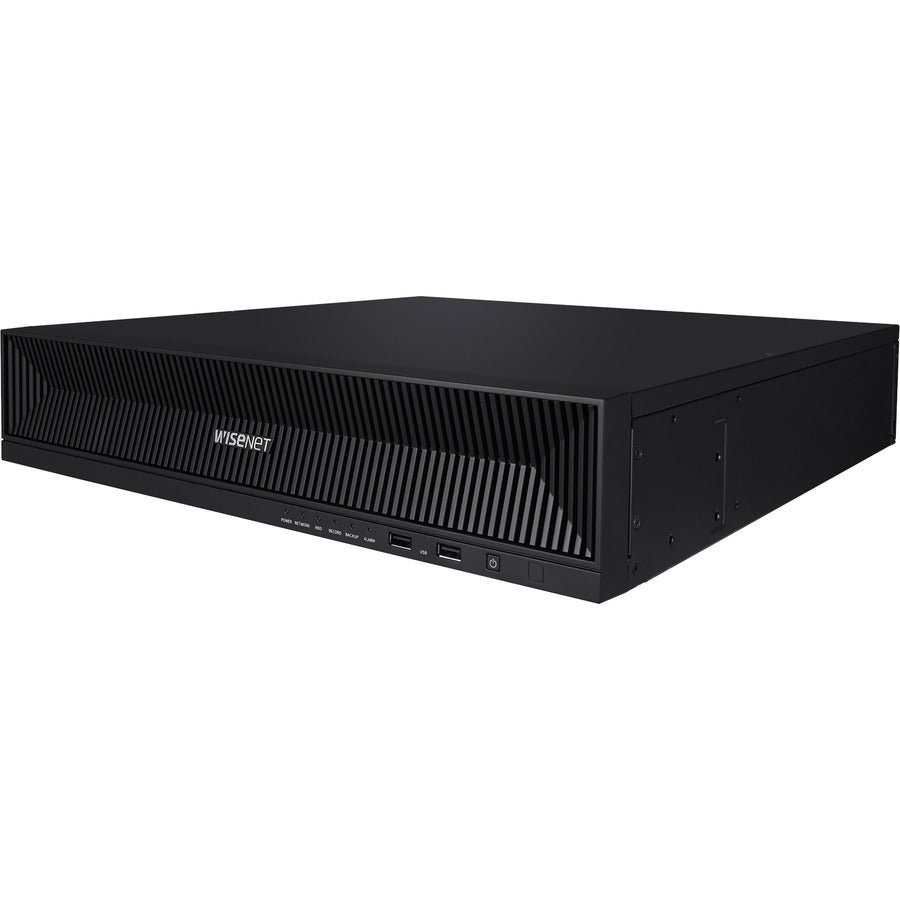

The Wisenet XRN-1620B2 is a high-performance 16-channel 4K network video recorder engineered for professional surveillance environments requiring reliable recording, high-resolution playback, and AI-enhanced search. With support for up to 32MP camera resolution, advanced H.265/H.264/MJPEG compression, and up to 140Mbps recording bandwidth, this NVR delivers exceptional clarity and efficiency across medium-to-large security deployments.
Designed for scalability, the XRN-1620B2 integrates 8 SATA bays supporting up to 80TB, making it ideal for long-term retention and 24/7 operation. Its dual-monitor HDMI/VGA outputs, user-friendly UI/UX, AI metadata search (with Wisenet AI cameras), and dynamic event handling streamline monitoring and forensic review. Additional features such as QR-code P2P setup, N+1 failover, ARB recovery, and multi-user remote access make this NVR a powerful central hub for modern surveillance networks.
This model comes pre-configured with a 2 TB HDD, ready for immediate deployment.
| Category | Specification |
|---|---|
| Channels & Video | |
| Camera Inputs | Up to 16 channels |
| Supported Resolution | CIF to 32MP |
| Local Display Output | HDMI (4K), VGA (FHD) |
| Display Modes | Dynamic layout, virtual channels, clone/expand modes |
| Decoding Performance | Up to 25fps when displaying more than 10 channels |
| Recording | |
| Compression | H.265, H.264, MJPEG |
| Max Recording Bandwidth | 140 Mbps |
| Recording Modes | Normal, Dual-stream, Continuous/Event, Pre/Post-Event, Bookmark |
| Playback Bandwidth | Max. 32 Mbps |
| Simultaneous Playback | Up to 64CH (16 local + 16 per remote user) |
| Storage | |
| HDD Bays | 8 × SATA |
| Max Storage | Up to 80TB (10TB per drive) |
| Included Storage | 2 TB HDD |
| Backup Options | BU/EXE/AVI, JPG/AVI |
| Network | |
| Network Protocols | IPv4/IPv6, TCP/IP, RTSP, NTP, HTTP/HTTPS, DHCP, SNMP, ONVIF Profile S |
| Transmission Bandwidth | 140 Mbps |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Mobile Support | iOS & Android (Wisenet Mobile) |
| Audio | |
| Audio I/O | 16-channel network audio |
| Audio Compression | G.711, G.726, AAC |
| Two-Way Audio | Supported |
| Events & Analytics | |
| Event Triggers | Alarm input, motion detection, analytics, audio, defocus, dynamic events |
| Event Actions | Email, push, PTZ preset, alarm out, FTP, buzzer, monitor output |
| AI Search | Object attribute search with Wisenet AI cameras |
| Interfaces | |
| HDMI | 1 × 3840×2160 @ 30Hz |
| VGA | 1 × 1920×1080 @ 30Hz |
| USB | 2 × USB 2.0 (front), 1 × USB 3.0 (rear) |
| Ethernet | 2 × RJ-45 (1Gbps LAN/WAN) |
| Alarm I/O | 4 in, 2 out |
| System & Power | |
| Operating System | Embedded Linux |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | 130W |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F–104°F) |
| Operating Humidity | 20–85% RH |
| Physical | |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in) |
| Weight | 5.71 kg (12.59 lb) |
| Material | Metal chassis, black finish |
