Description

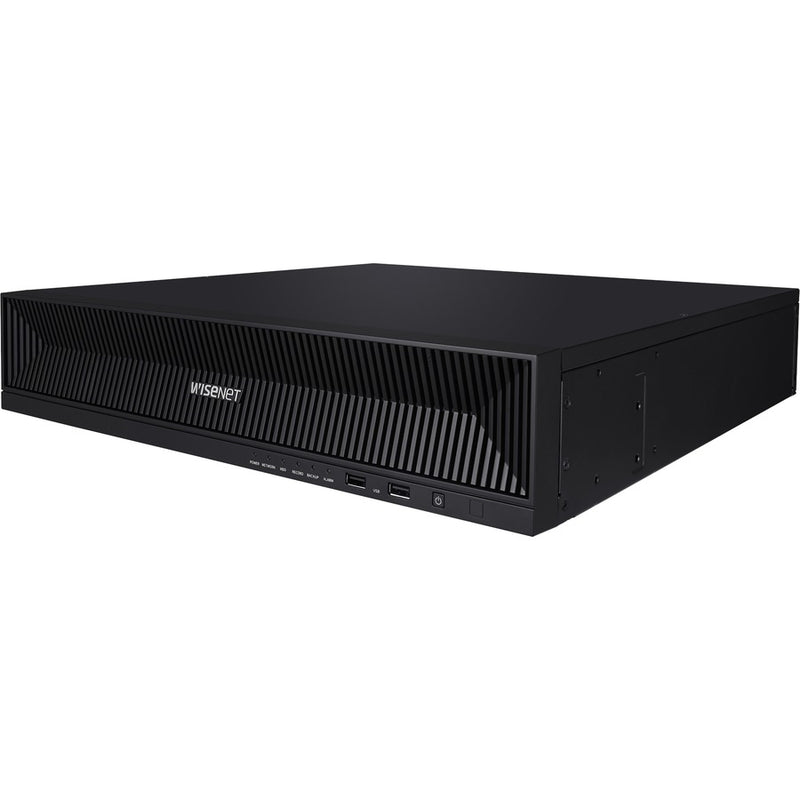

The Wisenet XRN-1620B2 is a high-performance 16-channel 4K NVR engineered for demanding enterprise-grade video surveillance deployments. Pre-configured with 48TB of storage, it supports up to 8 internal SATA drives (80TB max) and delivers 140Mbps recording bandwidth, ensuring reliable capture of ultra-high-resolution streams up to 32MP.
Powered by an Intel-based architecture and equipped with H.265/H.264/MJPEG codec support, the XRN-1620B2 offers efficient compression, dual-stream recording, and advanced analytics integration. When paired with Wisenet AI cameras, it unlocks AI metadata search for rapid and accurate event retrieval.
The system features dual-monitor output (HDMI/VGA), user-friendly UI/UX, fisheye dewarping via CMS, ARB (Automatic Recovery Backup), N+1 failover, dynamic event support, multiple playback modes, and mobile app compatibility. Designed for maximum reliability and scalability, it is ideal for mid-to-large surveillance infrastructure requiring high-capacity storage and 4K/UHD display performance.
| Category | Specification |
|---|---|
| Video & Channels | Up to 16 channels, supports 32MP to CIF resolution |
| Recording Bandwidth | Max. 140Mbps |
| Video Output | HDMI (4K UHD), VGA (1080p) dual-monitor support |
| Decoding | Dynamic layout, clone & expand modes, up to 16-division display |
| Compression | H.265, H.264, MJPEG |
| Playback | Up to 64CH simultaneous playback (Local 16CH / Remote 16CH per user) |
| Playback Bandwidth | Max. 32Mbps |
| AI Functions | AI metadata search with Wisenet AI cameras |
| Event Support | Alarm input, video loss, analytics events, dynamic events, user events |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, NTP, DHCP, SMTP, HTTPS, SNMP, ONVIF, SUNAPI |
| Storage Capacity | 48TB (installed), supports up to 8 × SATA HDD (max. 80TB total) |
| Backup Options | BU/EXE/AVI, JPG/AVI (network) |
| Audio | 16CH network audio, G.711/G.726/AAC, 2-way audio support |
| Remote Access | Up to 10 live users, 3 search users, mobile app (iOS/Android) |
| Failover/Redundancy | N+1 failover, ARB support |
| Interfaces | 2 × RJ-45 LAN/WAN (1Gbps), USB (2×USB2.0 front, 1×USB3.0 rear), alarm I/O, audio out |
| Power | 100–240VAC, 50/60Hz |
| Power Consumption | 130W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in) |
| Weight | 5.71 kg (12.59 lb) |
