Description
The Wisenet XRN-1620B2 is a high-performance 16-channel network video recorder designed for professional surveillance environments that require 4K UHD output, AI-powered search, and robust storage capacity. With support for up to 32MP resolution, advanced H.265 compression, and a maximum 140Mbps recording bandwidth, it delivers efficient, reliable recording for medium to large security deployments.
This NVR includes a pre-installed 4 TB HDD and can scale up to 8 SATA drives (80TB total), ensuring long-term retention for high-resolution video. Users benefit from a clean, intuitive UI/UX, flexible live monitoring layouts, dynamic event handling, fisheye dewarping, and enhanced AI search when paired with Wisenet AI cameras.
Ideal for commercial buildings, campuses, hospitality, retail, and enterprise-level installations seeking stability, high performance, and easy management.
| Category | Specification |
|---|---|
| Channels | Up to 16 channels |
| Max Camera Resolution | Up to 32MP |
| Recording Bandwidth | Max. 140Mbps |
| Compression | H.265, H.264, MJPEG |
| Recording Modes | Normal, Dual Stream, Continuous/Event Schedule, Event (Pre/Post), Bookmark |
| Playback Bandwidth | Max. 32Mbps |
| Simultaneous Playback | Up to 64 channels (Local 16CH + Remote per user) |
| AI Features | AI search with compatible Wisenet AI cameras |
| Dynamic Event Support | New camera event functions without software updates |
| Monitor Output | HDMI (3840×2160 @30Hz), VGA (1920×1080 @30Hz) |
| Multi-Screen Options | Dynamic layout, virtual channel view, clone mode (up to 16 divisions), expand mode (up to 9 divisions) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP, DHCP, SMTP, IGMP, DDNS, HTTPS, SNMP, ONVIF Profile S, SUNAPI |
| Audio I/O | 16CH network audio, 1 audio out (3.5mm) |
| Audio Codecs | G.711, G.726, AAC |
| Remote Users | Search (3 users), Live Unicast (10 users), Multicast (20 users) |
| Storage | 4 TB pre-installed HDD; supports up to 8 SATA drives (up to 10TB each, 80TB max) |
| Backup Format | BU/Exe/AVI (GUI), JPG/AVI (Network) |
| Failover/Redundancy | N+1, ARB supported |

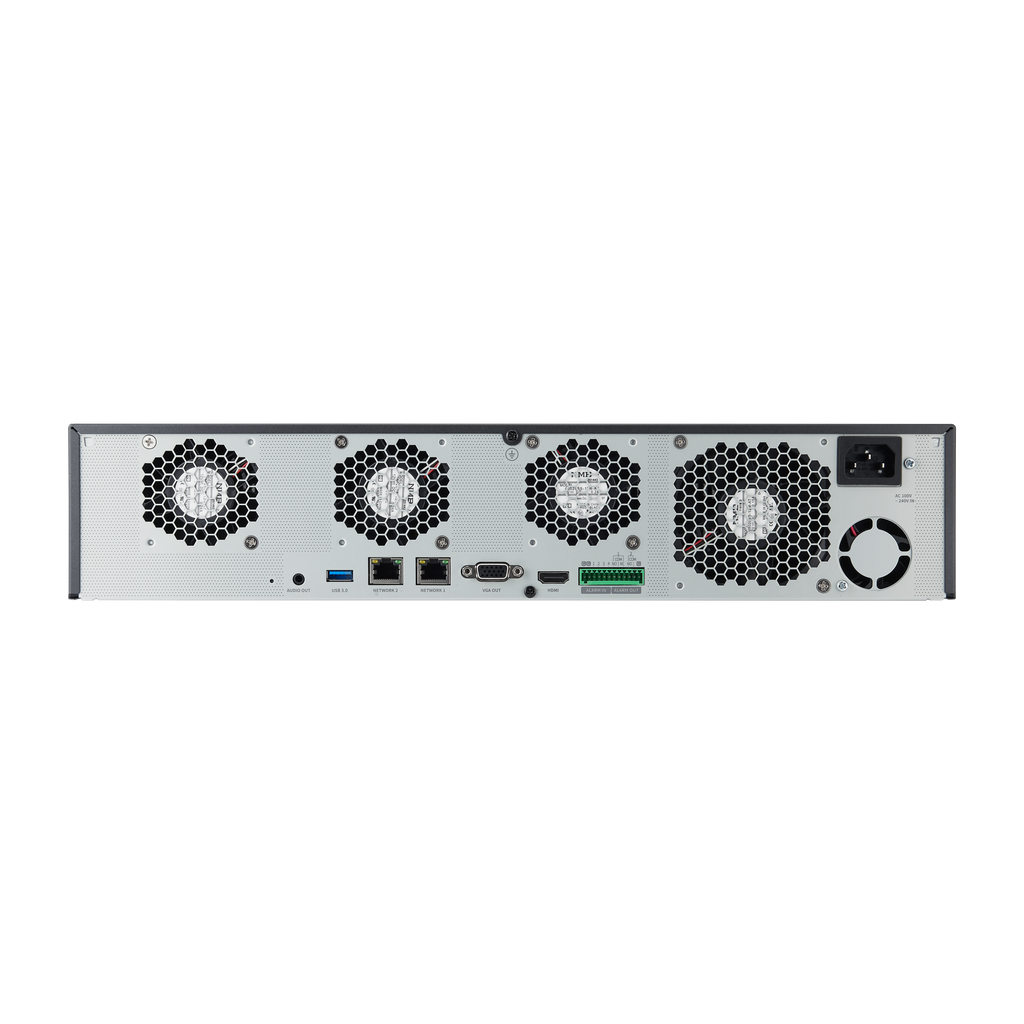

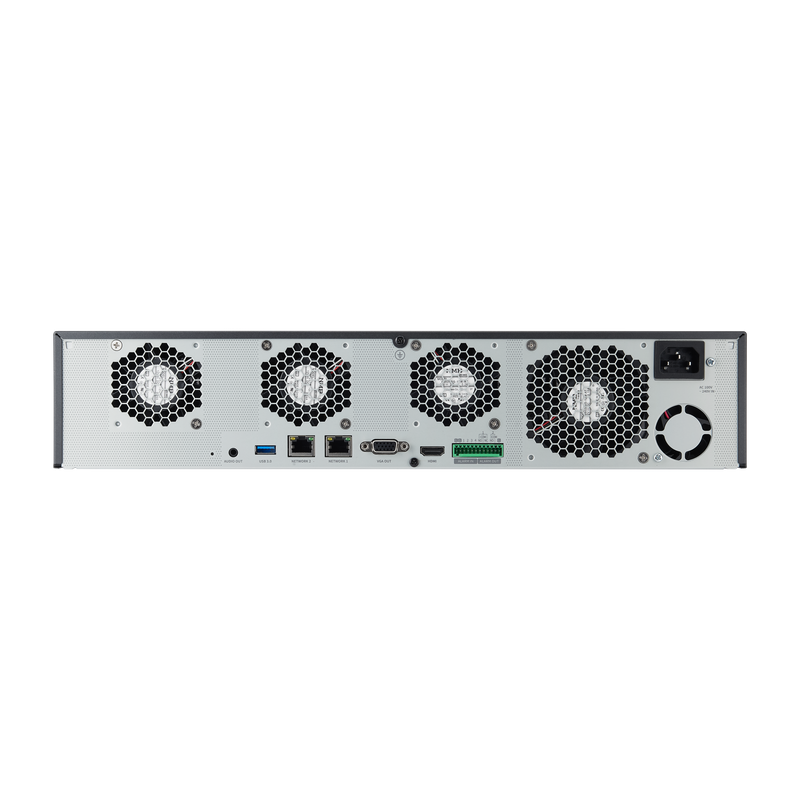

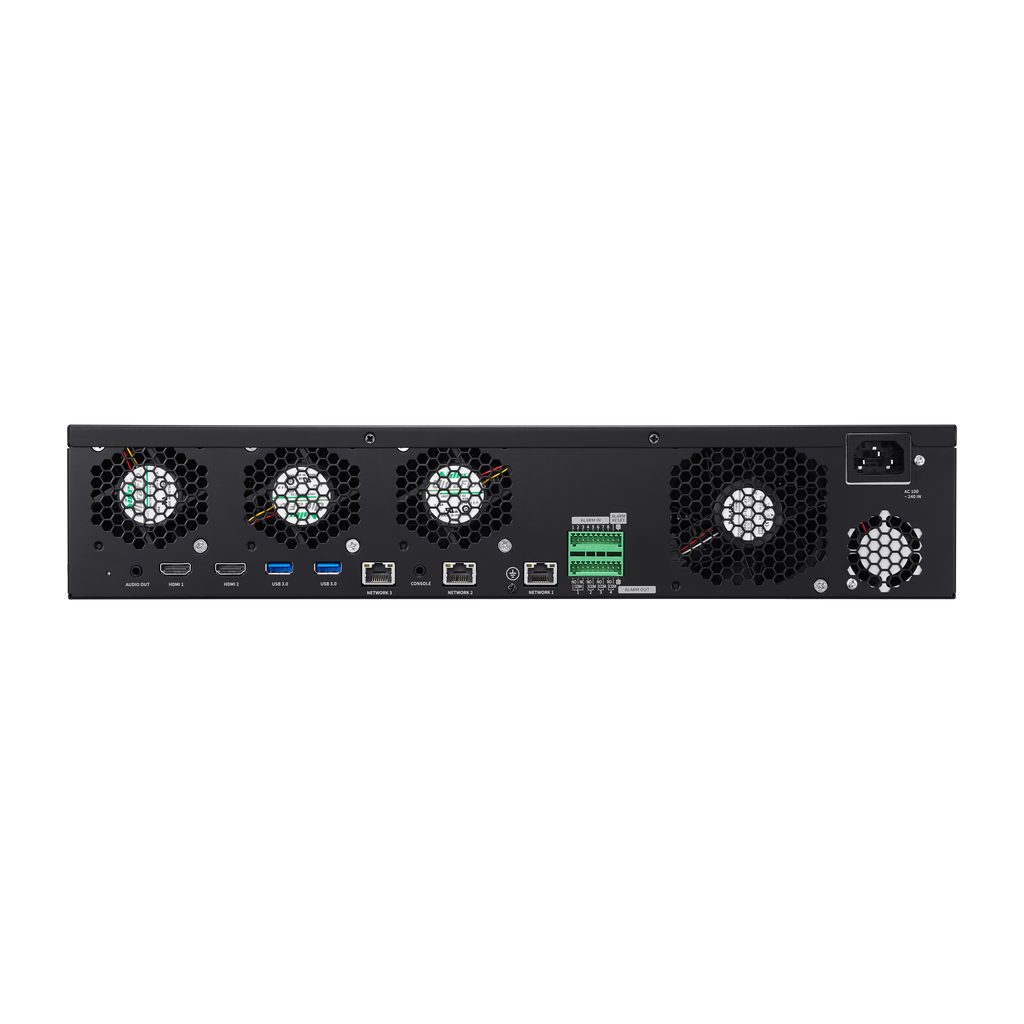

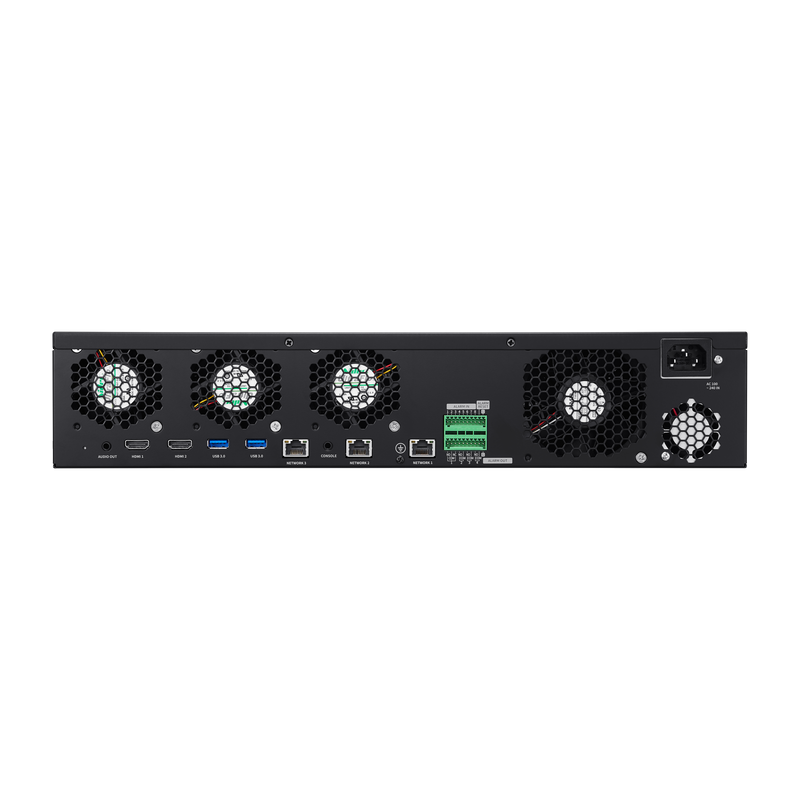

| Interfaces | 2× RJ-45 (LAN/WAN, 1Gbps), 4× Alarm In, 2× Alarm Out, 3× USB (Front: 2× USB2.0, Rear: USB3.0) |
| Mobile Support | iOS, Android |
| System Control | Mouse, Keyboard, Web, SPC-2000 Controller |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Humidity | 20–85% RH |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | 130W |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in) |
| Weight | 5.71 kg (12.59 lb) |
| Material / Color | Metal / Black |
