Description

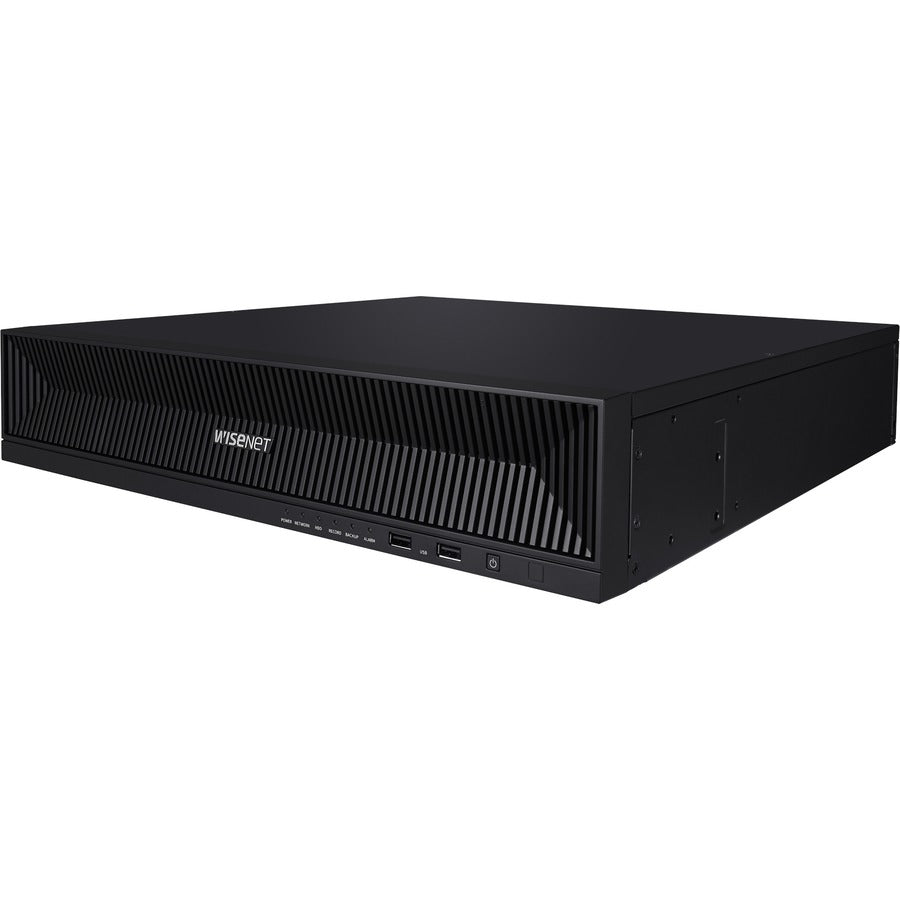

The Hanwha Vision XRN-1620B2 is a professional-grade 16-channel network video recorder designed for high-resolution surveillance environments. Supporting up to 32MP cameras, 140 Mbps recording, AI-powered search, and 8 SATA bays (up to 80TB), it delivers exceptional performance, reliability, and scalability. With UHD HDMI output, advanced event handling, dual-monitor support, and strong cybersecurity features, the XRN-1620B2 is ideal for medium-to-large CCTV deployments.
| Category | Specification |
|---|---|
| Channels | 16 Channels |
| Supported Camera Resolution | CIF to 32MP |
| Video Compression | H.265, H.264, MJPEG |
| Max Recording Bandwidth | 140 Mbps |
| Max Playback Bandwidth | 32 Mbps |
| Recording Modes | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Operating System | Embedded Linux |
| Display Output | HDMI 3840×2160 (30Hz), VGA 1920×1080 (30Hz) |
| Multi-Screen Display | Up to 16 divisions (Local Clone Mode), 9 divisions (Expand Mode) |
| Fisheye Dewarping | Supported (CMS) |
| Storage Bays | 8 × SATA |
| Max Storage Capacity | 80TB (10TB per drive) |
| Backup Options | BU/EXE/AVI via GUI; JPG/AVI via Network |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, HTTPS, DHCP, SMTP, IGMP, ARP, DNS, DDNS, SNMP, ONVIF (Profile S), SUNAPI |
| Ethernet Ports | 2 × RJ-45 (1Gbps) |
| Remote User Limits | Live: 10 users / Search: 3 users |
| Mobile Device Support | iOS, Android (Live 16CH, Playback 4CH) |
| Audio | 16CH Network Audio; G.711, G.726, AAC |
| Event Triggers | Alarm Input, Video Loss, Camera Events (Sensor, Motion, Analytics), Dynamic Events, User Events |
| Event Actions | Email, Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, Shutdown |
| AI Features | Object attribute search with Hanwha AI Cameras |
| USB Ports | 3 (2 × USB 2.0 front, 1 × USB 3.0 rear) |
| Alarm I/O | 4 Inputs / 2 Outputs |
| Audio Out | 1 × 3.5mm Jack |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | 130W |
| Dimensions | 440 × 89.8 × 428.4 mm |
| Weight | 5.71 kg (12.59 lb) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 20–85% RH |
| Material / Color | Metal / Black |
