Description

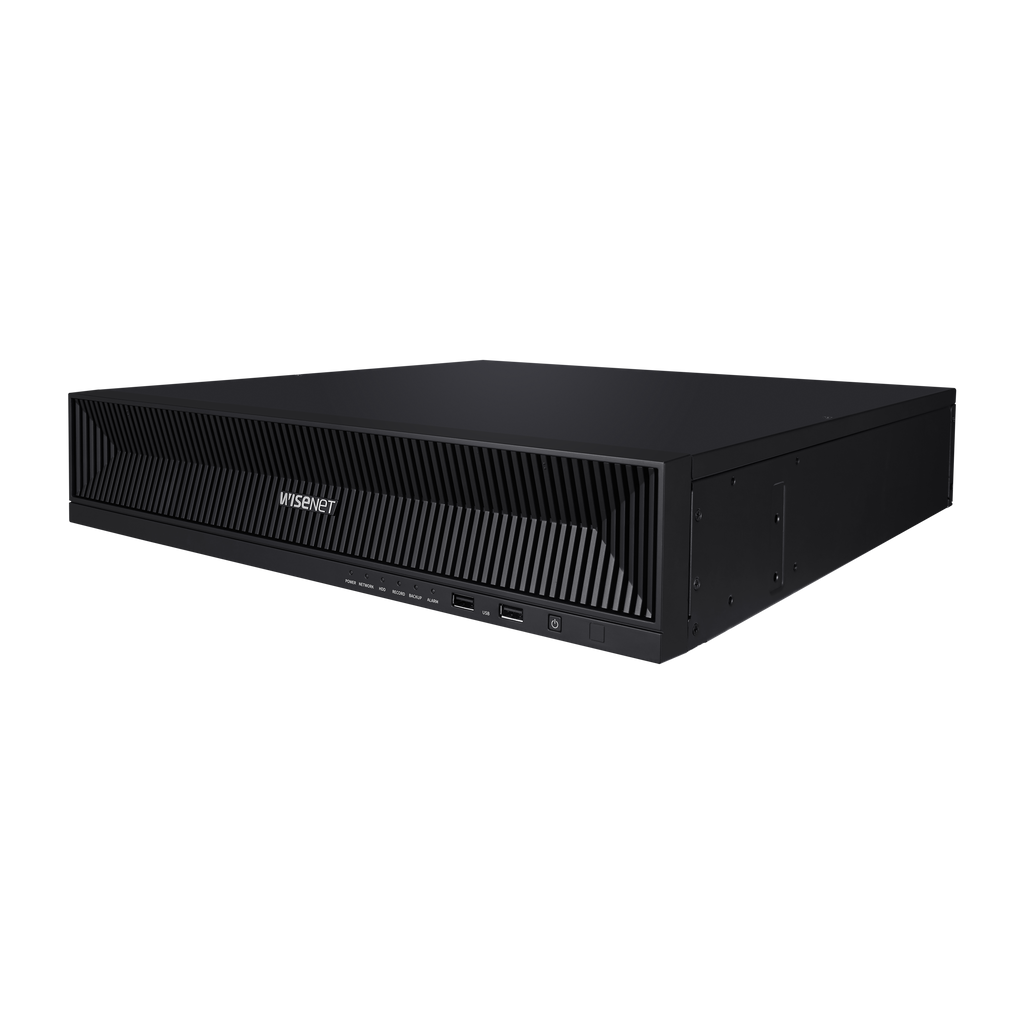

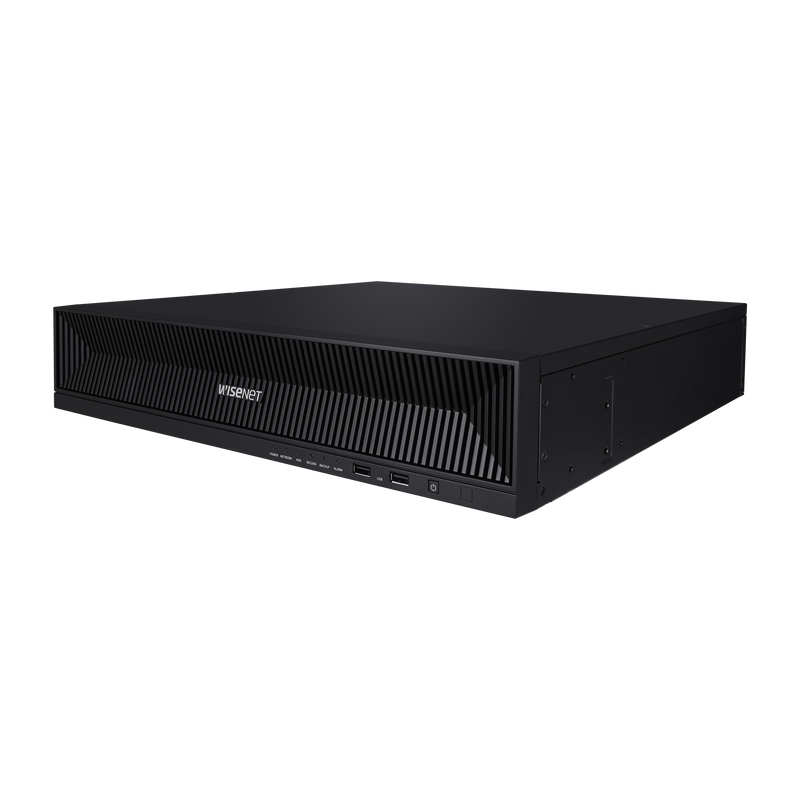

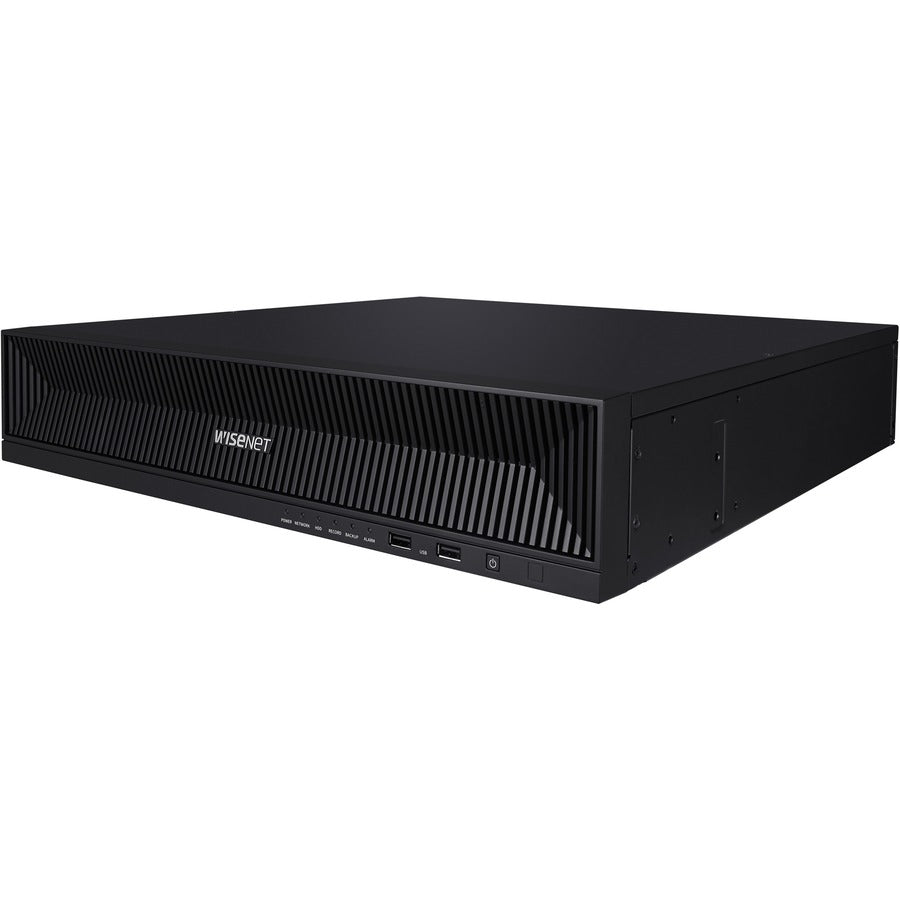

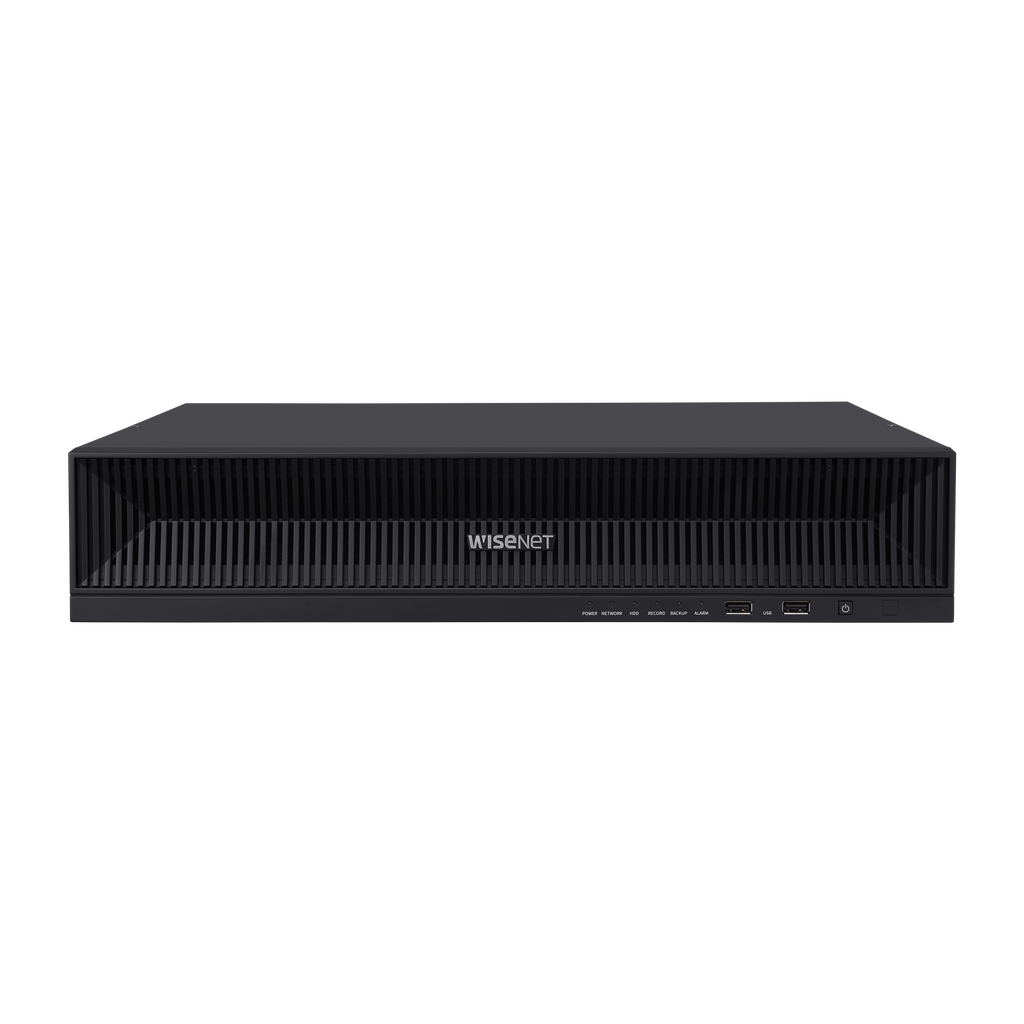

The Hanwha Vision XRN-1620SB1 is a powerful 16-channel NVR engineered for high-resolution surveillance environments requiring reliability, AI-assisted search, and smooth multi-channel recording. Supporting up to 32MP resolution, 140Mbps recording bandwidth, and 16 integrated PoE+ ports, this NVR delivers a plug-and-play deployment experience with exceptional performance.
Designed with an intuitive UI/UX, advanced event handling, bookmark management, RAID-1 support, and compatibility with Hanwha AI cameras, the XRN-1620SB1 ensures fast and accurate video review. With dual-monitor output, extensive storage capacity up to 24TB, and robust network and security protocols, this NVR is ideal for enterprise, commercial, and critical-infrastructure surveillance systems.
| Category | Specification |
|---|---|
| Channels | 16CH network camera inputs |
| Supported Resolution | CIF ~ 32MP |
| Recording Bandwidth | Max. 140Mbps |
| Video Codecs | H.265, H.264, MJPEG |
| Monitor Output | HDMI (3840×2160 @ 30Hz), VGA (1920×1080 @ 30Hz) |
| Display Modes | Dynamic layouts, clone mode (up to 16 divisions), expand mode (up to 9 divisions) |
| Playback Bandwidth | Max. 32Mbps |
| Simultaneous Playback | Up to 64CH (Local 16CH, Remote 16CH per user) |
| Storage | 4× SATA bays (Max. 24TB total), up to 6TB per HDD |
| RAID | RAID-1 |
| PoE Ports | 16× PoE+ RJ-45 (10/100 Mbps) |
| Network Ports | 2× RJ-45 (LAN/WAN 1Gbps) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, HTTPS, SNMP, ONVIF, SUNAPI |
| Event Triggers | Alarm input, video loss, camera events, analytics, audio, dynamic event, user event |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command, shutdown |
| AI Features | AI object attribute search (with Hanwha AI cameras) |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (Network) |
| Remote Users | Search: 3 users, Live Unicast: 10 users |
| Mobile Support | iOS / Android |
| USB Ports | 3 total (2× USB 2.0 front, 1× USB 3.0 rear) |
| Audio | 16CH network audio, G.711/G.726/AAC |
| Alarm I/O | 4× in, 2× out |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | Max. 310W (PoE budget 200W) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in) |
| Weight | 5.76 kg (12.70 lb) |
| Material/Color | Metal chassis / Black |
