Description

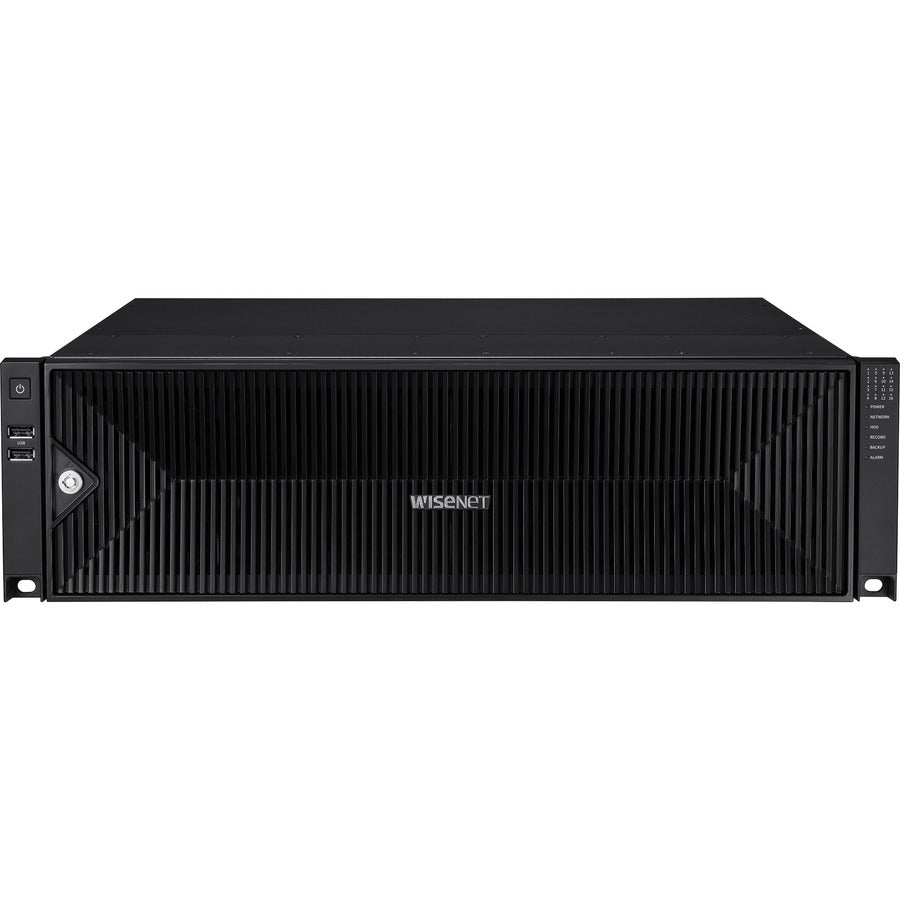

The Wisenet PRN-3200B4-104TB is a high-performance 32-channel 8K AI Network Video Recorder designed for enterprise-grade surveillance environments. With support for H.265/H.264/MJPEG, advanced AI search features, dual-display 8K output, and robust 400Mbps recording bandwidth, this NVR delivers exceptional clarity and reliability for large security deployments.
Equipped with a massive 104TB of pre-installed storage and capacity for up to 16 SATA HDDs, the PRN-3200B4 ensures long-term retention and flexible RAID 5/6 configuration options. Its ARB (Automatic Recovery Backup), failover redundancy, and dual-stream recording enhance system resilience, while WiseStream technology optimizes bandwidth and storage efficiency.
This NVR features P2P/QR code setup for quick mobile access, web UI 2.0 with no browser plug-ins required, and seamless AI event integration when paired with Wisenet P, X, or Q series AI cameras. The unit is fully NDAA and FCC compliant, ready for U.S. government or regulated environments.
| Category | Specification |
|---|---|
| SKU | PRN-3200B4-104TB |
| Channels | Up to 32 channels |
| Video Resolution | Up to 8K (32MP) |
| Recording Bandwidth | Up to 400 Mbps |
| Playback Bandwidth | Max. 64 Mbps (32CH simultaneous) |
| CODEC Support | H.265, H.264, MJPEG, WiseStream |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Display Mode | Dual display, dynamic layouts, up to 36 divisions |
| HDD Bays | 16 × SATA (supports up to 10TB each) |
| Total Max Storage | 160TB max (unit configured with 104TB) |
| RAID Support | RAID 5/6 (2 arrays, 8 HDDs each) |
| AI Features | BestShot, Attribute Search, Object detection/classification (Vehicle, Person, Face*), License Plate (Wisenet AI cameras) |
| Event Triggers | Video loss, MD, analytics, defocus, audio, alarms, dynamic events |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP, shutdown |
| Network | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP/S, DHCP, DDNS, SNMP, ONVIF Profile-S |
| Network Bandwidth | Up to 400 Mbps |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Mobile Support | iOS, Android (QR code P2P pairing) |
| Audio I/O | 32CH network audio; G.711, G.726, AAC |
| USB Ports | 4 (Front: 2 × USB 2.0, Rear: 2 × USB 3.0) |
| Alarm I/O | 8 In / 4 Out |
| Ethernet Ports | 3 × RJ-45 (1Gbps) |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | Max. 285W (with 16 HDDs) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDDs not included) |
| Compliance | NDAA compliant, FCC compliant |
