Description

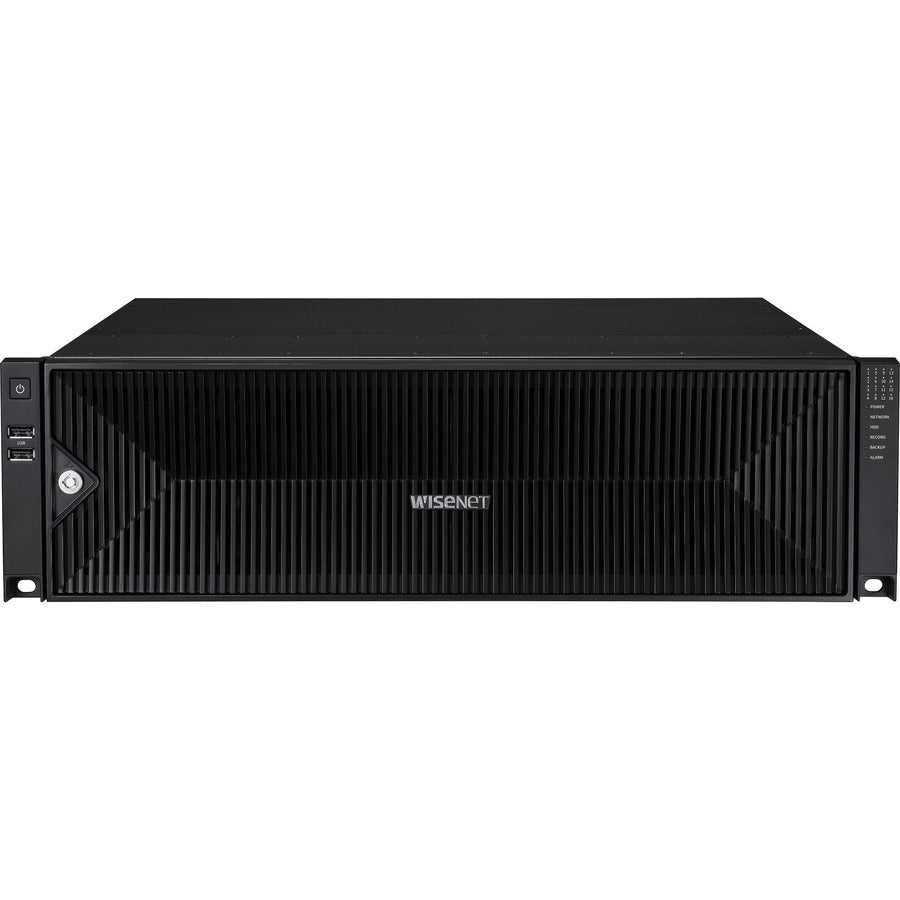

The Wisenet PRN-3200B4 32-Channel 8K AI NVR (112TB) delivers high-performance recording, advanced analytics, and enterprise-grade storage capacity for large surveillance deployments. Designed for reliability and scalability, it supports up to 32 channels at true 8K resolution, ensuring exceptional image clarity across large facilities, campuses, or multi-site environments.
Equipped with 16 internal SATA bays, this model provides a massive 112TB pre-installed storage configuration (expandable up to 160TB). With H.265/H.264/MJPEG codec support, WiseStream dynamic bandwidth optimization, and up to 400 Mbps recording throughput, it delivers efficient, high-quality video management.
Users benefit from AI-powered search, including attribute-based and object-based filtering when paired with supported Wisenet P/X/Q-series AI cameras. The NVR offers dual HDMI/VGA output, seamless remote access via QR code/P2P, enhanced cybersecurity, and full NDAA/FCC compliance, making it suitable for government, enterprise, and critical-infrastructure use cases.
| Category | Details |
|---|---|
| SKU | PRN-3200B4-112TB |
| Channels | Up to 32 network camera inputs |
| Max Resolution | Up to 32MP (8K) recording & playback |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps (distributed/RAID mode) |
| Playback Bandwidth | Up to 64 Mbps, up to 32CH simultaneous local playback |
| Display Outputs | HDMI 1 (3840×2160/30Hz), HDMI 2 (1920×1080/60Hz), VGA |
| Multi-Screen | Up to 36 divisions (HDMI1), 16 divisions (HDMI2) |
| Internal Storage | 16 × SATA bays (supports up to 160TB total) |
| Included Storage | 112TB HDD pre-installed |
| HDD Support | Up to 10TB per drive, hot-swap capable |
| RAID Support | RAID 5/6 (8 drives × 2 arrays) |
| AI Search | Object attributes (person, face*, vehicle, license plate), BestShot (with Wisenet AI cameras) |
| Event Triggers | Camera events, motion, defocus, analytics, audio detection, alarm I/O |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, SUNAPI command, monitor output |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, DHCP, HTTPS, SNMP, ONVIF Profile S, SUNAPI |
| Cybersecurity | IP filtering, user access log, 802.1X, signed firmware, device certificate |
| Remote Access | QR code (P2P), Wisenet Mobile, Web Viewer (Chrome/Edge/Safari) |
| Integration | SSM, Smart Viewer, Web Viewer, 3rd-party VMS via SDK/CGI |
| Audio | 32CH network audio, G.711/G.726/AAC, 2-way audio |
| Interfaces | 3 × RJ-45 (1GbE), 8 alarm inputs, 4 alarm outputs, USB 2.0 ×2, USB 3.0 ×2, 1 audio out |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max 285W (with 16 HDDs) |
| Operating Temp | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDD not included) |
| Compliance | NDAA Compliant, FCC Certified |
