Description

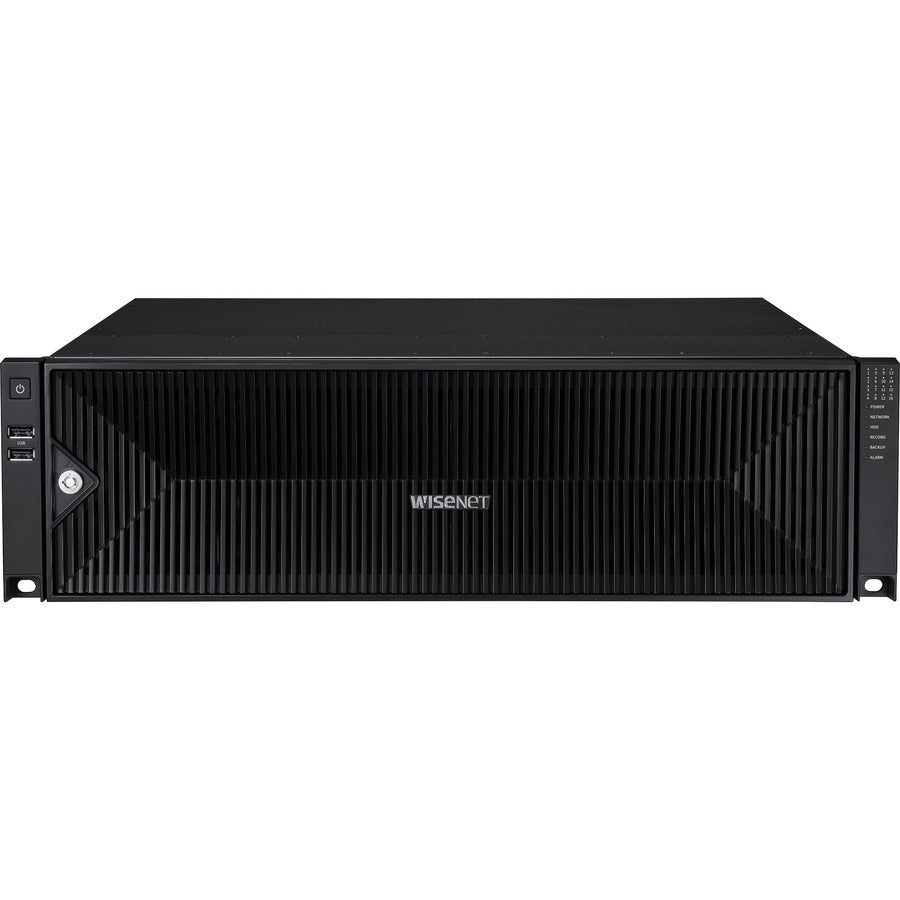

The Wisenet PRN-3200B4-128TB is a high-performance 32-channel 8K AI Network Video Recorder designed for large-scale, mission-critical surveillance environments. Featuring powerful 8K recording, AI-enhanced search, and a massive 128TB storage configuration (expandable up to 160TB), this NVR delivers advanced reliability, seamless playback, and scalable storage for enterprise, government, and commercial deployments.
Optimized for Wisenet P, X, and Q series AI cameras, it supports detailed object classification, attribute-based search, and license-free recording. With dual HDMI outputs, WiseStream bandwidth optimization, RAID 5/6 support, and Automatic Recovery Backup (ARB), the PRN-3200B4 ensures robust performance and maximum uptime.
Its built-in P2P QR-code onboarding, modern web UI 2.0, and NDAA/FCC compliance make deployment simple and fully approved for government and restricted-use environments.
| Category | Details |
|---|---|
| SKU | PRN-3200B4-128TB |
| Channels | 32CH network camera inputs |
| Max Resolution | Up to 8K (32MP) recording & display |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps |
| Playback Bandwidth | Up to 64 Mbps |
| Playback | Up to 80CH simultaneous (Local 32CH / Remote 16CH per user) |
| Internal Storage | 16 × SATA (up to 160TB total), 10TB per HDD max, hot-swap |
| Included Storage | 128TB pre-installed HDD |
| RAID Support | RAID 5/6 (8-disk × 2 array configuration) |
| AI Capabilities | AI search, BestShot, attribute search; vehicle, person, face, license plate (with Wisenet AI cameras) |
| Display Outputs | HDMI 1 (3840×2160 @30Hz), HDMI 2 (1920×1080 @60Hz) |
| Multi-screen Layouts | Up to 36 divisions (HDMI1), up to 16 divisions (HDMI2) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, DHCP, PPPoE, ONVIF Profile S, SUNAPI |
| Audio | 32CH network audio, G.711/G.726/AAC, 2-way audio |
| Mobile Support | iOS, Android via Wisenet Mobile |
| Failover / Redundancy | ARB (Auto Recovery Backup), Failover N+1 |
| Interfaces | 3 × RJ-45 LAN/WAN (1Gbps), 4 × USB (2 front, 2 rear), 8 alarm in / 4 alarm out |
| Operating System | Embedded Linux |
| Power | 100–240VAC, max 285W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDD not included) |
| Compliance | NDAA Compliant, FCC Compliant |
