Description

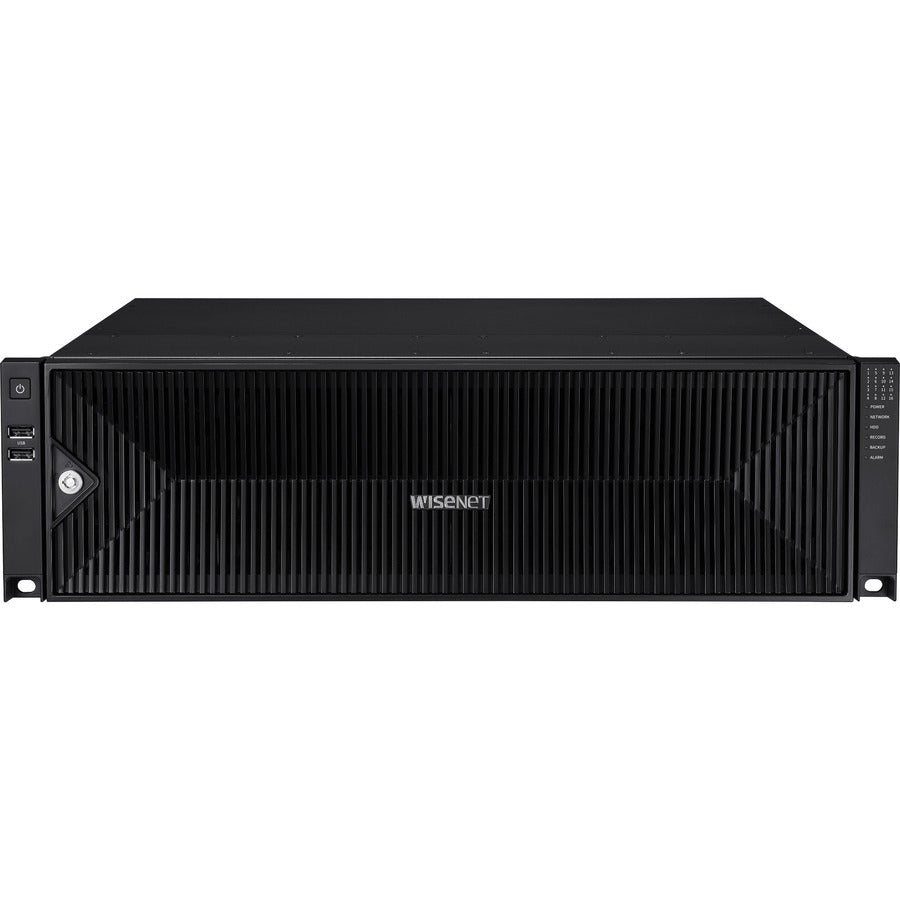

The Wisenet PRN-3200B4-12TB is a high-performance 32-channel 8K AI NVR engineered for large-scale surveillance environments requiring maximum recording bandwidth, deep AI search capabilities, and robust storage scalability. Offering real-time 8K recording, advanced object/attribute-based AI search (when used with compatible Wisenet AI cameras), and support for up to 16 internal SATA HDDs, this NVR delivers unmatched flexibility for high-density deployments.
Designed with dual HDMI display outputs, WiseStream compression, and distributed recording up to 400 Mbps, it enables efficient monitoring, playback, and system management without plug-ins via the modern Web UI 2.0. ARB (Automatic Recovery Backup), RAID 5/6, N+1 failover, and hot-swap HDDs ensure continuous operation and data resilience.
With integrated QR-code P2P setup, mobile support, and compatibility across P, X, and Q series Hanwha Vision cameras, the PRN-3200B4-12TB is built for reliable, enterprise-class video surveillance.
| Category | Specification |
|---|---|
| SKU | PRN-3200B4-12TB |
| Channels | Up to 32CH network cameras |
| Max Resolution | Up to 32MP (8K) |
| Recording Bandwidth | Up to 400 Mbps (Distributed) / 150 Mbps (Normal) |
| Playback Bandwidth | Up to 64 Mbps (32CH simultaneously) |
| Video Compression | H.265, H.264, MJPEG, WiseStream |
| AI Search | BestShot, attribute search; person, face*, vehicle, license plate (Wisenet AI cameras) |
| Internal Storage | 16 × SATA HDD bays, hot-swap (Up to 160TB) |
| Included Storage | 12TB pre-installed |
| RAID Support | RAID 5/6 (8HDD × 2 arrays) |
| Display Outputs | HDMI 1: 3840×2160 (30Hz), HDMI 2: 1920×1080 (60Hz) |
| Multi-Screen | Up to 36-division layouts (local) |
| Recording Modes | Normal, Dual Stream, Schedule, Event, Pre/Post Event, Bookmark |
| Events & Triggers | Alarm input, video loss, analytics events, defocus, audio detection, dynamic events |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP, shutdown |
| Network | IPv4/IPv6, TCP/UDP, RTP/RTSP, HTTP/HTTPS, DHCP, SNMP, ONVIF, SUNAPI |
| Network Bandwidth | Up to 400 Mbps |
| Remote Users | Live unicast: 10, multicast: 20, search: 3 |
| Audio | 32CH IP audio, G.711/G.726/AAC, 2-way audio |
| Interfaces | 3 × RJ-45 (1Gbps), 2 × HDMI, 4 × USB, 8 × Alarm In, 4 × Alarm Out |
| Mobile Support | iOS/Android (live up to 16CH, playback up to 4CH) |
| Failover | N+1 failover, ARB support |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | Max 285W (with 16 HDDs) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDD not included) |
