Description

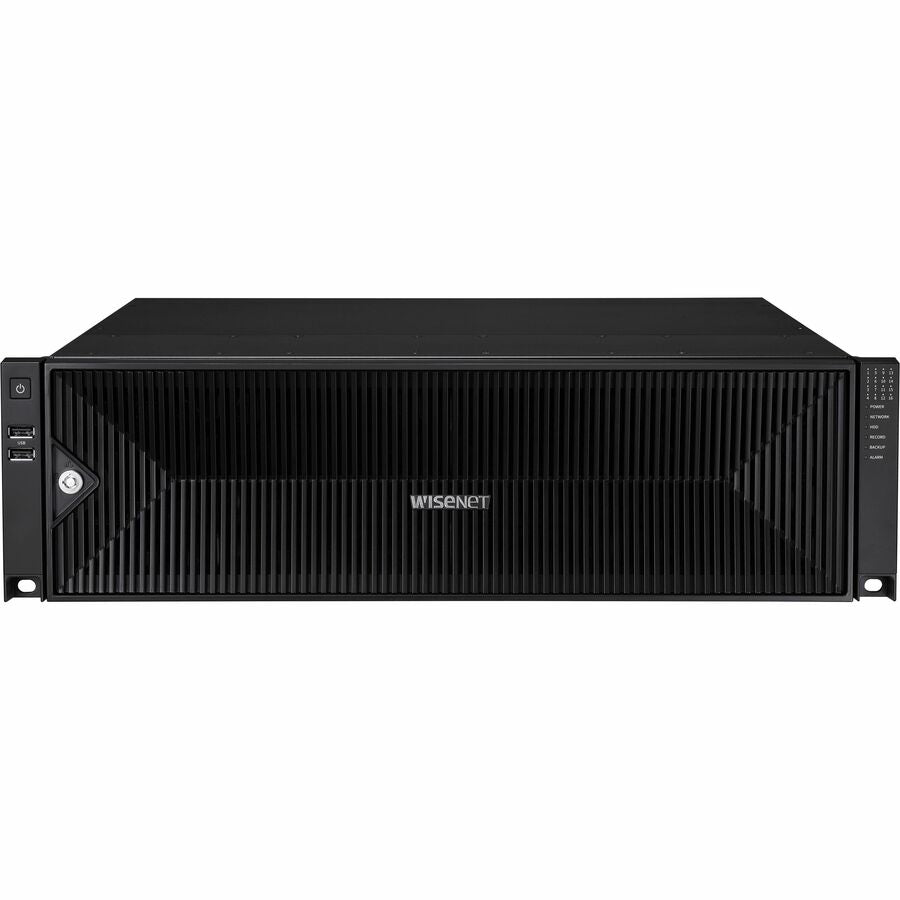

The Wisenet PRN-3200B4-140TB is a high-performance 32-channel 8K AI NVR engineered for large-scale surveillance environments requiring expansive storage, advanced analytics, and reliable 24/7 recording. Equipped with 140TB of pre-installed storage, this recorder supports up to sixteen SATA HDDs and offers RAID 5/6 capability for enhanced data protection.
With up to 400Mbps recording bandwidth, dual-stream H.265/H.264/MJPEG support, and WiseStream compression technology, the PRN-3200B4 delivers efficient and high-quality video capture. Local HDMI/VGA dual display supports resolutions up to 32MP, complemented by web UI 2.0 and a plug-in-free browser experience.
AI search functionality enhances forensic review when paired with compatible Hanwha P, X, and Q series AI cameras—unlocking object, attribute, license plate, and BestShot analysis. Additional conveniences include P2P/QR-code mobile setup, ARB (Automatic Recovery Backup), multi-channel playback, dynamic event handling, and NDAA/FCC compliance for deployment in regulated environments.
| Category | Details |
|---|---|
| SKU | PRN-3200B4-140TB |
| Channels | Up to 32CH network cameras |
| Maximum Resolution | Up to 8K (32MP) recording/display |
| Recording Bandwidth | Up to 400 Mbps |
| Playback Bandwidth | Up to 64 Mbps |
| Compression | H.265, H.264, MJPEG, WiseStream |
| Internal Storage | 16 × SATA HDD (hot-swap), up to 10TB each |
| Pre-Installed Storage | 140TB |
| RAID Support | RAID 5/6 (8 HDD × 2 arrays) |
| AI Features | AI Search (object, face* with AI camera, vehicle, license plate), BestShot, attributes |
| Event Triggers | Alarm input, video loss, camera analytics, defocus, audio, dynamic events |
| Event Actions | Email, push notifications, PTZ preset, alarm out, FTP, buzzer, monitor out |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-View | Up to 36 divisions (Local), up to 16 divisions (HDMI2) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, HTTP(S), ONVIF Profile-S, SUNAPI |
| Remote Access | Up to 10 live users / 20 multicast / 3 search users |
| Mobile Support | iOS / Android (via Wisenet Mobile), P2P QR-based setup |
| Browser Support | Chrome, Edge, Safari (web UI 2.0, no plugins) |
| Interfaces | 3 × RJ-45 (1Gbps), 8 × Alarm In, 4 × Alarm Out, USB2.0 ×2, USB3.0 ×2, Audio Out |
| Power Input | 100–240VAC, 285W max |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm |
| Compliance | NDAA compliant, FCC compliant |
