Description

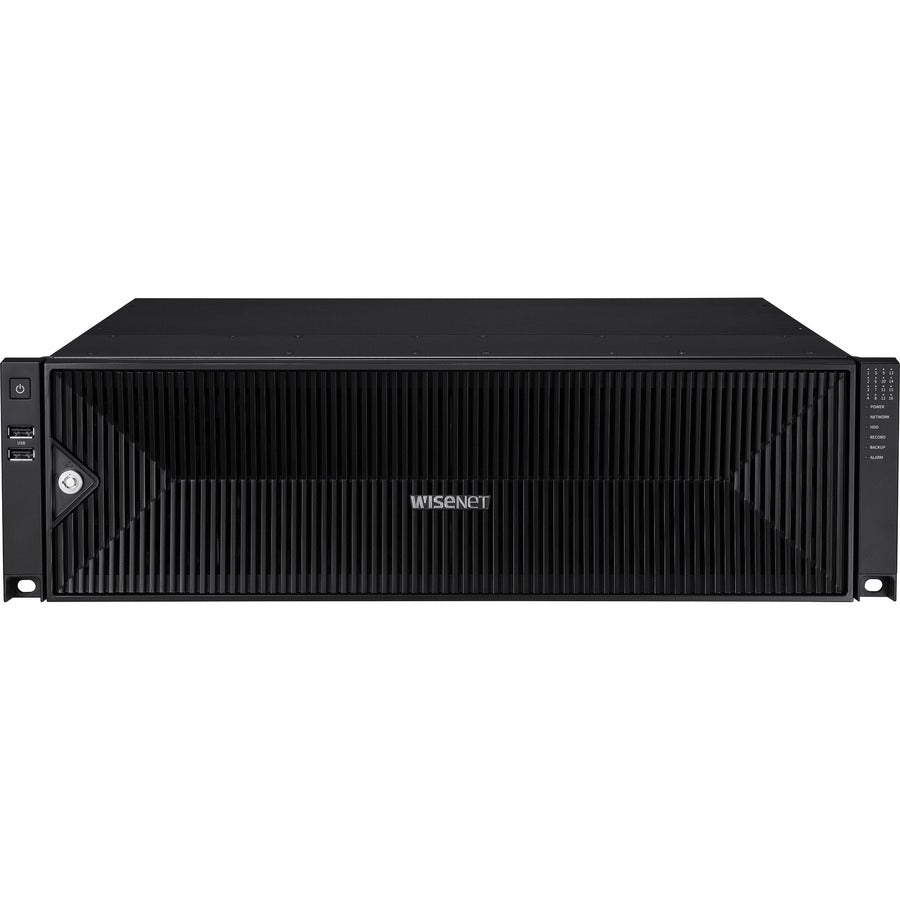

The Wisenet PRN-3200B4-150TB is a high-performance 32-channel 8K AI NVR engineered for large-scale, mission-critical surveillance environments. Featuring a massive 150TB of pre-installed storage and support for up to 16 SATA HDDs, this NVR delivers robust recording capacity, AI-powered analytics, and seamless device integration with Wisenet P, X, and Q-series cameras.
With support for H.265/H.264/MJPEG codecs, up to 400Mbps recording throughput, RAID 5/6 protection, and automatic recovery backup (ARB), the PRN-3200B4 ensures reliable, uninterrupted video capture. Its dual-display HDMI/VGA outputs, enhanced AI search tools, WiseStream optimization, and modern Web UI 2.0 make operation both efficient and intuitive.
Designed for enterprise-grade deployments, this NDAA-compliant NVR includes powerful event management, P2P/QR-code mobile connectivity, two-way audio, and multi-channel playback, offering the performance and scalability required for advanced security systems.
| Category | Specification |
|---|---|
| SKU | PRN-3200B4-150TB |
| Channels | Up to 32CH network cameras |
| Max Resolution | Up to 8K (32MP) |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps (distributed) |
| Playback Bandwidth | Up to 64 Mbps |
| Display Output | HDMI 1: 3840×2160 (30Hz); HDMI 2: 1920×1080 (60Hz) |
| Multi-Screen Display | Up to 36 divisions; dynamic layout; virtual channel view |
| Recording Modes | Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark |
| AI Capabilities | BestShot, attribute search, object classification, person/face/vehicle/LPR (with Wisenet AI cameras) |
| Storage Capacity | 16 × SATA HDD bays (up to 10TB each) |
| Pre-Installed Storage | 150TB |
| Maximum Storage | Up to 160TB (non-RAID mode) |
| RAID Support | RAID 5/6 (8-HDD × 2 arrays) |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (network) |
| Networking | IPv4/IPv6, RTSP, HTTPS, ONVIF Profile S, SUNAPI |
| Transmission Bandwidth | Max 400 Mbps |
| Audio Support | 32CH network audio, G.711/G.726/AAC, 2-way audio |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Web Viewer | Chrome, Edge, macOS Safari |
| Mobile Support | iOS/Android; P2P QR-code connection |
| Events & Actions | E-mail, Push, PTZ preset, alarm out, buzzer, FTP, SUNAPI command |
| Interfaces | 3 × RJ-45 (1Gbps), 2 × HDMI, 4 × USB, Audio Out, Alarm I/O |
| Power Input | 100–240VAC (50/60Hz) |
| Power Consumption | Max 285W (with 16 HDDs) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDD not included) |
| Compliance | NDAA & FCC compliant |
| Additional Features | ARB (Automatic Recovery Backup), Failover N+1, Bookmark management, Fisheye dewarping, Web UI 2.0 |
