Description

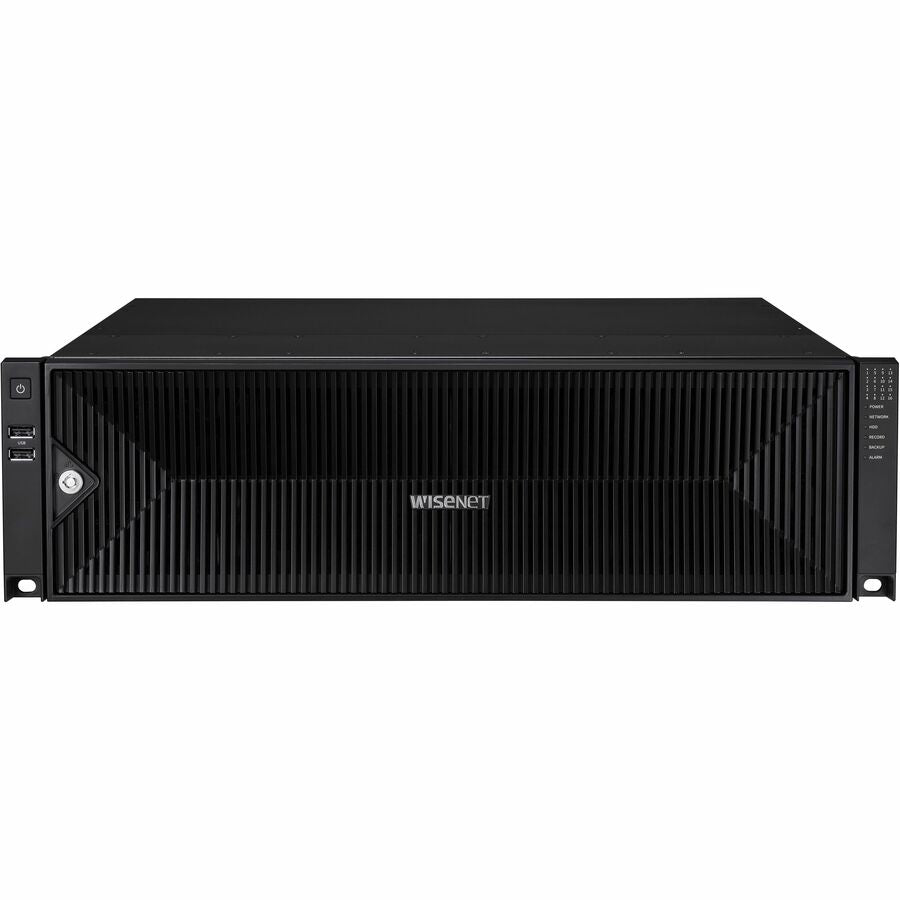

The Wisenet PRN-3200B4-160TB is a powerful 32-channel 8K AI NVR designed for large-scale, enterprise-grade surveillance environments. With support for up to 32MP resolution, advanced AI search, and license-free recording, it delivers exceptional performance for high-density camera deployments.
Engineered with 16 internal SATA bays and fully populated 160TB storage, this NVR supports RAID 5/6, hot-swap drives, and offers up to 400Mbps of recording bandwidth. Smart features include BestShot capture, object classification, dynamic event handling, fisheye dewarping, and seamless integration with Wisenet AI cameras.
The dual-display HDMI/VGA output enables operators to monitor up to 36 divisions per screen, while web UI 2.0 ensures efficient management without additional plug-ins. Easy setup features like QR-code P2P connection, mobile viewing, and compatibility with Wisenet Viewer and Wisenet Mobile enhance deployment speed and remote operations. Fully NDAA and FCC compliant, the PRN-3200B4-160TB is optimized for government, enterprise, and critical infrastructure applications.
| Category | Details |
|---|---|
| SKU | PRN-3200B4-160TB |
| Channels | Up to 32 network cameras |
| Max Resolution | Up to 8K (32MP) |
| Recording Bandwidth | Up to 400Mbps (Normal / RAID mode) |
| Playback Bandwidth | Up to 64Mbps |
| Compression Formats | H.265, H.264, MJPEG, WiseStream |
| AI Features | BestShot, attribute search, object detection/classification, LPR (with Wisenet AI cameras) |
| Storage Capacity | 16 × SATA HDD (10TB each max), 160TB populated |
| RAID Support | RAID 5/6 (8-drive arrays × 2) |
| HDD Support | Hot-swap drives |
| Display Output | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz), up to 36-division layouts |
| Video Modes | Normal, Dual Stream, Schedule, Event, Bookmarking |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, DHCP, DDNS, SNMP, ONVIF Profile-S, SUNAPI |
| Mobile Support | iOS / Android via Wisenet Mobile |
| Audio | 32-channel network audio, G.711 / G.726 / AAC |
| Interfaces | 3 × RJ-45 (1Gbps), 4 × USB, 8 × alarm inputs, 4 × alarm outputs, audio out, 2 × HDMI |
| Environmental | Operating: 0°C ~ 40°C (32°F ~ 104°F), Humidity: 20%–85% |
| Power | 100–240VAC, max 285W |
| Dimensions | 440 × 132 × 571.1 mm |
| Weight | Approx. 13.6 kg (without HDD) |
| Easy Setup Features | P2P/QR code connection, web UI 2.0 (no plug-ins) |
| Compliance | NDAA compliant, FCC compliant |
| Additional Features | ARB (Automatic Recovery Backup), N+1 failover, fisheye dewarping, bookmarking (up to 100 sets) |
