Description

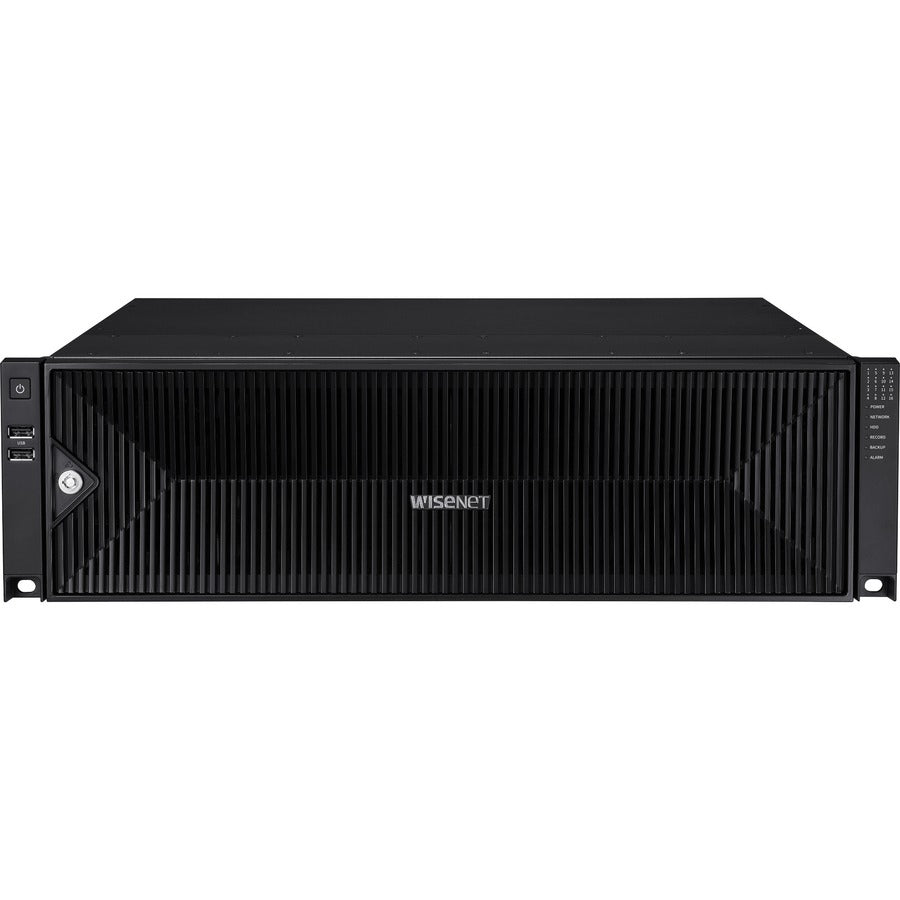

The Wisenet PRN-3200B4-16TB is a high-performance 32-channel 8K AI NVR engineered for large-scale, enterprise-grade surveillance environments. It supports up to 32 network cameras, delivers 8K (32MP) recording, and provides a 400 Mbps recording bandwidth to accommodate high-resolution video across demanding installations.
Built with AI search capabilities, the NVR enables efficient retrieval using object classification, BestShot, and attribute-based filtering when paired with compatible Wisenet P, X, and Q AI cameras. Its dual HDMI display, web UI 2.0 (no plugin requirement), and dynamic multi-screen layouts offer versatile local and remote monitoring options.
With 16 internal SATA bays (up to 160TB total capacity), RAID 5/6, hot-swap drive support, and ARB (Automatic Recovery Backup), the PRN-3200B4-16TB ensures data integrity and uninterrupted recording. The system includes powerful event management, multi-channel playback, robust security protections, and seamless mobile access through QR-code setup.
Ideal for airports, city surveillance, campuses, distribution centers, and critical infrastructure needing dependable 24/7 video recording at scale.
| Category | Details |
|---|---|
| SKU | PRN-3200B4-16TB |
| Channels | Up to 32CH network inputs |
| Max Resolution | Up to 8K (32MP) |
| Video Compression | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps (distributed mode) |
| Playback Bandwidth | Up to 64 Mbps (32CH simultaneous) |
| Internal Storage | 16 × SATA HDD bays (hot-swap), up to 160TB (10TB per drive max) |
| Included Storage | 16TB (factory-configured) |
| RAID Support | RAID 5/6 (8-drive × 2 arrays) |
| AI Features | Object classification, BestShot, attribute search; AI search with Wisenet AI cameras |
| Dual Display Output | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Layout | Up to 36 divisions (HDMI1), up to 16 divisions (HDMI2) |
| Network Protocols | IPv4/IPv6, TCP/IP, RTSP, HTTPS, SNMP, SUNAPI, ONVIF Profile-S, and more |
| Audio Support | 32CH network audio, G.711/G.726/AAC; 2-way audio |
| Events & Actions | Alarm input, video analytics, dynamic event; email, PTZ preset, alarm out, push alerts |
| Mobile Support | iOS/Android, QR-code P2P setup |
| Failover/Redundancy | N+1 failover, ARB supported |
| Interfaces | 3× RJ-45 (1GbE), 4× USB, audio out, alarm I/O, 2× HDMI |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDD not included) |
| Power | 100–240 VAC, max 285W |
