Description

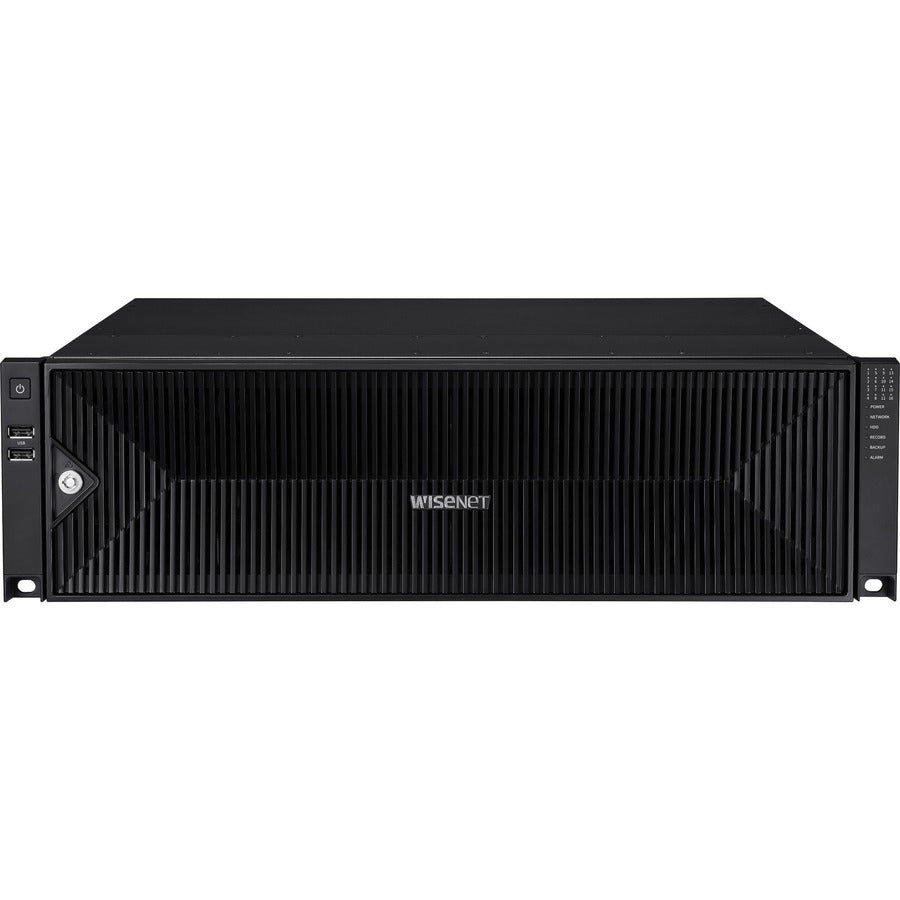

The Wisenet PRN-3200B4-20TB is a powerful 32-channel 8K AI NVR designed for enterprise-grade surveillance environments requiring high bandwidth, massive storage capacity, and advanced analytics. Supporting up to 32MP video input, the unit delivers smooth, license-free recording with up to 400 Mbps throughput and efficient H.265/H.264/MJPEG compression.
With 20TB pre-installed storage and support for up to sixteen SATA HDDs (up to 160TB), the PRN-3200B4 offers exceptional scalability—enhanced further by RAID 5/6 for redundancy and ARB (Automatic Recovery Backup). The NVR unlocks AI search features such as BestShot, object attribute identification, and object classification when paired with compatible Wisenet AI cameras.
Dual 4K/Full HD HDMI outputs, dual-stream recording, dynamic event management, and a plugin-free Web UI 2.0 provide a seamless user experience for both local and remote monitoring. Ideal for large facilities, campuses, and mission-critical security deployments.
| Category | Details |
|---|---|
| Channels & Video | Up to 32 channels, supports 32MP–CIF resolutions |
| Video Compression | H.265, H.264, MJPEG, WiseStream (H.265/H.264) |
| Recording Bandwidth | Distributed mode: up to 400 Mbps; Normal: up to 150 Mbps; RAID mode: up to 400 Mbps |
| Playback | Max. 64 Mbps playback bandwidth; up to 80CH simultaneous playback (local + remote) |
| Display Output | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz); dynamic layouts, virtual channels |
| Storage Capacity | 20TB pre-installed; supports up to 16 SATA HDDs (max. 160TB), 10TB per disk |
| RAID Support | RAID 5/6 (8 HDDs × 2 arrays), hot-swap capable |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (network) |
| AI Search Features | BestShot, attribute search, object detection/classification (person, face*, vehicle, license plate*) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, SNMP, HTTPS, ONVIF Profile-S, SUNAPI |
| Remote Access | Max. 4 users (1 local, 3 remote); supported on Windows 10/macOS; browsers: Chrome, Edge, Safari |
| Mobile Support | iOS/Android via Wisenet Mobile; live 16CH and playback 4CH |
| Interfaces | 3× RJ-45 LAN (1Gbps), 2× HDMI, 4× USB (2× USB2.0 front, 2× USB3.0 rear), 8 alarm in / 4 alarm out, 1 audio out |
| Power | 100–240VAC ±10%, 50/60Hz; max. 285W |
| Environmental | Operating temp: 0°C to +40°C; humidity: 20%–85% RH |
| Dimensions & Weight | 440 × 132 × 571.1 mm; approx. 13.6 kg (without HDDs) |
