Description

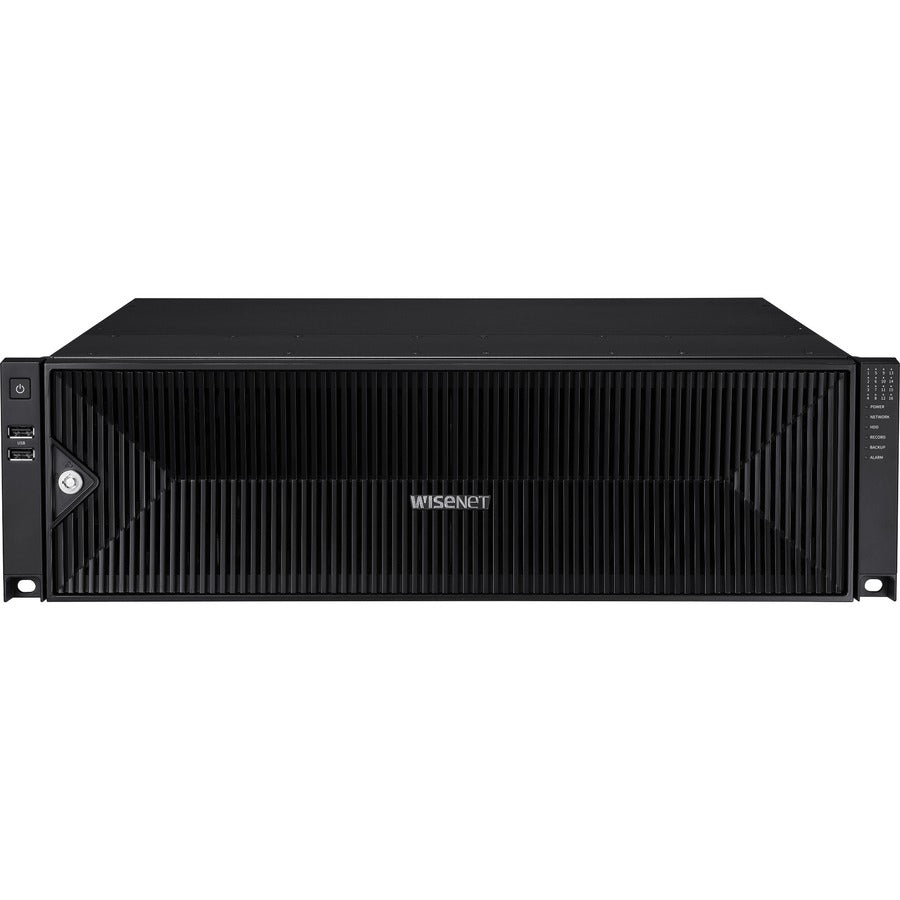

The Wisenet PRN-3200B4 32-Channel 8K AI Network Video Recorder delivers high-performance enterprise-grade recording with advanced AI-powered search, robust storage capacity, and smooth 8K video support. This model includes a pre-installed 24TB HDD configuration designed for scalable, high-density surveillance environments.
Equipped with up to 32 channels, 400 Mbps recording bandwidth, AI object detection, and BestShot/attribute search, it enhances forensic review and reduces search time. The system supports H.265/H.264/MJPEG, dual-display output via HDMI/VGA, and easy mobile access through QR code onboarding.
With support for up to 16 SATA HDDs (160TB max), RAID 5/6, ARB (Automatic Recovery Backup), dynamic event detection, fisheye dewarping, and a modern plugin-free web interface, the PRN-3200B4 provides a future-ready surveillance backbone for medium to large deployments.
| Category | Specification |
|---|---|
| SKU | PRN-3200B4-24TB |
| Channels | Up to 32 network camera channels |
| Maximum Resolution | Up to 8K (32MP) |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps |
| Playback Bandwidth | Up to 64 Mbps (32CH simultaneous) |
| Display Outputs | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Up to 36 divisions (local), up to 16 divisions (HDMI2) |
| AI Functions | AI search, object/attribute detection, person/vehicle/face (with Wisenet AI cameras) |
| Storage Capacity | 16 × SATA HDD (up to 10TB each; max 160TB) |
| Included Storage | 24TB (pre-installed) |
| RAID Support | RAID 5/6 (8 HDD × 2 arrays) |
| External Storage | iSCSI supported |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, NTP, HTTP/HTTPS, DHCP, SNMP, ONVIF |
| Audio | 32CH network audio, 2-way communication, G.711/G.726/AAC |
| Alarms | 8 inputs, 4 outputs |
| USB Ports | 4 (Front: 2 × USB 2.0, Rear: 2 × USB 3.0) |
| Ethernet Ports | 3 × RJ-45 (1Gbps) |
| Mobile Support | iOS, Android; live 16CH & 4CH playback |
| Failover & Backup | N+1 failover, ARB, multi-channel backup |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Power | 100–240VAC, Max 285W |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDD not included) |
