Description

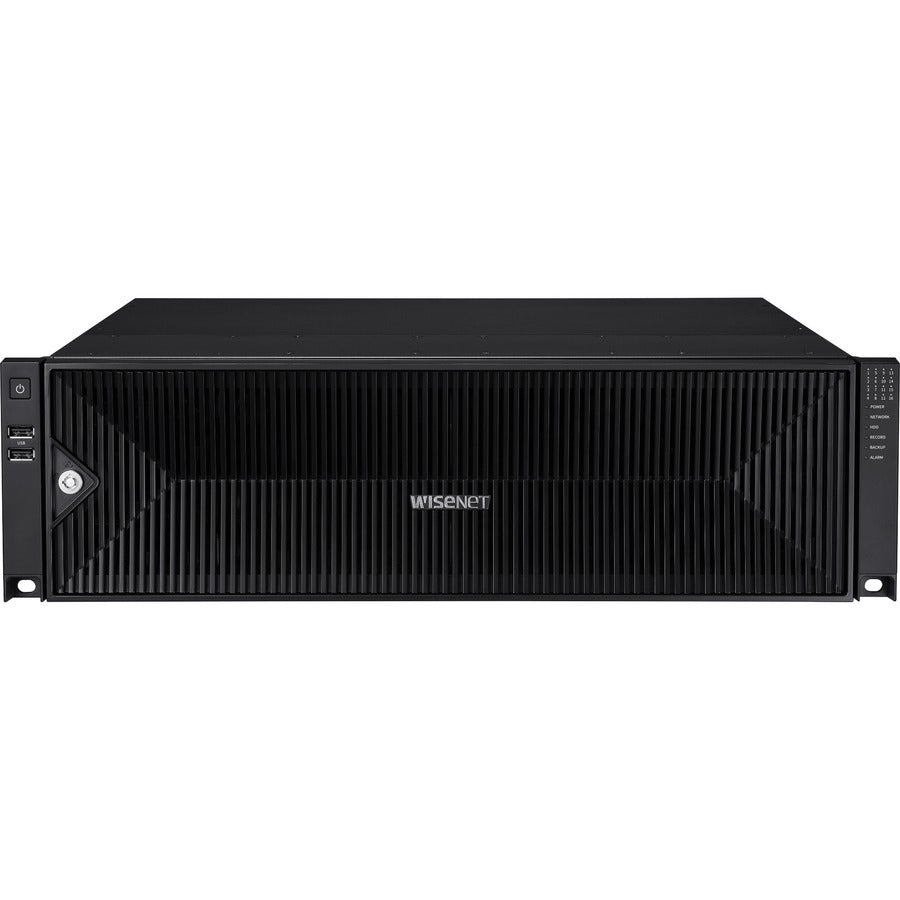

The Wisenet PRN-3200B4-32TB is a high-performance 32-channel 8K AI Network Video Recorder designed for large-scale, mission-critical surveillance environments. It delivers advanced AI search, high-capacity storage, and exceptional recording bandwidth up to 400Mbps for smooth, reliable video capture across demanding installations.
Built with 16 internal SATA bays and pre-configured with 32TB storage, this NVR supports expansion up to 160TB, along with RAID 5/6 for added data protection. With support for 8K cameras, intelligent analytics, fisheye dewarping, and a modern plugin-free web UI, the PRN-3200B4 delivers enterprise-grade performance with simplified deployment.
Dual HDMI/VGA local display outputs, dynamic multi-screen options, and seamless integration with Wisenet AI cameras make this recorder a powerful backbone for security systems requiring high accuracy, scalability, and operational efficiency.
| Category | Specification |
|---|---|
| SKU | PRN-3200B4-32TB |
| Video Input | Up to 32 channels |
| Max Resolution | Up to 8K (32MP) |
| Recording Bandwidth | Up to 400 Mbps (Distributed/RAID mode) |
| Playback Bandwidth | Max. 64 Mbps (32CH simultaneous) |
| Video Compression | H.265, H.264, MJPEG, WiseStream |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Screen Display | Up to 36 divisions (HDMI1), 16 divisions (HDMI2) |
| Storage Capacity | 16× SATA (up to 10TB per HDD) |
| Pre-Installed Storage | 32TB |
| Max Internal Storage | 160TB |
| RAID Support | RAID 5/6, 8-HDD × 2 array groups |
| External Storage | iSCSI supported |
| AI Features | AI Search (BestShot, Attributes), object classification, LPR (with Wisenet AI cameras) |
| Event Triggers | Alarm input, video loss, analytics, MD, sensor, defocus, audio, dynamic event, user event |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command, shutdown |
| Fisheye Dewarping | Supported (Local 1CH) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP/HTTPS, DHCP, PPPoE, SMTP, ICMP, IGMP, DNS, DDNS, ONVIF Profile S, SUNAPI |
| Audio I/O | 32CH network audio, G.711 / G.726 / AAC |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Mobile Support | iOS/Android, QR-code easy setup |
| Interfaces | 3× RJ-45 (1Gbps LAN/WAN), 2× HDMI, 1× audio out, 8× alarm in, 4× alarm out, 4× USB |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max. 285W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6kg (HDD not included) |
