Description

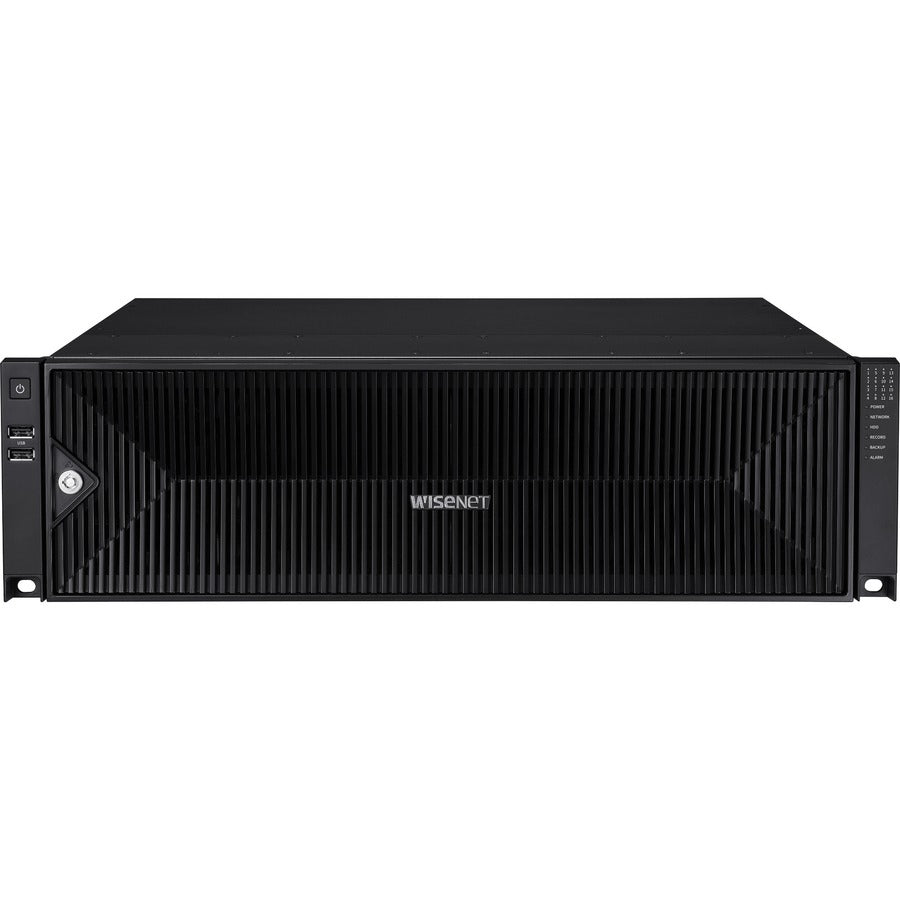

The Wisenet PRN-3200B4-40TB is a high-performance 32-channel 8K AI Network Video Recorder designed for demanding enterprise-level surveillance environments. Equipped with 40TB of pre-installed storage, this NVR supports up to 16 SATA HDDs, scalable to 160TB total, and delivers 400 Mbps distributed-mode recording throughput for smooth, reliable video capture.
This model offers AI-powered search, enabling rapid investigations using object attributes such as person, face (with compatible Wisenet AI cameras), vehicle, and license plate. Advanced recording options include H.265/H.264/MJPEG codecs, RAID-5/6 redundancy, ARB (Automatic Recovery Backup), and multi-stream support for optimized bandwidth and storage efficiency.
The PRN-3200B4-40TB provides dual HDMI/VGA display, up to 32MP local display resolution, dynamic multi-screen layouts, and seamless configuration via web UI 2.0 with no plugins required. With built-in failover (N+1), enhanced cybersecurity, strong mobile support, and easy setup via QR code, this NVR is ideal for large-scale and mission-critical deployments where reliability and intelligence matter.
| Category | Specification |
|---|---|
| SKU | PRN-3200B4-40TB |
| Channels | Up to 32CH network cameras |
| Maximum Resolution | Up to 32MP (8K) |
| Recording Throughput | Up to 400 Mbps (Distributed), 150 Mbps (Normal), 400 Mbps (RAID Normal), 320 Mbps (RAID Degrade/Rebuild) |
| Playback Bandwidth | Max. 64 Mbps (32CH simultaneous) |
| Display Outputs | HDMI1: 3840×2160 (30Hz), HDMI2: 1920×1080 (60Hz) |
| Multi-Display Layouts | Dynamic layouts, virtual channels, clone mode up to 36 divisions, expand mode (HDMI1 up to 36 div., HDMI2 up to 16 div.) |
| Supported Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Modes | Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark |
| AI Search | Person, face (AI cameras), vehicle, license plate |
| HDD Slots | 16 × SATA (up to 10TB each), hot-swap supported |
| Total Capacity | Up to 160TB (includes 40TB installed) |
| RAID Support | RAID-5 / RAID-6 (8 HDDs × 2 arrays) |
| Backup Options | BU/Exe/AVI, JPG/AVI |
| Network Protocols | IPv4/IPv6, TCP/IP, RTP/RTSP, NTP, HTTP/HTTPS, DHCP, SNMP, DDNS, uPnP, SUNAPI, ONVIF Profile-S |
| Network Bandwidth | Max. 400 Mbps |
| Audio | 32CH network audio, G.711/G.726/AAC, 2-way audio |
| Alarm I/O | 8 inputs / 4 outputs |
| USB Ports | 2 × USB2.0 (front), 2 × USB3.0 (rear) |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | Max. 285W (with 16 HDDs) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDD not included) |
| Mobile Support | iOS, Android (live 16CH, playback 4CH) |
| Cybersecurity | IP filtering, user access logs, 802.1X, signed firmware, device certificate |
