Description

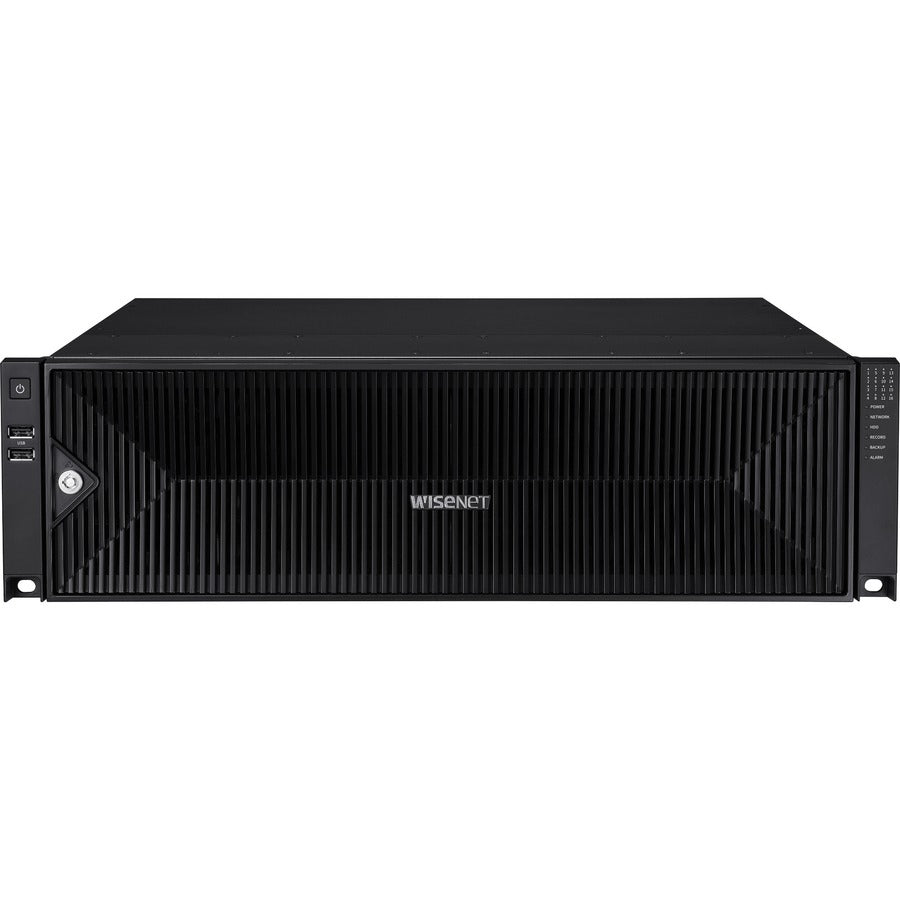

The Wisenet PRN-3200B4-48TB is a high-performance 32-channel 8K AI-powered network video recorder engineered for enterprise-grade surveillance environments. Built to support up to 32 channels, 8K recording, and 400 Mbps of robust video throughput, this NVR delivers outstanding reliability for large-scale deployments.
Equipped with dual-stream recording, WiseStream video compression, and AI search capabilities for compatible Wisenet P, X, and Q Series cameras, it enhances forensic review through intelligent object and attribute-based search. The system includes 16 SATA bays, RAID 5/6, hot-swap drive support, and Automatic Recovery Backup (ARB) for continuous data protection.
With intuitive web UI 2.0, HDMI/VGA dual display, dynamic multi-screen layouts, and seamless mobile access via QR code pairing, the PRN-3200B4-48TB is purpose-built for secure, scalable, and easy-to-manage video surveillance infrastructure.
| Category | Specification |
|---|---|
| SKU | PRN-3200B4-48TB |
| Channels | Up to 32CH network camera inputs |
| Max Resolution | Up to 32MP / 8K |
| Recording Bandwidth | Up to 400 Mbps (Distributed / RAID Normal Mode) |
| Playback Bandwidth | Up to 64 Mbps |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Modes | Normal, Dual Stream, Schedule, Event, Pre/Post Event |
| Playback | Simultaneous up to 32CH local, 16CH remote |
| AI Features | BestShot, Attribute Search, Object Detection (Person, Face*, Vehicle, License Plate) |
| Storage | 16 × SATA bays (Up to 160TB total) |
| Drive Capacity | Supports up to 10TB per HDD |
| Included Storage | 48TB HDD pre-installed |
| RAID Support | RAID 5/6 (8 HDD × 2 arrays) |
| Hot-Swap | Yes |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP/HTTPS, DHCP, PPPoE, SNMP, ONVIF Profile S, SUNAPI |
| Network Throughput | Up to 400 Mbps |
| Audio | 32CH network audio, 2-way communication |
| Interfaces | HDMI ×2, USB ×4 (2×2.0 front, 2×3.0 rear), Audio Out, 3× RJ-45 (LAN/WAN) |
| Alarm I/O | 8 inputs / 4 outputs |
| Display Output | HDMI1: 3840×2160 @30Hz; HDMI2: 1920×1080 @60Hz |
| Multi-Screen Layouts | Up to 36 divisions (Local), up to 16 divisions (HDMI2) |
| Mobile Support | iOS / Android, QR code P2P setup |
| Security | IP filtering, 802.1X, Signed firmware, Encryption, User access logs |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max 285W (with 16 HDD) |
| Dimensions | 440 × 132 × 571.1 mm |
| Weight | Approx. 13.6 kg (without HDD) |
| Color / Material | Black / Metal |
