Description

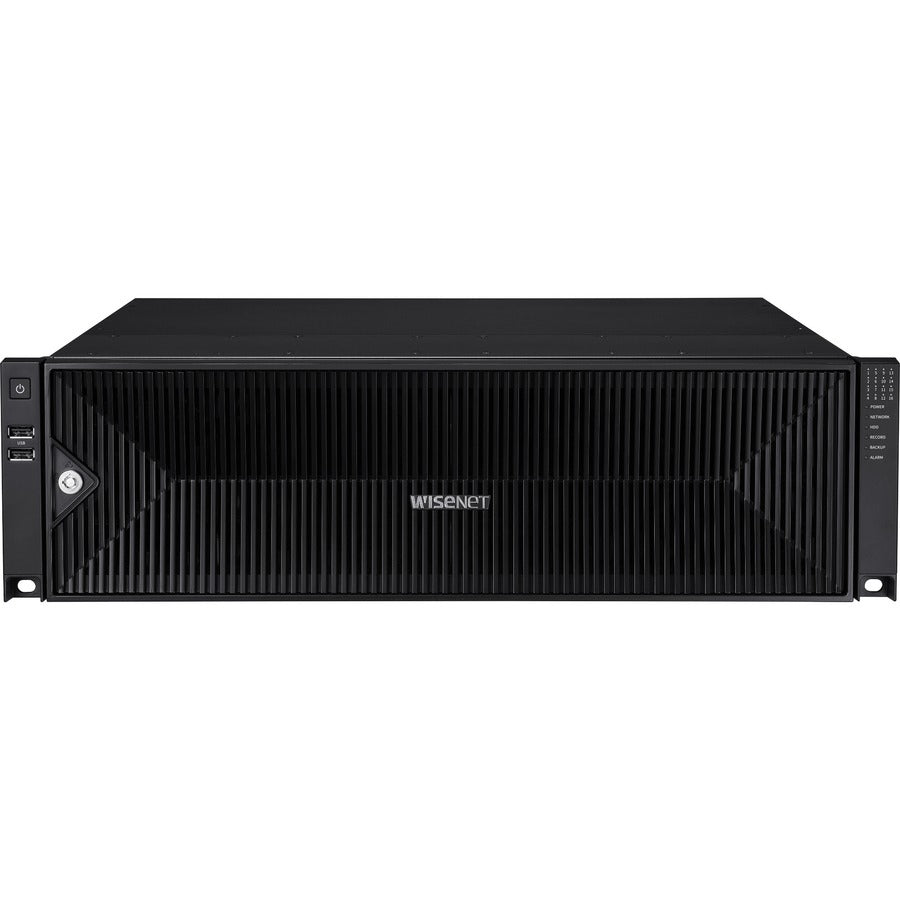

The Wisenet PRN-3200B4-56TB is a high-performance 32-channel 8K AI-powered network video recorder engineered for enterprise-grade surveillance. Equipped with a total of 56TB pre-installed storage and support for up to 16 internal SATA drives, it delivers exceptional scalability for large deployments.
This NVR supports 8K (32MP) cameras, advanced AI search capabilities, and efficient H.265/H.264/MJPEG video compression with WiseStream technology for reduced bandwidth consumption. With up to 400Mbps recording throughput, dual HDMI display outputs, and advanced RAID 5/6 architecture, the PRN-3200B4 ensures operational reliability and continuous data protection.
Enhanced features such as Automatic Recovery Backup (ARB), dynamic event support, QR-code mobile setup, dual-stream recording, and seamless integration with Wisenet AI cameras make this NVR a powerful core for modern surveillance environments. Designed for demanding projects such as campuses, critical infrastructure, logistics facilities, and multi-site enterprise installations.
| Category | Specification |
|---|---|
| SKU | PRN-3200B4-56TB |
| Channels | 32 network camera inputs |
| Max Resolution | Supports up to 32MP / 8K cameras |
| Video Compression | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400Mbps (distributed), 150Mbps (normal), 400Mbps RAID mode |
| Playback Bandwidth | Up to 64Mbps |
| Display Outputs | HDMI 1: 3840×2160 (30Hz), HDMI 2: 1920×1080 (60Hz) |
| Multi-Screen Layouts | Up to 36 divisions (HDMI1), 16 divisions (HDMI2) |
| AI Functions | AI Search (BestShot, Attribute), object detection/classification, LPR with supported AI cameras |
| Search Modes | Date/Time, Event list, Text, Smart Search |
| Simultaneous Playback | Up to 80 channels (local + remote) |
| Storage Capacity | 56TB pre-installed; 16× SATA bays (10TB per drive, up to 160TB max) |
| RAID Support | RAID 5/6 (Array size: 8 HDD × 2 arrays) |
| Hot-Swap Drives | Supported |
| External Storage | iSCSI |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP, DHCP, SMTP, IGMP, HTTPS, SNMP, ONVIF Profile S, SUNAPI |
| Network Bandwidth | Max 400Mbps transmission |
| Audio | 32CH network audio; G.711, G.726, AAC |
| Mobile Support | iOS / Android, QR code P2P setup |
| Failover / Backup | N+1 failover, ARB (Automatic Recovery Backup) |
| Alarms | 8× Alarm In, 4× Alarm Out |
| USB Ports | 4 (2× USB2.0 front, 2× USB3.0 rear) |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Max Power Consumption | 285W (with 16 HDD) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6kg (HDD not included) |
