Description

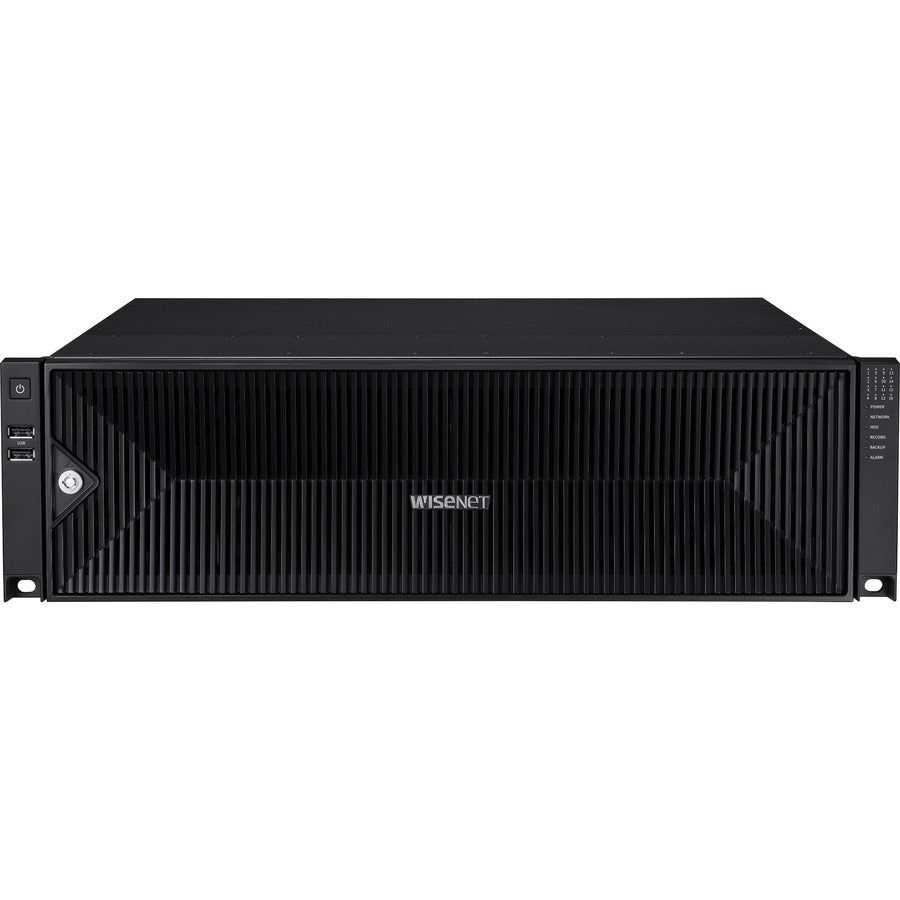

The Wisenet PRN-3200B4-64TB is a high-performance 32-channel 8K AI network video recorder designed for large-scale surveillance environments requiring superior bandwidth, advanced analytics, and reliable storage. Equipped with 64TB of pre-installed HDD capacity and support for up to 160TB, this NVR delivers smooth 8K recording, AI-powered search capabilities, and seamless integration with Wisenet P, X, and Q series AI cameras.
With support for H.265/H.264/MJPEG, dual-monitor HDMI/VGA output, RAID 5/6 redundancy, ARB (Automatic Recovery Backup), and WiseStream optimization, the PRN-3200B4 ensures efficient storage use and dependable long-term operation. The modern Web UI 2.0 eliminates plugin requirements, while features like QR-code P2P setup, failover N+1, fisheye dewarping, and dynamic event detection make deployment simple and scalable.
Ideal for enterprise surveillance, government, campuses, retail complexes, data centers, and any mission-critical environment demanding robust 8K AI video management.
| Category | Details |
|---|---|
| SKU | PRN-3200B4-64TB |
| Channels | Up to 32 network camera channels |
| Maximum Resolution | Up to 8K (32MP) |
| Codec Support | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Up to 400 Mbps (normal mode) |
| Playback Bandwidth | Up to 64 Mbps (32CH simultaneous) |
| AI Capabilities | AI search (BestShot, attributes), object classification, LPR (Wisenet AI cameras) |
| Display Output | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz); Dual display |
| Multi-Screen Layouts | Up to 36 divisions (HDMI1), up to 16 divisions (HDMI2) |
| Supported Recording Modes | Normal, Dual Stream, Scheduled, Event (Pre/Post), Bookmark |
| Storage | 16 SATA bays (up to 10TB each) |
| Pre-installed Storage | 64TB HDD |
| Maximum Storage | Up to 160TB (non-RAID mode) |
| RAID Support | RAID 5/6; 8-HDD × 2 arrays |
| Hot-Swap HDDs | Supported |
| External Storage | iSCSI |
| Network Interfaces | 3 × RJ-45 (1Gbps) |
| Video Inputs | 32CH (network) |
| Audio Support | 32CH network audio; 3.5mm audio out |
| Event Triggers | Alarm input, video loss, motion, analytics, defocus, audio, user event |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP, shutdown |
| Web UI / Platform Support | Web UI 2.0 (no plugins), Windows 10, macOS 10.13, Chrome, Edge, Safari |
| Mobile Support | Wisenet Mobile (iOS/Android), QR code P2P |
| Security Features | IP filtering, user access logs, 802.1x, encryption, signed firmware |
| Failover / Resilience | Failover N+1, ARB (Automatic Recovery Backup) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (without HDDs) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% to 85% RH |
| Power Input | 100–240 VAC, 50/60Hz |
| Power Consumption | Max. 285W (with 16 HDDs) |
