Description

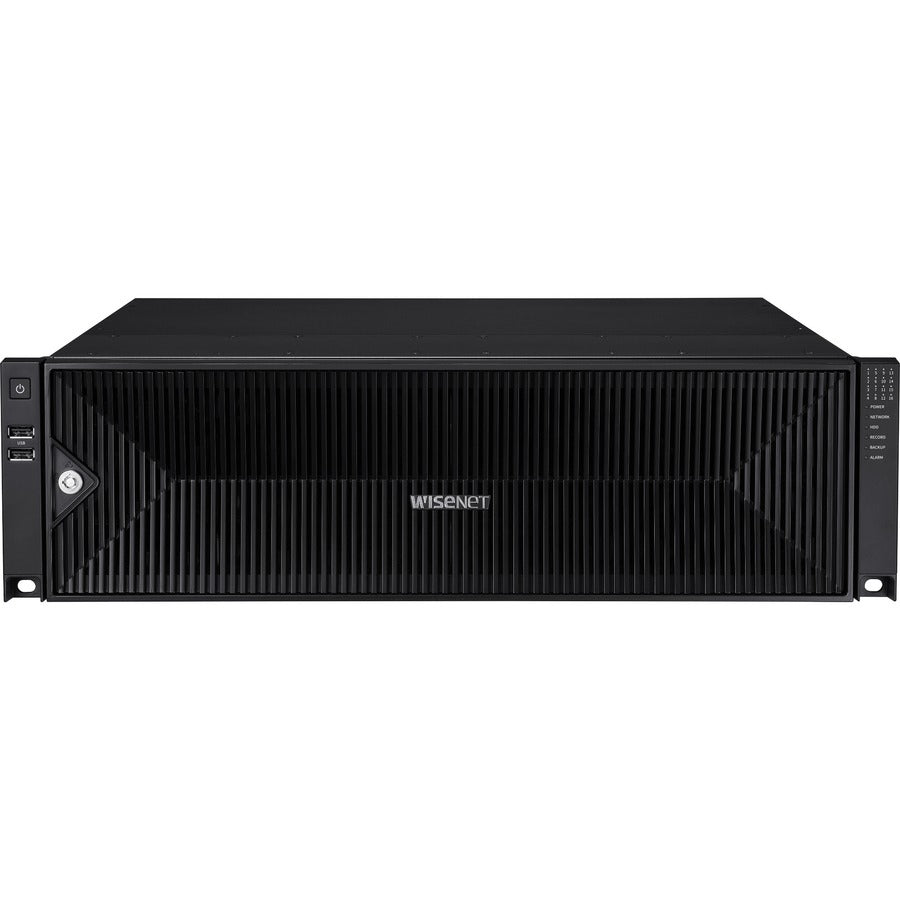

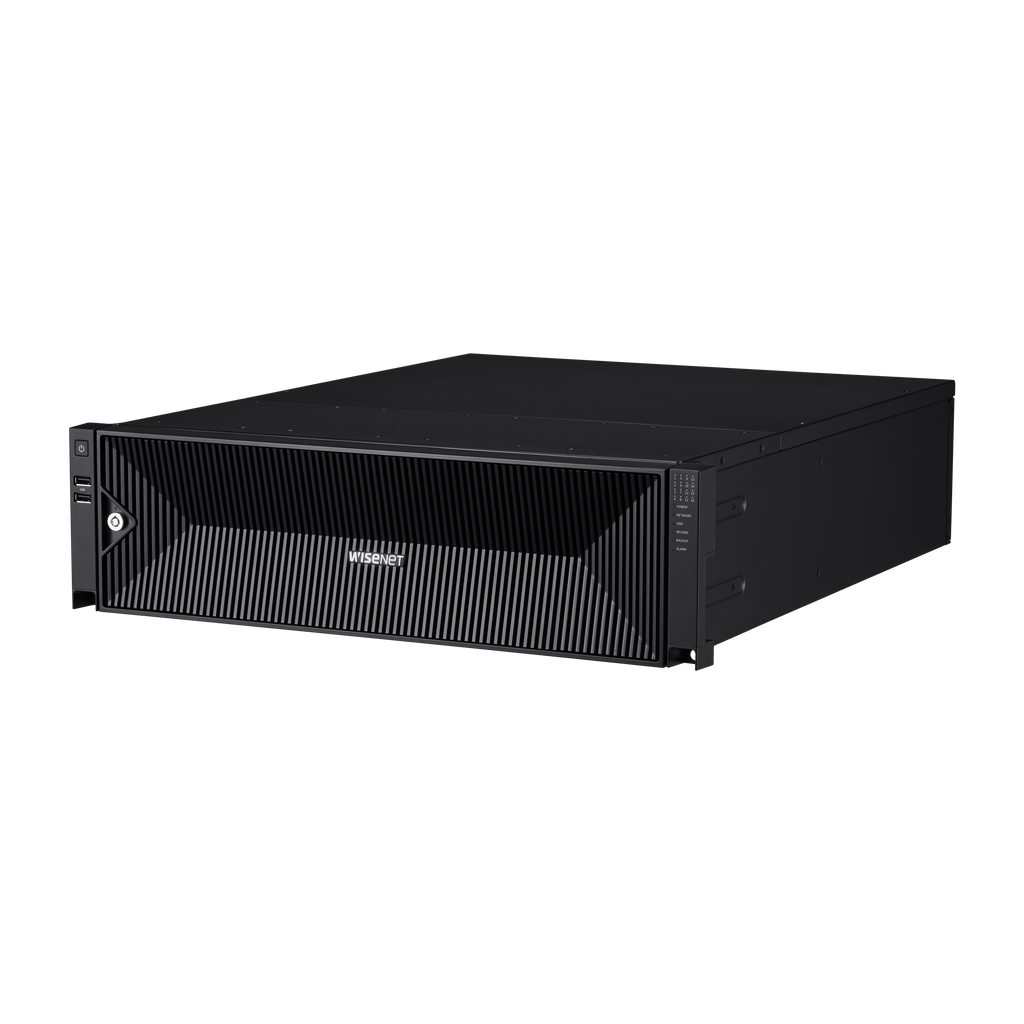

The Wisenet PRN-3200B4-96TB is a high-performance 32-channel 8K AI Network Video Recorder designed for large-scale, mission-critical surveillance environments. Equipped with 96TB pre-installed HDD capacity and support for up to 16 internal SATA drives, it delivers powerful recording performance with up to 400 Mbps of bandwidth and flexible RAID 5/6 options for data protection.
This NVR supports AI search functions—including object detection, classification, attributes, license plate recognition (with compatible Wisenet AI cameras)—allowing operators to quickly identify critical events across multi-channel environments. Dual HDMI display, advanced event handling, bookmark management, fisheye dewarping, and mobile app connectivity further enhance operational efficiency.
Engineered for enterprise-grade reliability, the PRN-3200B4-96TB features hot-swap drive bays, N+1 failover, Automatic Recovery Backup (ARB), and strong cybersecurity protections, ensuring continuous and secure video recording for demanding surveillance deployments.
| Category | Details |
|---|---|
| Model | PRN-3200B4-96TB |
| Channels | 32CH network cameras |
| Max Resolution (Recording/Display) | Up to 8K (32MP); Local Display: HDMI1 3840×2160 @ 30Hz, HDMI2 1920×1080 @ 60Hz |
| Recording Bandwidth | Up to 400 Mbps (distributed/RAID mode), 150 Mbps (normal mode) |
| Video Codecs | H.265, H.264, MJPEG, WiseStream |
| Recording Modes | Normal, Dual Stream, Event, Schedule, Bookmark |
| Playback | Max 64 Mbps; up to 80CH simultaneous playback (local 32CH / remote 16CH per user) |
| Search Features | Calendar, Event, Text, Smart Search; Fisheye dewarping |
| AI Functions | AI search (BestShot, Attributes), object detection & classification; LPR with Wisenet AI P/X cameras |
| Storage Capacity | 16 × SATA HDD (up to 160TB total; 96TB configured) |
| RAID Support | RAID 5/6 (8 HDD × 2 arrays) |
| External Storage | iSCSI supported |
| Network Protocols | IPv4/6, TCP/IP, RTP/RTSP, NTP, HTTP/HTTPS, DHCP, SNMP, IGMP, ONVIF Profile S, SUNAPI |
| Remote Access | Up to 4 users (1 local, 3 remote); mobile app support (iOS/Android) |

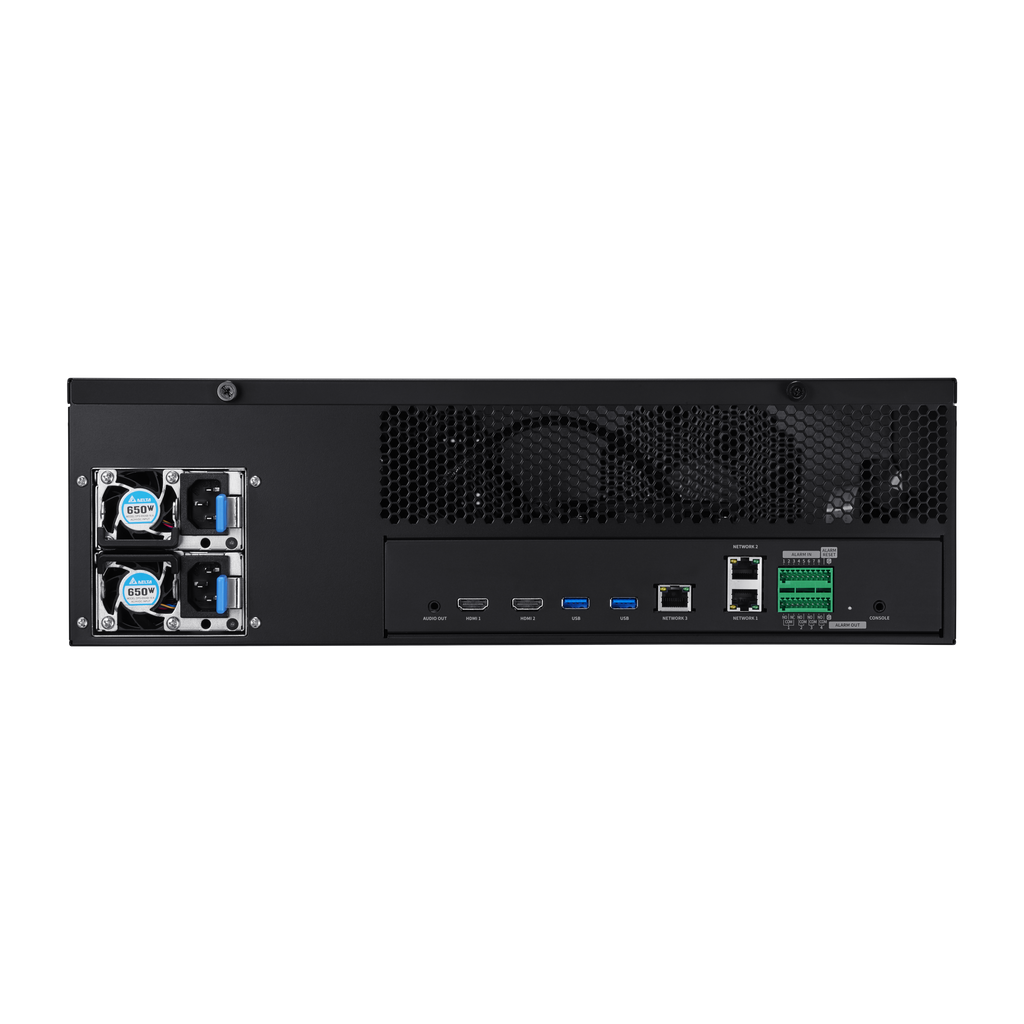

| Interfaces | 3× RJ-45 LAN/WAN (1Gbps), 2× HDMI, 4× USB (2 front USB2.0, 2 rear USB3.0), Audio out, Alarm I/O (8 in / 4 out) |
| Power Input | 100–240 VAC, 50/60Hz |
| Power Consumption | Max 285W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 132 × 571.1 mm (17.32 × 5.20 × 22.48 in) |
| Weight | Approx. 13.6 kg (HDDs not included) |
| Additional Features | ARB, N+1 failover, dynamic event support, mobile QR setup, multi-screen layout, PTZ control |
