Description

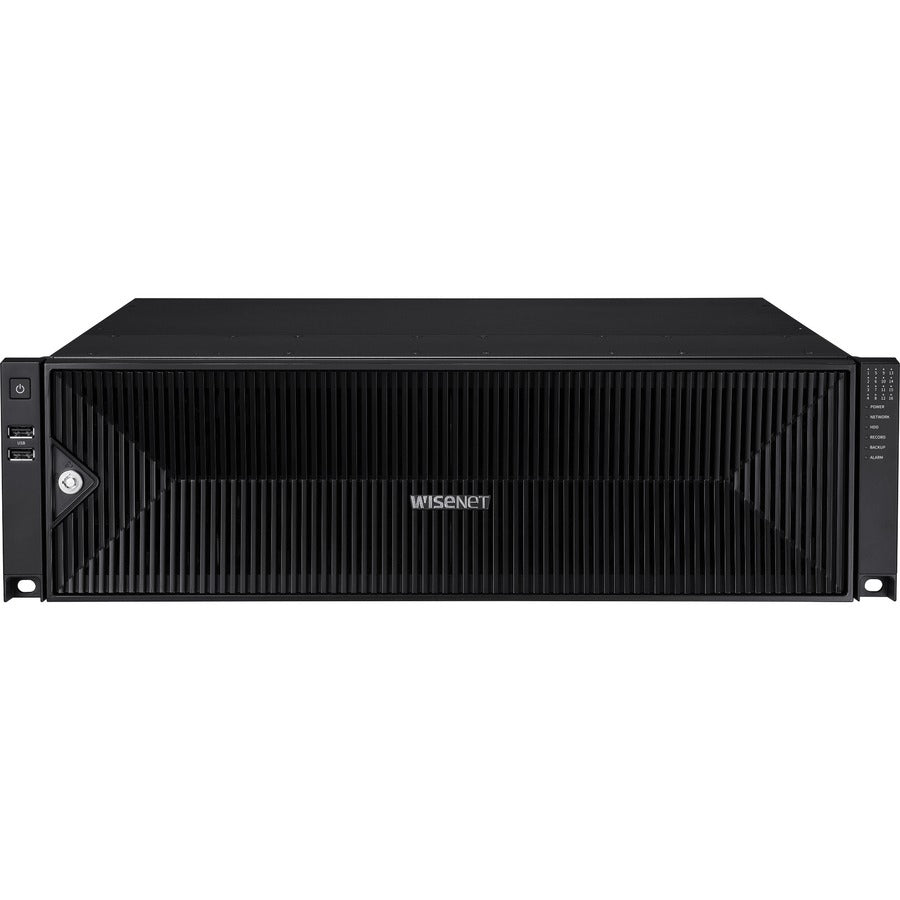

The Wisenet PRN-3200B4 is a powerful 32-channel 8K AI network video recorder designed for large-scale surveillance environments requiring high bandwidth, massive storage, and advanced analytics. Delivering up to 32MP recording, 400Mbps distributed recording bandwidth, and support for AI object and attribute search, this NVR provides enterprise-grade performance with intuitive management.
Equipped with 16 SATA bays supporting up to 160TB, the PRN-3200B4 supports RAID 5/6, hot-swap drives, and seamless failover with N+1 redundancy. Dual HDMI outputs enable 4K local monitoring, while WiseStream compression optimizes storage efficiency without compromising image quality.
With dynamic event handling, fisheye dewarping, smart search, QR-code mobile setup, and comprehensive protocol support (ONVIF, SUNAPI), the PRN-3200B4 is built for high-performance, scalable security operations.
| Category | Specification |
|---|---|
| Channels & Video | 32CH network inputs; supports up to 32MP resolution |
| Decoding / Display | HDMI1: 3840×2160 (30Hz); HDMI2: 1920×1080 (60Hz); dynamic multi-screen layouts up to 36 divisions |
| Recording Compression | H.265, H.264, MJPEG, WiseStream |
| Recording Bandwidth | Distributed: up to 400Mbps; Normal mode: up to 150Mbps; RAID mode: up to 400Mbps |
| Playback | Max 64Mbps; up to 32CH local playback and up to 16CH per remote user |
| Search Modes | Date/time, event list, text search, smart search; fisheye dewarping supported |
| Storage | 16× SATA bays, up to 10TB per HDD; max 160TB; hot-swap supported |
| RAID | RAID 5/6; 8-HDD × 2 array structure |
| Backup | BU/EXE/AVI (GUI), JPG/AVI (network) |
| Network Protocols | IPv4/6, TCP/IP, UDP/IP, RTP/RTSP, NTP, HTTP/HTTPS, DHCP, PPPoE, SNMP, ONVIF Profile S, SUNAPI |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Audio | 32CH (network); codecs: G.711, G.726, AAC; 2-way audio |
| AI Features | Object/attribute search: person, face (with AI cameras), vehicle, license plate |
| Camera Setup | Auto/manual registration, bitrate, compression, MD zones, image settings, hallway view, fisheye dewarping |
| Interfaces | 2× HDMI, 1× Audio Out, 3× RJ-45 (LAN/WAN), 8× Alarm In / 4× Alarm Out, 4× USB (2× front USB2.0 + 2× rear USB3.0) |
| Power | 100–240VAC, 50/60Hz; max 285W |
| Environmental | Operating temp: 0°C to +40°C; humidity: 20–85% RH |
| Dimensions / Weight | 440 × 132 × 571.1 mm; approx. 13.6kg (HDD not included) |
| Mobile Support | iOS & Android, P2P setup via QR code |
| Redundancy | N+1 failover; ARB (Automatic Recovery Backup) |
