Description

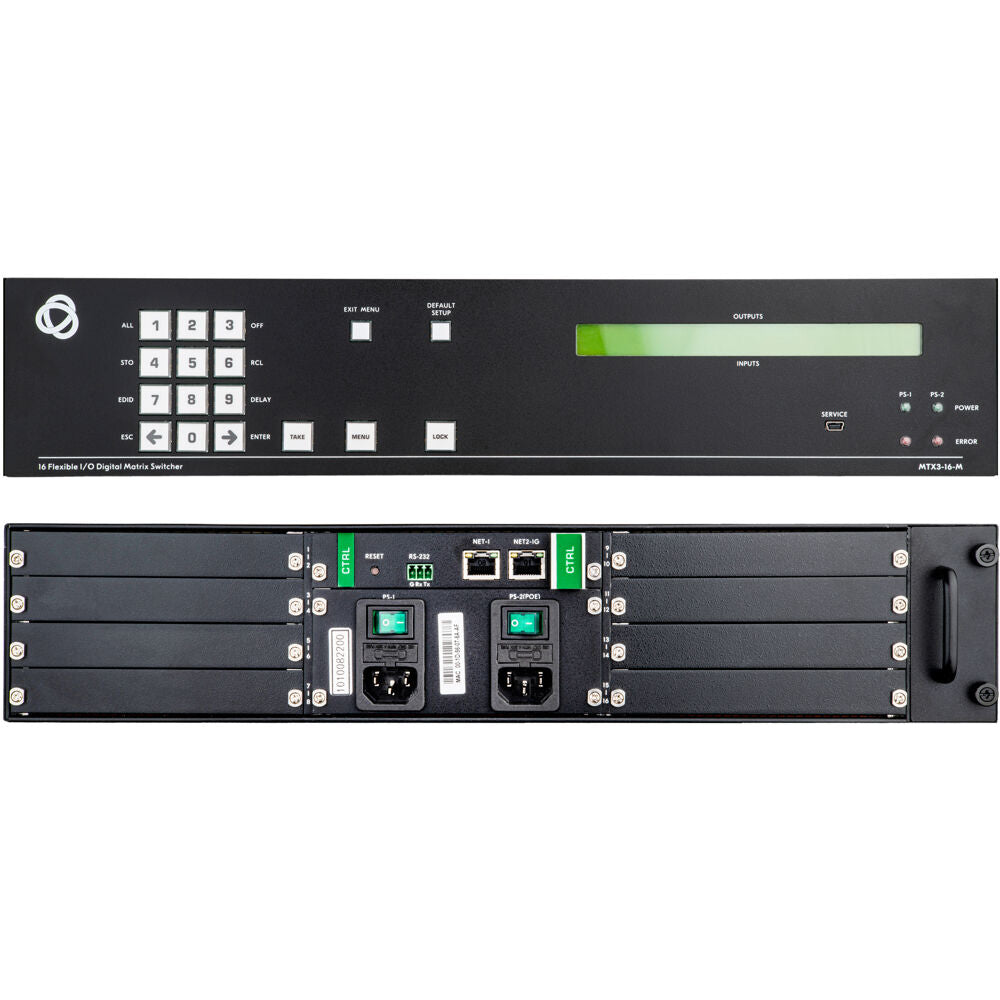

The Kramer MTX3-16-M is a high-performance 16×16 8K-ready modular matrix switcher engineered for professional AV environments that demand flexible, scalable, and secure signal distribution. Built with eight modular card slots, it supports a mix of input and output cards including HDMI™, DVI, fiber optic, Ethernet, and other multi-format interfaces—making it ideal for enterprise, broadcast, education, and mission-critical applications.
Designed for next-generation performance, the MTX3-16-M supports 4K60 4:4:4, HDR, HDCP 2.2, deep color, x.v.Color™, and advanced uncompressed and high-definition audio formats such as Dolby TrueHD and DTS-HD. It delivers robust signal integrity through Kramer Equalization & re-Klocking™, ensuring clean, stable output even over long-distance copper or fiber infrastructure.
Featuring intelligent I-EDIDPro™ EDID processing, comprehensive control options (web-UI, RS-232, Kramer Control, front-panel touch interface), and OWASP-10 certified secure operation, the MTX3-16-M enables reliable, remote, and future-proof AV management.
With a compact 3U rackmount design, hot-swappable modules, field-replaceable cooling fans, PoE over HDBaseT, and Kramer Core™ long-reach distribution technology, this modular matrix simplifies installation, enhances system uptime, and ensures long-term adaptability for evolving AV workflows.
| Category | Specifications |
|---|---|
| Matrix Type | 16×16 8K-ready modular AV matrix |
| Supported Signals | HDMI™, DVI, VGA, SDI, analog/digital audio, fiber optic, Ethernet |
| Video Performance | Up to 4K60 4:4:4, HDR, HDCP 2.2 compliant |
| Audio Support | HDMI uncompressed audio, Dolby TrueHD, DTS-HD |
| EDID Management | I-EDIDPro™ intelligent EDID processing |
| Signal Integrity | Kramer Equalization & re-Klocking™ technology |
| Control Interfaces | Web-UI, Kramer Control, RS-232 (3-pin terminal block), front-panel touch screen |
| LAN Connectivity | 1Gbps Ethernet (RJ-45) for matrix LAN; 100Mbps Ethernet for service |
| RS-232 Baud Rates | 9600 / 19200 / 38400 / 57600 / 115200 (default) |
| Backplane Data Rate | AV: 50Gbps per port; Ethernet: 1Gbps per port |
| Card Slots | 1 central control card; 8 I/O card slots; 2 power modules; 1 fan module |
| Power Requirements | 100–240V AC, 50/60Hz, 2.2A max |
| Cooling | Forced-air, 3 fans (field-replaceable) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| Regulatory Compliance | CE, FCC, UKCA; RoHS, WEEE |
| Product Dimensions (W×D×H) | 19" × 7.24" × 2U (43.6cm × 18.40cm × 8.80cm) |
| Product Weight | Approx. 7.5kg (16.4 lbs) |
| Shipping Dimensions | 58.00cm × 53.50cm × 21.50cm (22.83" × 21.06" × 8.46") |
| Shipping Weight | Approx. 9.3kg (20.5 lbs) |
| Included Accessories | 2 × power cords |
