Description

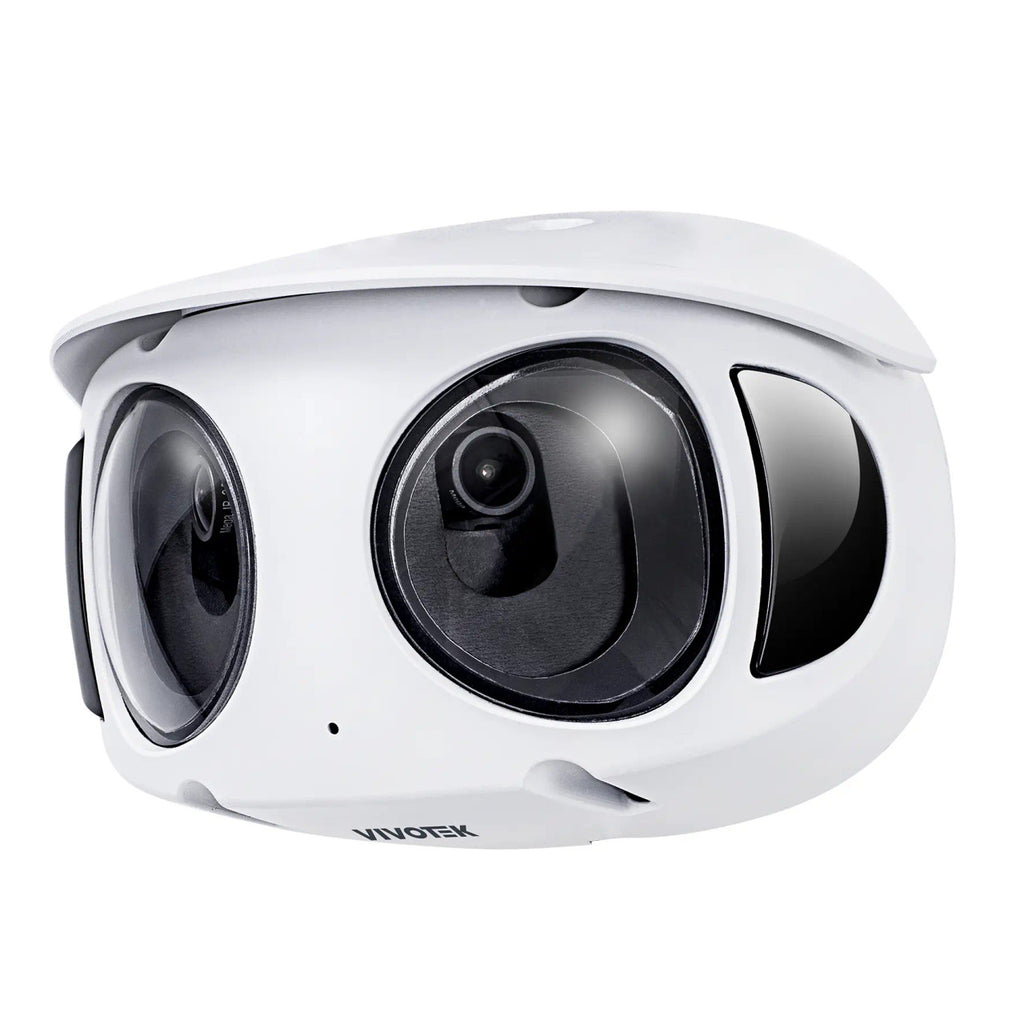

The Vivotek MS930-EHV-1Y is a next-generation 8MP panoramic outdoor IP security camera engineered to deliver comprehensive 180° surveillance with uncompromising clarity and intelligence. Featuring a multi-sensor design with a fixed 2.8mm lens and 1/2.7" CMOS sensor, this camera provides seamless wide-area coverage while eliminating blind spots—replacing the need for multiple conventional cameras with a single, powerful solution.
Equipped with advanced AI analytics, the MS930-EHV-1Y consolidates detection, alerts, and video searches into a unified platform—dramatically improving operational efficiency. One panoramic view replaces three, allowing security teams to focus on a single uninterrupted feed while maintaining complete situational awareness.
Built to perform in harsh outdoor environments, this camera features a rugged IK10- and IP66-rated metal housing, weatherproofing, and vandal resistance, as well as wide temperature tolerance from -40°C to 50°C. Its F1.2 aperture, IR night vision up to 20 feet, and built-in microphone ensure detailed video and audio capture around the clock. Combined with integrated VORTEX cloud features, remote access, and a 1-year standard cloud license, the MS930-EHV-1Y offers unmatched scalability, simplicity, and cost efficiency—ideal for enterprise, municipal, and critical infrastructure surveillance.
| Feature | Specification |
|---|---|
| Product Series | Vivotek Vortex Series |
| Camera Style | Multi-sensor Panoramic IP Camera |
| Resolution | 8MP (4K) |
| Lens Type | Fixed Lens |
| Lens Size | 2.8mm |
| Aperture | F1.2 |
| Sensor Type | CMOS |
| Sensor Size | 1/2.7" |
| Angle of View | 180° Panoramic |
| Iris | Fixed Iris |
| Audio Support | Built-in Microphone |
| Audio Capability | One-way Audio |
| Internal Storage | 512 GB |
| SD Card Support | Yes |
| Day/Night Function | Supported |
| Night Vision Type | Built-in IR |
| Night Vision Range | Up to 20 ft (6 m) |
| Minimum Illumination (Color) | 0.018 Lux |
| Minimum Illumination (B/W) | 0.01 Lux at F1.2 |
| Shutter Speed | 1/30 – 1/320000 s |
| Durability | Vandal Proof, Waterproof |
| Protection Code | IK10, IP66 |
| Material | Metal |
| Environmental | Outdoor |
| Operating Temperature | -40 °C to 50 °C (-40 °F to 122 °F) |
| Operating Humidity | 0% – 90% RH (non-condensing) |
| Max Power Consumption | 13.5 W |
| Dimensions | 165 × 100 × 119 mm (6.49 × 3.93 × 4.68 in) |
| Analytics | Human and Vehicle Detection |
| Alarm Triggers | Motion Detection, Video Tampering Detection |
| Security | HTTPS Encryption, Video Encryption |
| License | 1-Year Vortex Standard Cloud License |
| Warranty | 5-Year Manufacturer Warranty |
| Replacement Of | MS930-EHV |
