Description

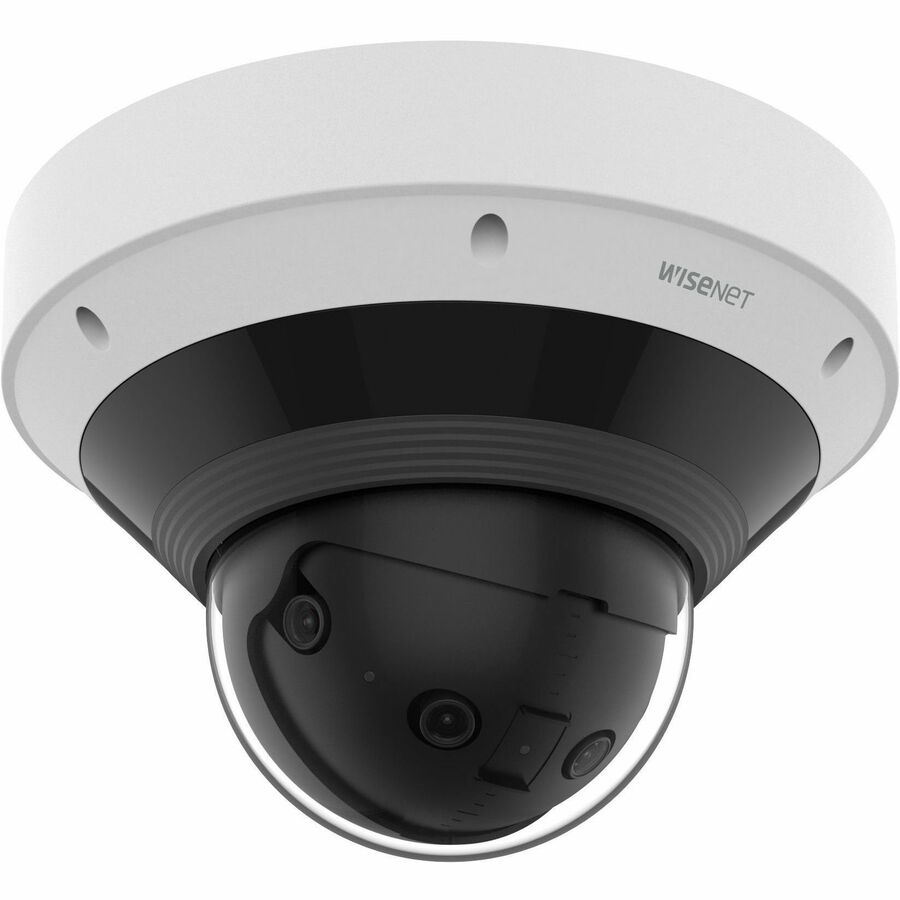

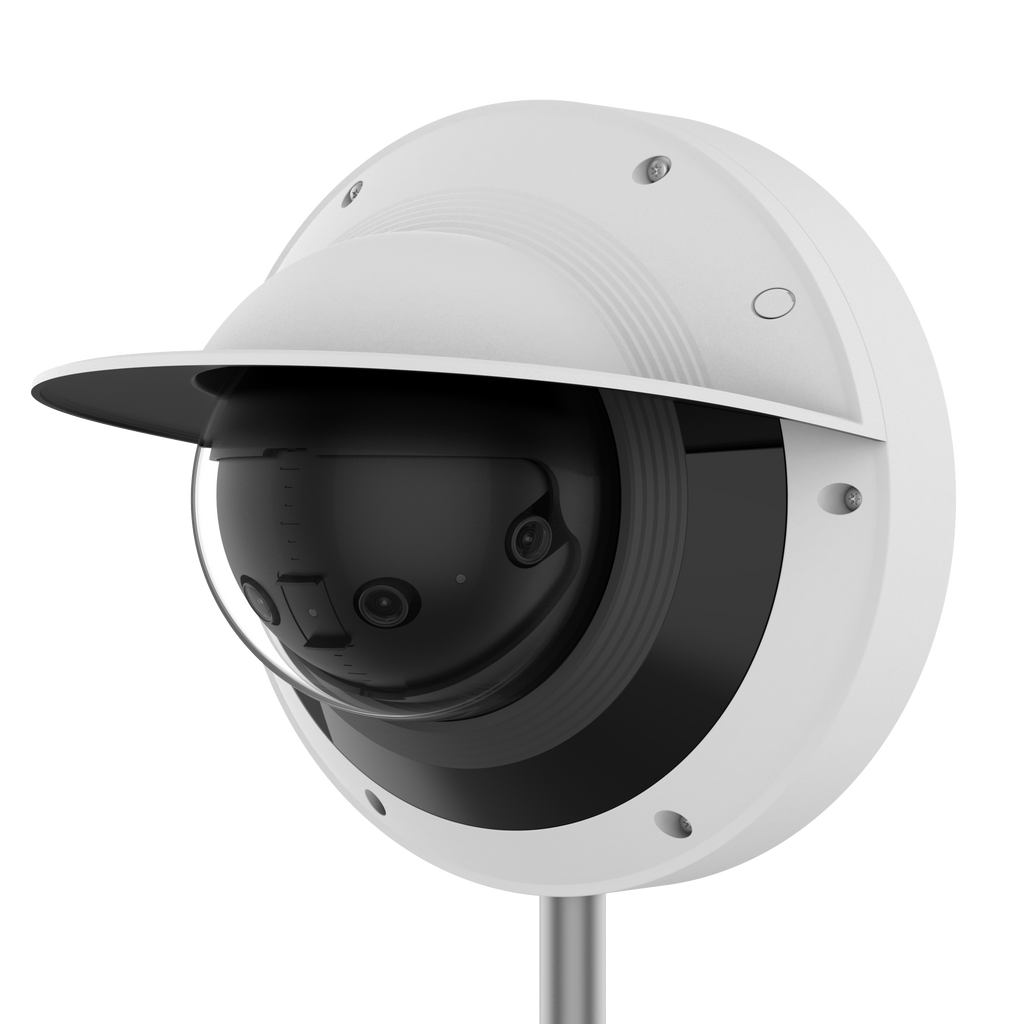

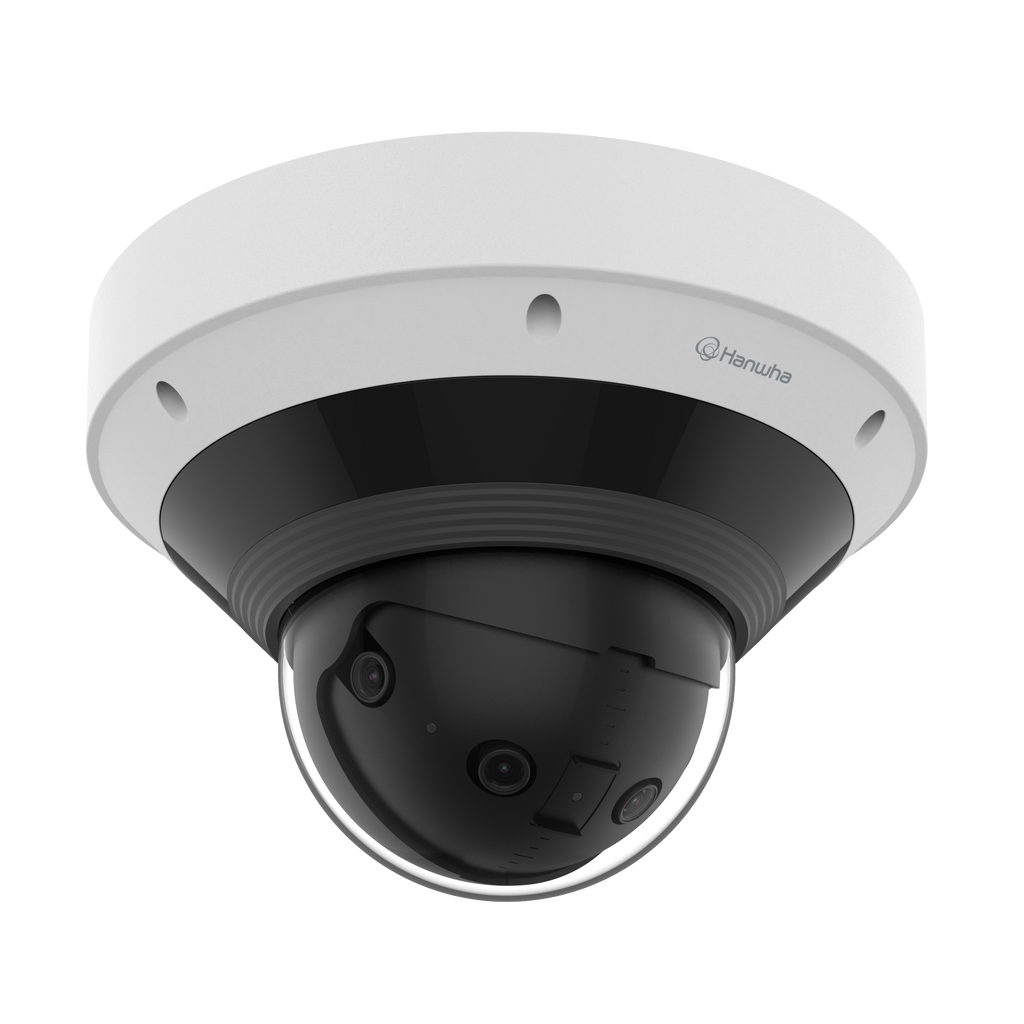

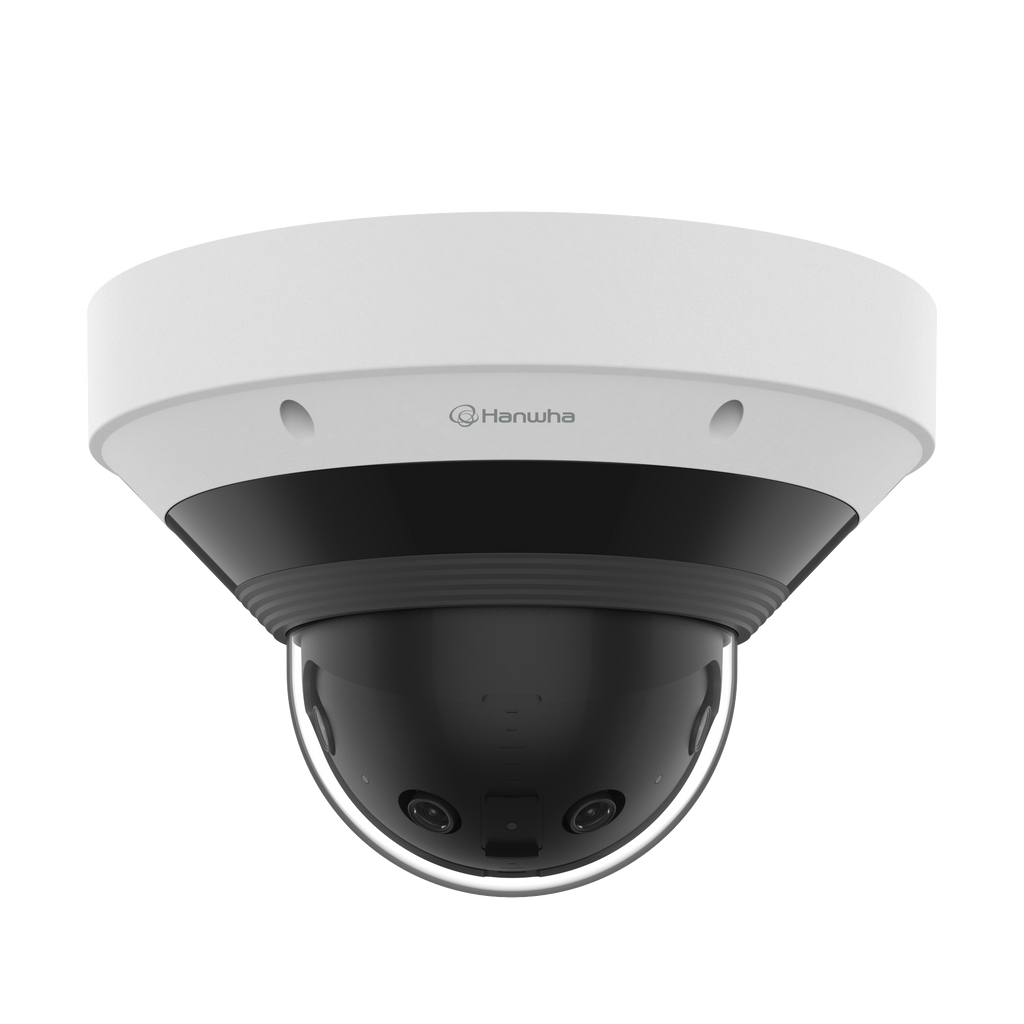

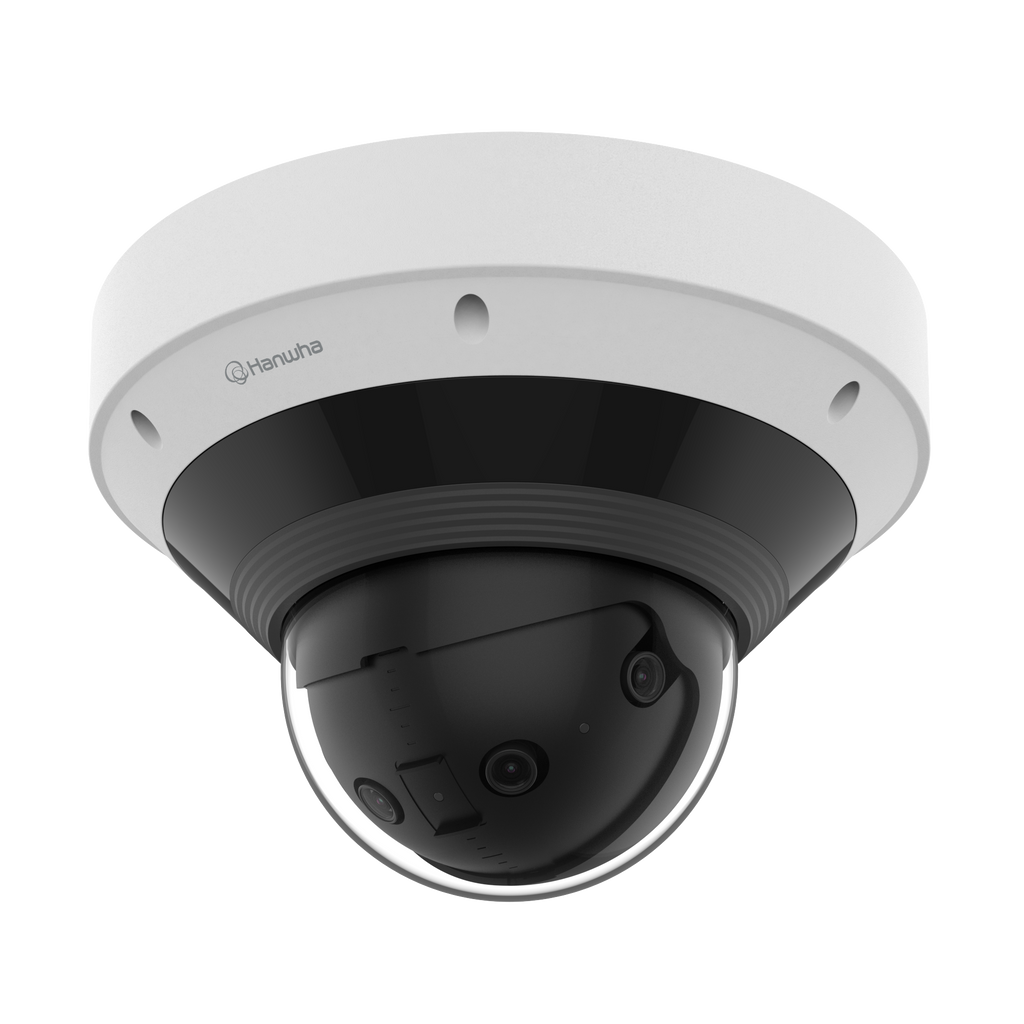

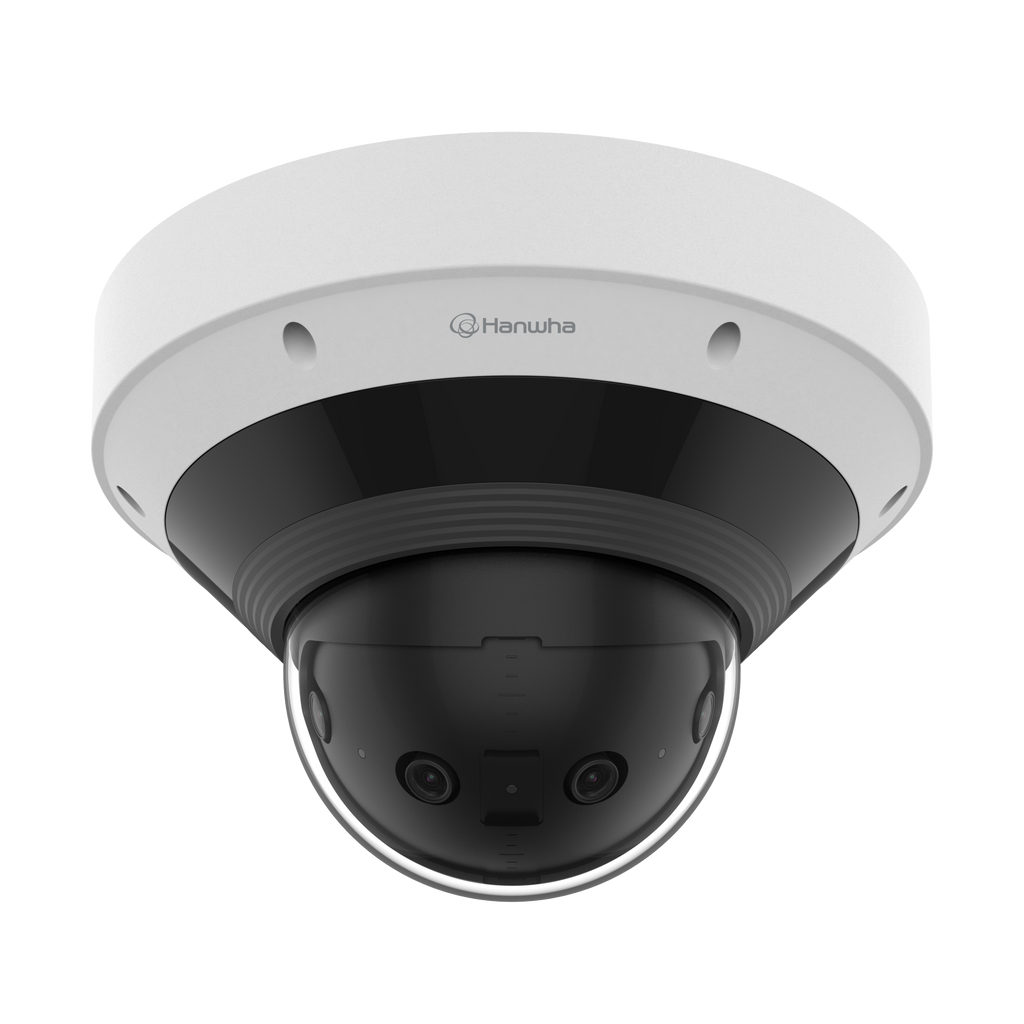

The Hanwha Vision PNM-C9022RV/KEX is a TAA-compliant panoramic multi-sensor camera engineered for high-accuracy coverage in critical government, commercial, and outdoor security applications. Its powerful multi-sensor design delivers an ultra-wide 209° horizontal field of view with 8MP resolution at 20fps, enabling seamless panoramic surveillance with advanced alpha-blending for distortion-free imaging.
Equipped with AI-based object detection for people and vehicles, the camera provides precise event triggers including virtual line crossing, intrusion, loitering, directional detection, and defocus alerts. The integrated IR illumination reaches up to 65ft (20m), ensuring strong low-light performance. Smart compression technologies like WiseStream III, H.265/H.264/MJPEG triple codec, and Extreme WDR (120dB) maximize image quality while reducing bandwidth and storage.
Built for harsh environments, the PNM-C9022RV/KEX features IP66, IK10, and NEMA4X protection, dual microSD card support, PoE+ or 12VDC power options, and TPM 2.0 (FIPS 140-2 Level 2), making it a secure and resilient choice for federal, municipal, transportation, and enterprise deployments.
| Category | Details |
|---|---|
| SKU | PNM-C9022RV/KEX |
| Manufacturer Part Number | PNM-C9022RV/KEX |
| Camera Type | Panoramic Multi-Sensor Dome |
| TAA Compliant | Yes |
| Total Resolution | 8MP @ 20fps |
| Field of View | Horizontal 209° / Vertical 60° |
| Sensor Type / Size | CMOS, 1/2.8" |
| Lens / Focal Length | Fixed 2.8mm |
| Image Processing | Alpha blending, Extreme WDR 120dB, Wise NR II |
| IR Illumination | Up to 65 ft (20m) |
| Video Compression | H.265, H.264, MJPEG (WiseStream III) |
| AI Analytics | Person/vehicle detection, virtual line, area, enter/exit, loitering, direction, intrusion, defocus detection |
| Capture Resolution | 5120 × 1568 |
| Frame Rate | 20 fps |
| Connectivity | Gigabit RJ-45 (10/100/1000BASE-T), Micro USB Type-B |
| Memory | 4GB RAM, 512MB Flash |
| Local Storage | Dual microSD slots (512GB each) |
| Power | PoE+ / 12VDC |
| Construction | Aluminum housing |
| Durability Ratings | IP66, IK10, NEMA4X |
| Security | TPM 2.0 (FIPS 140-2 Level 2) |
| Color | White |
| Dimensions (W × D × H) | 9.96" × 9.96" × 6.69" |
| Weight | 3.31 lbs |
| Country of Origin | Republic of Korea |
| UNSPSC | 46171610 |
| UPC | 8801089217493 |
