Description

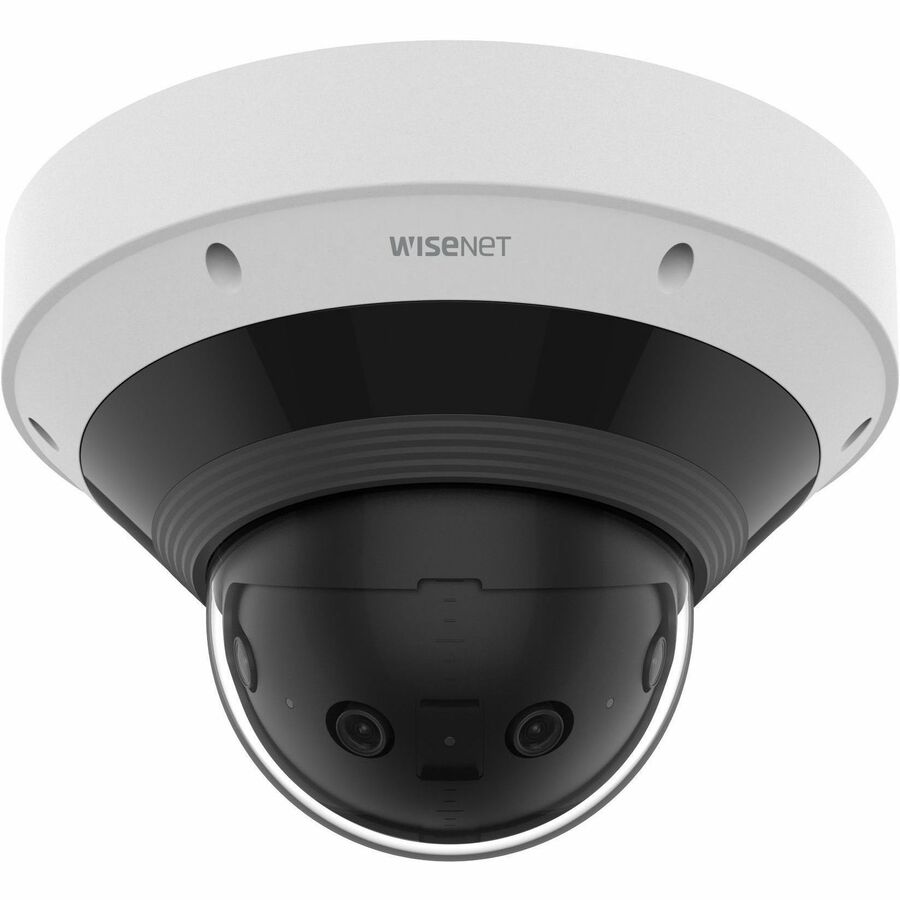

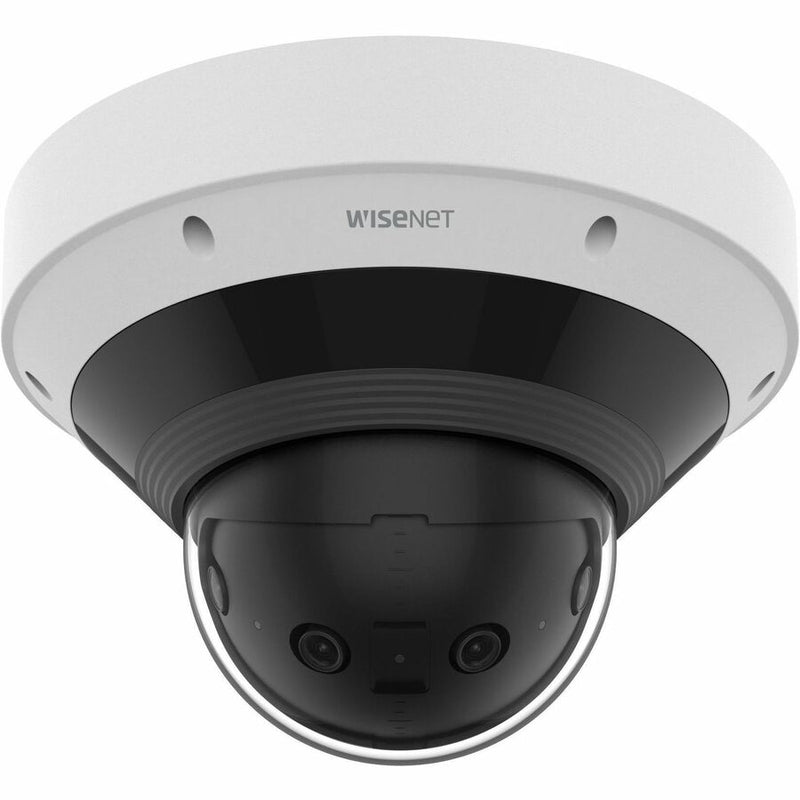

The Wisenet PNM-C9022RV is an advanced 8MP panoramic AI camera designed for wide-area surveillance, delivering seamless panoramic stitching and exceptional low-light performance. Equipped with WiseIR up to 20 meters, AI-powered object classification, and extreme WDR (120 dB), it provides clear, reliable imaging in demanding environments.
This model leverages Hanwha Vision’s next-generation AI engine for enhanced analytics, including person/vehicle classification, virtual line detection, intrusion monitoring, loitering detection, audio analytics, defocus detection, and tampering alerts. Its durable IP66, IK10, and NEMA 4X environmental ratings ensure long-term performance outdoors and in harsh conditions.
With support for H.265/H.264/MJPEG, WiseStream III compression, dual SD card slots up to 1TB (or 2TB for OnCloud), and strong cybersecurity features such as TPM 2.0 and encrypted firmware, the PNM-C9022RV is built for enterprise-grade, secure, and efficient surveillance deployments.
| Category | Specification |
|---|---|
| Model | PNM-C9022RV |
| Camera Type | 8MP IR Panoramic Camera |
| Image Sensor | 1/2.8" CMOS |
| Maximum Resolution | 5120×1568, 3648×1152, 2560×784, 1280×392 |
| Max Frame Rate | H.265/H.264: 20fps, MJPEG: 20fps |
| Minimum Illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
| Lens | 2.8mm, Fixed Iris, 4x Optical Zoom |
| Field of View | Horizontal: 209°, Vertical: 60° |
| Day/Night | Auto (ICR) |
| WDR | Extreme WDR 120 dB |
| Noise Reduction | WiseNR II (AI), SSNR V |
| IR Illumination | WiseIR, 20m (4 individually adjustable zones) |
| Analytics (AI) | Person/Vehicle classification, Object detection, Virtual line, Intrusion, Loitering |
| Additional Analytics | Defocus, Motion detection, Tampering, Audio detection, Sound classification |
| Privacy Masking | 10 zones (rectangular) |
| Digital PTZ / Rotation | Supported / Flip, Mirror |
| Audio I/O | Mic in/Line in selectable, Line out |
| Alarm I/O | 2 configurable I/O ports |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG |
| Audio Compression | G.711, G.726, AAC-LC |
| Streaming | Up to 20 users (Unicast), Multicast supported |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, SNMP, DHCP, NTP, QoS, UPnP, Bonjour |
| API Support | ONVIF S/G/T/M, SUNAPI, Open Platform |
| Security | TPM 2.0 (FIPS 140-2 Level 2), Secure Boot, Encrypted Firmware, SRTP, HTTPS |
| Edge Storage | Dual SD/SDHC/SDXC up to 512GB×2 (1TB total) / 2TB total for OnCloud |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Environmental Rating | IP66, IK10, NEMA 4X |
| Power | PoE+ (IEEE 802.3at), 12VDC |
| Power Consumption | PoE: Max 24.5W / Typical 11.3W; 12VDC: Max 22W / Typical 10.4W |
| Dimensions | Ø253 × 170 mm (9.96 × 6.69 in) |
| Weight | 2.9 kg (6.39 lb) |
| Material / Color | Aluminum / White (RAL9003) |
