Description

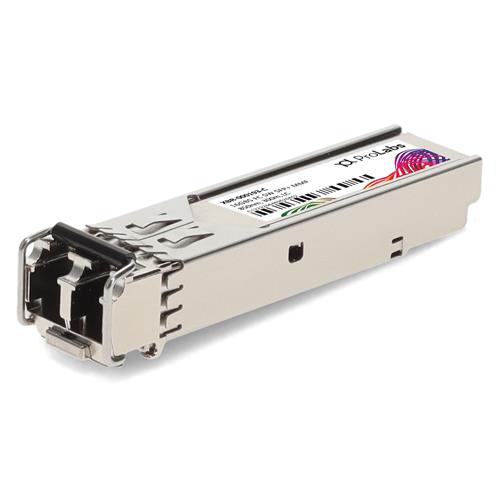

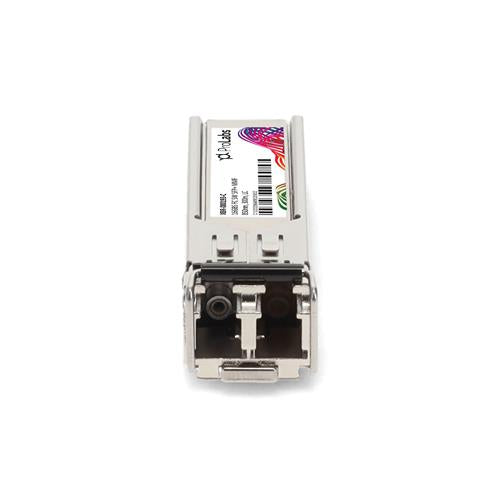

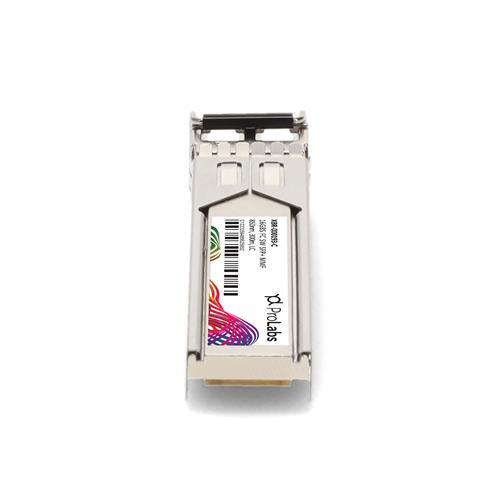

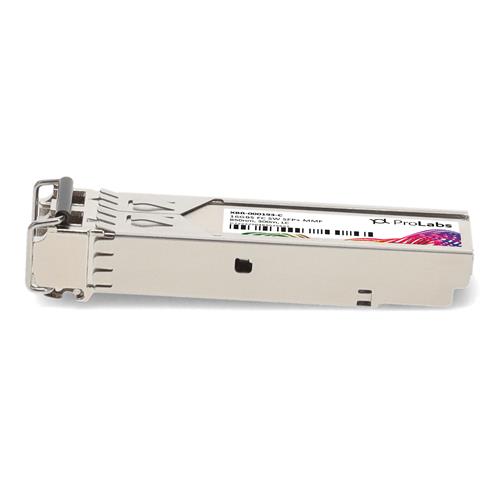

The Brocade XBR-000193 Compatible 16GBase-SW Fibre Channel SFP+ Transceiver provides high-performance 16 Gbps connectivity for SAN, enterprise, and data-center applications.
This 8-pack of hot-swappable SFP+ modules delivers reliable short-wave optical transmission up to 300 meters over multimode fiber (MMF) using an 850 nm wavelength via a duplex LC connector.
Each transceiver is fully MSA-compliant and 100 % compatible with Brocade switches. It supports Digital Optical Monitoring (DOM) for real-time diagnostics and offers excellent ESD protection in a compact, metal-shielded housing.
Built to RoHS standards and TAA compliant, this optical module ensures seamless integration into Fibre Channel networks while maintaining high signal integrity and low EMI emissions.
Every unit is uniquely serialized and tested for data traffic and interoperability, backed by a limited lifetime warranty.
| Category | Details |
|---|---|
| Brand Compatibility | Brocade Compatible |
| Part Number | XBR-000193 |
| Form Factor | SFP+ (8-Pack) |
| Data Rate | 16 Gbps Fibre Channel (SW) |
| Wavelength | 850 nm |
| Maximum Distance | 300 m (OM3 MMF 50/125 µm) |
| Connector Type | Duplex LC |
| Media Type | Multi-Mode Fiber (MMF) |
| DOM Support | Yes |
| Hot Pluggable | Yes |
| Compliance Standards | SFF-8432, SFF-8472, MSA Compliant |
| Operating Temperature | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage Temperature | –40 °C to 85 °C |
| Operating Humidity | 5 % – 95 % (non-condensing) |
| Power Supply Voltage | 3.13 – 3.47 V DC |
| Typical Power Consumption | ≤ 300 mA |
| Optical Output Power (avg.) | –7.3 to –1 dBm |
| Receiver Sensitivity | –9.9 dBm |
| Extinction Ratio | ≥ 3 dB |
| Transmitter and Dispersion Penalty | ≤ 3.9 dB |
| Optical Return Loss Tolerance | 12 dB |
| Relative Intensity Noise (RIN) | ≤ –128 dB/Hz |
| Laser Type | VCSEL 850 nm |
| Applications | Fibre Channel (SAN), Access and Enterprise Networks |
| TAA Compliance | Yes |
| RoHS Compliance | Yes (Lead-Free) |
| Warranty | Limited Lifetime Warranty |
