Description

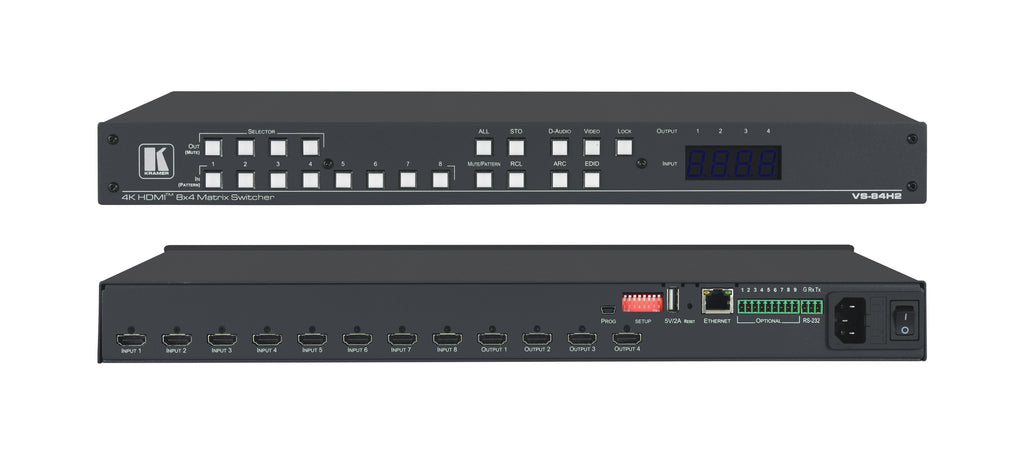

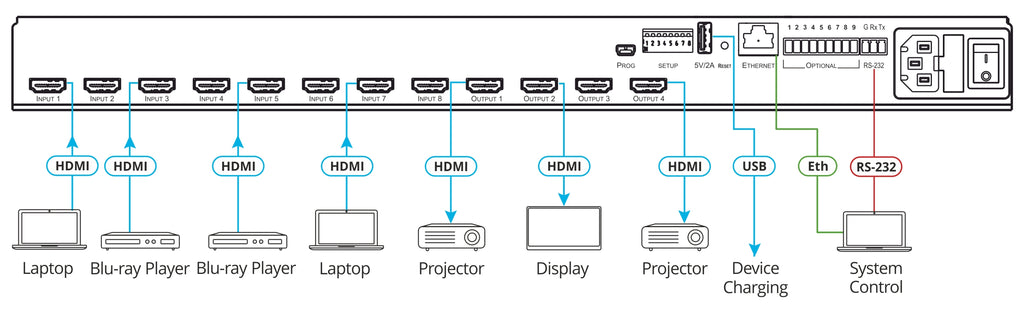

The Kramer VS-84H2 is a professional-grade 8x4 HDMI matrix switcher designed for modern 4K/60 (4:4:4) AV environments. Delivering clean, fast switching and flexible audio routing, it enables seamless distribution of high-quality video and audio to multiple displays in corporate, education, hospitality, and command-and-control applications.
With support for HDCP 2.2, deep color, ARC, uncompressed multi-channel audio, and independent EDID management through Kramer I-EDIDPro™, the VS-84H2 ensures complete compatibility across diverse AV systems. Its integrated 16x8 audio matrix allows advanced audio breakaway, insertion, and routing—ideal for refined sound system designs.
The unit offers intuitive control options including front-panel buttons, browser-based GUI, RS-232, and Ethernet management. Engineered for reliability, it features fan cooling, preset configuration modes, test patterns, and secure web-UI operation. Housed in a compact 1U rackmount chassis, the VS-84H2 is built for long-term, field-ready deployment where dependable AV switching is essential.
| Category | Details |
|---|---|
| Inputs | 8 HDMI (female) |
| Outputs | 4 HDMI (female) |
| Ports | 1 mini-USB (firmware/management), 1 RS-232 (3-pin terminal), 1 Ethernet (RJ-45), 1 USB-A 5V/2A (device power) |
| Max Video Resolution | 4K@60Hz (4:4:4) |
| Content Protection | HDCP 2.2 |
| Max Data Rate | 18Gbps (6Gbps per channel) |
| Switching Time | Standard: 3s / Safe: 4s (same signal format) |
| Supported Formats | Deep Color, 3D, ARC, up to 7.1-channel uncompressed audio |
| Audio Matrix | 16x8 with breakaway and ARC routing |
| Control | Front panel buttons, web browser GUI, IP/RS-232 commands |
| Indicators | 7-segment display |
| Power Source | 100–240V AC, 50/60Hz |
| Power Consumption | 66VA |
| Enclosure | 19" rackmount, 1U, aluminum |
| Cooling | Fan ventilation (max 46dBA) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Product Dimensions (W×D×H) | 43.64 × 18.30 × 4.36 cm (17.18" × 7.20" × 1.72") |
| Product Weight | 2.1 kg (4.6 lbs) approx. |
| Shipping Dimensions | 52.50 × 33.00 × 10.70 cm |
| Shipping Weight | 2.9 kg (6.4 lbs) approx. |
| Accessories Included | Rack ears, power cord |
