Description

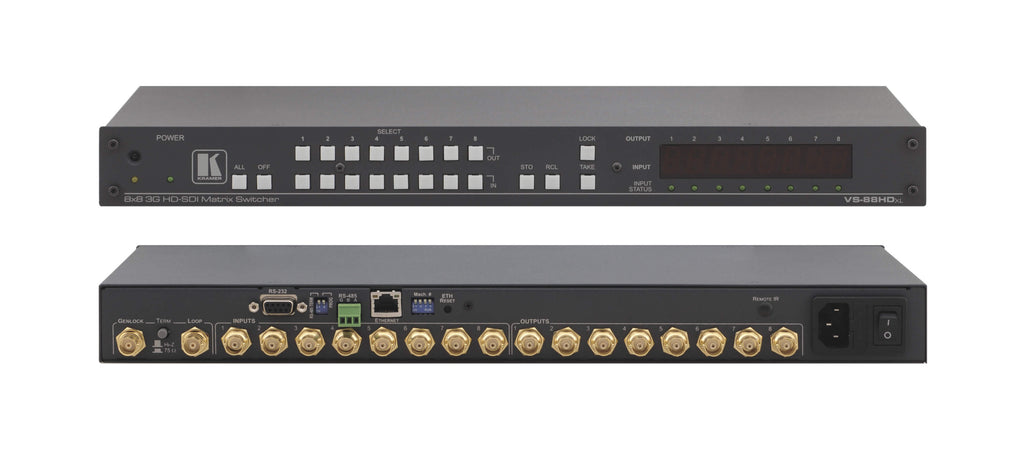

The Kramer VS-88HDXL/110V is a high-performance 8x8 3G HD-SDI matrix switcher designed for broadcast, production, and professional AV environments that demand uncompromising signal integrity. Engineered for reliability, it supports multi-standard SDI, HD-SDI, 3G HD-SDI, and dual-link HD-SDI formats, making it an ideal routing solution for studios, OB vans, post-production suites, and advanced monitoring setups.
Featuring automatic equalization, reclocking, vertical-interval switching, and a looping analog sync input, the VS-88HDXL ensures clean, synchronized signal transitions and consistent picture quality. Flexible control options—including front panel buttons, RS-232/RS-485, Ethernet, and optional IR remote—provide seamless integration into any workflow. With multiple memory presets, secure panel lockout, and universal 110V AC power, this 1U rack-mountable switcher delivers dependable performance for mission-critical applications.
| Category | Details |
|---|---|
| Inputs | 8 SDI inputs (SMPTE 259M, 344M, 292M, 372M, 424M), 75Ω BNC |
| Outputs | 8 equalized & reclocked SDI outputs (SMPTE 259M, 344M, 292M, 372M dual link, 424M), 75Ω BNC |
| Max Output Level | 800 mVpp/75Ω |
| Supported Data Rates | Up to 2.97 Gbps |
| Sync Input | Looping analog sync (bi-level/tri-level), selectable termination |
| Switching Method | Vertical interval switching compliant with SMPTE RP-168 |
| Control Interfaces | Front panel, RS-232, RS-485, Ethernet, optional IR remote |
| Indicators | 8-character front-panel display |
| Power | 100–240V AC universal input, 24VA consumption |
| Included Accessories | Power cord |
| Product Dimensions (W×D×H) | 19" × 9.34" × 1U (43.6 × 23.72 × 4.36 cm) |
| Product Weight | 1.9 kg (4.2 lbs) |
| Shipping Dimensions (W×D×H) | 52.50 × 33.00 × 10.70 cm (20.67" × 12.99" × 4.21") |
| Shipping Weight | 2.9 kg (6.4 lbs) |
