Description

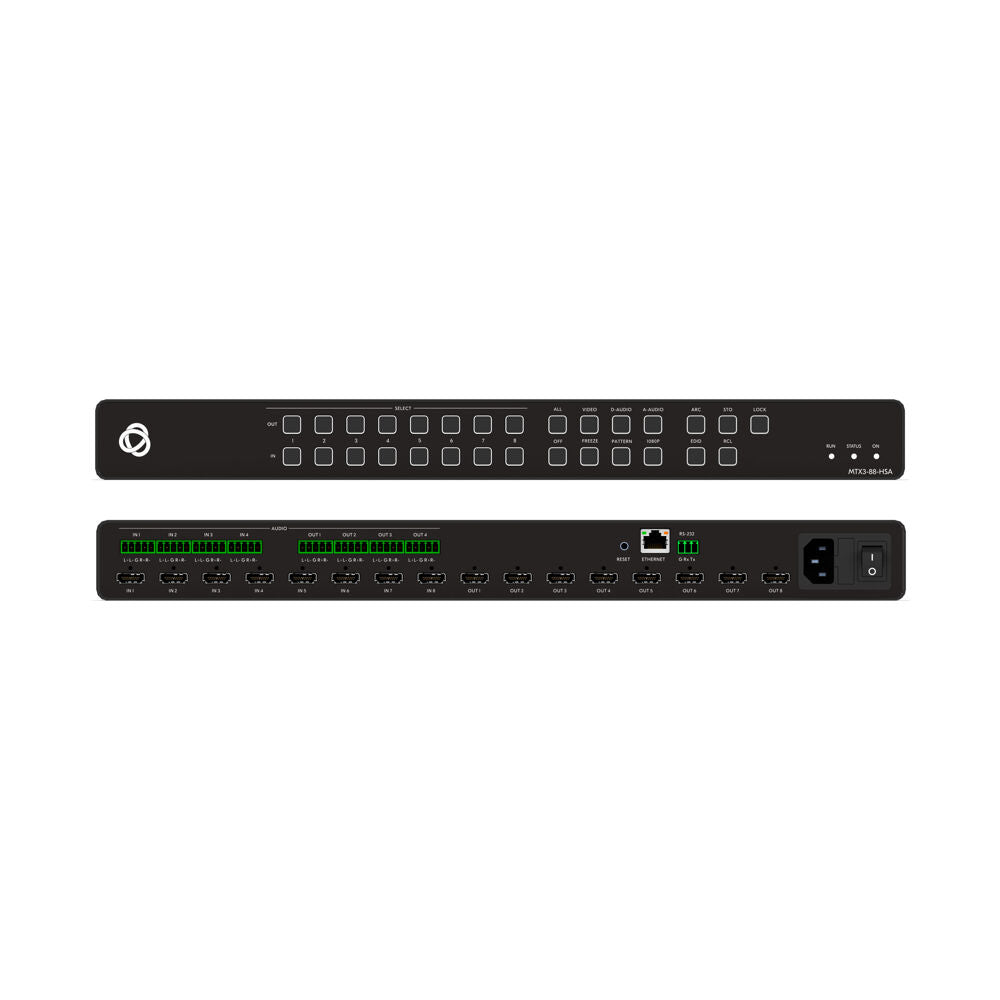

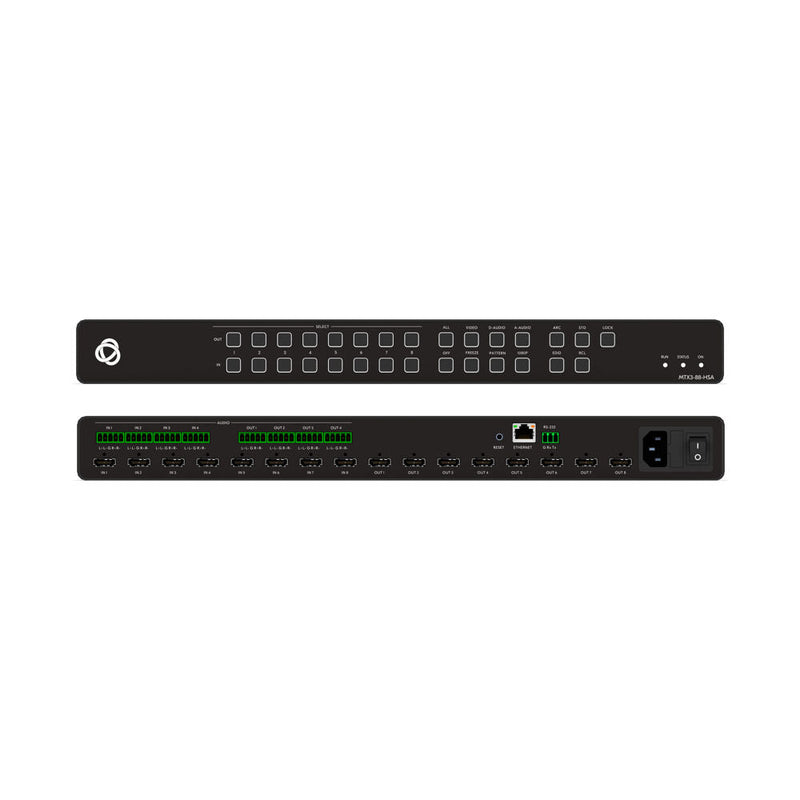

The Kramer MTX3-88-HSA is a high-performance 8×8 scaler-based HDMI matrix switcher designed for professional AV environments requiring ultra-fast switching, advanced scaling, and flexible audio routing. Each of its eight HDMI inputs can be independently routed to any of the eight HDMI outputs, with integrated up/down scaling to ensure compatibility across mixed-resolution displays and sources.
Built for seamless presentations, MTX3-88-HSA offers sub-1-second clean switching, multiview capabilities, user-defined splash screens, OSD overlays, and intelligent EDID handling through Kramer’s I-EDIDPro™ technology. Its integrated audio matrix supports analog and ARC audio routing, enabling fully independent audio breakaway to local sound systems or directly to displays.
With secure IP control, RS-232 support, intuitive front-panel operation, and a 1U rack-mountable design, the MTX3-88-HSA delivers professional-grade performance for conference rooms, command centers, classrooms, digital signage, and high-end AV installations.
| Category | Details |
|---|---|
| HDMI Inputs | 8 × HDMI (female) |
| Analog Audio Inputs | 4 × stereo balanced (terminal block) |
| HDMI Outputs | 8 × HDMI (female) |
| Analog Audio Outputs | 4 × stereo balanced (terminal block) |
| Control Ports | 1 × RS-232 (3-pin terminal block), 1 × Ethernet (RJ-45) |
| Max Output Resolution | 4K@60Hz (4:4:4) |
| Max Data Rate | 18 Gbps (6 Gbps per channel) |
| HDCP | HDCP 2.3 compliant |
| Switching Time | <1 sec (standard mode) |
| Supported Features | Deep Color, 3D, ARC, up to 7.1-channel audio (HDMI 2.0b) |
| Audio Routing | Digital/analog audio matrix with ARC extraction and flexible routing |
| Front Panel Controls | 8×8 select buttons, 12 control buttons, LED status indicators |
| Power | 100–240V AC, 50/60Hz; 66 VA consumption |
| Enclosure | 19" rack-mountable, 1U aluminum chassis; fan-ventilated |
| Max Noise Level | 46 dBA |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Dimensions (W × D × H) | 43.6 × 18.3 × 4.4 cm (17.18" × 7.20" × 1.72") |
| Weight | 2.5 kg (5.5 lbs) |
| Accessories Included | Rack ears, power cord |
