Description

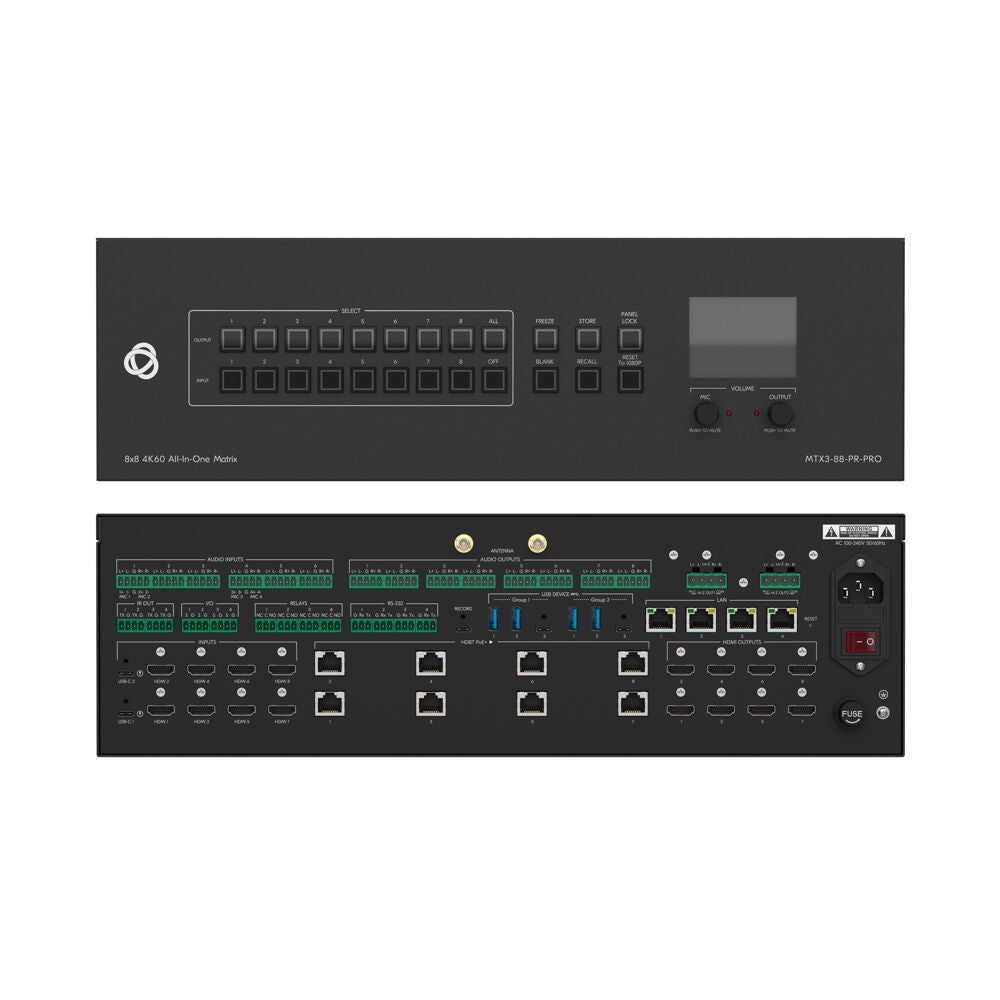

The Kramer MTX3-88-PR-PRO is a premium all-in-one 8x8 hybrid presentation matrix engineered for high-performance 4K60 (4:4:4) AV switching, advanced video processing, and flexible USB-C/HDMI/HDBaseT 3.0 signal routing. Designed for modern collaborative spaces, it combines fast switching, ProScale™ image processing, multiview layouts, and dual video-wall capabilities—making it ideal for boardrooms, lecture halls, command centers, and hybrid meeting environments.
This powerhouse matrix integrates comprehensive audio functionality including a full DSP engine, Dante and USB audio routing, dual-zone power amplification, and multiple analog inputs/outputs for complete audio management. With support for wired and wireless casting, USB-C 60W charging, enterprise-grade security, and robust room-control features (RS-232, relays, GPIO), the MTX3-88-PR-PRO delivers unmatched versatility in a single 3U rackmount chassis.
Featuring eight HDBaseT 3.0 ports with configurable direction (input or output), the unit can power remote devices via PoE, extend AV, USB, Ethernet, and control signals up to 100m, and adapt to any deployment scenario. Integrated web-based management and API control offer streamlined installation, monitoring, and configuration for professional AV integrators.
| Category | Details |
|---|---|
| Inputs | 2 USB-C (full-featured), 8 HDMI, 1 Air-cast Wi-Fi (antenna), 4 Analog Mic/2 Balanced Stereo (3-pin), 4 Analog Balanced Stereo (5-pin) |
| Outputs | 8 HDMI, 1 H.264/5 Encoder (USB-C), 8 Balanced Stereo Line (5-pin), 8 Dante Channels (RJ-45), 2 Power Amp Stereo Outputs (4-pin) |
| Interchangeable I/O | 8 HDBaseT 3.0 (RJ-45, configurable direction) |
| USB Ports | 4 USB 3.2 Type-A, 2 USB 3.2 Type-C, 1 USB 2.0 Type-C (monitoring/recording) |
| Ethernet | 3× 1000Base-T, 1× 100Base-T |
| Control Ports | 4 RS-232, 4 SPDT Relay, 4 GPIO |
| Video Performance | Up to 4K60 4:4:4, 18Gbps bandwidth, HDCP 2.3, HDMI 2.0b, scaling up/down/cross, ≤1 sec switching |
| Multiview/Video Wall | PiP, side-by-side, split; up to two 2×2 video walls |
| USB-C AV | MST DP 1.4a Alt Mode, up to 4K60 4:4:4, 60W charging (PD 3.0) |
| HDBaseT Extension | Up to 100m reach, HDBaseT 3.0 compliance, PoE+ 30W per port |
| Wireless Casting | AirPlay, Chromecast, Miracast; 4K60 4:2:0; up to 10m reach |
| Audio (Analog Inputs) | Balanced 20kΩ / Unbalanced 10kΩ; +4dBu nominal; >+21dBu max; gain –20 to +10dB |
| Microphone Inputs | Condenser (48V phantom) or dynamic; –60dBV nominal; gain –30 to +24dB |
| Analog Outputs | Balanced 100Ω, +21dBu max, –90 to +10dB volume range |
| Integrated Power Amplifier | 2× 240W Class-D amps; Lo-Z: 2×120W @4/8Ω; Hi-Z: 240W @70/100V (per amp) |
| Dante/AES67 Audio | Dante: 44.1/48/88.2/96kHz; AES67: 48/96kHz |
| Security | HTTPS, multi-role access, 802.1x authentication, OWASP-10 protection |
| Power | 85–240V AC, max consumption 1110W; HDMI 5V/0.5A; HDBaseT PoE 30W; USB-C max 60W |
| Environmental | Operating: 0–40°C; Storage: –40 to 70°C; Humidity: 10–90% non-condensing |
| Compliance | CE, FCC, UL, RoHS, WEEE |
| Mechanical | 19" 3U aluminum enclosure; Fan-cooled (max 40dBA) |
| Dimensions (W×D×H) | 19" × 9.33" × 3U (43.6cm × 23.70cm × 13.25cm) |
| Weight | 10.7kg (23.6 lbs) |
| Included Accessories | Power cords (2), USB-C cable (1m), antennas (2), fuses (2), rack ears |
