Description

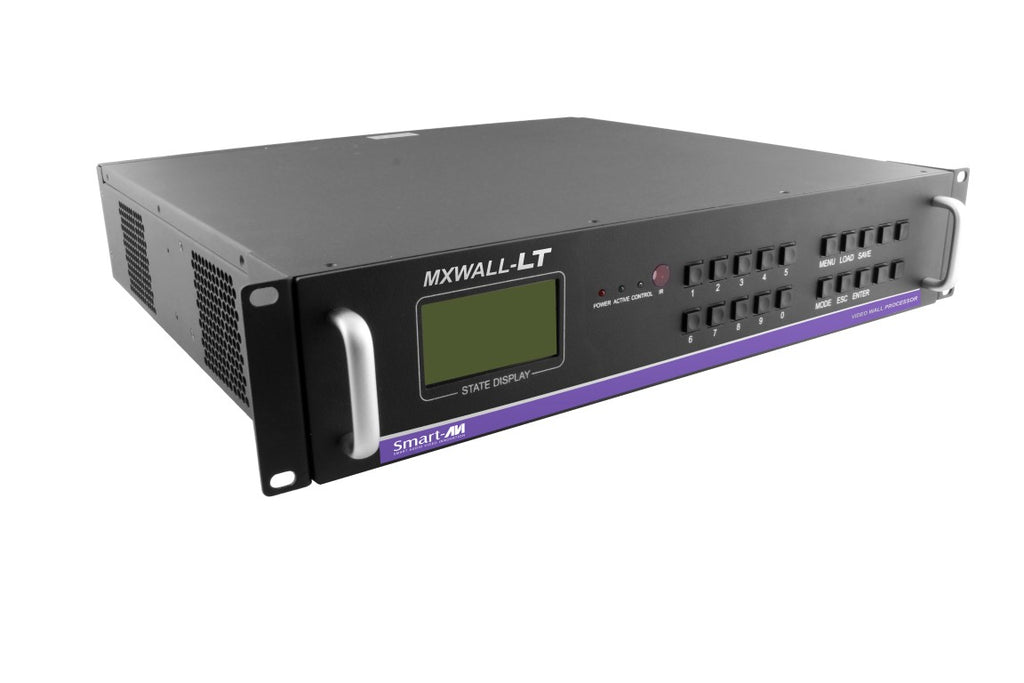

The SmartAVI MXWall-LT 8x8 HDMI Matrix Switch with Integrated Video Wall Controller is an all-in-one solution designed for professional AV environments that demand flexibility, reliability, and ease of use. Engineered to deliver seamless video distribution and dynamic video wall configurations, this system supports up to Full HD 1080p resolution at 60Hz, ensuring sharp and consistent visual performance across all connected displays.

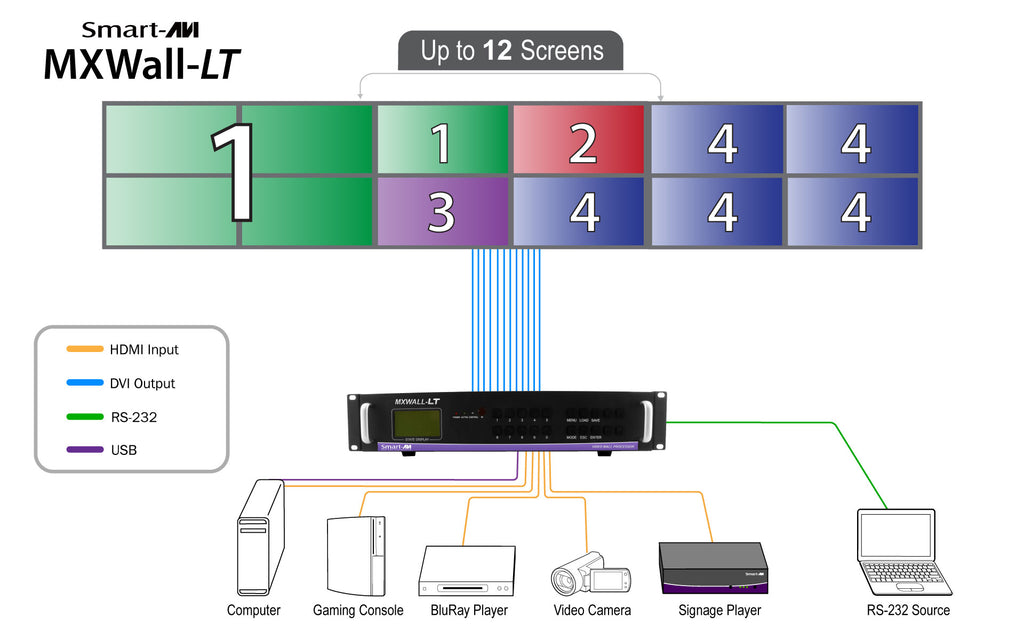

Built for mid-sized video wall deployments, this unit enables users to route multiple HDMI sources to multiple displays while simultaneously creating customized video wall layouts. Its integrated scaler and processing engine allow for smooth content distribution, whether displaying a single source across all screens or assigning different sources to individual displays.
The MXWall-LT features intuitive control options including front-panel buttons, RS-232, TCP/IP, and user-friendly software. With its plug-and-play design, deployment is fast and efficient, making it ideal for control rooms, corporate environments, retail spaces, and digital signage applications. The included MXWall Manager software simplifies configuration with drag-and-drop functionality, enabling users of all skill levels to create and manage complex video wall layouts effortlessly.
| Specification | Details |
|---|---|
| Product Type | HDMI Matrix Switch with Integrated Video Wall Controller |
| HDMI Inputs | 8 HDMI Inputs |
| HDMI Outputs | 8 HDMI Outputs |
| Supported Resolution | Up to 1920x1080 @ 60Hz (Full HD) |
| Video Formats | RGB and YCbCr (4:4:4, 4:2:2) |
| HDMI Compliance | HDMI 1.4, HDCP Compliant |
| Scaling & Processing | Integrated scaler and video wall processor |
| Video Wall Modes | Full Wall, Quad Mode, Individual Display Mode |
| Control Methods | Front Panel Buttons, RS-232, TCP/IP (Telnet), Software |
| Software | MXWall Manager (Windows, Android) |
| Input Signal Level | 0.5–1.0Vpp (TMDS) |
| Pixel Clock | Supports high-frequency video signals beyond 165 Mpix/sec |
| Connectivity | HDMI, RS-232, LAN |
| Power Supply | 100–230V AC, 50/60Hz |
| Power Consumption | Up to 300W |
| Operating Temperature | 0°C to +55°C |
| Storage Humidity | 10% to 90% |
| Form Factor | Rackmount |
| Dimensions | 17 in (W) x 3.5 in (H) x 15 in (D) |
| Weight | Approx. 20 lbs |
| Included Accessories | Main Unit, Power Supply (CCPWR06) |
| Installation Type | Plug-and-Play, No Additional Drivers Required |
