Description

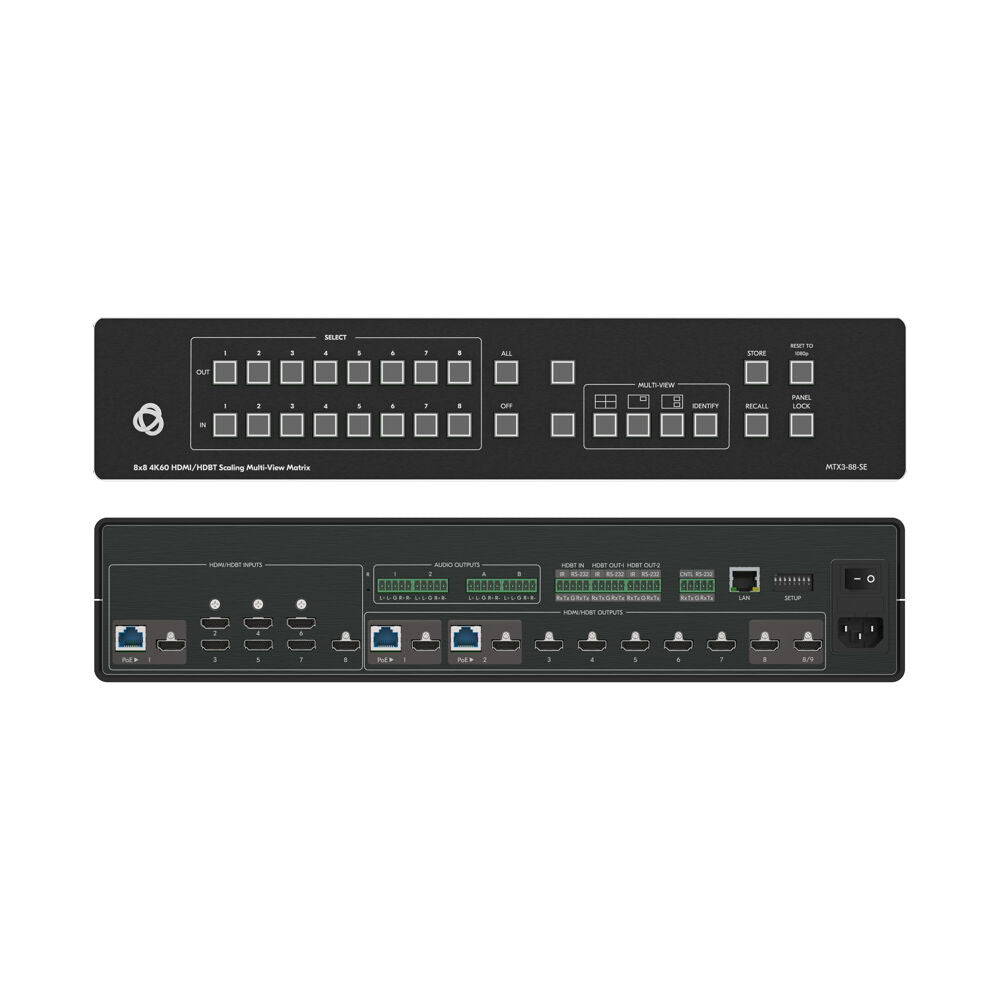

The Kramer MTX3-88-SE is a professional-grade 8x8 seamless multi-viewer matrix switcher and scaler designed for high-end presentation, control, and multi-display environments. With eight HDMI inputs, eight HDMI outputs, one HDBaseT input, and two mirrored HDBaseT outputs, it delivers powerful multi-view processing for flexible content layouts, including dual quad-view or quad dual-view presentations.
Featuring 4K60 4:4:4 video performance, seamless switching, advanced ProcAmp scaling, and comprehensive signal extension, the MTX3-88-SE ensures clean transitions, ultra-sharp images, and a superior user experience. Integrated EDID management, USB 2.0 extension, Ethernet pass-through, bidirectional RS-232/IR, and audio de-embedding streamline installations and control system integration.
Ideal for command centers, corporate AV, education, broadcast, and multi-display applications that demand reliability, flexibility, and top-tier image processing.
| Category | Details |
|---|---|
| Inputs | 8 HDMI (female), 1 HDBaseT (RJ-45) |
| Outputs | 9 HDMI (female), 2 HDBaseT (RJ-45), 4 balanced stereo audio (5-pin terminal blocks) |
| Control Ports | 2× RS-232 (5-pin), 1× LAN (RJ-45), 3× RS-232 + IR for HDBaseT links |
| Max Video Bandwidth | 18 Gbps (6 Gbps per channel) |
| Max Resolution | 4K@60Hz (4:4:4); supports HDR, Deep Color, 3D |
| Supported Resolutions | 1024×768 to 3840×2160 (24/25/30/50/60 Hz) |
| Content Protection | HDCP 2.3 |
| Color Space | RGB, YUV 4:4:4 |
| HDBaseT Extension Reach | Up to 100 m (330 ft) with Kramer cables |
| PoE on HDBaseT Outputs | 15W (802.3at Type 1) |
| USB Extension | USB 2.0 up to 480 Mbps; 300 Mbps data bandwidth |
| Ethernet Extension | Up to 100 Mbps |
| RS-232 Extension | 300–115200 baud |
| Analog Audio | Max level 9 dBu; 500Ω impedance; 20 Hz–20 kHz; THD+N 0.005%; Crosstalk −114 dB |
| Power Consumption | 85–240V AC, 120W max |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Regulatory Compliance | CE, FCC, UKCA; RoHS, WEEE |
| Enclosure | 19" 2U aluminum, fan-cooled |
| Dimensions (W×D×H) | 43.7 × 23.6 × 8.8 cm (17.2" × 9.3" × 3.5") |
| Shipping Dimensions | 52.6 × 47.5 × 18.4 cm (20.7" × 18.7" × 7.2") |
| Net Weight | 3.9 kg (8.6 lbs) |
| Shipping Weight | 5.4 kg (12 lbs) |
| Accessories Included | Power cord |
