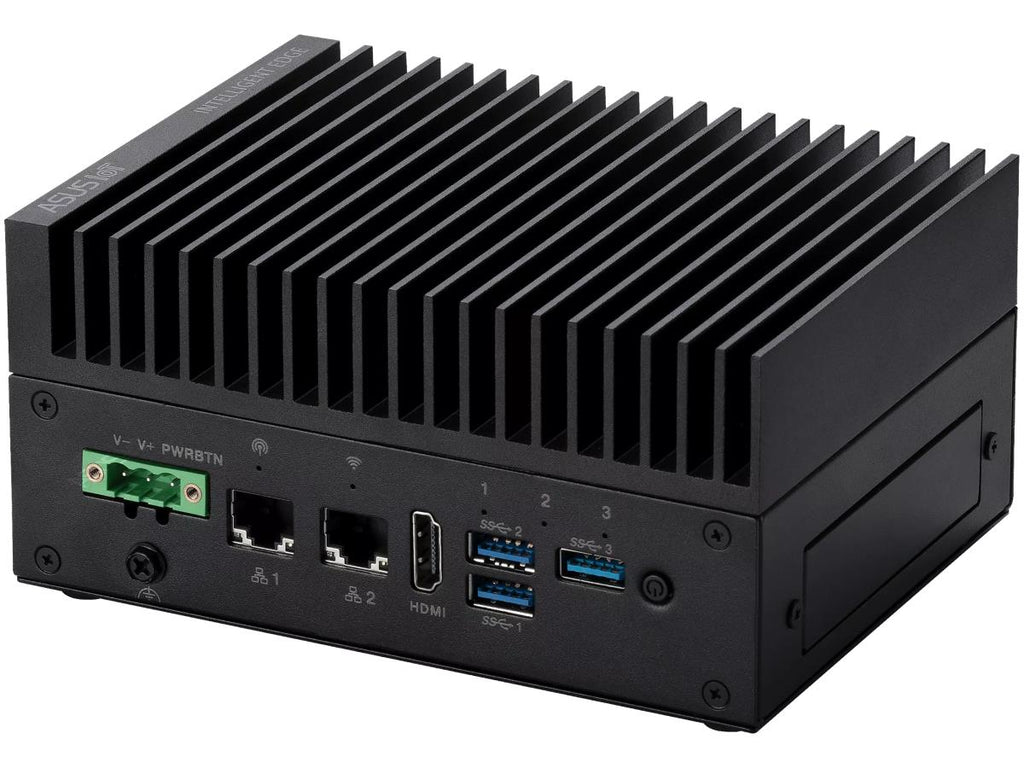

Description
The ASUS PE1100N Orin NX 16G Arm Edge AI System is an ultra-compact, fanless industrial computer purpose-built for advanced AI inferencing at the edge. Powered by the NVIDIA Jetson Orin NX platform with an ARM Cortex-A78AE CPU and NVIDIA Ampere GPU, it delivers exceptional performance for intelligent vision, automation, and robotics applications.
Engineered for rugged environments, the PE1100N supports 12–24V DC input, wide temperature ranges, and anti-vibration durability, making it ideal for smart city, transportation, and manufacturing solutions. With rich industrial I/O, including dual Gigabit LAN, HDMI 2.0b, multiple USB ports, RS-232/422/485, CAN bus, and digital I/O, it enables seamless connectivity for edge devices.
Its compact, fanless design enhances reliability, while support for ASUS Expansion Modules (AEM) provides flexible scalability. Backed by a 3-year warranty, the PE1100N is a trusted platform for edge AI deployments such as automated guided vehicles (AGVs), autonomous mobile robots (AMRs), optical inspection systems, and surveillance analytics.
| Category | Specification |
|---|---|
| Model | ASUS PE1100N |
| System Type | Intelligent Edge AI System |
| Processor | ARM Cortex-A78AE |
| Processor Manufacturer | ARM |
| GPU | NVIDIA Ampere GPU (Jetson Orin NX) |
| Memory | 16GB LPDDR5 |
| Storage | eMMC (onboard); M.2 E/B/M slots for expansion |
| Networking | 2 x Gigabit Ethernet (RJ45) |

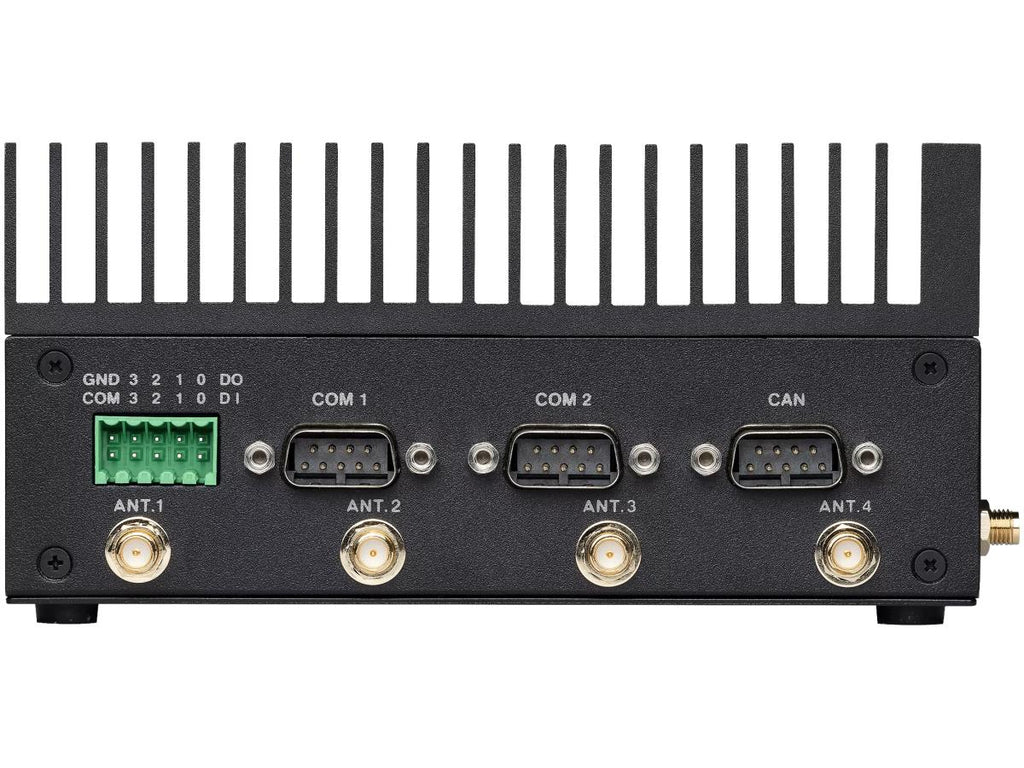

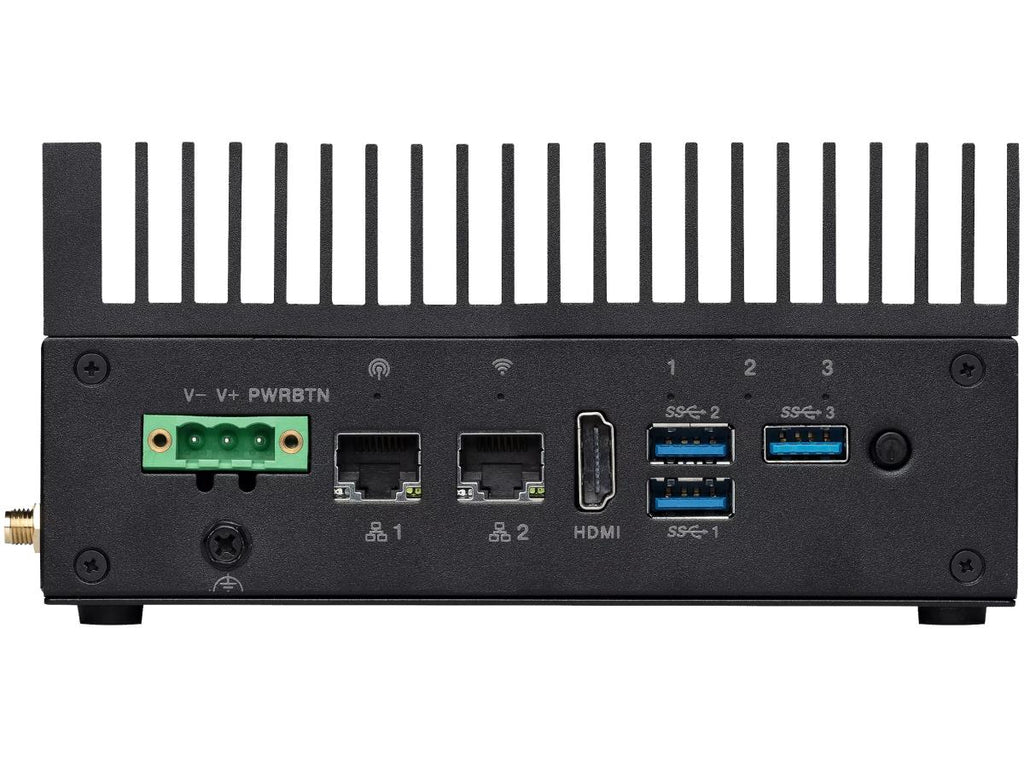

| I/O Interfaces | 3 x USB 3.2 Gen 1 (Type-A), 1 x Micro-USB (for OS flash), 2 x USB 2.0 (internal header), 2 x RS-232/422/485 (DB9), 1 x CAN bus (DB9), 4 x DI & 4 x DO (isolated terminal block), 1 x HDMI 2.0b (3840x2160 @60Hz), 1 x Debug console (Micro-USB) |
| Expansion Slots | M.2 E key, M.2 B key, M.2 M key; supports ASUS Expansion Module (AEM) |
| Power Input | 12–24V DC |
| Cooling Design | Fanless, passive heat dissipation |
| Security | TPM 2.0 |
| Chassis Dimensions (W x D x H) | 152 x 114 x 72 mm |
| Weight | 1.4 kg |
| Operating Environment | Wide temperature support for industrial applications |
| Construction | Compact, rugged design with anti-vibration resistance |
| Certifications | CE, FCC, RoHS compliant |
| Warranty | 3 Years |
