Description

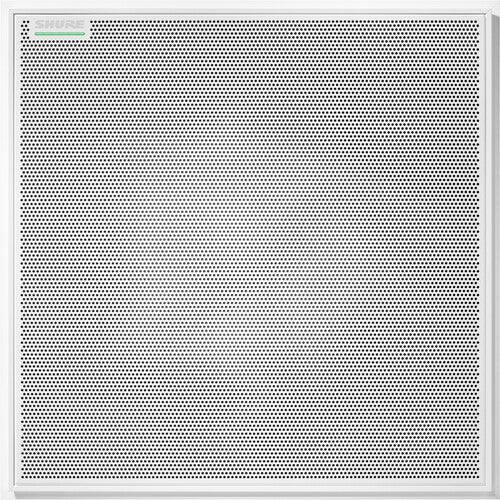

The Shure MXA920-S Microflex Advance Ceiling Array Microphone delivers premium audio capture for modern conferencing environments, combining effortless deployment with advanced precision control. Designed specifically for 60cm European ceiling tiles, this square array microphone provides expansive, room-wide coverage with no manual setup required.
Powered by Automatic Coverage™ technology, the MXA920 intelligently captures voices across a 30 x 30 ft area while minimizing unwanted noise. For more tailored audio control, Steerable Coverage allows you to define up to eight customizable pickup zones with individual outputs, ensuring optimal performance in complex or larger spaces.
Built-in IntelliMix® DSP enhances audio clarity with automatic mixing, echo cancellation, noise reduction, and gain control, delivering clean and intelligible speech for meetings, presentations, and collaborative environments. With Dante/AES67 networking, PoE support, and encrypted audio transmission over a single cable, the MXA920 simplifies installation while maintaining enterprise-grade security and reliability.
Its next-generation array architecture improves directional accuracy and low-frequency response, while advanced talker localization enables seamless integration with camera tracking systems. Whether used in boardrooms, training facilities, or large conference spaces, the MXA920 ensures consistent, high-quality audio performance.
| Specification | Details |
|---|---|
| Brand | Shure |
| Model | MXA920-S |
| Form Factor | Square Ceiling Array Microphone |
| Installation Type | Ceiling Mount (60cm European Tile Compatible) |
| Color | White (Paintable Finish) |
| Coverage Area | Up to 30 x 30 ft (9 x 9 m) |
| Coverage Technology | Automatic Coverage and Steerable Coverage |
| Pickup Zones | Up to 8 Adjustable Lobes |
| Audio Outputs | 8 Individual Outputs + Automix Output |
| Digital Signal Processing | IntelliMix DSP (AEC, Noise Reduction, AGC, Compression, EQ, Delay) |
| Networking | Dante / AES67 Digital Audio |
| Power | PoE (Power over Ethernet) |
| Cable Requirements | Cat5e or Higher (Shielded Recommended) |
| Encryption | Shure Audio Encryption |
| Talker Localization | Yes (for Camera Tracking Integration) |
| Compatibility | Shure Microflex Advance Ecosystem |
| Environmental Rating | Dust Resistant (IP5X) |
| Control Interface | Web-Based Configuration Interface |
| Integration | Supports Third-Party Control Systems |
| Certifications | Microsoft Teams Certified (with compatible systems) |
| Dimensions | 60cm Square Form Factor |
| Package Weight | 17.88 lb |
| Box Dimensions | 29.7 x 29.2 x 5.4 inches |
| Included Accessories | Cable Ties, Strain Relief Tabs, Rubber Pad Set |
| Warranty | 2-Year Manufacturer Warranty |
