Description
The Eaton 93PX 7500VA/7500W UPS (93PX8KIND) delivers enterprise-grade power protection for critical IT infrastructure, edge deployments, and industrial environments. Designed with true online double-conversion topology, this three-phase UPS ensures continuous, clean, and reliable power with zero transfer time, safeguarding sensitive equipment from outages, surges, and power anomalies.
With a unity power factor (1.0), the 93PX maximizes usable capacity while maintaining high efficiency and compact rackmount design. The included cybersecure Industrial Gateway Card enables secure remote monitoring and control, allowing IT teams to manage power infrastructure proactively from anywhere.
This system supports extended runtime through additional battery modules, making it ideal for applications requiring longer backup durations. The integrated maintenance bypass panel ensures uninterrupted operation during servicing, while the plug-and-play quick-connect design simplifies deployment and maintenance.
Engineered for scalability, efficiency, and resilience, the Eaton 93PX is a dependable solution for data centers, healthcare systems, and industrial operations requiring consistent uptime and advanced power management.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | 93PX |
| UPS Type | Three-Phase Online Double-Conversion |
| Output Capacity | 7500VA / 7500W |
| Output Power Factor | Unity (1.0) |
| Input Voltage | 120/208V AC, 3-Phase Wye |
| Output Voltage | 120/208V AC, 3-Phase Wye |
| Input Connection | L21-30P |

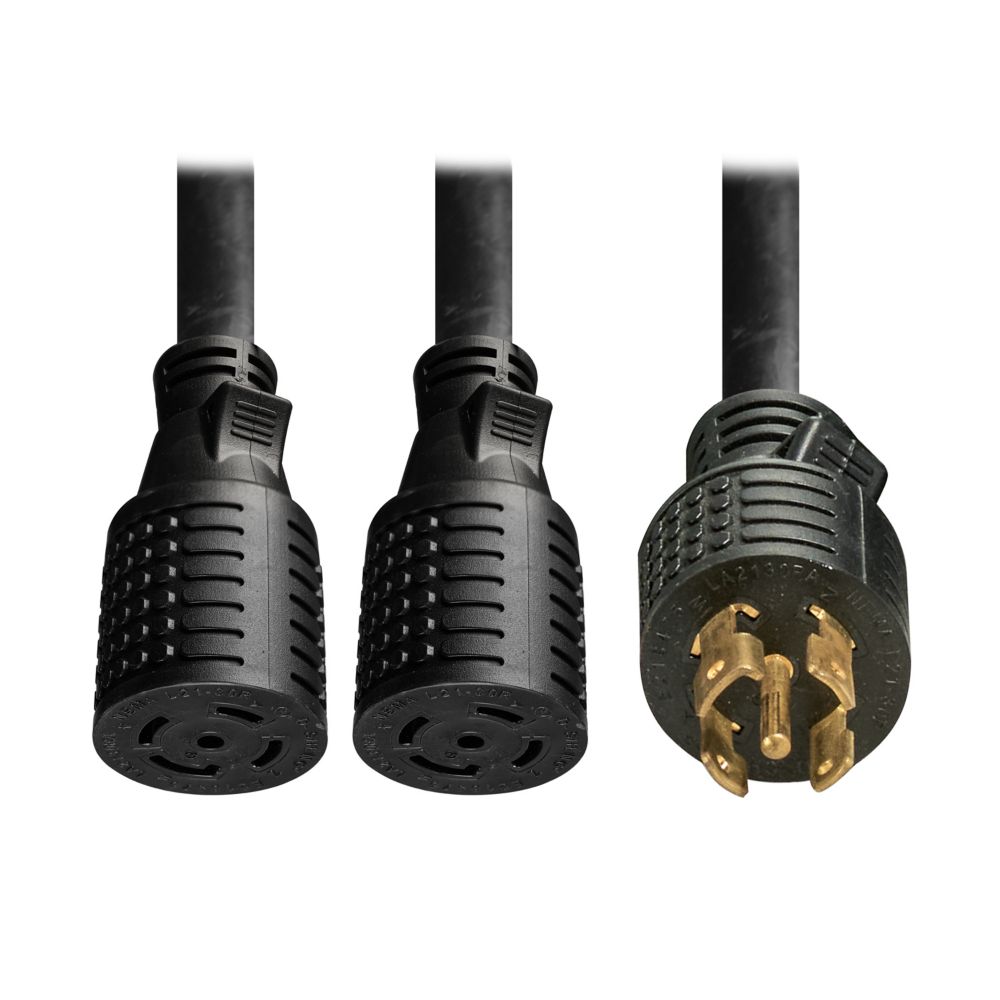

| Output Connections | (2) L21-30R |
| Frequency | 50/60 Hz ± 4Hz |
| Input Power Factor | 1.0 |
| THDi | Less than 4% |
| Output Waveform | Pure Sine Wave (AC and Battery Mode) |
| Voltage Regulation | ±1% (Line Mode) |
| Transfer Time (Economy Mode) | Less than 10 ms |
| DC Voltage | ±120 VDC |
| Topology | Online Double-Conversion |
| Form Factor | 4-Post 19" Rackmount |
| Rack Height | 9U |
| Dimensions (H x W x D) | 15.43 x 17.24 x 32.14 inches |
| Weight | 292.11 lbs |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 104°F (-15°C to 40°C) |
| Humidity | 0–95% non-condensing |
| Operating Elevation | Up to 3000 m (derating above 1000 m) |
| Battery Type | External Extended Battery Modules (EBM supported) |
| Expandable Runtime | Supports up to 5 EBMs |
| Typical Battery Life | 3.5 to 6 years depending on conditions |
| Maintenance Bypass | Included (93PXMBP8K) |
| Network Management | INDGW-M3 Industrial Gateway Card included |

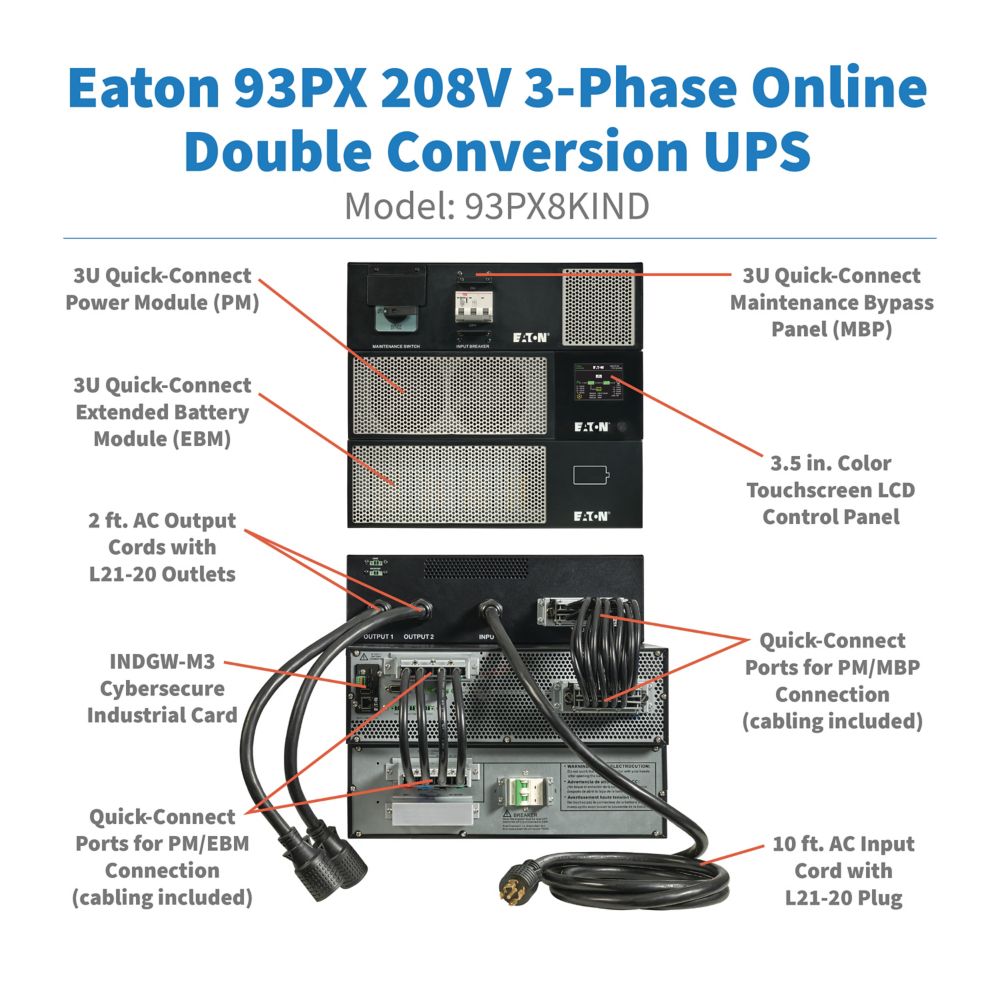

| Included Components | Power module, industrial card, battery module, maintenance bypass panel, rack hardware, cabling, documentation |
| Installation Type | Rackmount |
| Key Features | Expandable runtime, plug-and-play design, cybersecure remote access, high power density, maintenance bypass support |
