Description

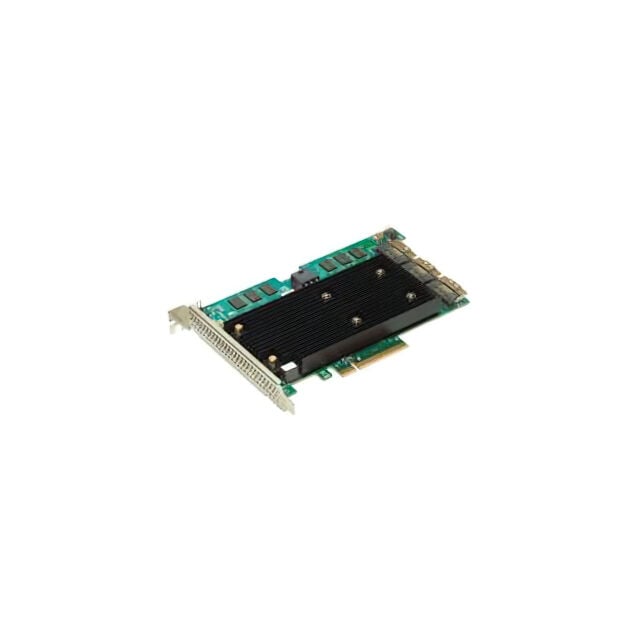

The Broadcom MegaRAID 9670-24i delivers high-performance Tri-Mode storage connectivity for modern enterprise data centers requiring maximum throughput, flexible storage configurations, and robust RAID protection. Supporting NVMe, SAS, and SATA drives simultaneously through advanced Tri-Mode SerDes technology, the 9670-24i enables seamless infrastructure evolution without disruptive hardware changes.
Equipped with the SAS4124 RAID-on-Chip (ROC) controller and a PCIe Gen 4.0 x8 host interface, this adapter provides exceptional bandwidth and supports demanding workloads found in cloud computing, HPC, virtualized environments, and large-scale storage servers.
With support for RAID 0/1/10/5/50/6/60, up to 240 SAS/SATA devices, and up to 32 NVMe SSDs, the 9670-24i offers flexibility for both high-performance and high-capacity deployments. Enhanced data protection features—including hardware secure boot, attestation, SSD Guard, and advanced enclosure management—ensure consistent reliability and security in mission-critical environments.
Designed in a full-height MD2 form factor with three x8 internal SFF-8654 connectors, this adapter meets the demands of dense storage platforms while delivering powerful rebuild performance, increased IOPs, and minimized latency.
| Category | Specification |
|---|---|
| Manufacturer | Broadcom |
| Model | MegaRAID 9670-24i |
| SKU / Part Number | 05-50123-00 |
| Adapter Type | MegaRAID Tri-Mode RAID Adapter |
| Ports | 24 internal |
| Storage Interface Support | NVMe (PCIe Gen 4.0), 24G SAS, 6Gb/s SATA |
| Controller | SAS4124 ROC |
| PCIe Host Interface | x8 PCIe Gen 4.0 |
| RAID Levels | 0, 1, 10, 5, 50, 6, 60 |
| Max SAS/SATA Devices | 240 |
| Max NVMe Devices | 32 |
| Internal Connectors | 3 × x8 SFF-8654 |
| Form Factor | FH-MD2 |
| Typical Power | 28W |
| Cooling Requirement | 200 LFM at 55°C |
| Security Features | Hardware Secure Boot, Device Attestation |
| Management Software | LSA (GUI), StorCLI (CLI), HII (UEFI) |
| OS Support | Windows, VMware ESXi, RHEL, SUSE, Ubuntu, Citrix, Debian, Oracle Linux, Fedora, FreeBSD |
| Additional Features | UBM Ready, SSD Guard, DataBolt technology, Multi-protocol backplane support |
