Description

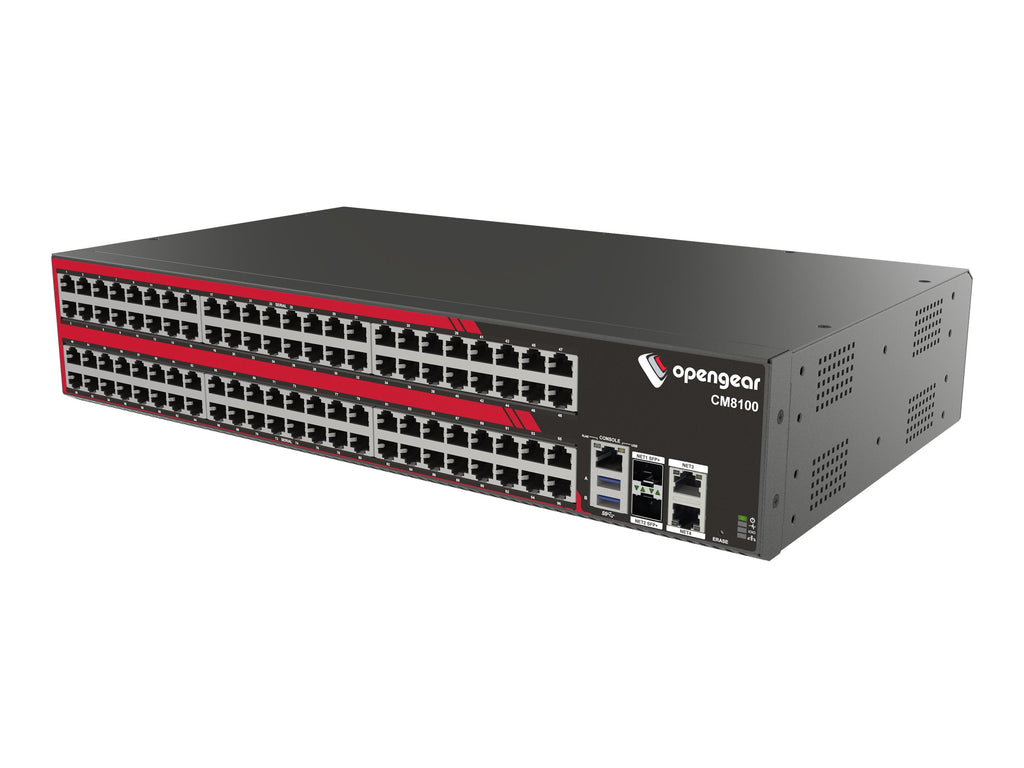

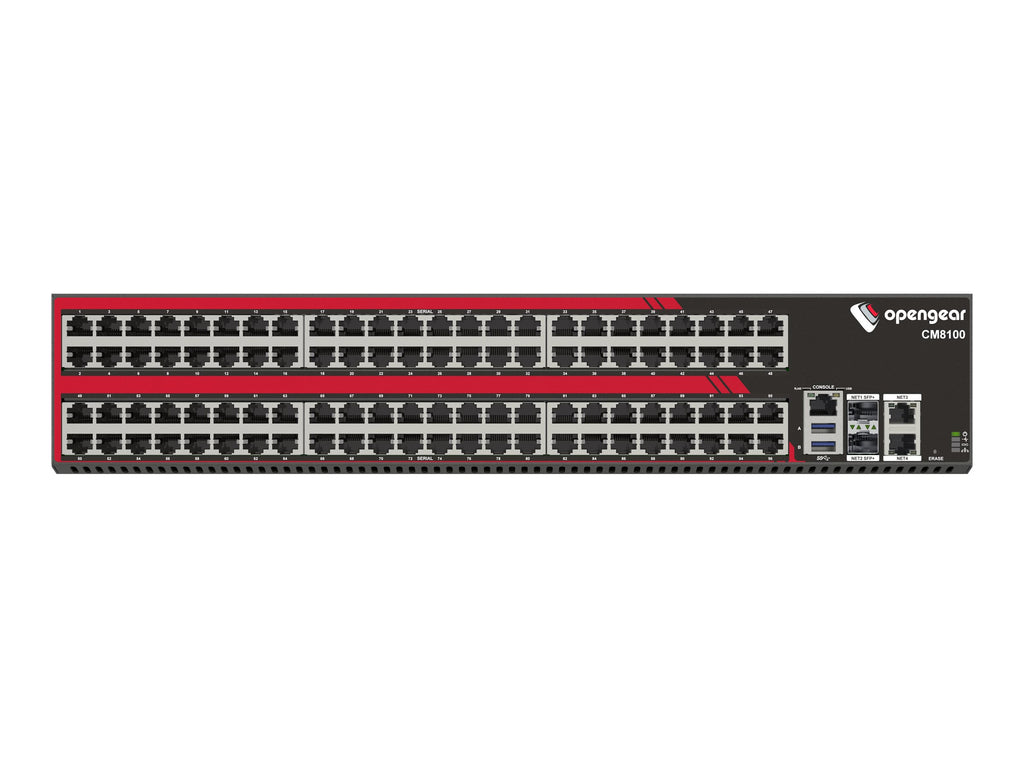

The Opengear CM8196-10G-C14 Console Server is purpose-built for high-density data center and enterprise deployments. Featuring 96 serial ports and dual 10Gb SFP+ uplinks, it delivers secure, resilient, and automated Smart Out-of-Band Management at scale.
Powered by a dual-core Marvell CPU with 2GB DDR4 RAM and 32GB flash memory, the CM8196-10G-C14 ensures responsive performance for critical remote access tasks. It integrates enterprise-grade features such as TPM 2.0 security, proactive monitoring with temperature sensors, automated failover, VPN and firewall support, and compatibility with authentication protocols including LDAP, RADIUS, TACACS+, and Active Directory.
With redundant dual power supplies (C14 connectors), rack-mount form factor, and a robust MTBF of 150,000 hours, the CM8196-10G-C14 offers unmatched reliability. TAA-compliant and backed by a 4-year warranty and support, it enables IT teams to maintain uptime while lowering total cost of ownership.
| Category | Details |
|---|---|
| Brand | Opengear |
| Product Line | Opengear CM8100 Series |
| Model | CM8196-10G-C14 |
| Device Type | Console Server |
| Rack Units | 2U |
| Dimensions (W x D x H) | 17.3 in x 10.4 in x 3.4 in |
| Weight | 9.92 lbs |
| Built-in Devices | Temperature sensor |
| Processor | Marvell 88F6820, 1.6 GHz Dual Core |
| Memory | 2 GB DDR4 SDRAM |
| Flash Storage | 32 GB |
| Serial Ports | 96 x RS-232 (RJ-45) |
| Networking | 2 x 1GbE RJ-45, 2 x 10GbE SFP+ |
| Other Interfaces | 1 x Console RJ-45, 2 x USB 3.0 (Type A) |
| Connectivity Tech | Wired |
| Supported Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Network Security | IPSec, IPv6, OpenVPN, Firewall, VPN support, AAA, TPM 2.0 |
| Authentication | SSH, RADIUS, TACACS+, LDAP, Active Directory |
| Remote Management | SNMP, HTTP, SSH, IPv6 |
| Redundant Power | Dual Internal Power Supplies (C14) |
| Power Requirements | 100–240V AC, 30W operational |
| MTBF | 150,000 hours |
| Included Accessories | Rack mount kit, 4 screws, 2 rack ears, nuts, 2x power cables (C14), DB-9 to RJ-45 adapter, 6 ft patch cable |
| Compliance Standards | RoHS, FCC, EN/IEC standards, TAA Compliant |
| Operating Temp. | 41 °F – 122 °F |
| Humidity Range | 5–90% non-condensing |
| Warranty | 4-year limited warranty & technical support |
