Description

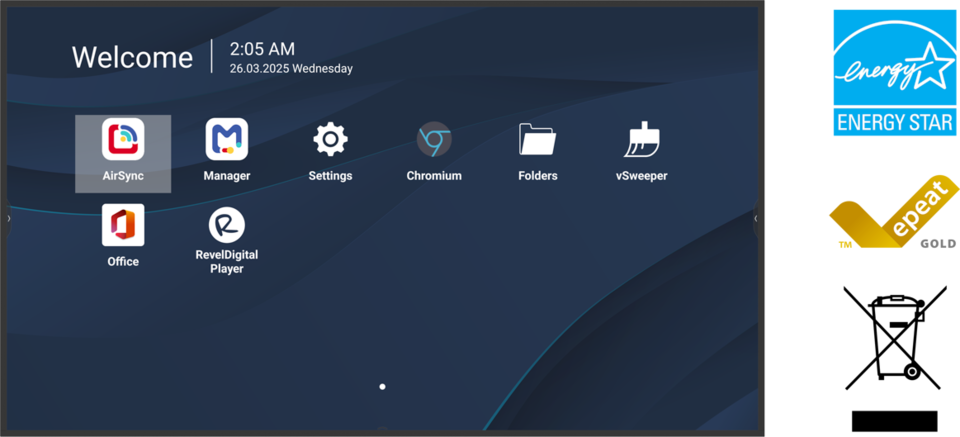

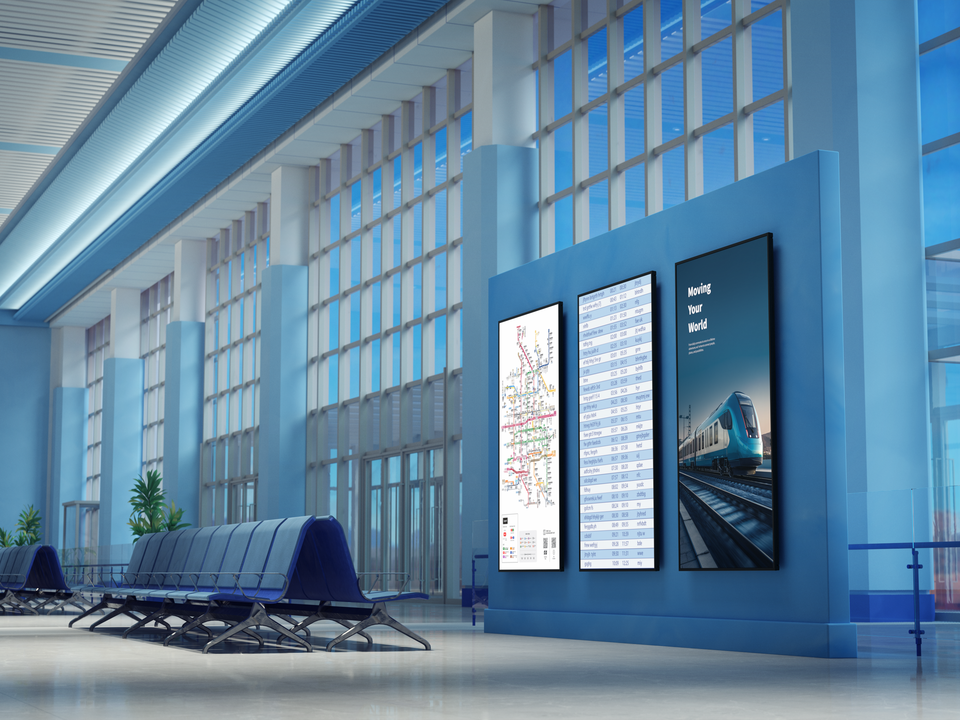

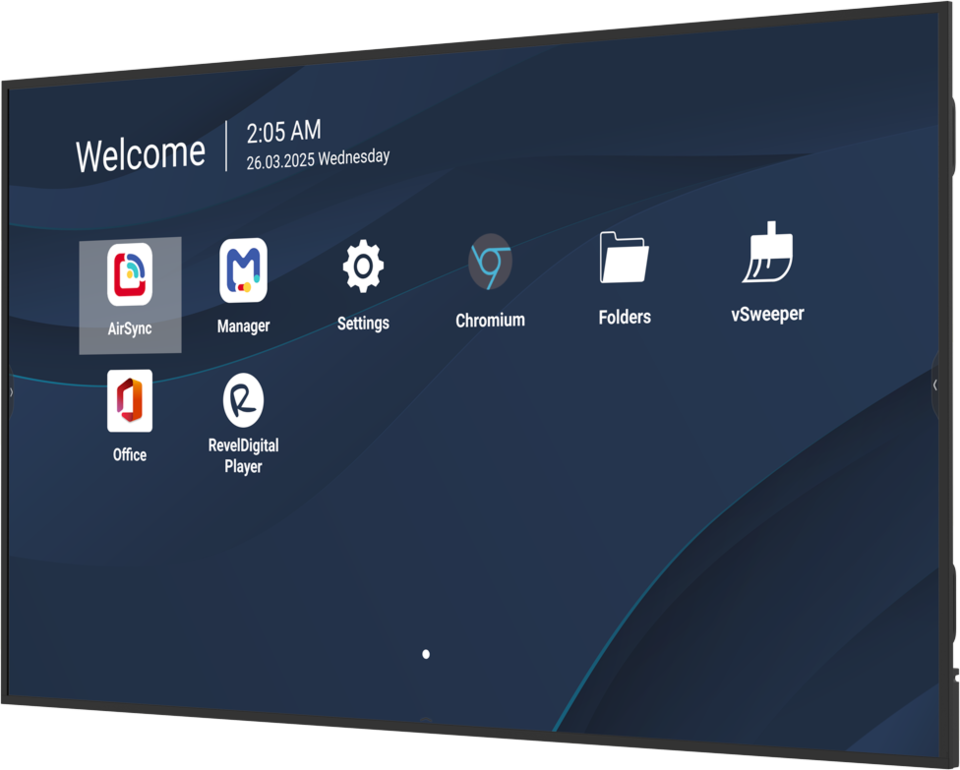

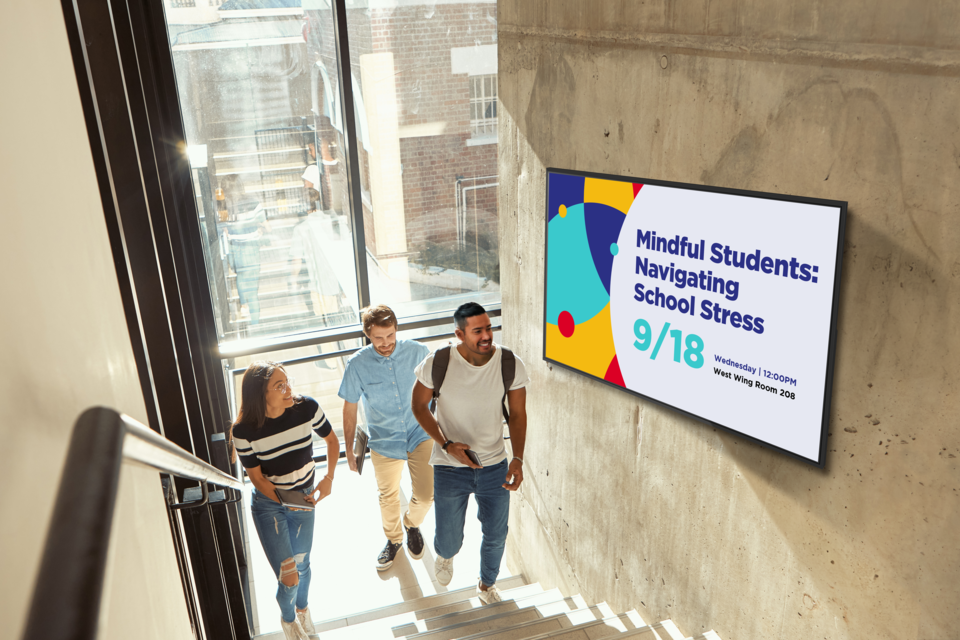

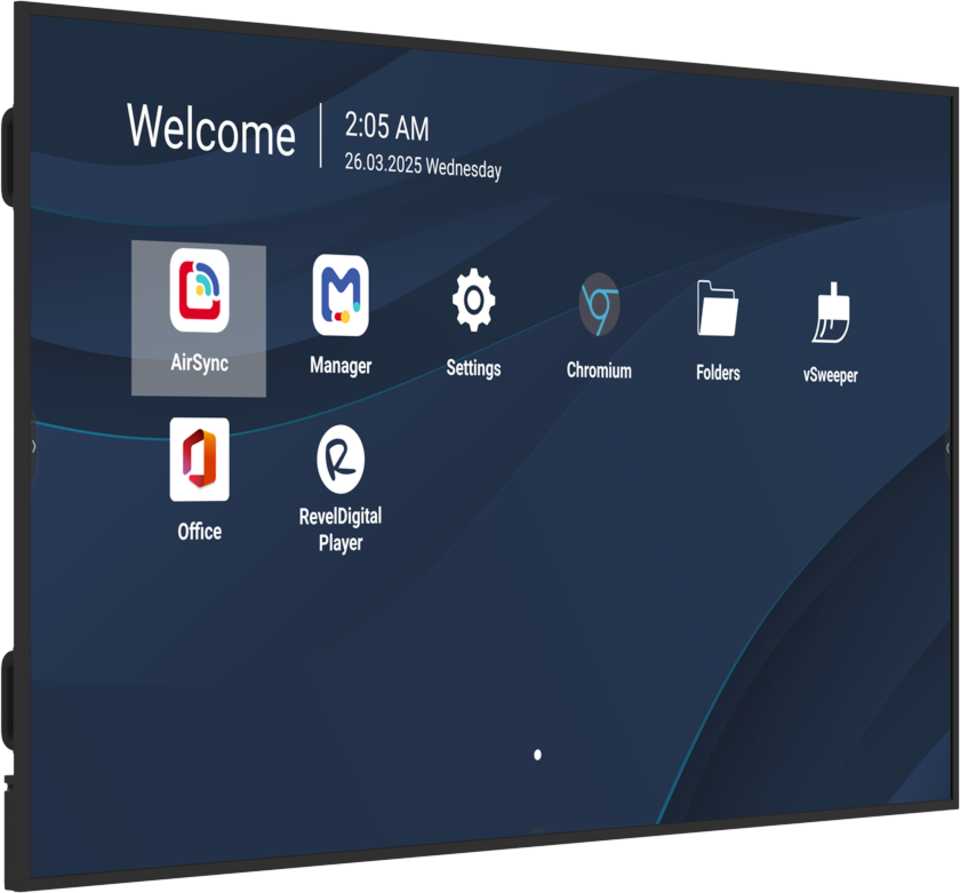

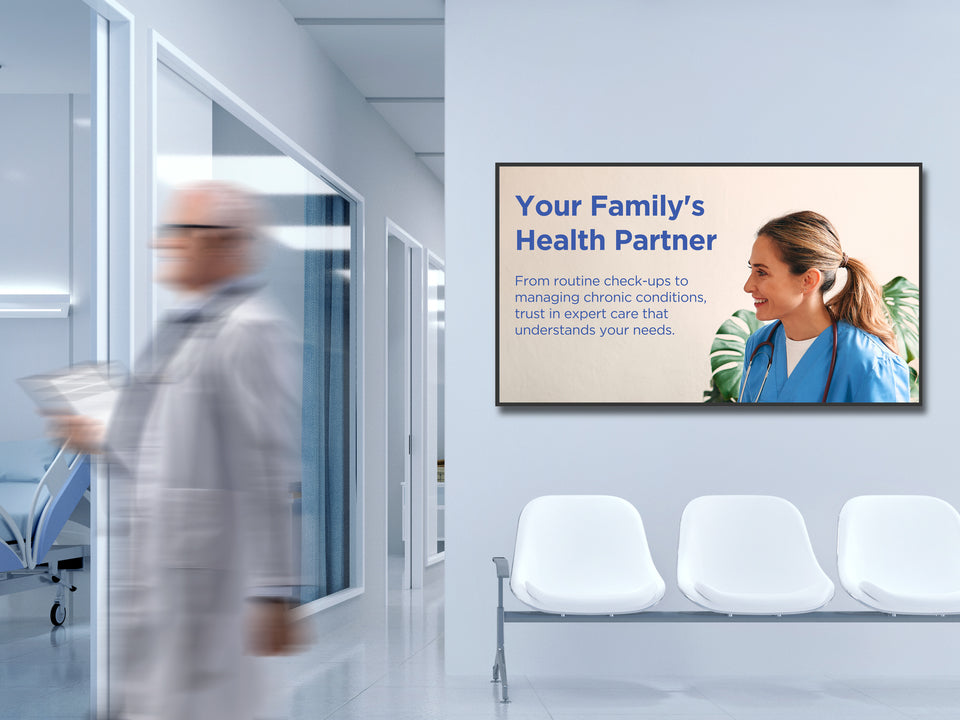

The ViewSonic® CDE9831 is a premium 98-inch 4K UHD commercial-grade display designed for large-format digital signage and enterprise communication. Engineered for reliability and performance, it delivers ultra-sharp visuals and uninterrupted playback across corporate, retail, education, and healthcare environments.
Powered by Android 14 OS and a next-generation Quad-Core ARM Cortex-A73 processor with 8GB RAM and 32GB storage, the CDE9831 ensures smooth multimedia performance and responsive operation. The platform is upgradeable to Android 16 for extended support and long-term security.
Its Fast Warm Boot technology launches signage content in under 7 seconds, while built-in USB playback and automatic failover prevent downtime. With 500 nits brightness, anti-glare coating, and 24/7 reliability, your content remains vivid and clear in any lighting condition. Integrated ProAV system compatibility, remote management via ViewSonic Manager, and a full suite of connectivity—including HDMI 2.0, USB-C with 65W power delivery, OPS slot, RS232, and dual LAN ports—make this display a robust, future-ready solution for centralized control and scalable deployment.
| Category | Specification |
|---|---|
| Display | |
| Panel Size | 98" |
| Display Area (mm) | 2158.848 (H) x 1214.352 (V) |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Contrast Ratio | 1200:1 (typ.) / 5000:1 (DCR enabled) |
| Colors | 8-bit + FRC |
| Response Time | 8ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight Life | 50,000 hours |
| Surface Treatment | Anti-glare, 3H hardness, Haze 25% |

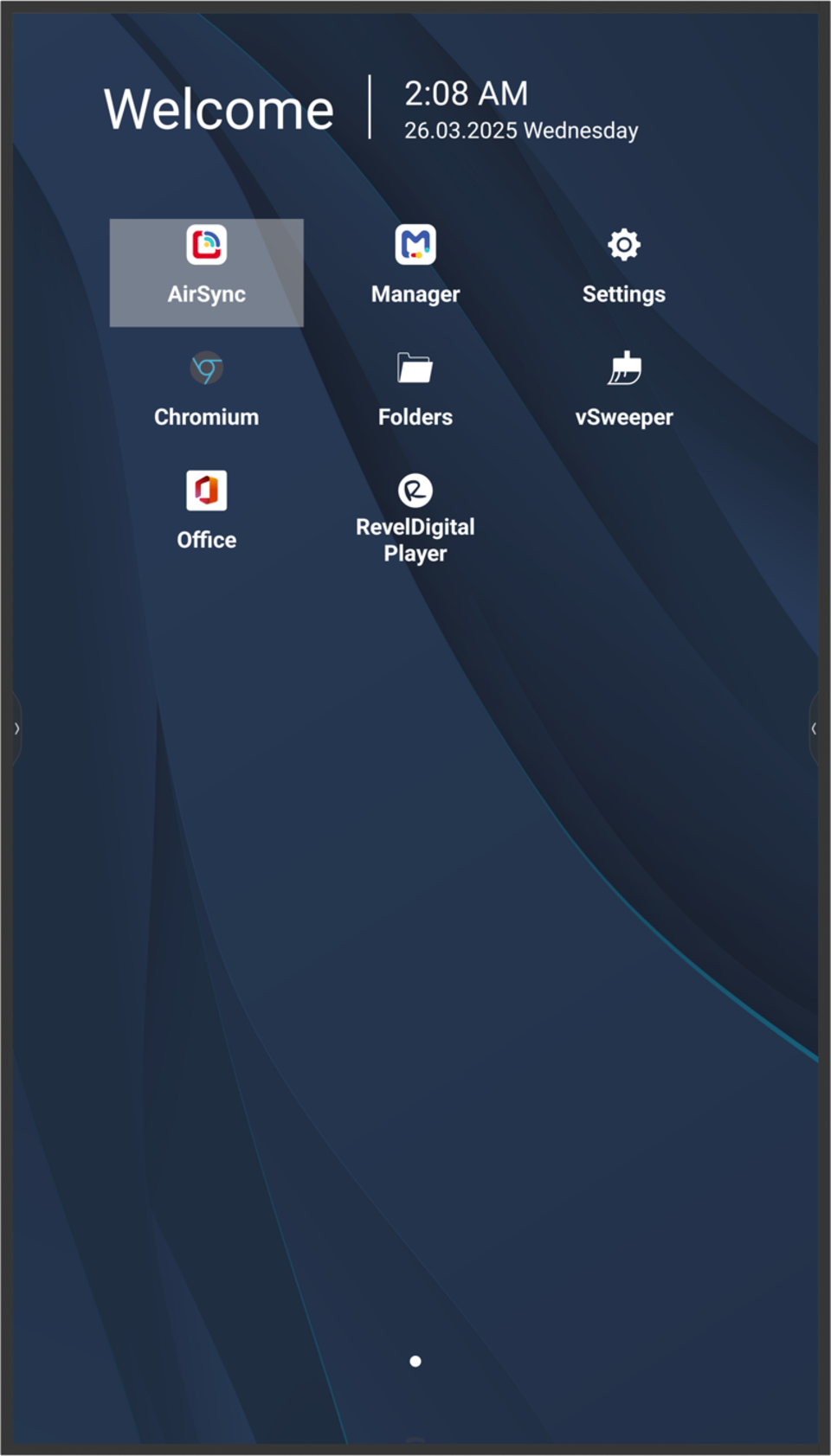

| Orientation | Landscape & Portrait |
| Platform | |
| Processor | Quad-core ARM Cortex-A73 |
| RAM | 8GB DDR4 |
| Storage | 32GB |

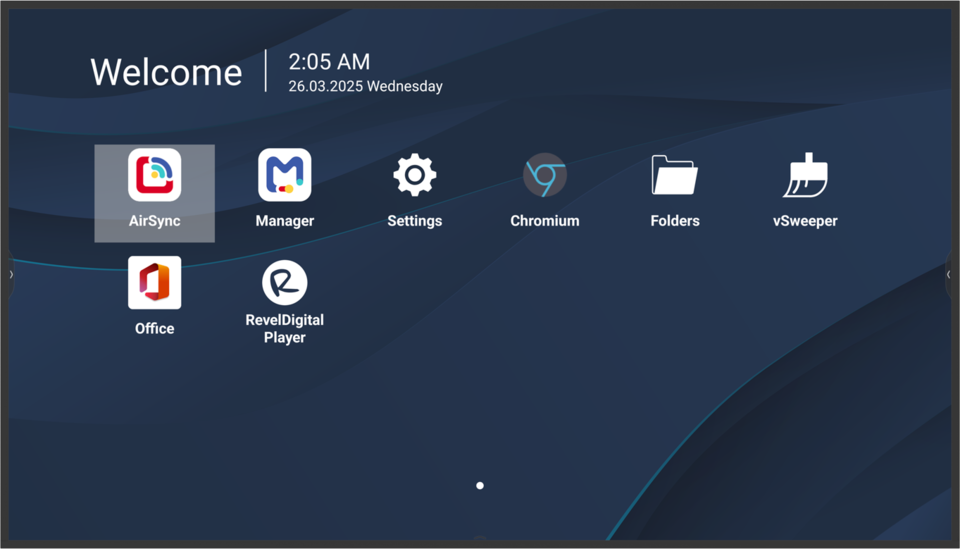

| Embedded OS | Android 14 (Upgradeable to Android 16) |
| Connectivity - Input | |
| HDMI | 3x HDMI 2.0 (HDMI 1 supports ARC) |
| Audio In | 3.5mm x1 |
| RS-232 | 1x |
| OPS Slot | 1x |
| WiFi Slot | 1x |
| Connectivity - Output | |
| HDMI Out | 1x |
| Audio Out | 3.5mm (Line Out) |
| SPDIF | 1x |
| LAN | Dual RJ45 (1 LAN-in 10/100M, 1 LAN-out 1000M for OPS) |
| USB Ports | |
| USB-A | 2x (1x USB2.0, 1x USB3.2 Gen1) |
| USB-C | 1x (PD65W/15W + DP1.2 + Data + 10/100M) |
| Speakers | 2x 16W |
| Compatibility | HDMI 3840x2160 @60Hz |
| Bundled Software | AirSync (Wireless Presentation), ViewSonic Manager (Device Management) |
| Power | |
| Voltage | 100–240 VAC ±10% |
| Power Consumption | 130.3W (Energy Star) |
| Mounting & Design | |

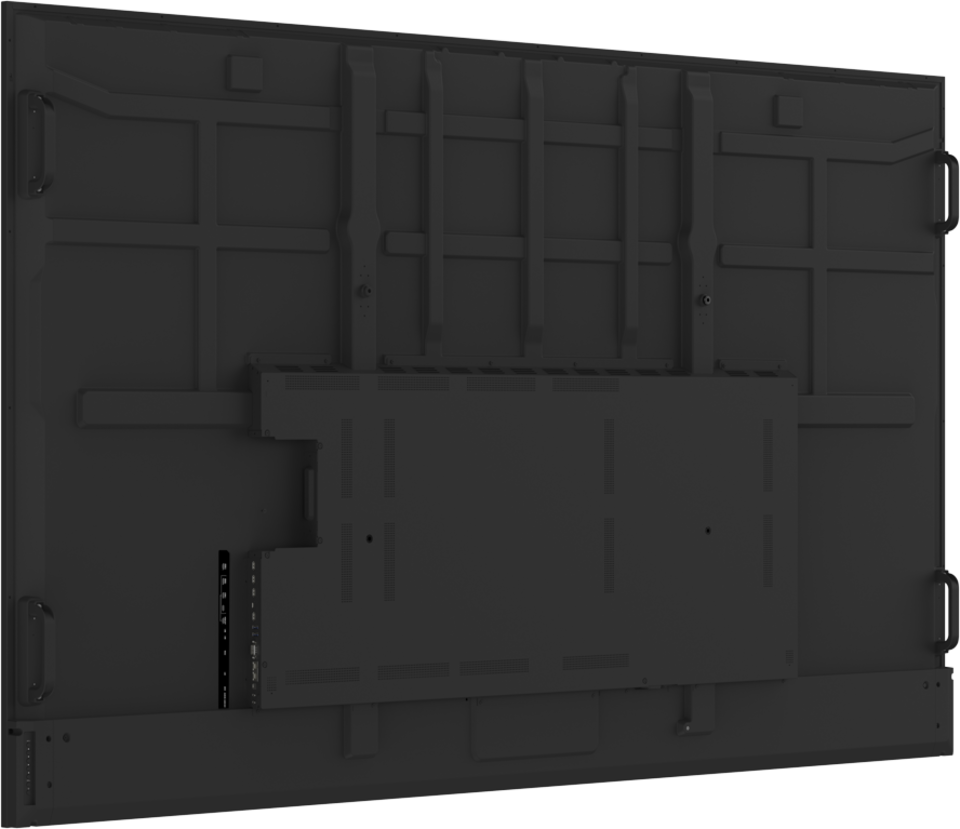

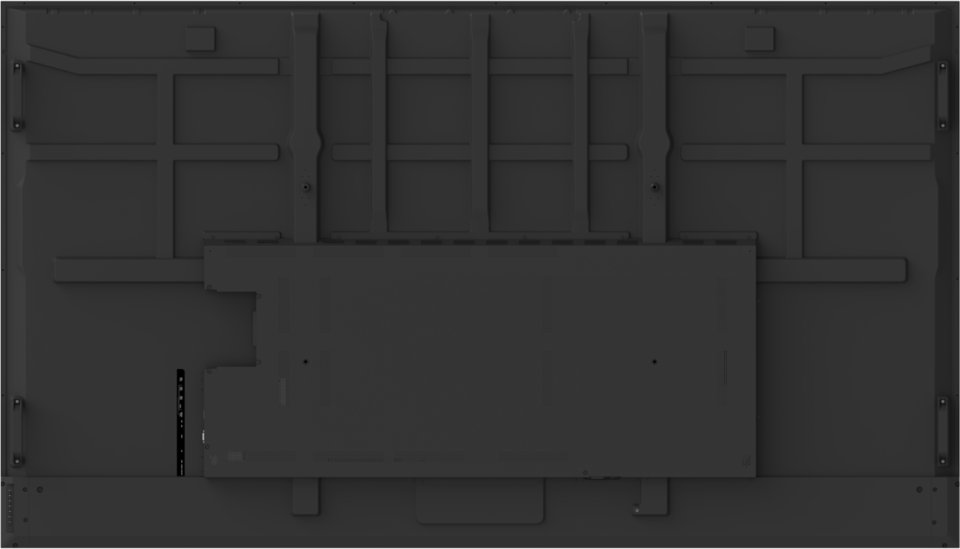

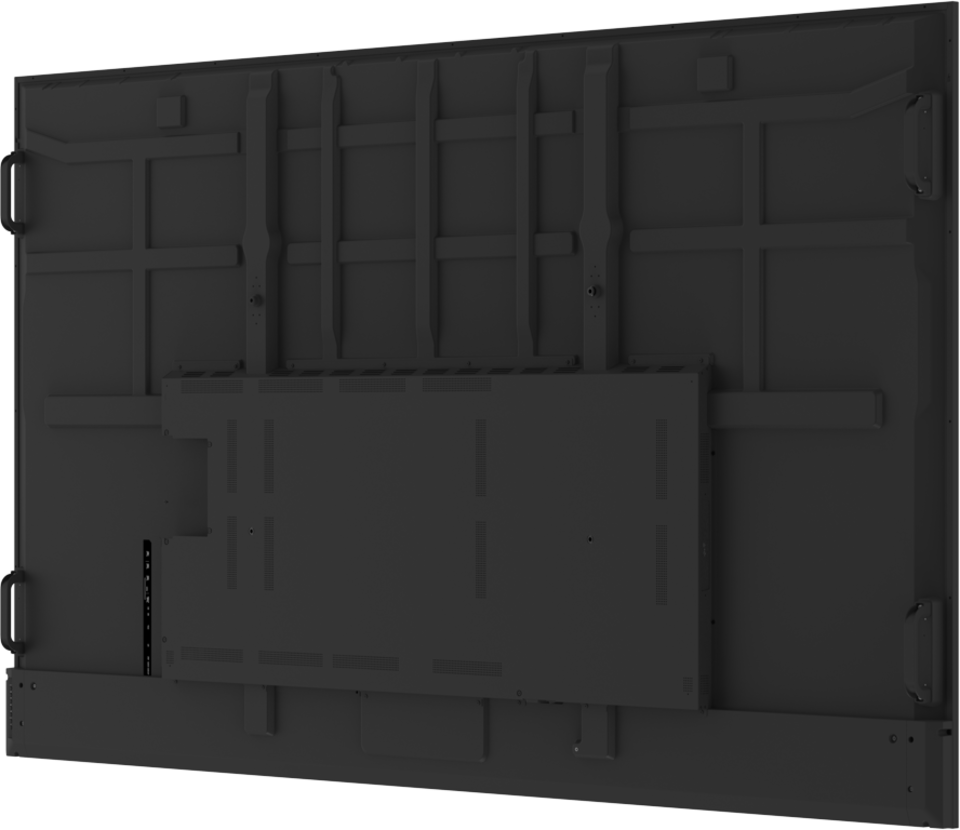

| VESA Mount | 800x400 mm |
| Bezel | 18mm (All sides) |
| Operating Conditions | |
| Temperature | 0°C to 40°C |
| Humidity | 20%–80% RH |
| Operating Hours | 24/7 |
| Dimensions (W x H x D) | 2198.9 x 1254.6 x 68.6 mm |
| Packaging Dimensions | 2360 x 1425 x 280 mm |
| Weight | 53.9 kg (Net) / 80.1 kg (Gross) |
| Regulatory Certifications | cTUVus, FCC/ICES003, Energy Star 8, EPEAT Gold, CE, CB, RoHS, REACH, WEEE, RCM, ErP-Eco, etc. |
| Package Contents | Power cord (3m), Remote control, AAA batteries (x2), Quick Start Guide, RS232 adapter, Clamps (x5), Wall mount screws (x4), 3m HDMI cable (HDMI LA certified), Compliance statement |
