Description

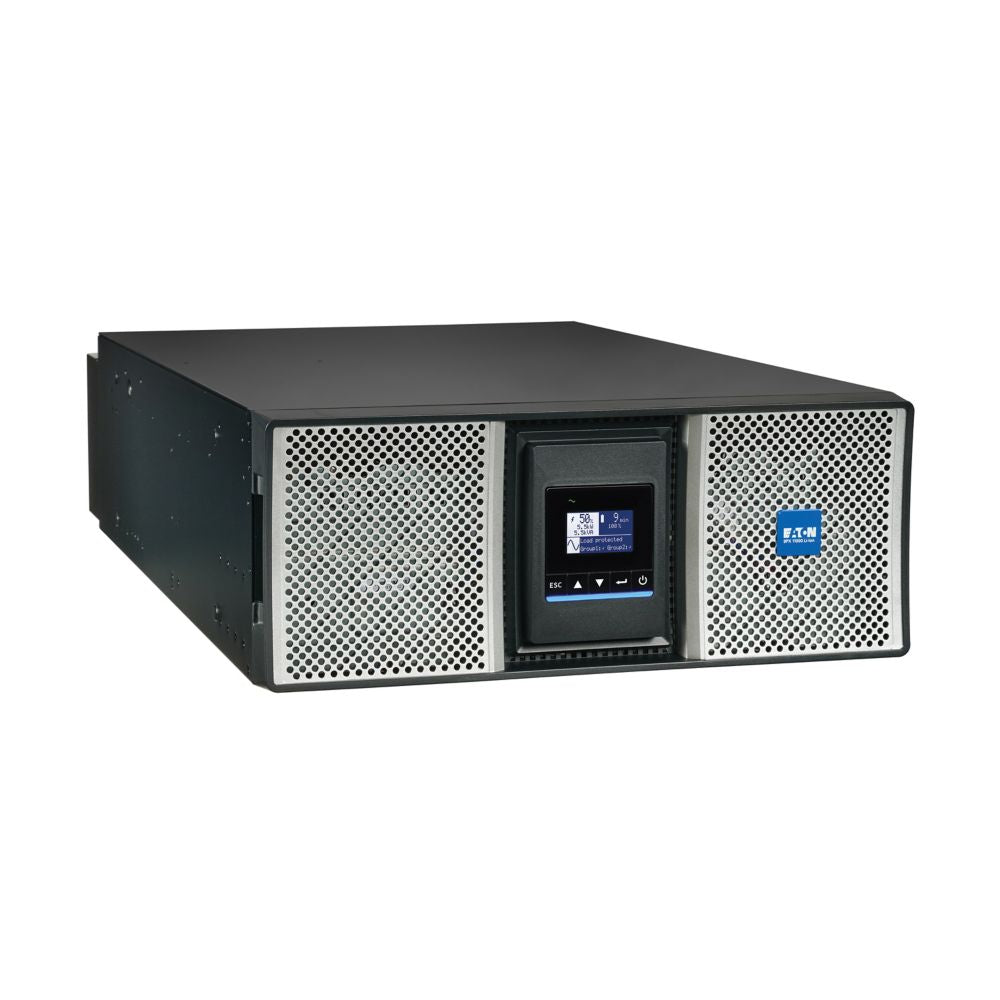

The Eaton 9PX Gen 2 Lithium-Ion UPS (9PX11KG2-L) delivers high-performance, double-conversion power protection for critical IT, edge, and industrial environments. Designed for maximum uptime, this 11kVA/11kW system ensures continuous, clean power with true sine wave output and a unity power factor, making it ideal for modern high-density loads.
Equipped with advanced lithium iron phosphate (LiFePO4) battery technology, the 9PX Gen 2 offers longer battery life, reduced maintenance, and improved safety compared to traditional VRLA systems. The integrated battery management system (BMS) actively monitors performance and temperature, providing predictive alerts to optimize reliability and lifecycle management.
With flexible rack/tower deployment, hardwired input/output, and multiple L6-30R receptacles, this UPS adapts seamlessly to demanding infrastructure requirements. Built-in network management via the included Gigabit Network Card enables remote monitoring and integration with Eaton Brightlayer Data Centers software for enhanced visibility and control.
Engineered for efficiency, scalability, and resilience, the Eaton 9PX Gen 2 is a future-ready power solution for organizations that cannot afford downtime.
| Specification | Details |
|---|---|
| Product Type | Online Double-Conversion UPS |

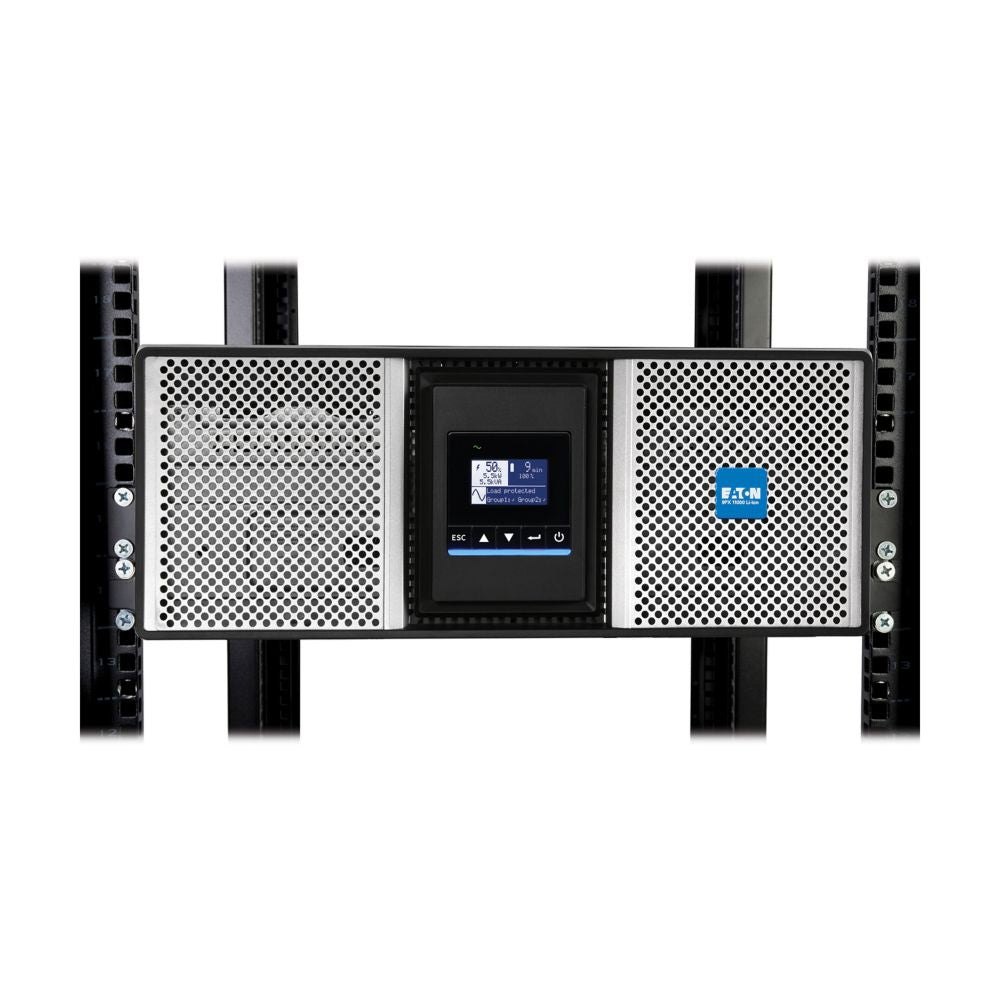

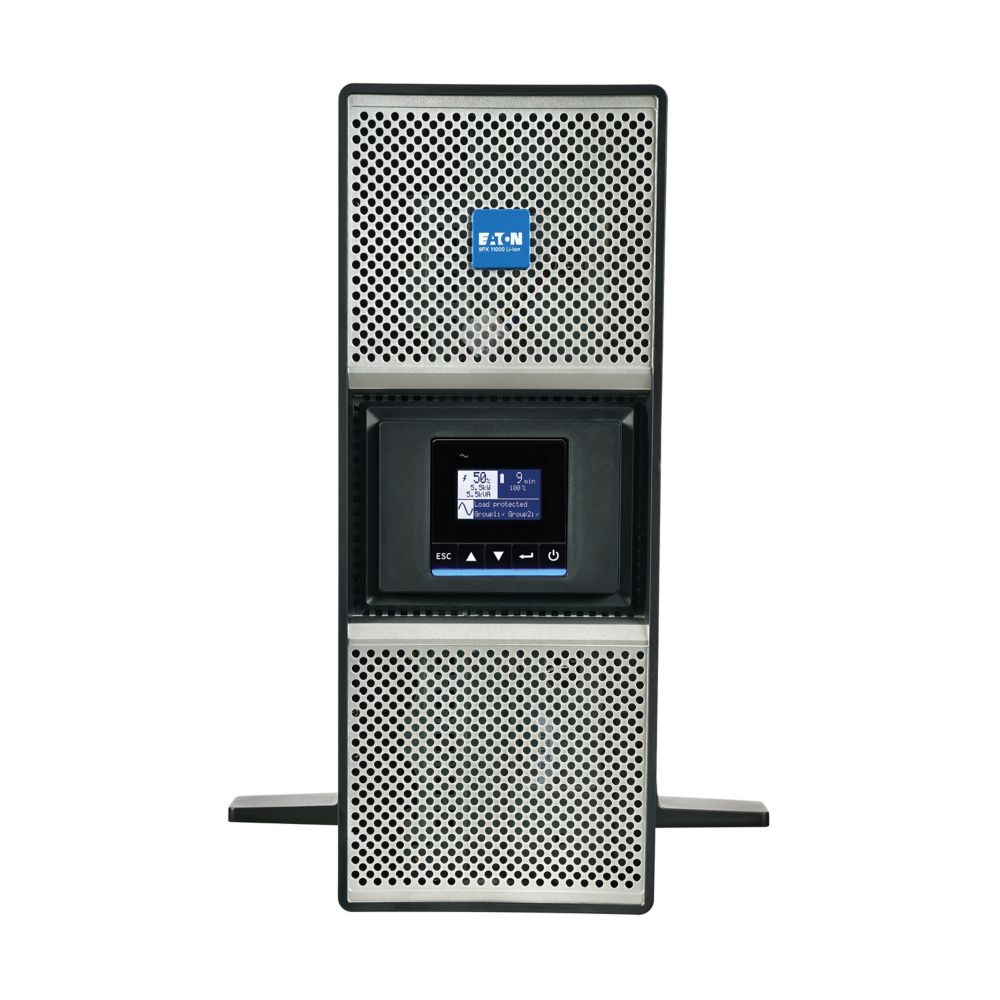

| Form Factor | Rack/Tower Convertible (4U) |
| VA Rating | 11 kVA |
| Wattage | 11 kW |
| Output Voltage | 208V default (200/208/220/230/240V selectable) |

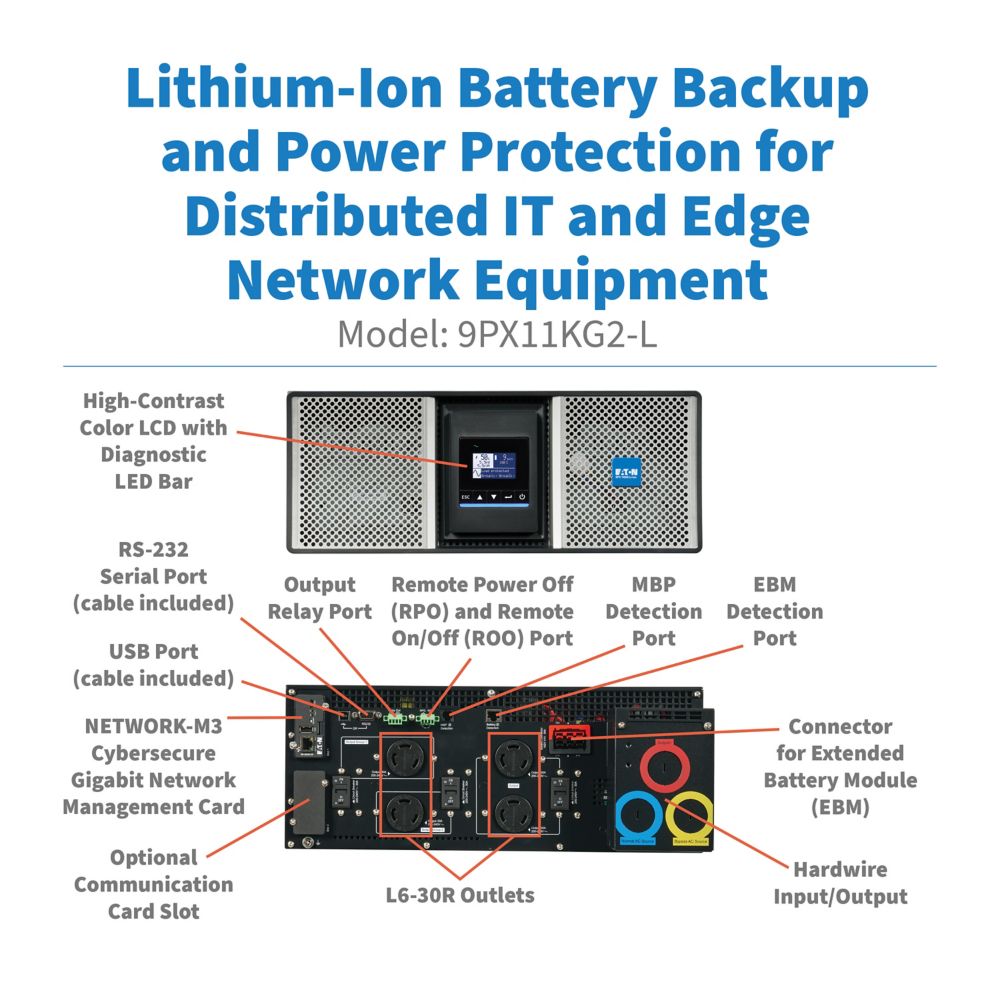

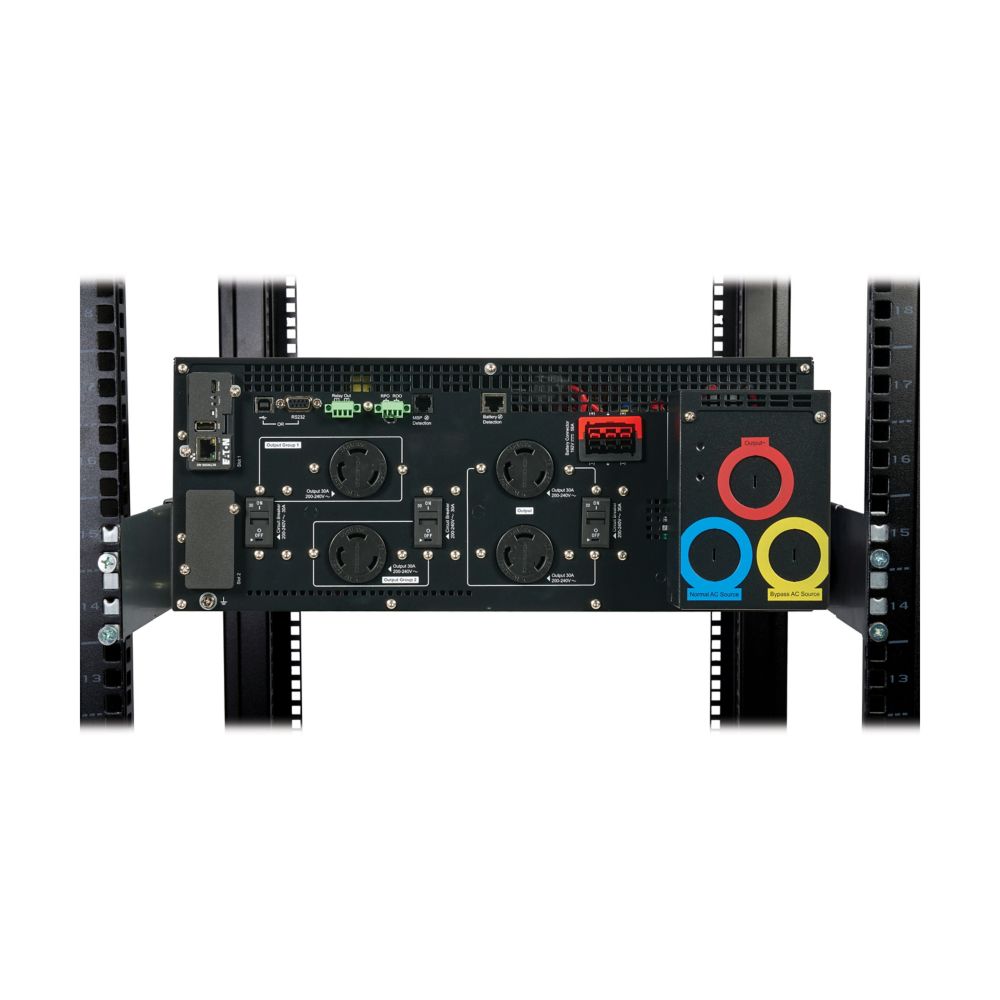

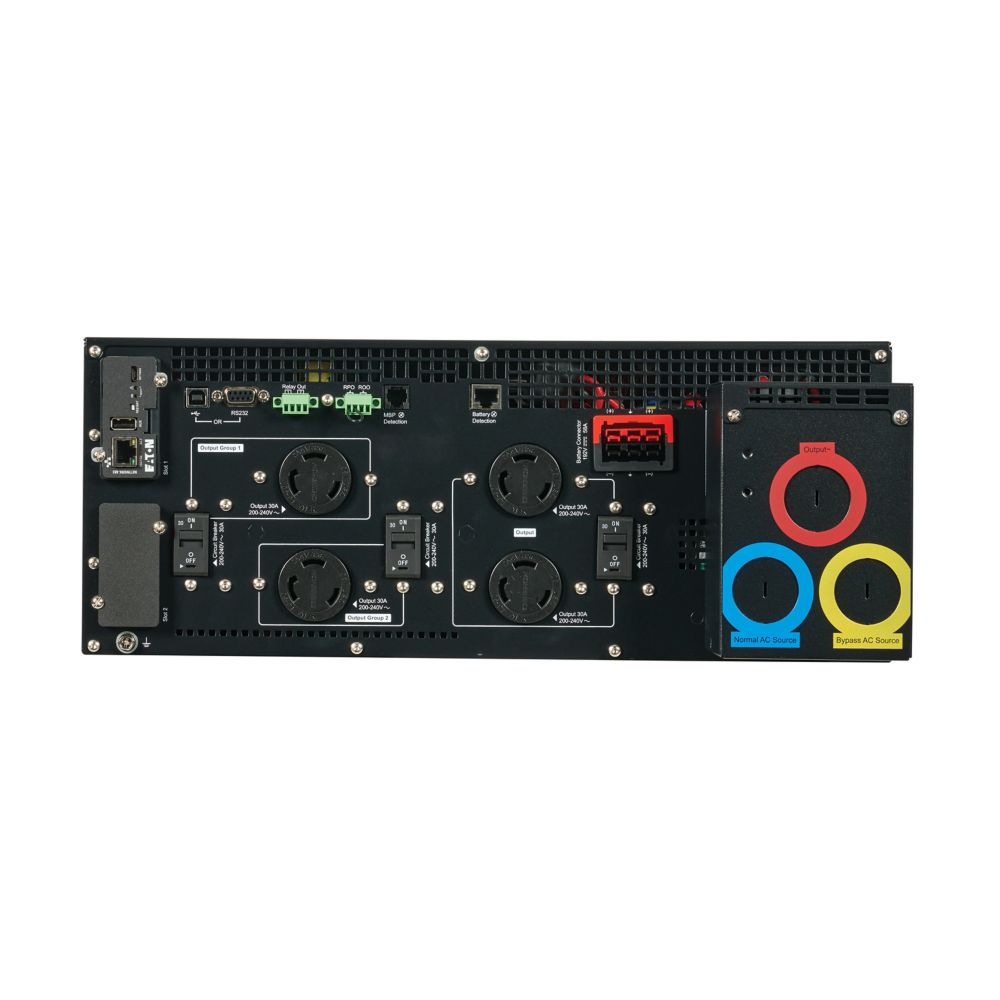

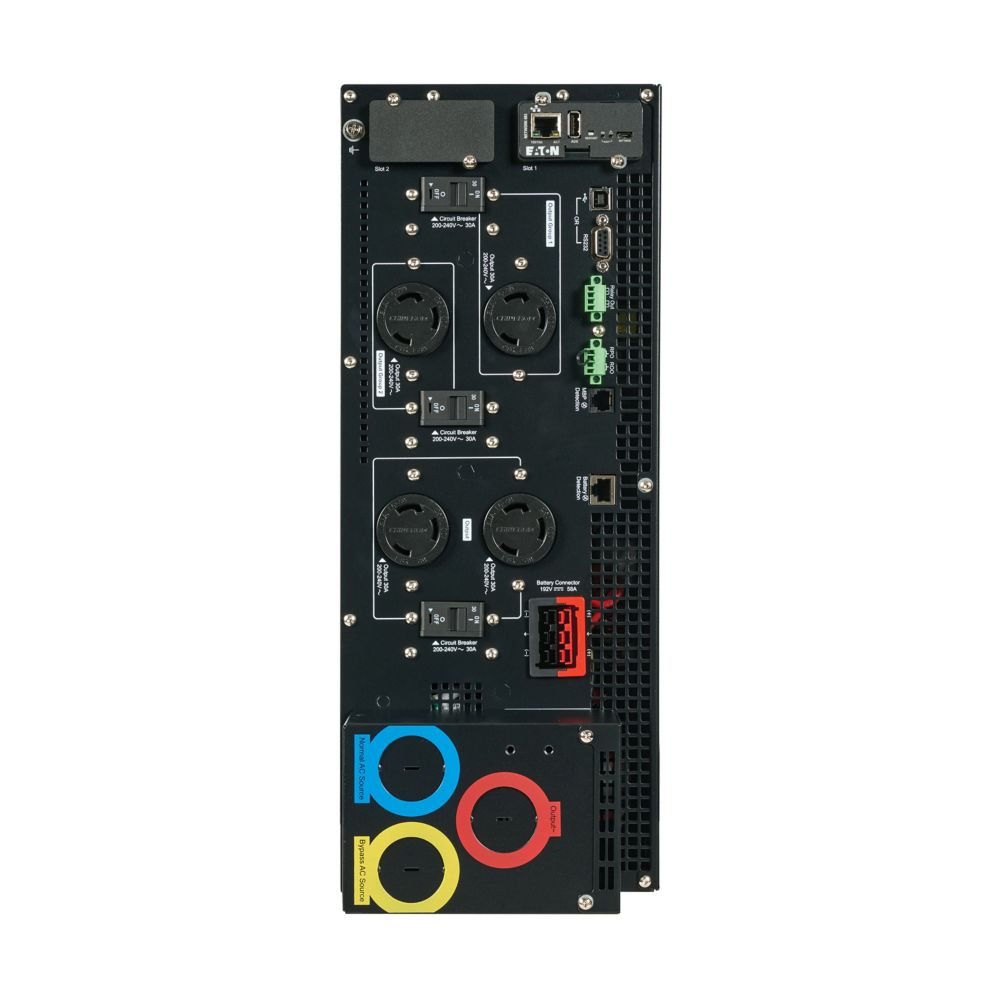

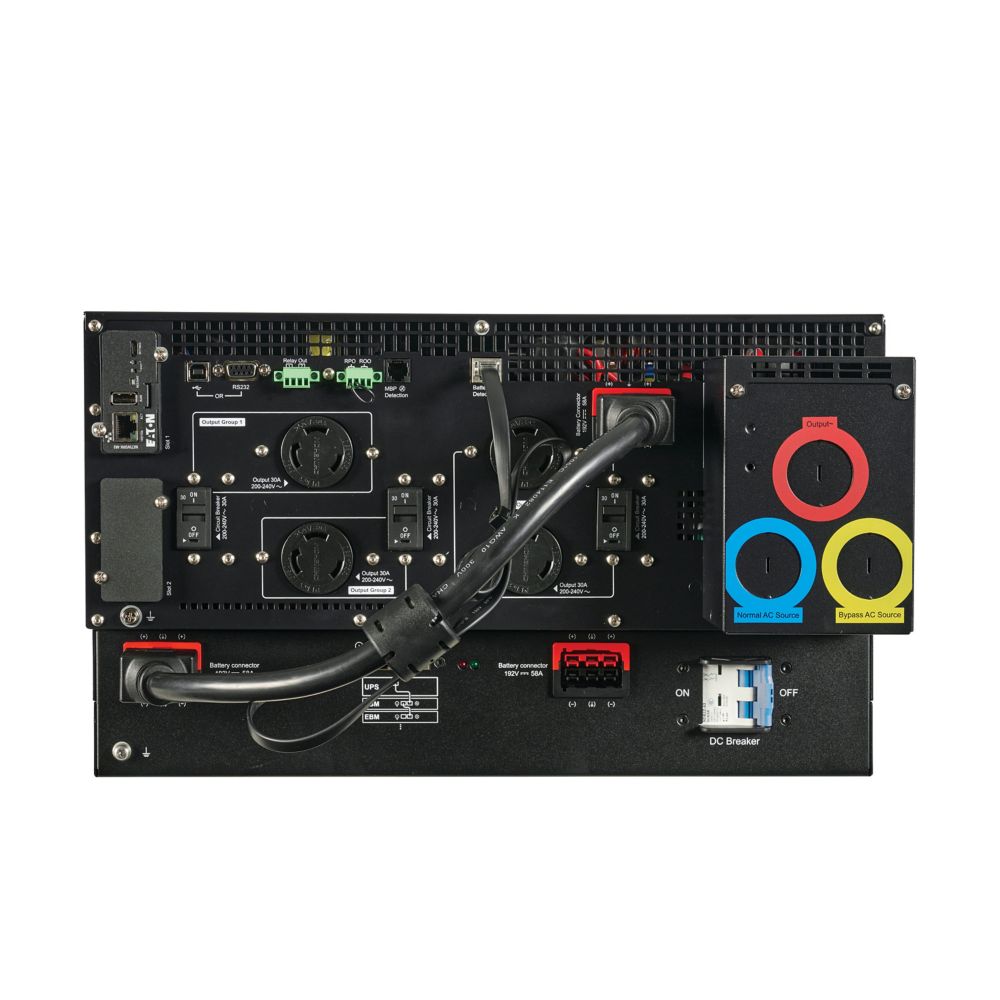

| Output Connections | Hardwired, (4) L6-30R |
| Input Connection | Hardwired |
| Input Voltage | 208V default (200/208/220/230/240V) |
| Topology | Online Double-Conversion |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |
| Output Power Factor | 1.0 |
| Efficiency | Up to 97% at maximum load |
| Battery Type | Lithium-ion (LiFePO4) |
| Battery Management | Integrated BMS with lifecycle and thermal monitoring |
| Internal Battery | 192V, 12Ah, 2304Wh |
| Battery Replacement | Hot-swappable internal batteries and EBMs |

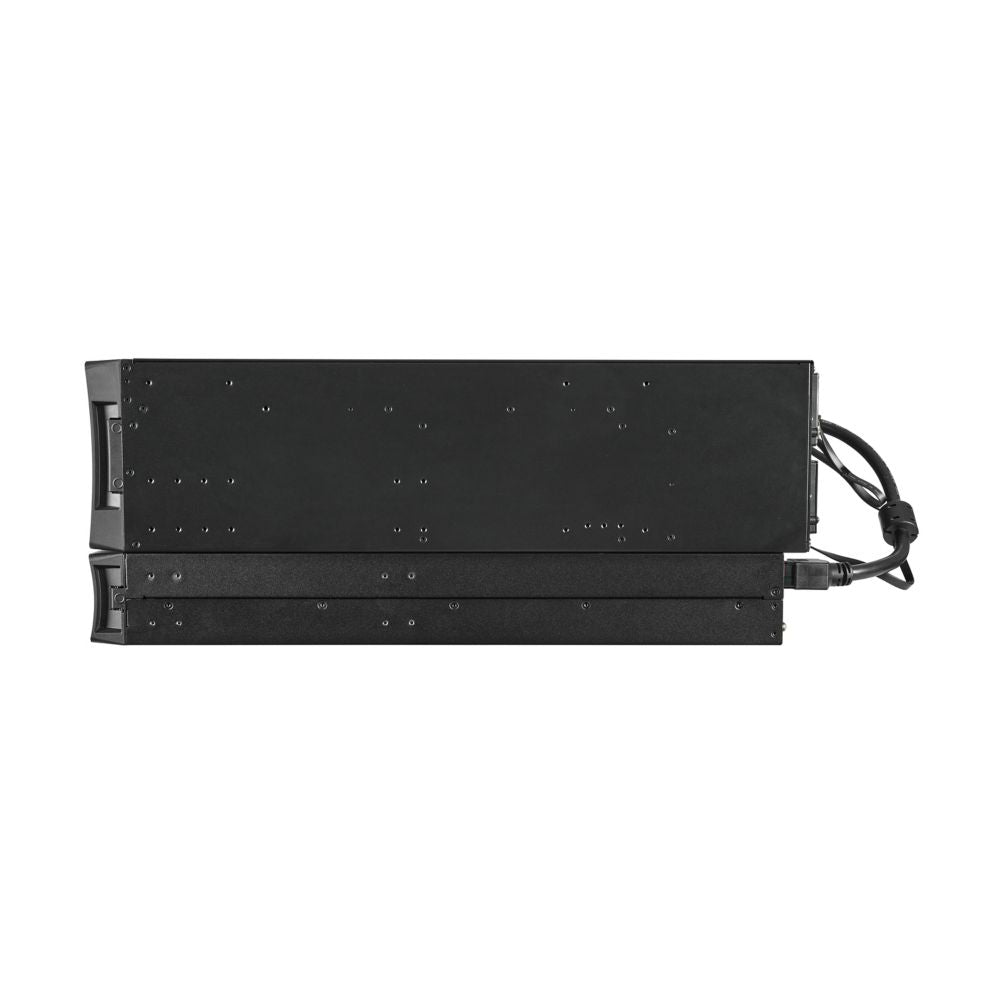

| Extended Battery Support | Supports up to 10 EBMs (9PXEBM192RTG2-L) |
| Communications | (2) Mini-Slot expansion ports |
| Network Card | Gigabit Network Card (NETWORK-M3) included |

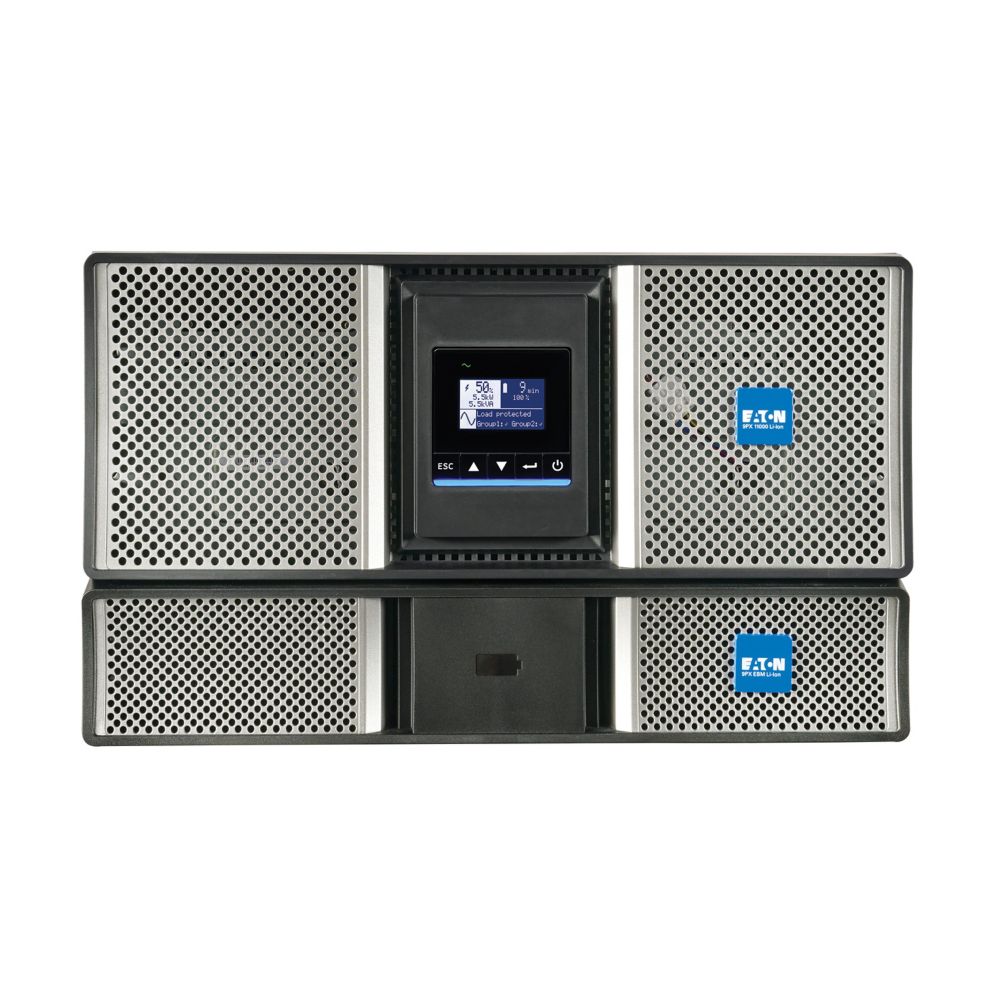

| Interface | Graphical LCD display, LED indicators, programmable menu |
| Software Compatibility | Eaton Brightlayer Data Centers |
| Noise Level | ≤54 dB at full load |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity Range | 0–95% non-condensing |
| Altitude | Up to 3000 m |
| Cooling (BTU/hr) | Online: 1160, Battery: 1767, High Efficiency: 188 |
| Dimensions (HxWxD) | 6.85 x 17.32 x 28.5 inches |
| Weight | 142.86 lb |
| Rack Mount Kit | Included |
| Included Accessories | Network card, USB cable, RS-232 cable, mounting hardware, tower stands, cable gland |
| Internal Bypass | Included |
| Certifications | cULus Listed, IEC 62040-2, NOM, ENERGY STAR |
| Compliance Standards | FCC Part 15 Class A, CISPR22 Class A, CE Marked |
| Warranty | 5-Year Limited Warranty |
