Description

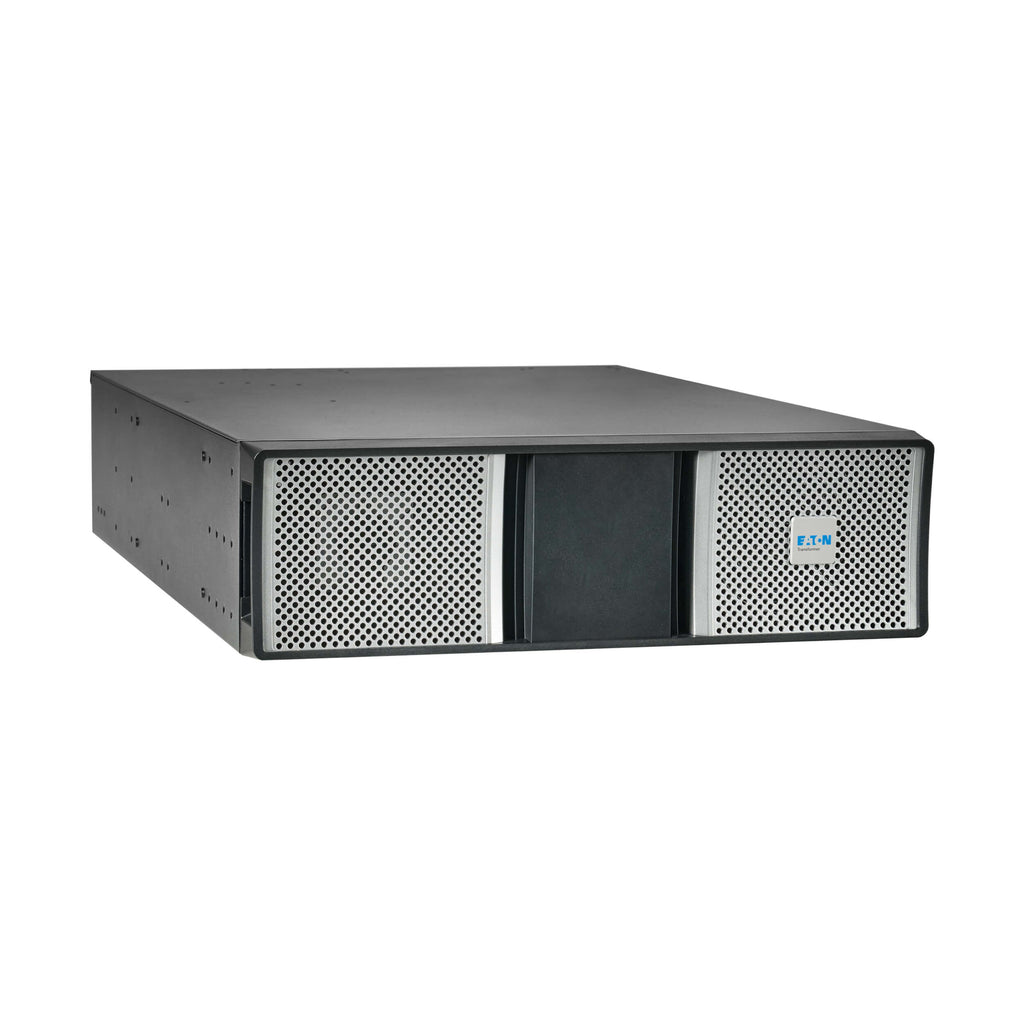

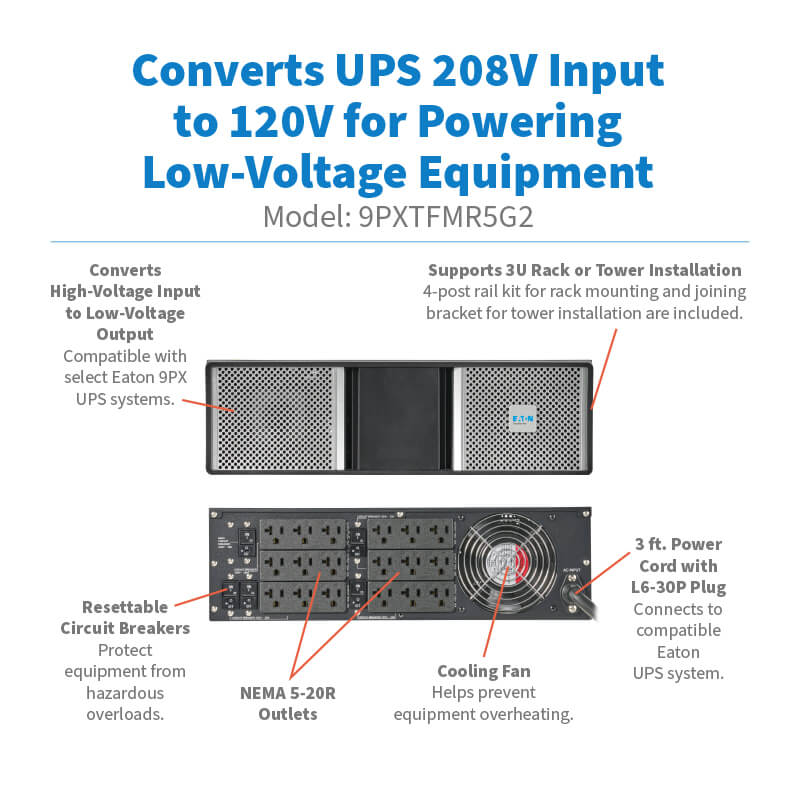

The Eaton 9PXTFMR5G2 is a high-capacity 5kVA step-down transformer designed to convert 208V UPS output to 120V, enabling reliable power delivery to low-voltage IT and network equipment. Built for mission-critical environments, it supports a wide range of Eaton 9PX UPS systems and provides 18 NEMA 5-20R outlets for flexible device connectivity.

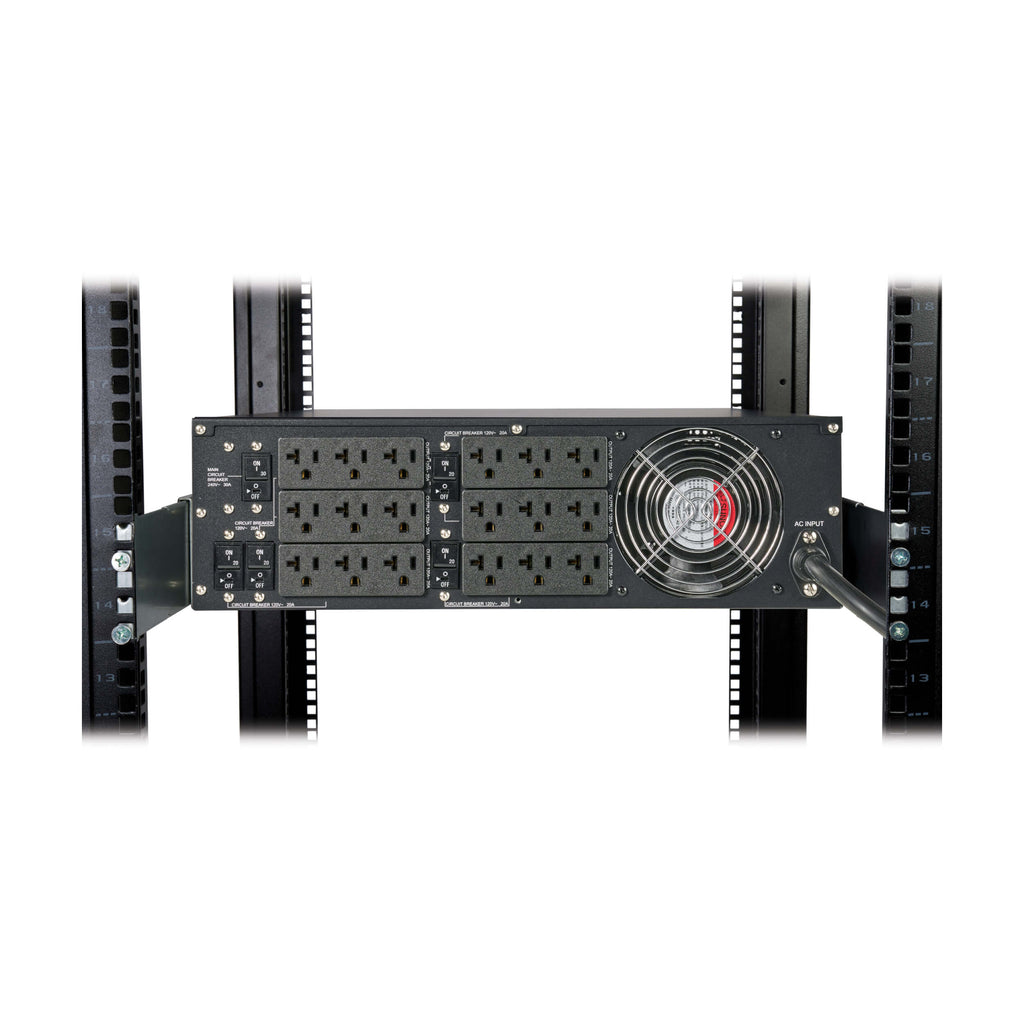

Engineered for both rack and tower installations, this transformer occupies 3U of rack space and includes mounting hardware for fast deployment. Resettable circuit breakers protect connected loads from overload conditions, while the L6-30P input plug ensures a secure connection to compatible UPS units. Ideal for data centers, server rooms, and enterprise edge environments, the 9PXTFMR5G2 delivers dependable voltage conversion with enterprise-grade reliability.
| Category | Specification |
|---|---|
| Brand | Eaton |
| Model | 9PXTFMR5G2 |
| Accessory Type | UPS Step-Down Transformer |
| Input Voltage | 208V AC |
| Output Voltage | 120V AC |
| Output Capacity | 5000 VA / 5 kVA / 5000 W |

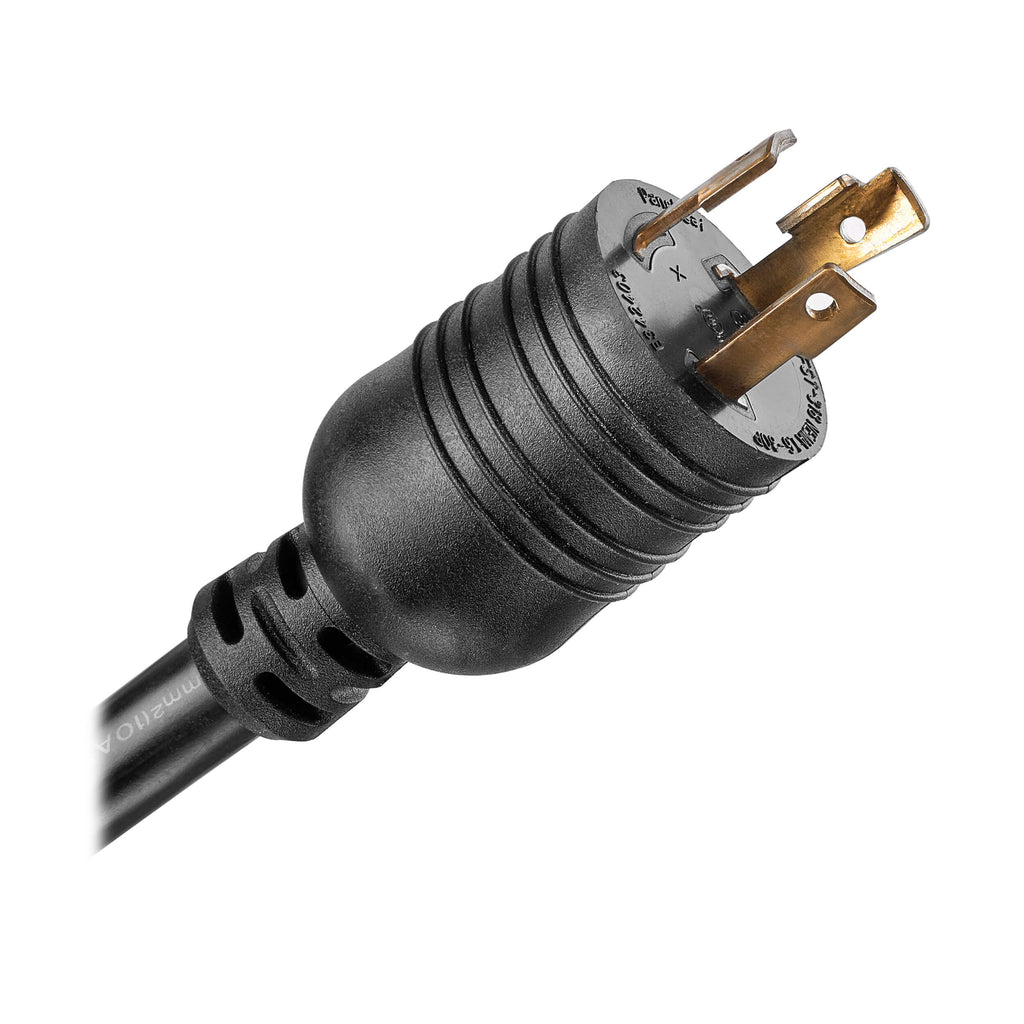

| Input Plug Type | NEMA L6-30P |

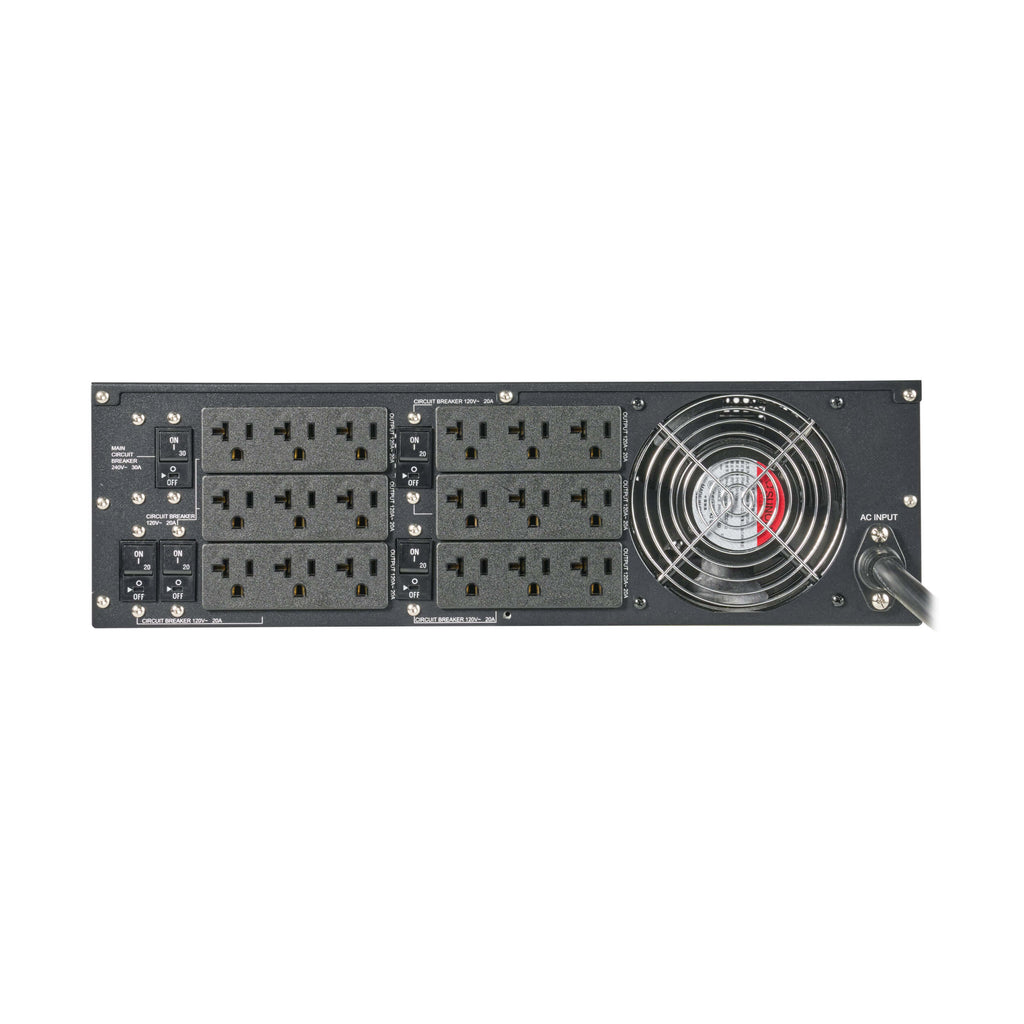

| Output Receptacles | 18 × NEMA 5-20R |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Circuit Protection | Resettable 20A circuit breakers |
| Form Factor | Rackmount or Tower |
| Rack Height | 3U |
| Mounting | 4-post rack kit included; optional 2-post |
| Cord Length | 3 ft (0.9 m) |
| Dimensions (H × W × D) | 5.1 × 17.3 × 25.04 in |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 0–95% non-condensing |
| Compliance | CE, ENERGY STAR, RoHS |
| Certifications | cUL Listed, NOM |
| Warranty | 3-Year Limited Warranty |
