Description
The Eaton 9PX Gen 2 Lithium-Ion UPS delivers high-efficiency, double-conversion power protection for critical IT infrastructure, edge environments, and enterprise deployments. Designed for maximum uptime and operational resilience, this 6000VA/5400W system ensures consistent, clean power with true sine wave output and advanced battery management.
Equipped with Lithium Iron Phosphate (LiFePO4) batteries, this UPS provides longer lifespan, reduced maintenance, and improved thermal stability compared to traditional VRLA systems. The integrated Battery Management System (BMS) continuously monitors performance and health, enabling proactive maintenance and minimizing downtime risks.

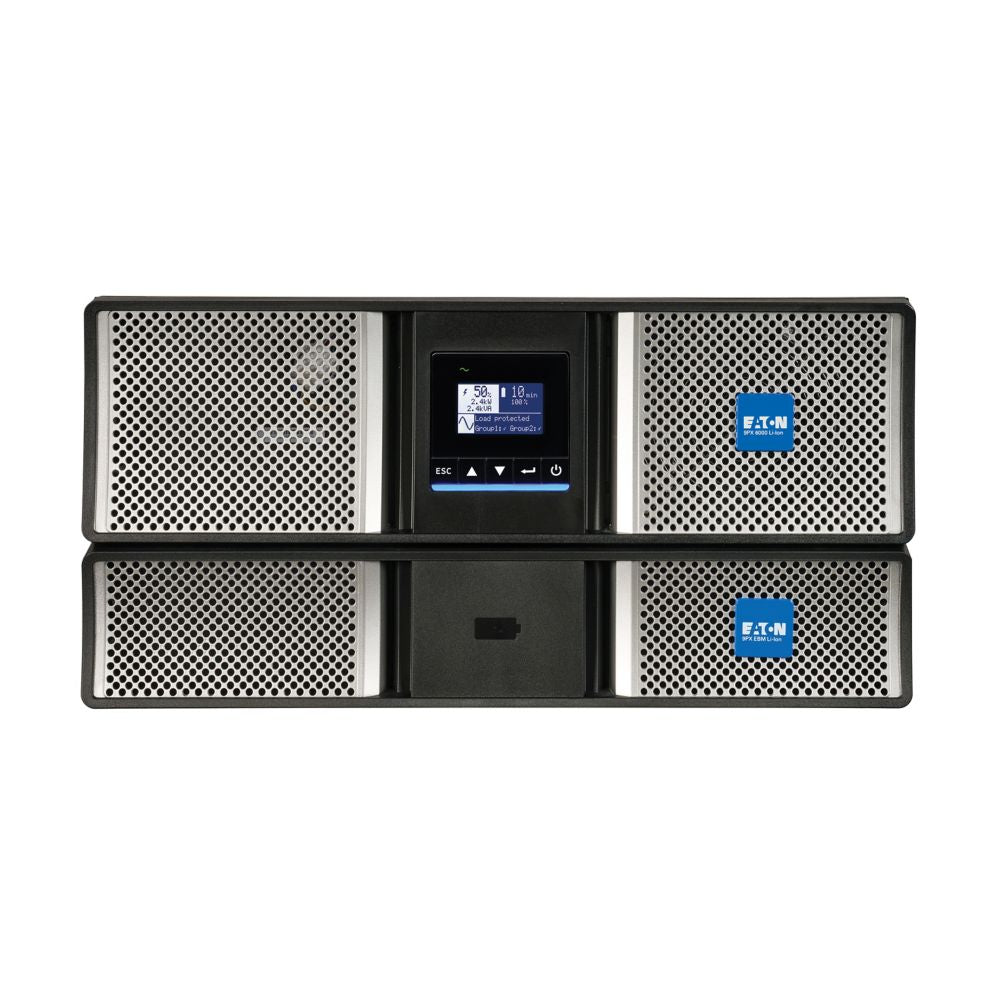

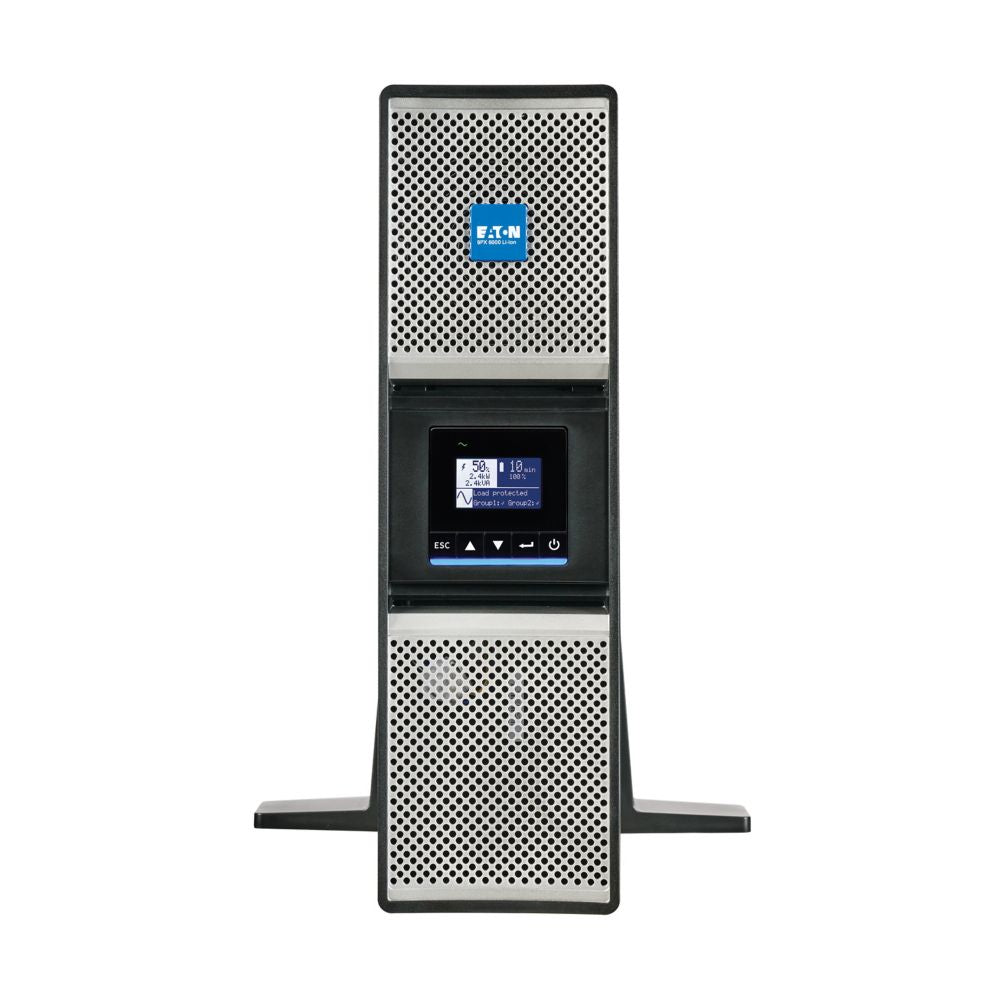

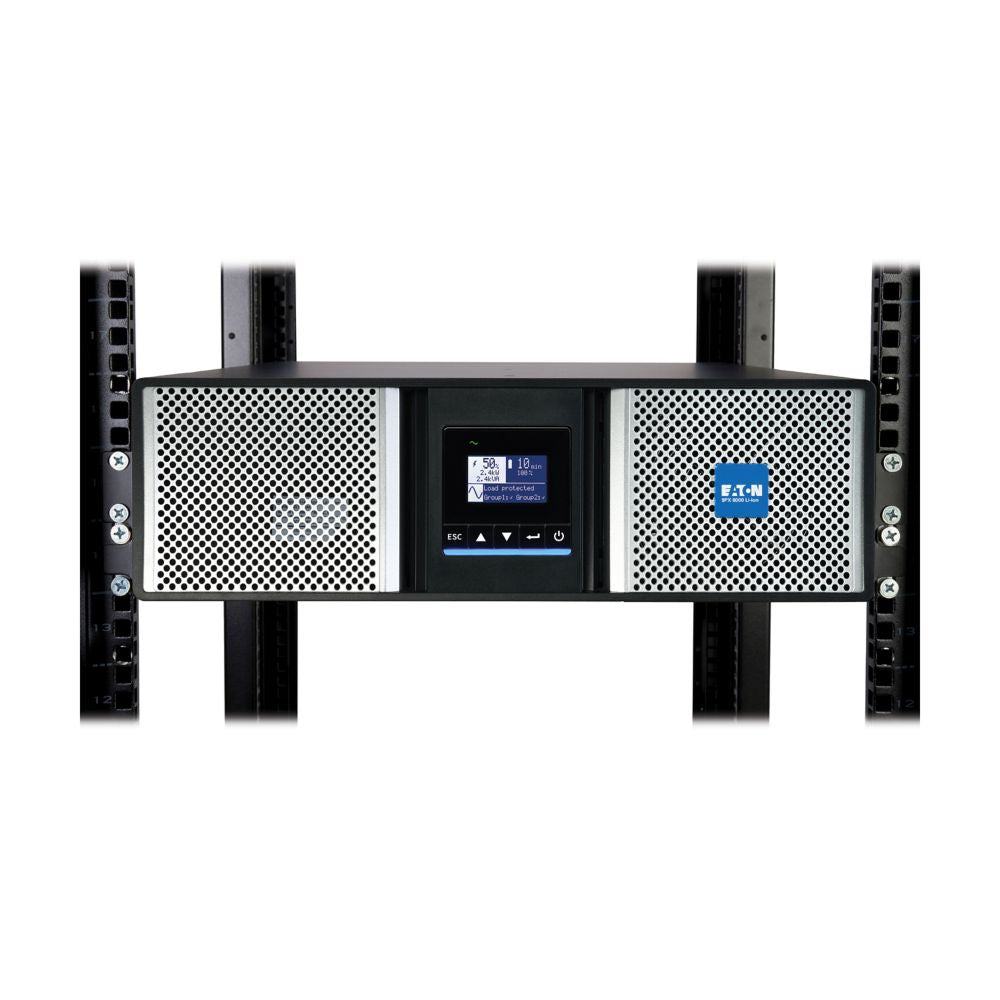

Flexible deployment options allow installation in rack or tower configurations, with both hardwired and L6-30P input support. The included Gigabit Network Card enables remote monitoring and management through Eaton’s Brightlayer Data Centers suite, making it ideal for distributed IT environments and mission-critical applications.
With high efficiency up to 96.5%, scalable runtime via extended battery modules, and comprehensive protection features such as internal bypass and surge protection, the Eaton 9PX Gen 2 UPS is engineered for reliability, scalability, and long-term operational savings.
| Specification | Details |
|---|---|

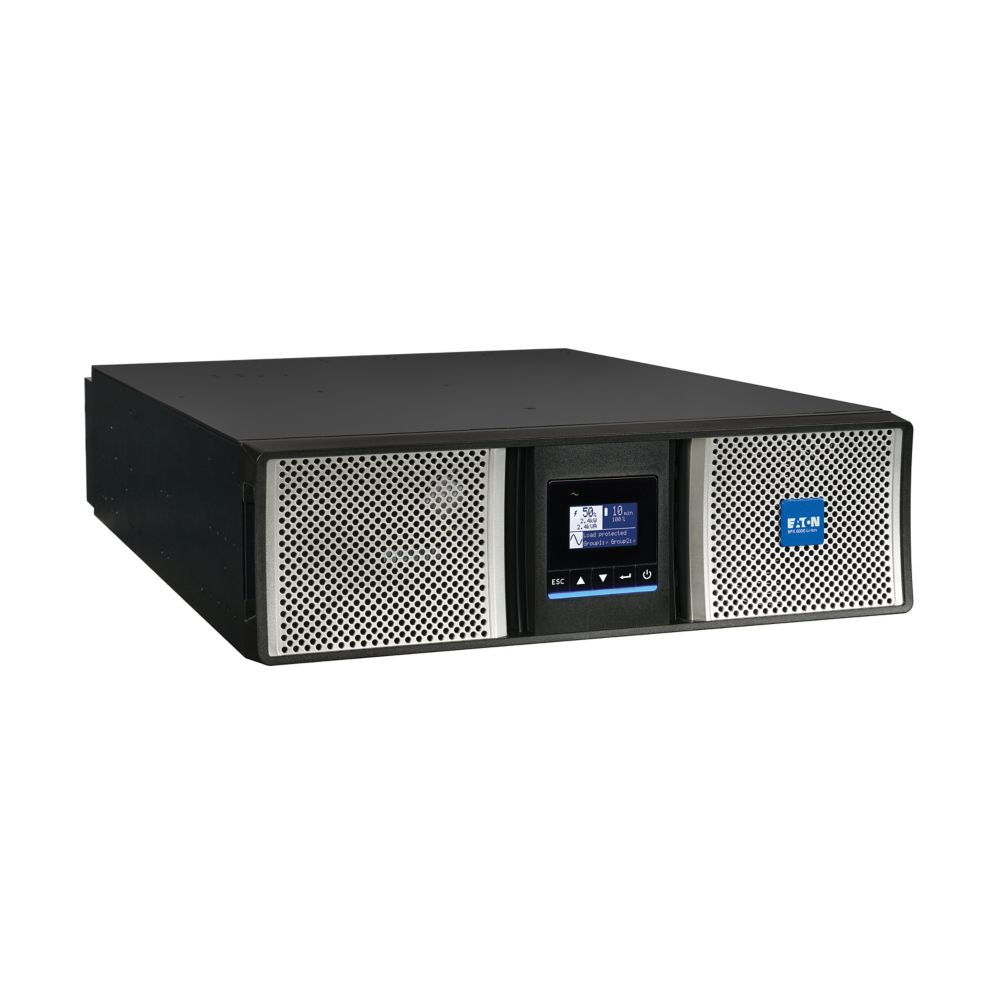

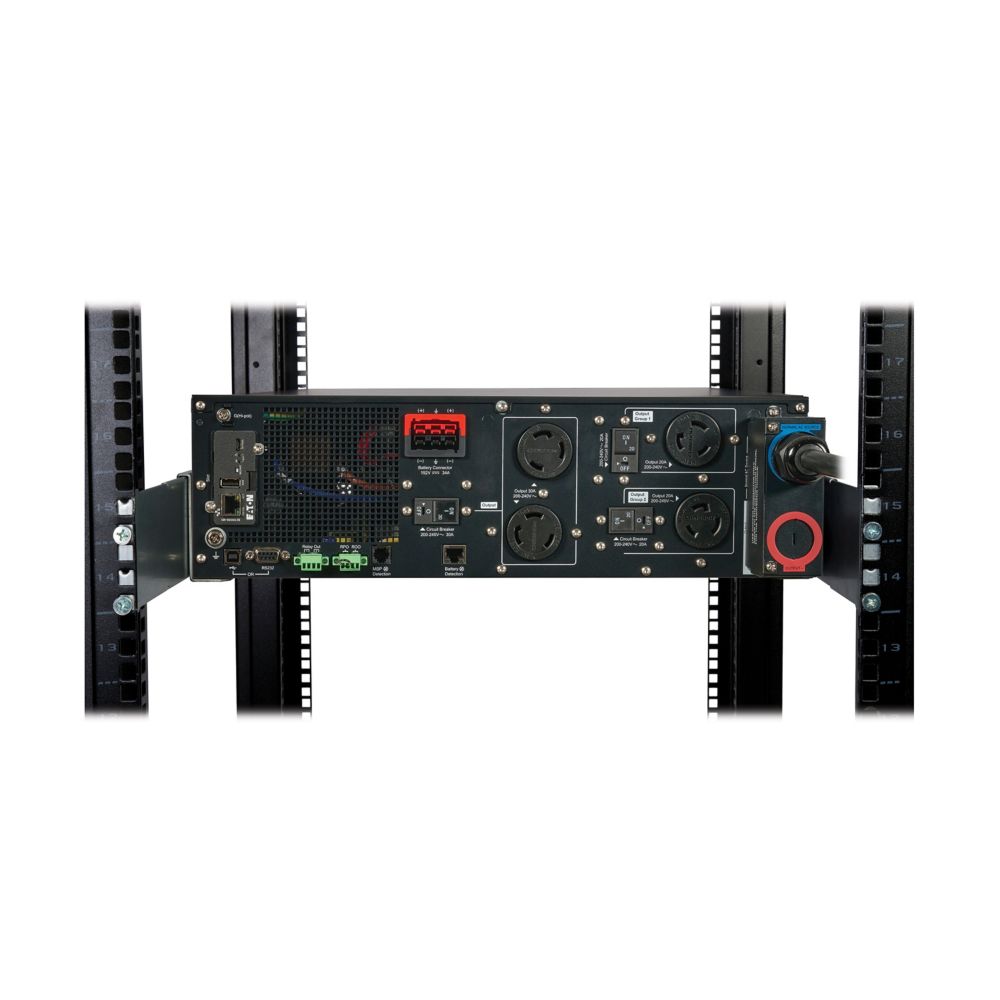

| Form Factor | Rack/Tower Convertible, 3U |
| Topology | Online Double-Conversion |
| Capacity | 6000VA / 5400W |
| Output Voltage | 208V default (200/208/220/230/240V selectable) |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |

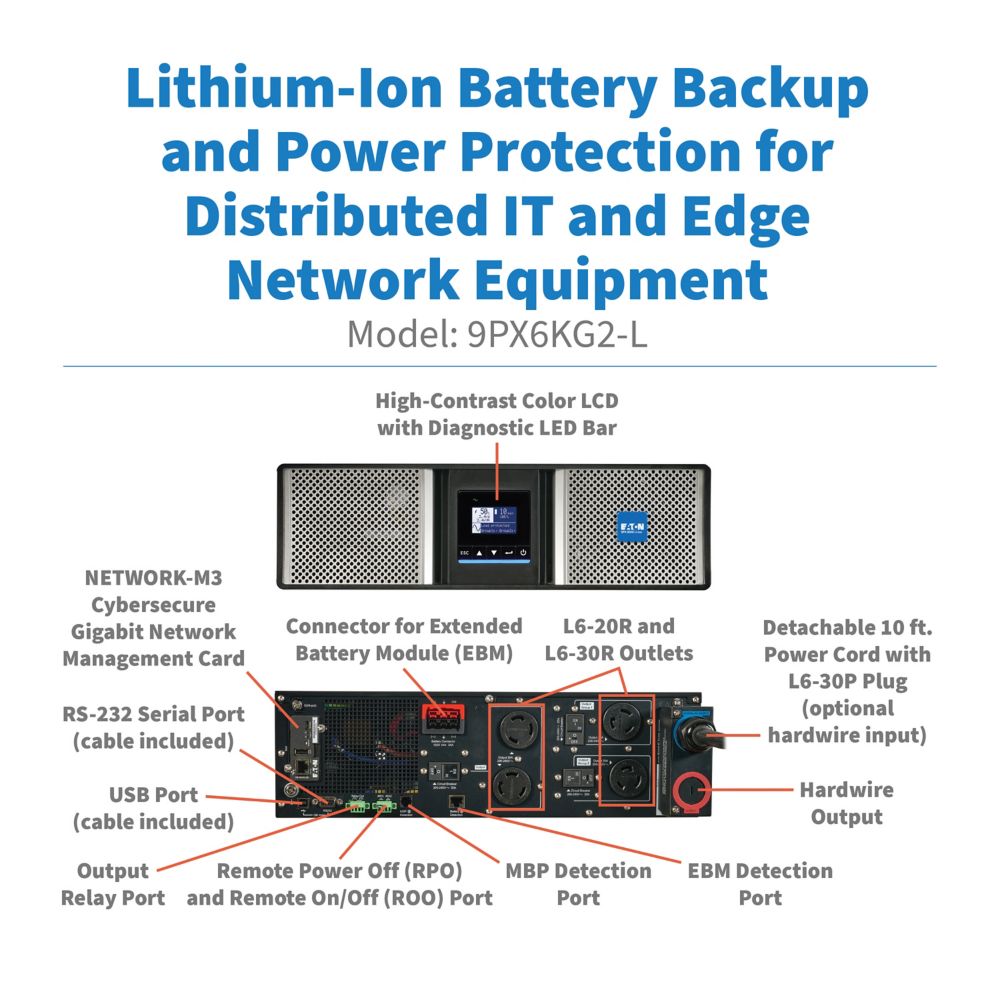

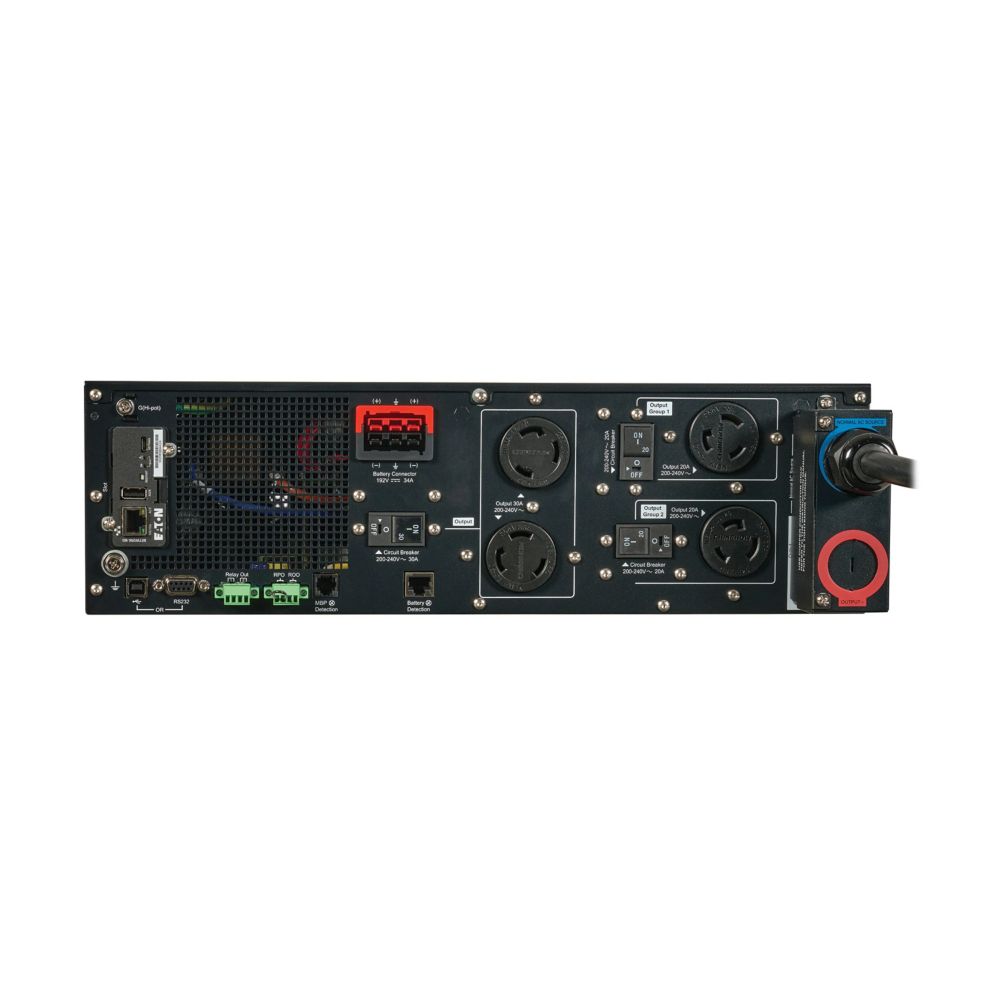

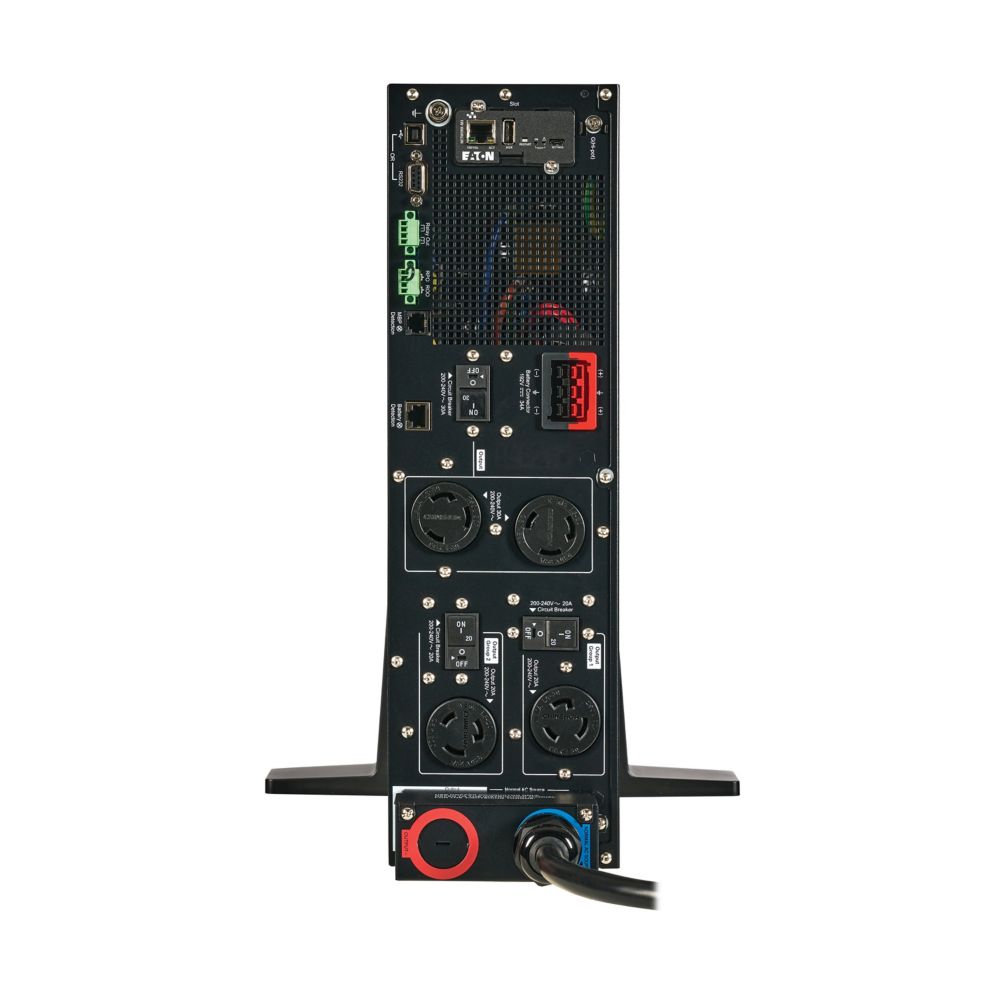

| Output Receptacles | (2) L6-30R, (2) L6-20R, Hardwired |

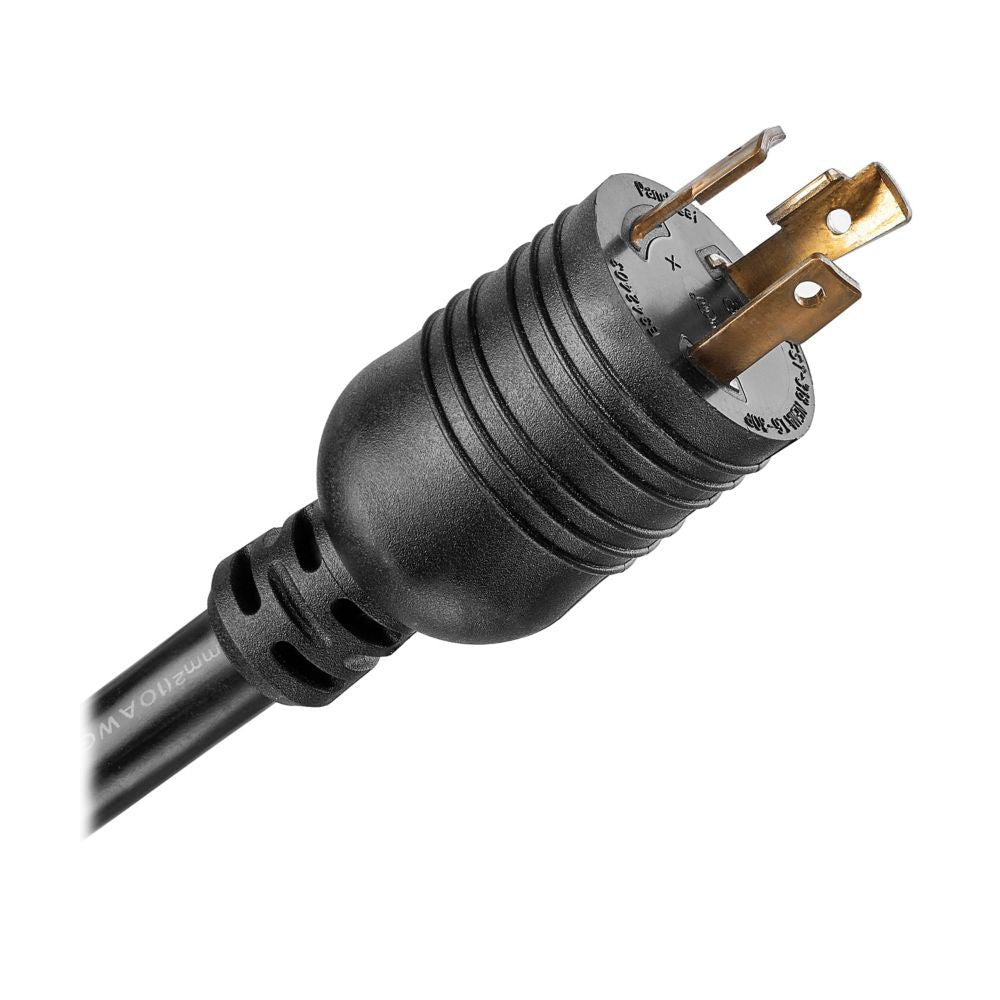

| Input Connection | L6-30P (10 ft cord) or Hardwired |
| Input Voltage | 208V nominal (200–240V range) |
| Input Frequency Range | 50–70 Hz (60 Hz), 40–60 Hz (50 Hz) |
| Input Power Factor | Greater than 0.99 |
| Battery Type | Lithium-Ion (LiFePO4) |
| Internal Battery | 192V 6Ah, 1152Wh |
| Battery Features | Hot-swappable, integrated BMS monitoring |

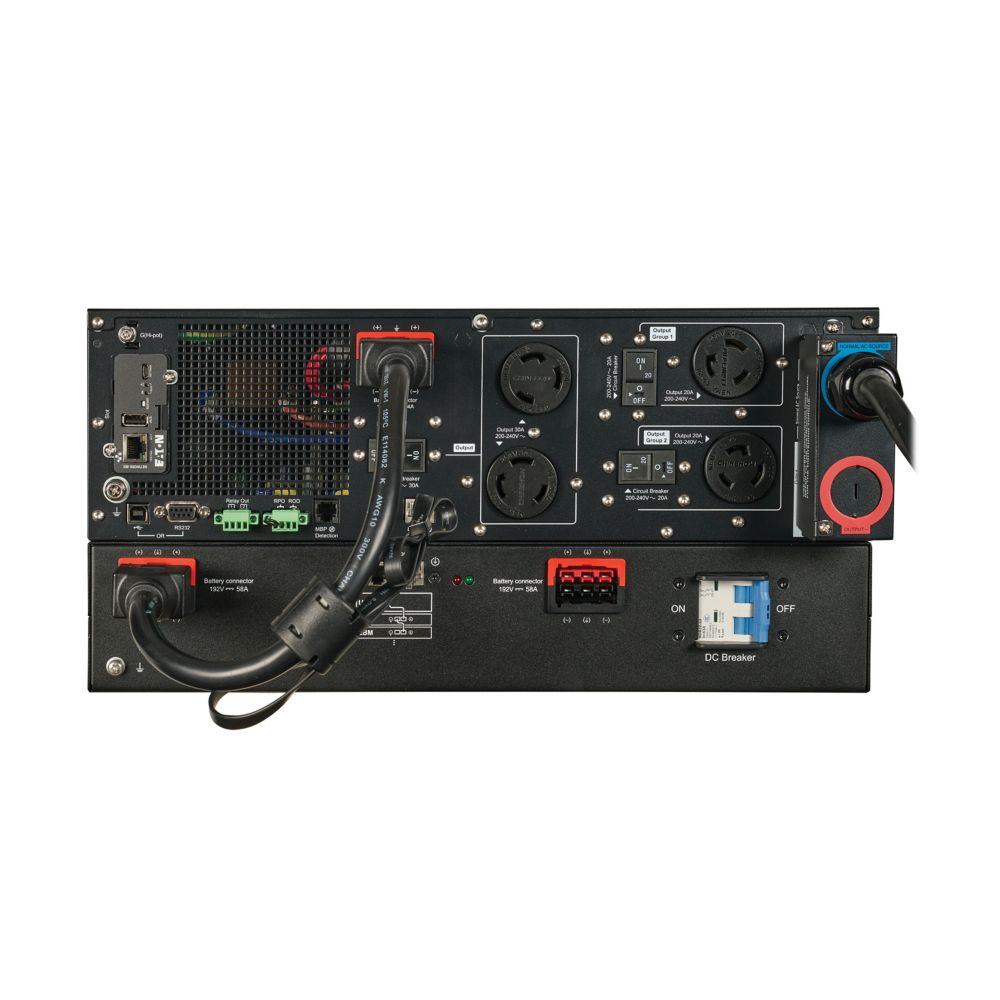

| Extended Battery Support | Supports up to 10 EBMs (9PXEBM192RTG2-L) |
| Network Management | Gigabit Network Card (NETWORK-M3) included |
| Communication Ports | Ethernet, USB, RS-232 |
| User Interface | Graphical LCD display with programmable controls |
| Efficiency | Up to 96.5% at maximum load |
| Noise Level | Less than 43 dB at 1 meter |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 meters |
| Cooling / Heat Output | 767 BTU/hr (online), 205 BTU/hr (high efficiency) |
| Surge Protection | Integrated |
| Internal Bypass | Included |
| Dimensions (H x W x D) | 5.12 x 17.32 x 26.93 inches |
| Weight | 86.64 lb |
| Certifications | cULus, IEC 62040-2, ENERGY STAR, CE, FCC Part 15 |
| Included Accessories | Network card, cables, rack kit, tower stands, quick start guide |
| Software Compatibility | Eaton Brightlayer Data Centers suite |
| Service Option | 5-Year On-Site Extended Service Plan available |
