Description

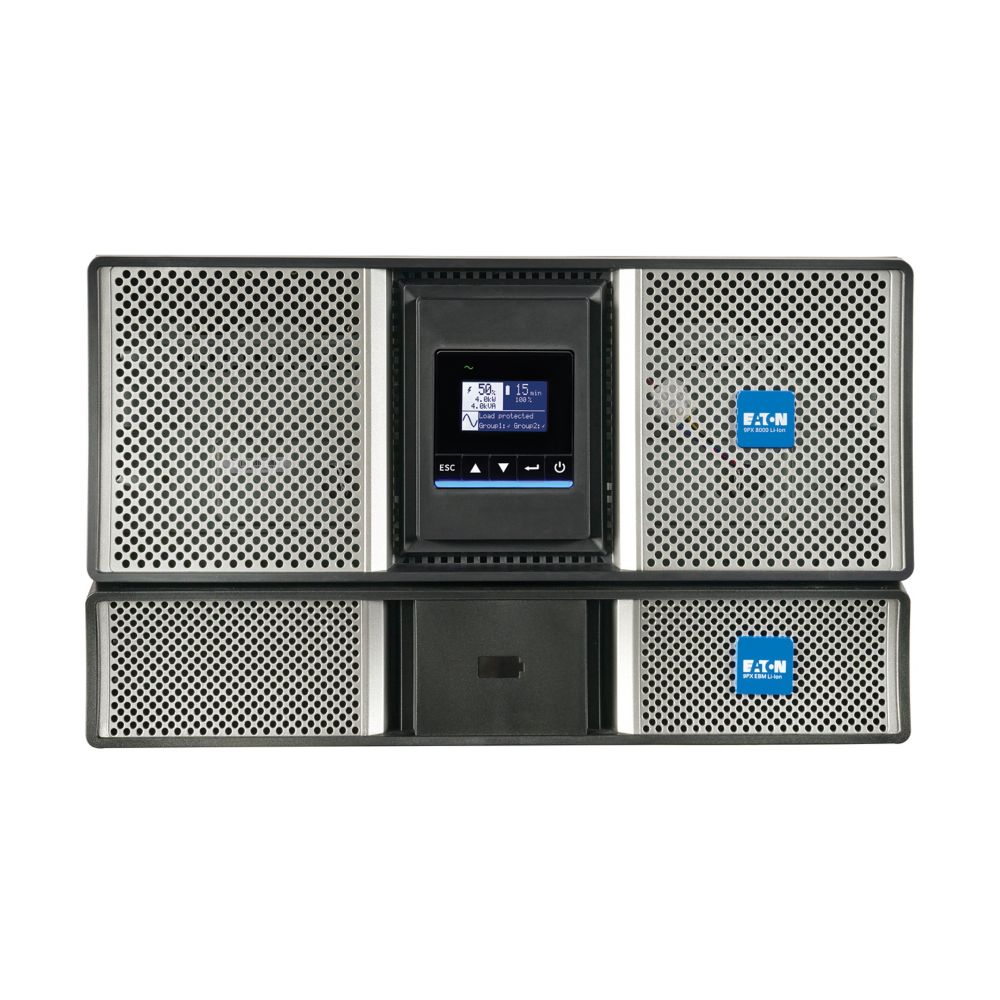

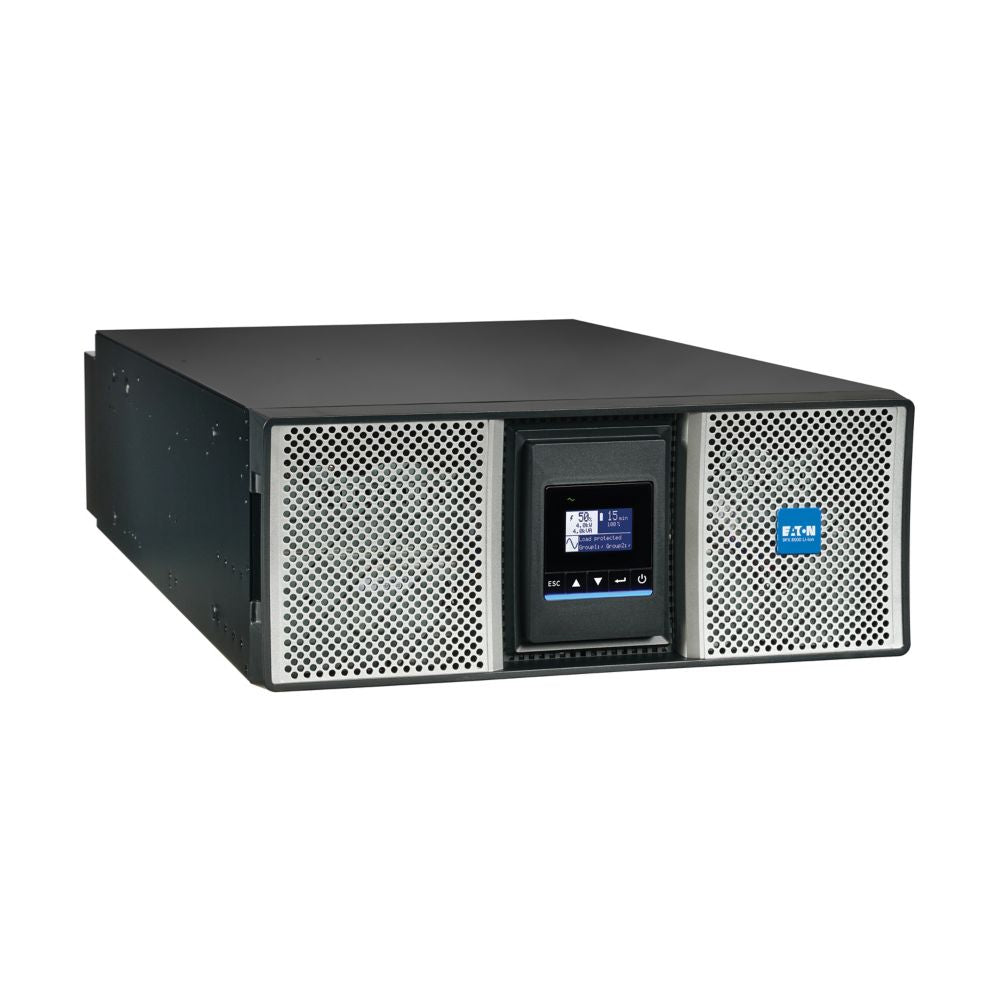

The Eaton 9PX Gen 2 Lithium-Ion UPS delivers high-efficiency, double-conversion power protection for mission-critical IT, edge, and industrial environments. Designed for maximum uptime, this 8kVA/8kW system provides consistent, clean power with true sine wave output and zero transfer time, ensuring continuous operation of sensitive equipment.
Equipped with advanced lithium iron phosphate (LiFePO4) batteries, the system offers extended lifespan, reduced maintenance, and superior thermal stability compared to traditional VRLA batteries. The integrated battery management system continuously monitors performance and temperature to optimize reliability and provide proactive alerts.

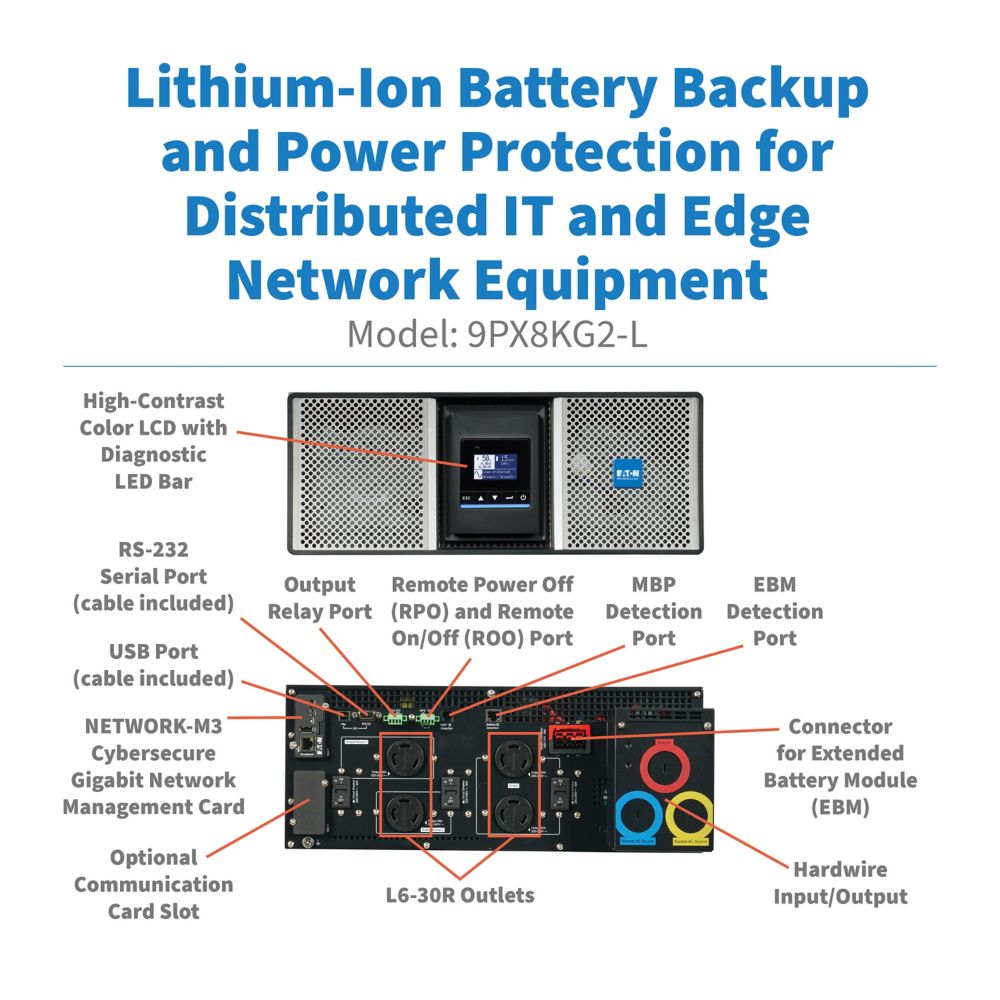

With a flexible rack/tower 4U form factor, hardwired input/output, and multiple L6-30R receptacles, the 9PX Gen 2 supports scalable deployments. It also includes a Gigabit Network Card for secure remote monitoring and integration with Eaton’s Brightlayer Data Centers suite, enabling real-time visibility and control across your power infrastructure.
Built for efficiency, scalability, and resilience, this UPS supports extended runtime with up to 10 external battery modules, making it ideal for data centers, healthcare systems, and distributed IT environments requiring dependable power continuity.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | 9PX Gen 2 |

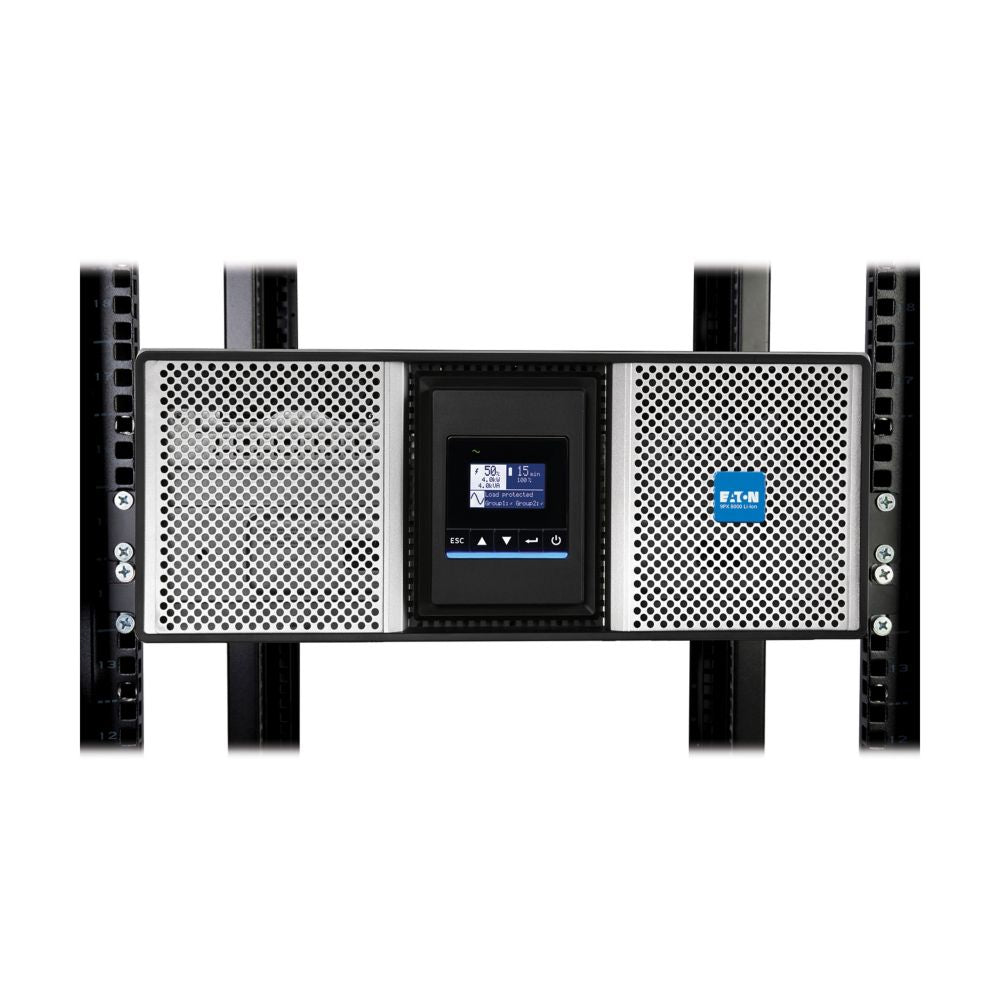

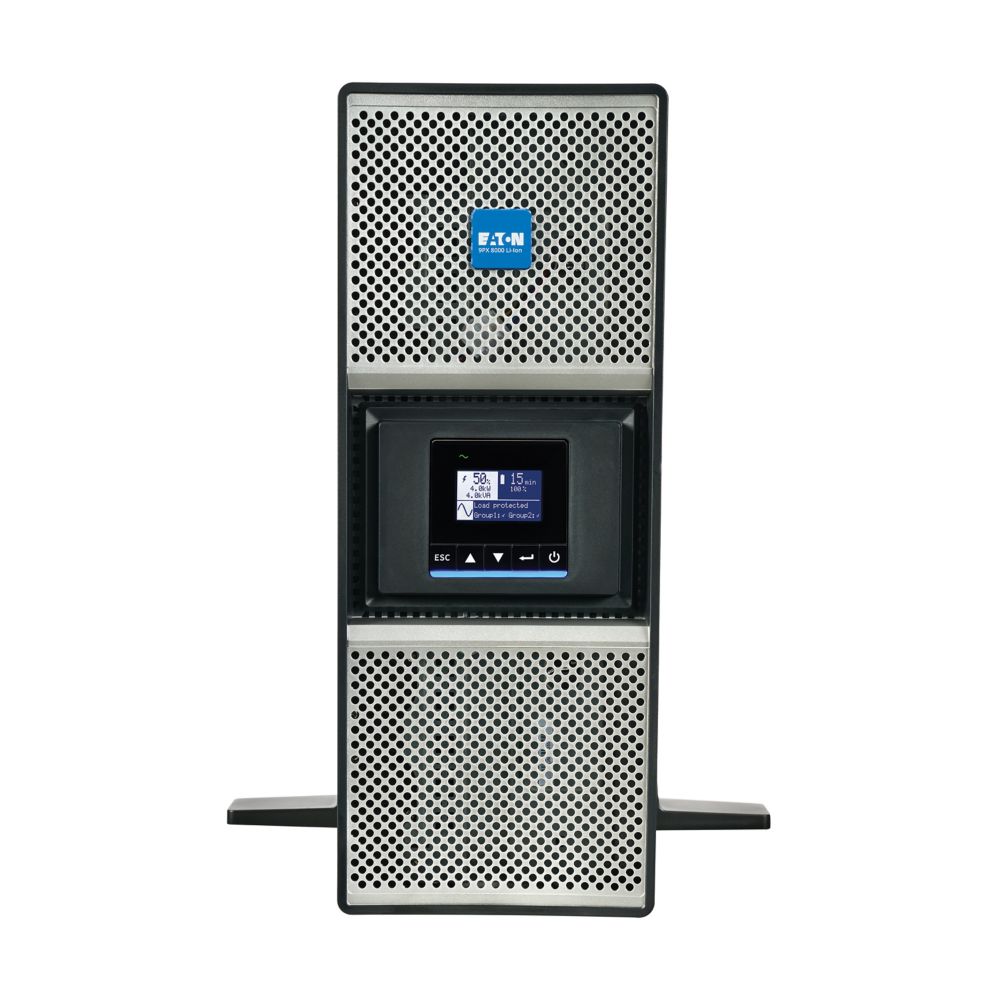

| Form Factor | Rack/Tower Convertible (4U) |
| UPS Topology | Online Double-Conversion |
| Power Capacity | 8 kVA / 8 kW |
| Input Voltage | 208V default (200/208/220/230/240V selectable) |
| Input Connection | Hardwired |
| Input Frequency Range | 50–70 Hz (60 Hz) / 40–60 Hz (50 Hz) |
| Input Power Factor | Greater than 0.99 typical |
| Output Voltage | 208V default (adjustable) |
| Output Voltage Regulation | ±1% steady-state |
| Output Frequency | 50/60 Hz |
| Output Waveform | True Sine Wave |

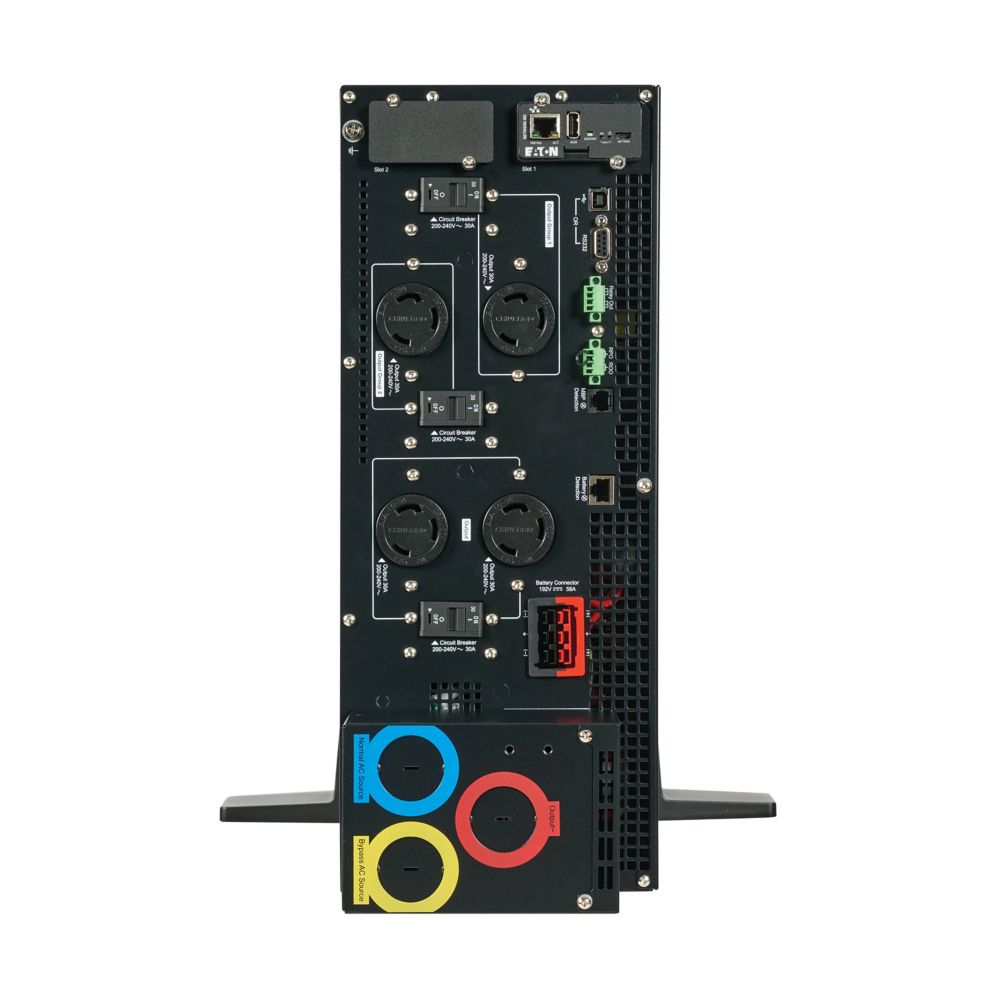

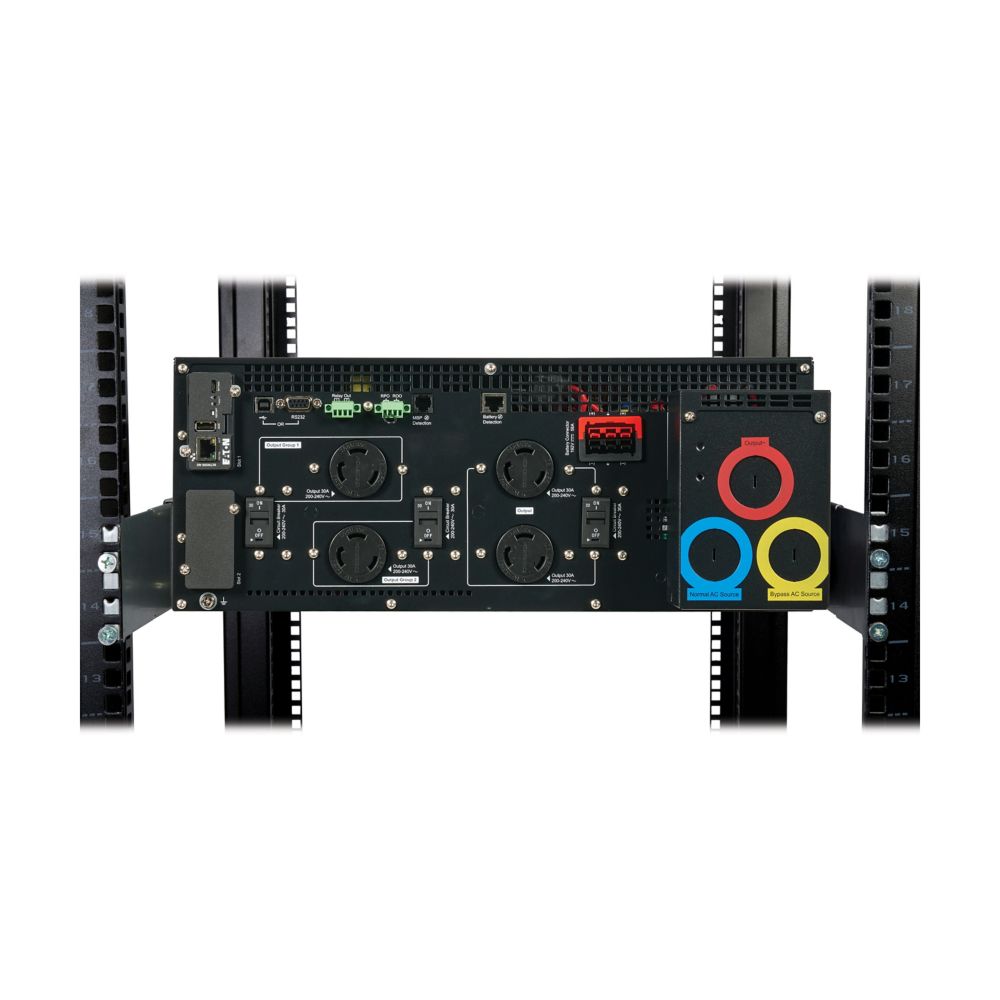

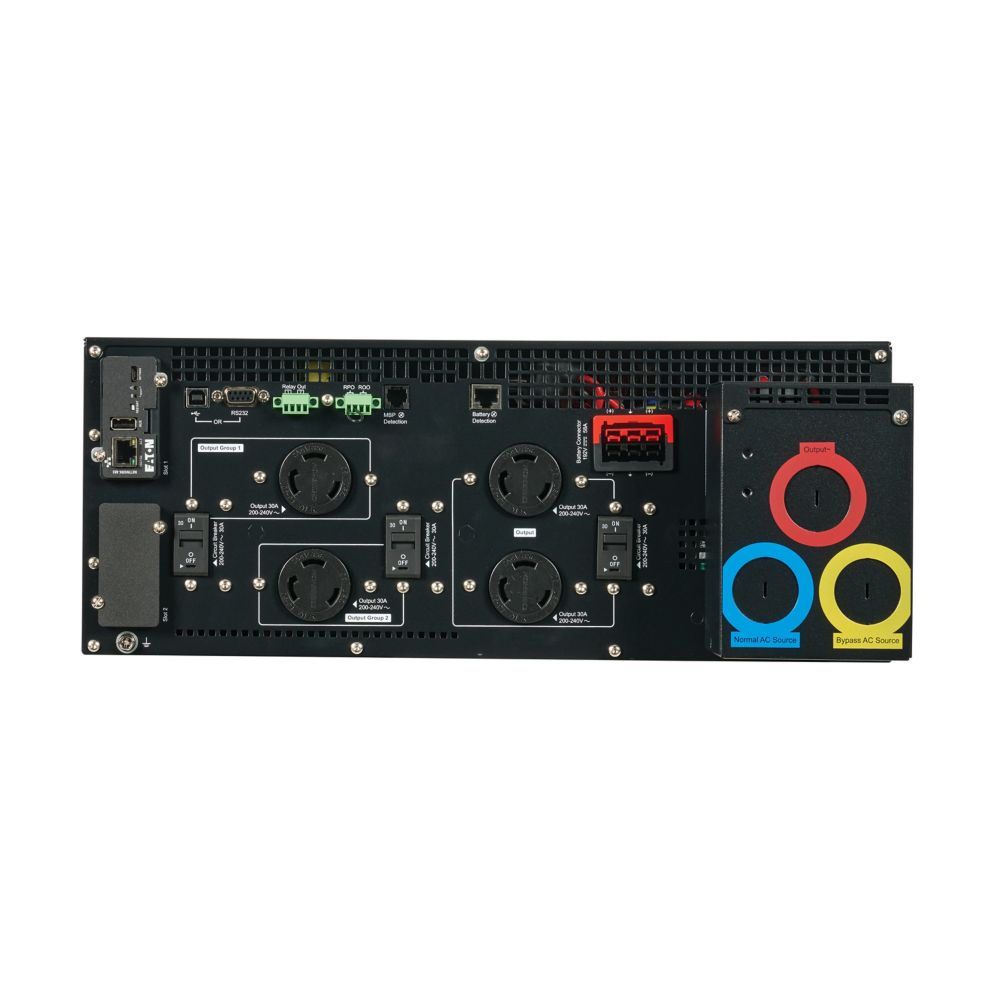

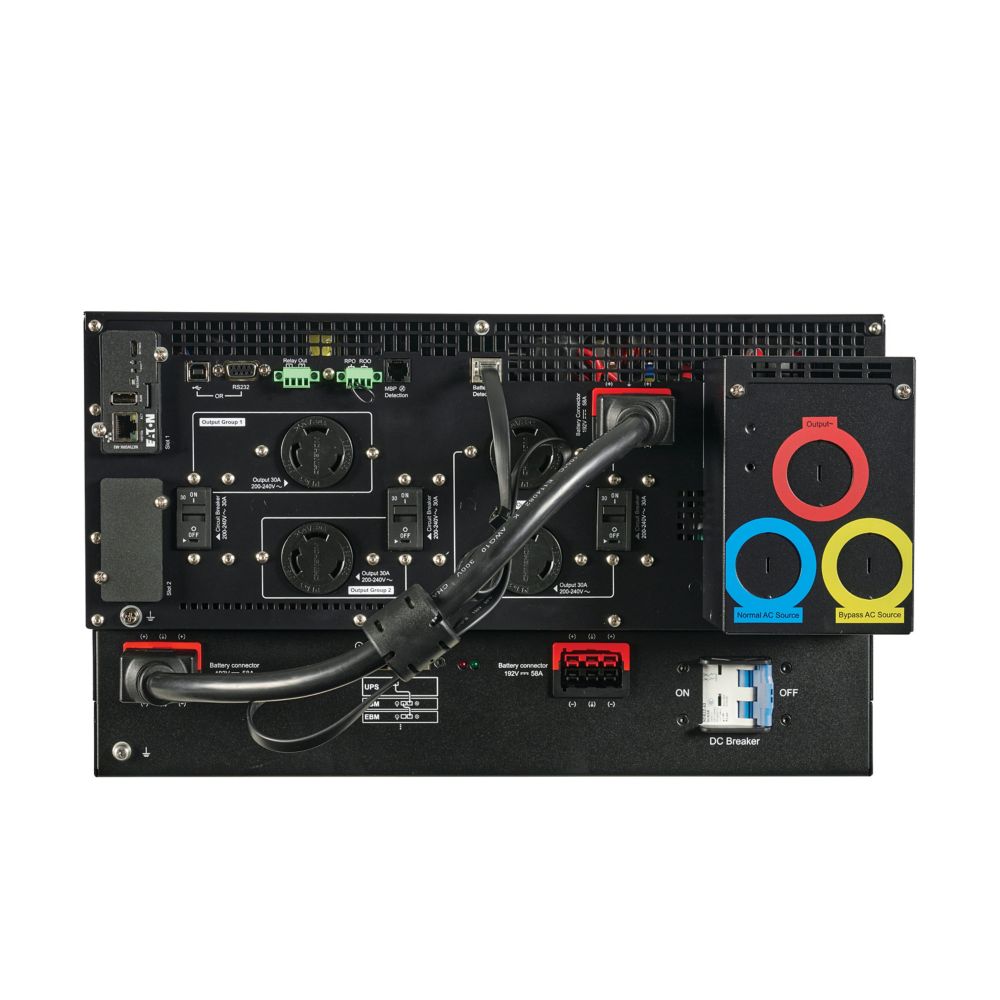

| Output Receptacles | (4) L6-30R, Hardwired Output |
| Output Power Factor | 1.0 (220–240V), 0.95 (208V) |
| Battery Type | Lithium-Ion (LiFePO4) |
| Internal Battery | 192V, 12Ah, 2304Wh |
| Battery Management | Integrated BMS with lifecycle and thermal monitoring |
| Battery Replacement | Hot-swappable internal batteries |
| Extended Runtime | Supports up to 10 EBMs (9PXEBM192RTG2-L) |
| Replacement Battery | EBP-1806-L (2 required) |
| Efficiency | Up to 97% at full load |
| Network Management | Includes NETWORK-M3 Gigabit Network Card |
| Communication Ports | (2) Mini-Slot expansion ports |
| User Interface | Graphical LCD display with programmable controls |
| Software Compatibility | Brightlayer Data Centers suite |
| Noise Level | ≤44 dB at full load, <38 dB at 66% load |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 meters |
| Thermal Output | 815 BTU/hr (online), 1137 BTU/hr (battery), 165 BTU/hr (high efficiency) |
| Dimensions (H x W x D) | 6.85 x 17.32 x 28.5 inches |
| Weight | 142.86 lbs |
| Rack Mount Kit | Included with rails and tower stands |
| Internal Bypass | Included for seamless maintenance |
| Certifications | cULus Listed, IEC 62040-2, CE Marked, ENERGY STAR |
| Compliance | FCC Part 15 Class A, CISPR22 Class A |
| Warranty | 5-Year Limited Warranty |
| Package Contents | UPS unit, network card, cables, mounting hardware, tower stands, quick start guide |
