Description

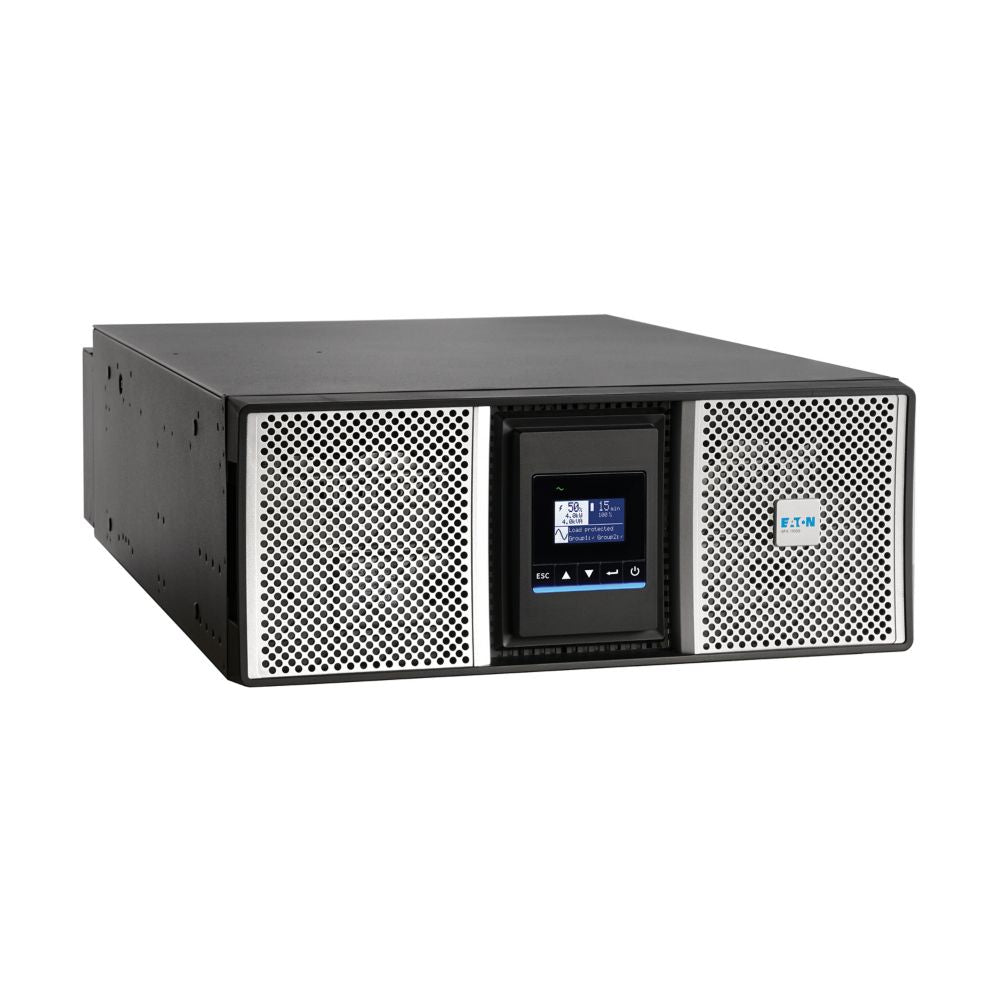

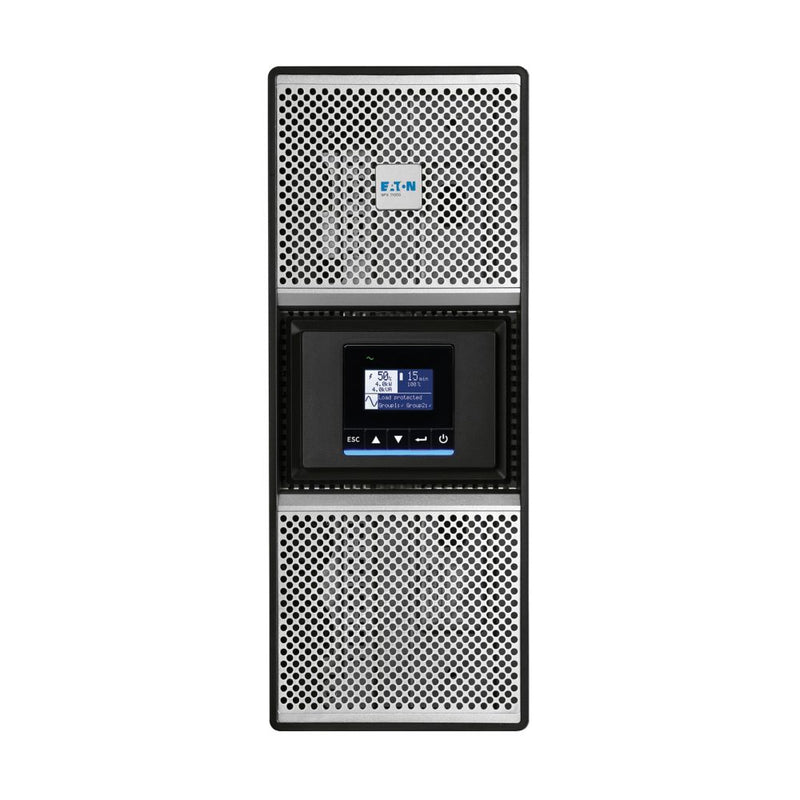

The Eaton 9PX8KG2 is a high-efficiency 9PX Gen 2 Online Double-Conversion UPS delivering 8 kVA / 8 kW of clean, reliable power for critical IT and network infrastructure. Designed for rack or tower installation (4U form factor), it provides seamless power protection with true sine wave output and ABM+ battery management technology that extends battery service life through predictive analytics.
Featuring hardwired input/output connections and four L6-30R outlets, this UPS ensures exceptional flexibility and performance. It includes a Gigabit Network (NETWORK-M3) card for real-time monitoring, plus hot-swappable VRLA batteries for uninterrupted operation. With up to 96.5% efficiency, ENERGY STAR certification, and compatibility with Eaton Brightlayer Data Centers suite, the 9PX8KG2 is an ideal power solution for modern data centers, industrial systems, and enterprise networks requiring top-tier uptime and manageability.
| Category | Specification |
|---|---|
| Model | Eaton 9PX8KG2 |
| Series | 9PX Gen 2 UPS |
| Topology | Online / Double-Conversion |
| Power Rating | 8000 VA / 8000 W |
| Output Voltage | 208V nominal (200/208/220/230/240/250V selectable) |
| Output Power Factor | 1.0 (220–240V), 0.95 (208V) |
| Output Waveform | True Sine Wave |

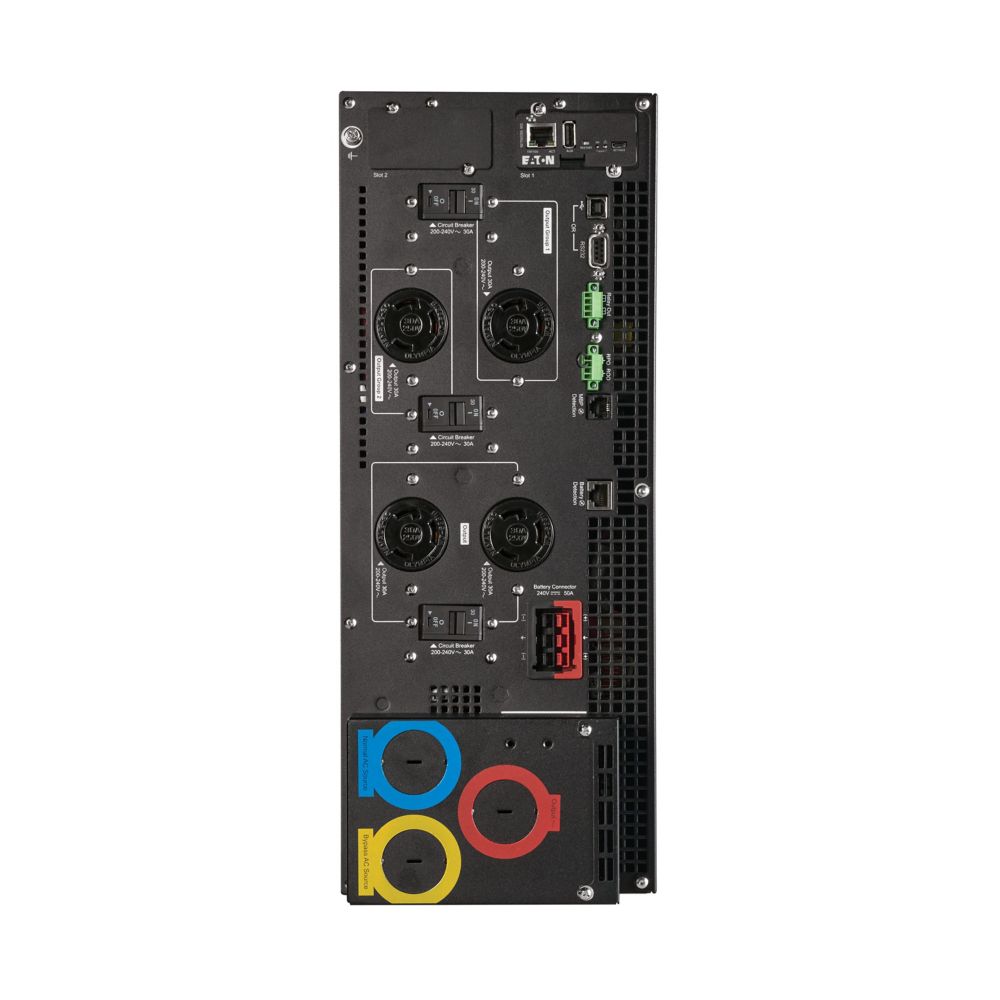

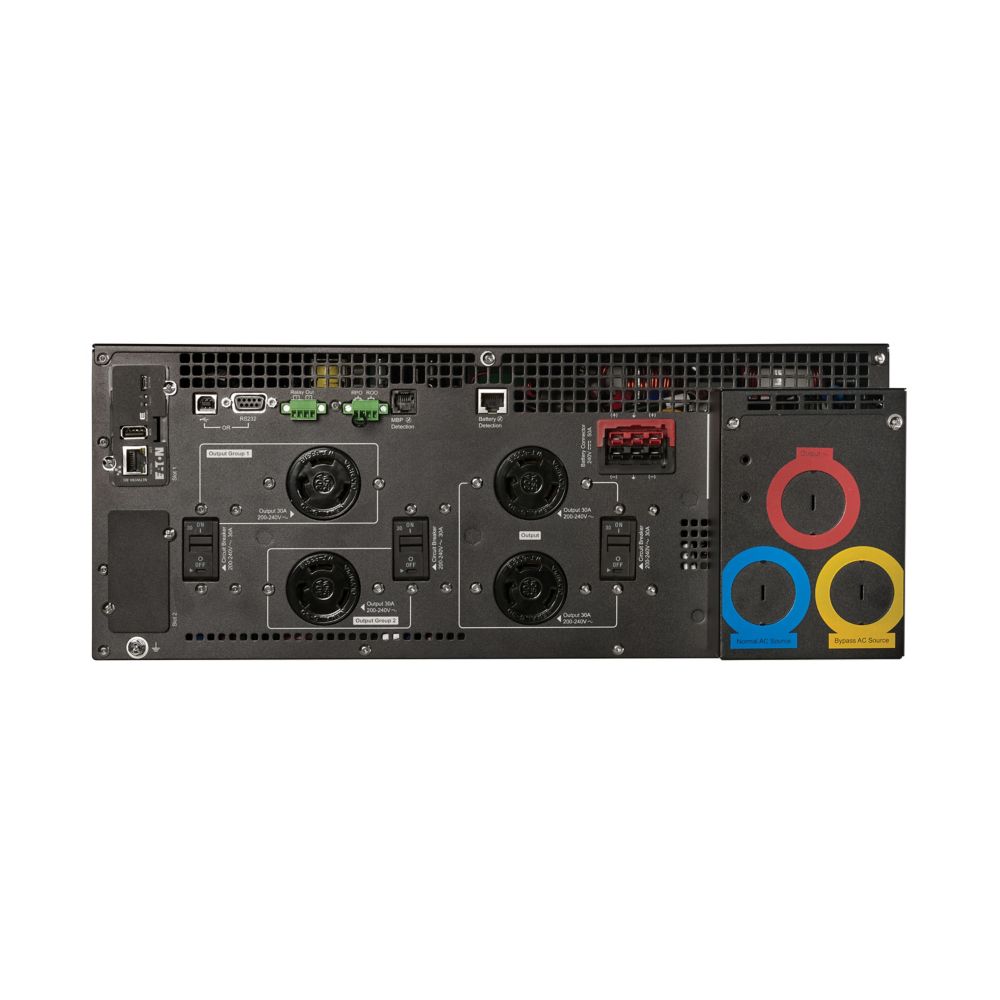

| Output Receptacles | (4) L6-30R, Hardwired |
| Input Connection | Hardwired |
| Input Voltage Range | 200–240V |
| Input Frequency Range | 40–70 Hz |
| Efficiency (Max Load) | 96.5% |
| Battery Type | Sealed Lead-Acid (VRLA) |
| Battery Management | ABM+ predictive battery analytics |
| Battery Replacement | Hot-swappable; EBP-2003 (2 required) |
| Extended Battery Capability | Supports up to 12 EBMs (9PXEBM240RTG2) |
| Network Management | Gigabit Network Card (NETWORK-M3) included |
| User Interface | LCD graphical display, 5-button menu |
| Software Compatibility | Eaton Brightlayer Data Centers suite |
| Noise Level | <43 dB at 1 meter |
| Operating Temperature | 0°–40°C (32°–104°F) |
| Humidity | 0–95% non-condensing |
| Altitude | Up to 3000 m |
| BTU Rating | Online: 815 BTU/hr; Battery: 1137 BTU/hr |

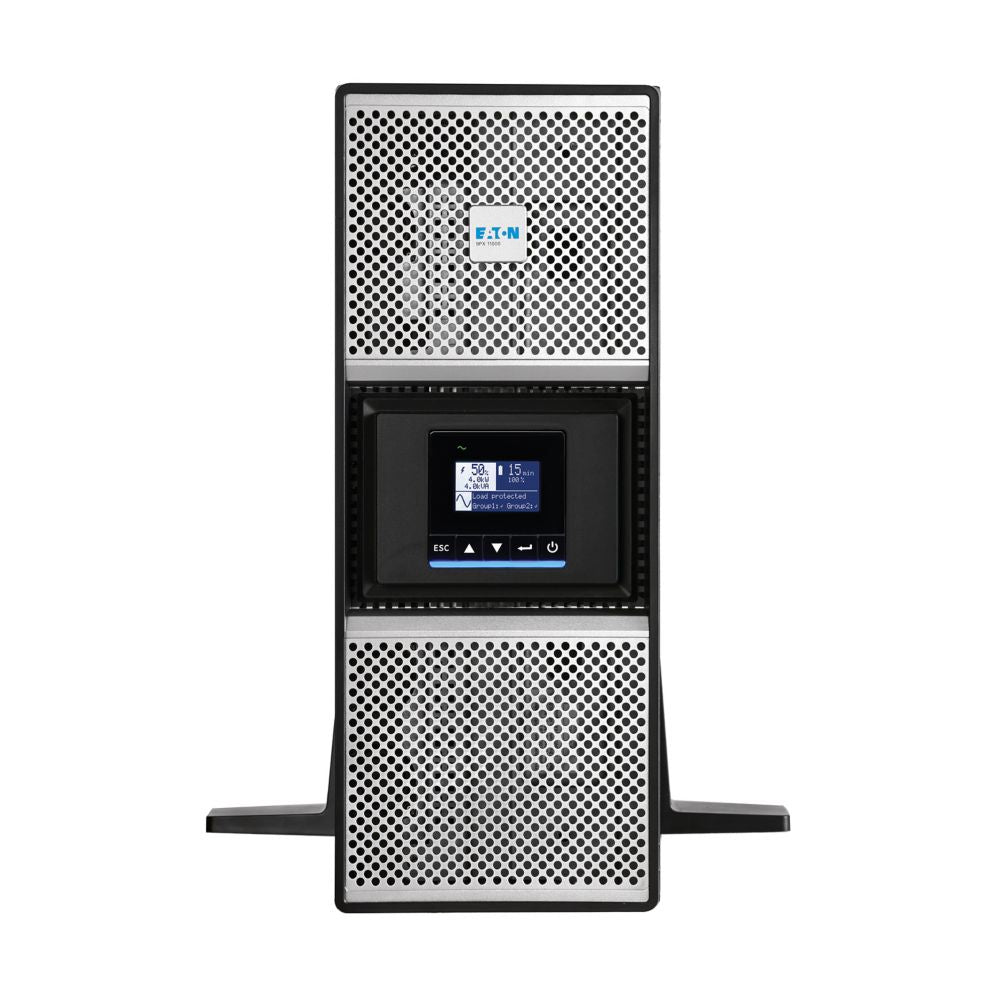

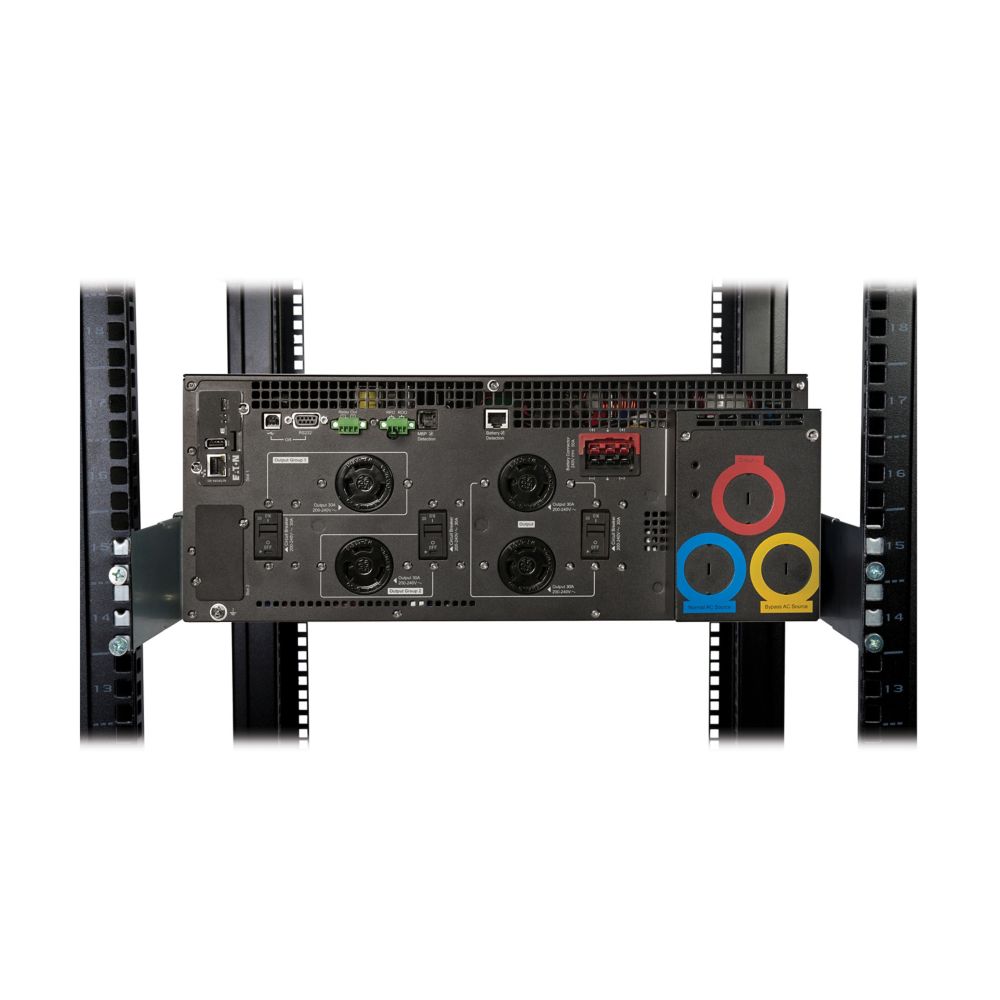

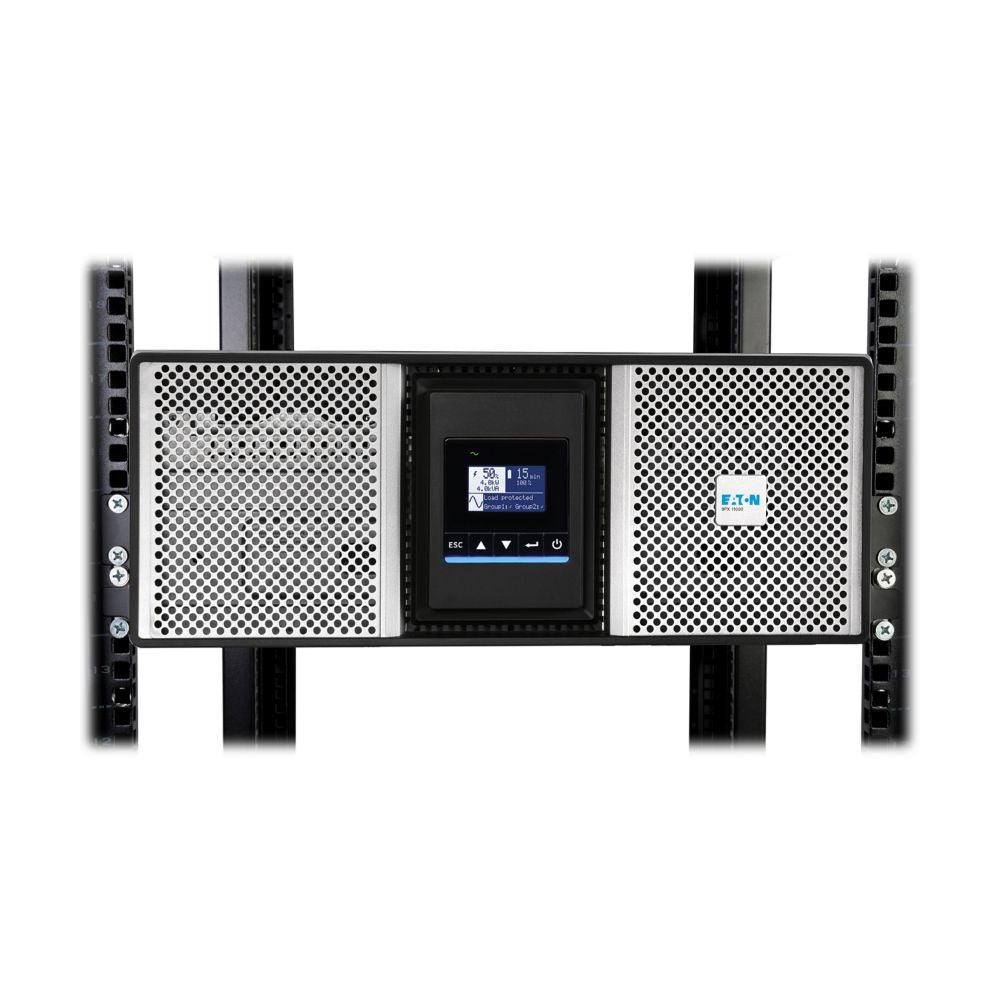

| Form Factor | Rack/Tower convertible |
| Rack Height | 4U |
| Dimensions (H x W x D) | 6.85 x 17.32 x 28.5 in |
| Weight | 173.72 lb |
| Compliance | CISPR22 Class A / FCC Part 15 / CE / ENERGY STAR / OSHPD Seismic certified |
| Certifications | cULus, IEC 62040-2:2006 Cat C2, NOM |
| Surge Protection | Yes |
| Bypass | Internal automatic bypass |
| Included Accessories | Gigabit Network Card, USB & RS-232 cables, rack/tower hardware, cable gland, Quick Start Guide |
| Warranty | 3-year limited (parts, electronics, batteries) |
| Optional Service Plans | 5-year Advanced Depot Exchange (9SW5Y-11000UC), 5-year On-Site (WFLN75XX-11000UC) |
