Description

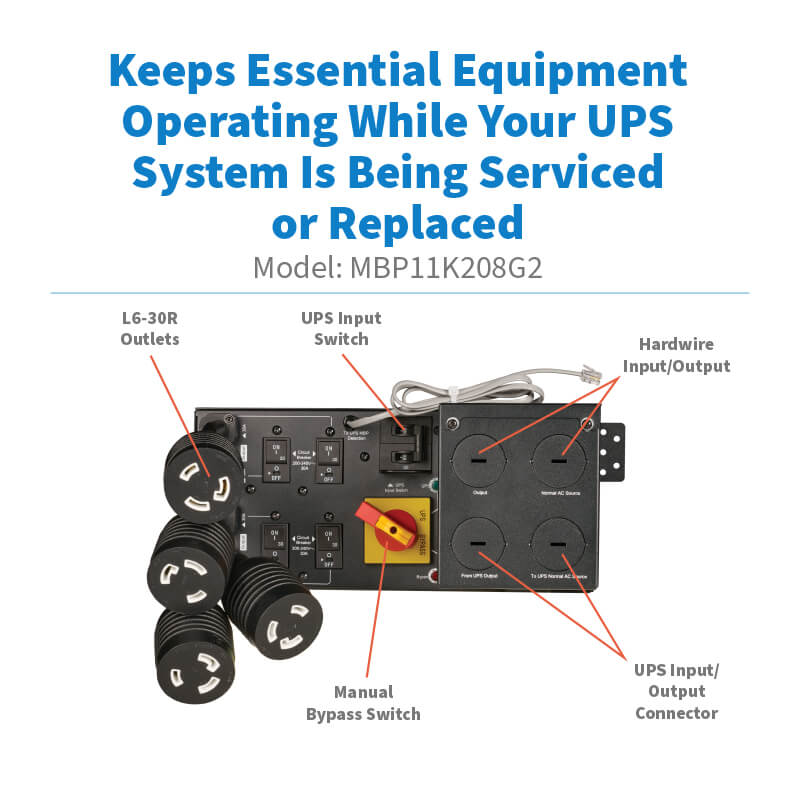

The Eaton MBP11K208G2 Maintenance Bypass Panel allows critical equipment to remain powered while servicing or replacing compatible Eaton 9PX G2 UPS systems. Designed for high-availability environments, this hardwired bypass safely isolates the UPS and routes utility power directly to connected loads—eliminating costly downtime during maintenance.

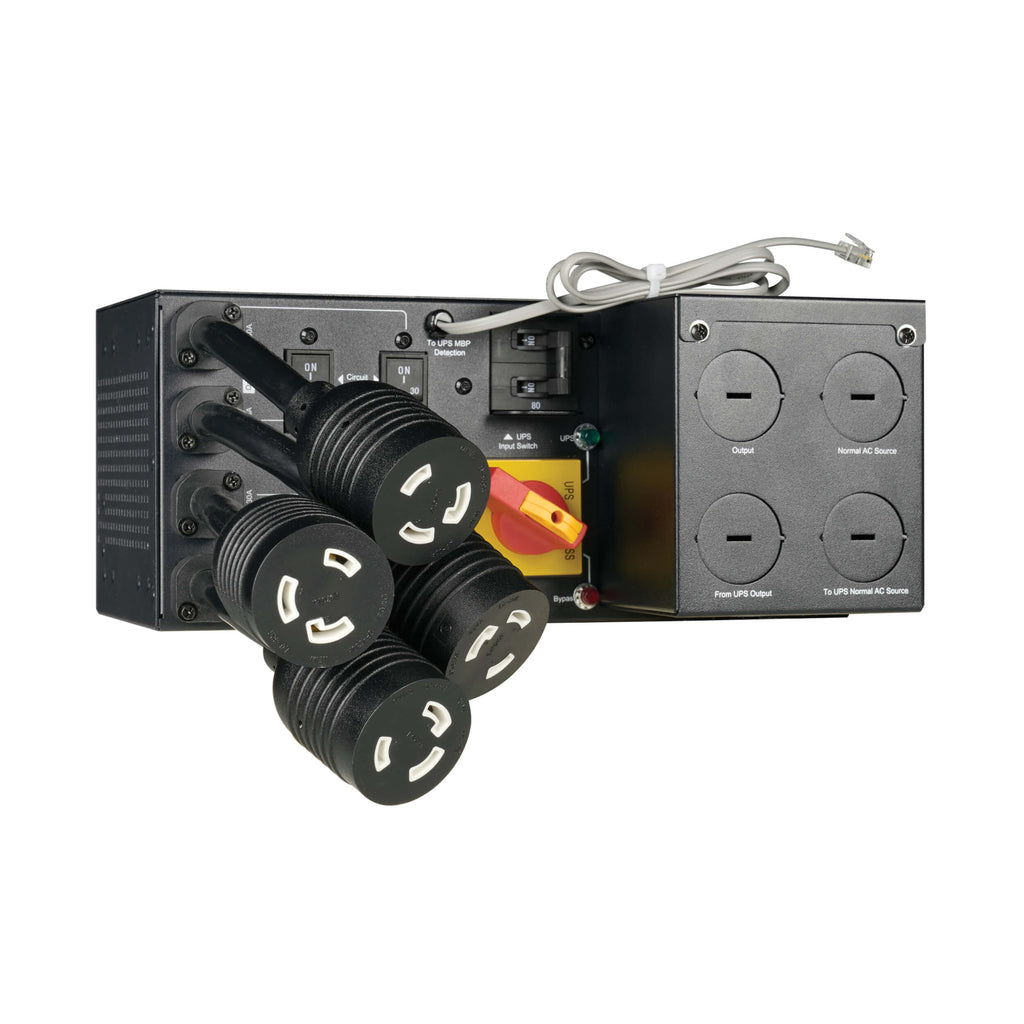

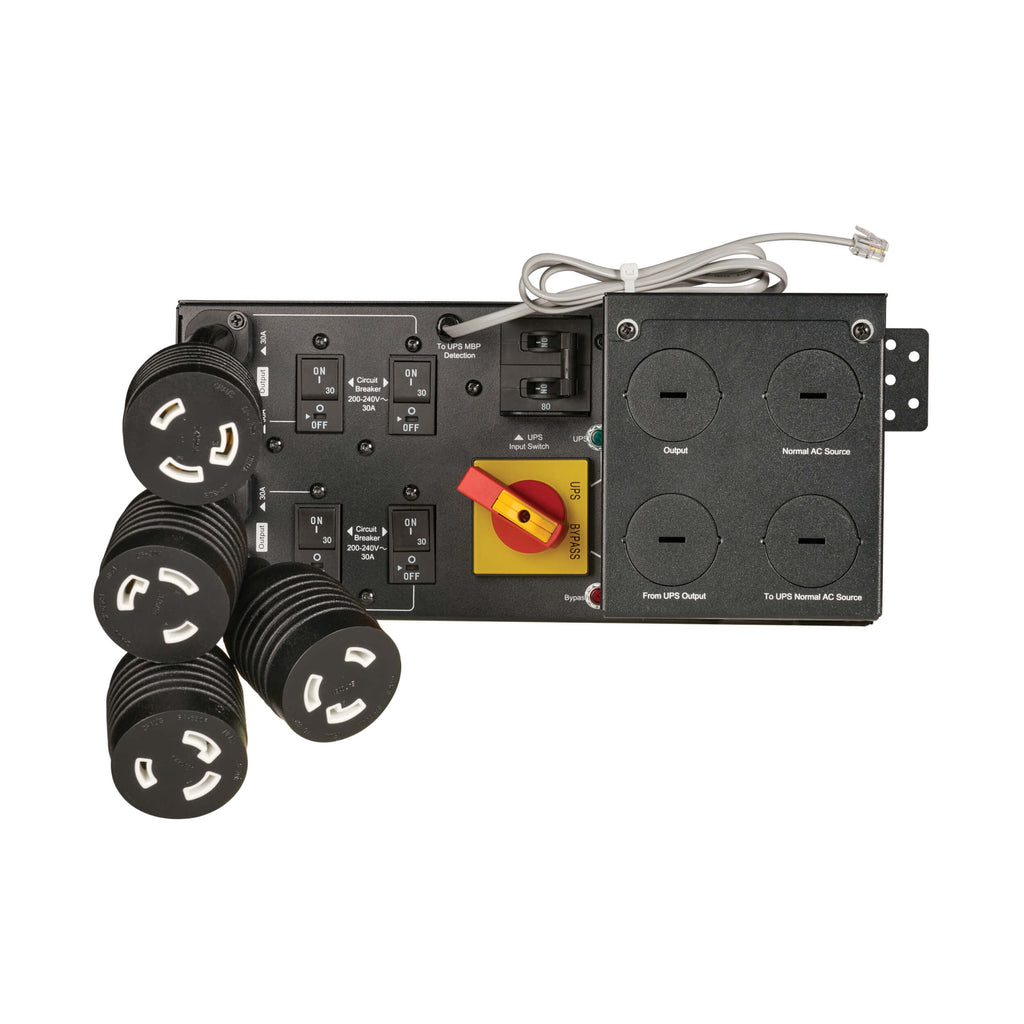

Supporting up to 11kVA at 208–240V, the MBP11K208G2 features four NEMA L6-30R outlets and flexible 0U installation options. It can be mounted at the rear of the UPS or extended battery module without consuming rack space, or installed in tower or wall-mount configurations using the included hardware. Built for reliability and compliance, it is ideal for data centers, network closets, and mission-critical IT infrastructure.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | MBP11K208G2 |
| Accessory Type | Maintenance Bypass Panel |
| UPS Compatibility | Eaton 9PX G2 8kVA–11kVA models |
| Output Capacity | 11 kVA / 11,000 VA / 11,000 W |
| Nominal Voltage | 208V, 220V, 230V, 240V |
| Frequency | 50 / 60 Hz |
| Input Connection | Hardwired |
| Output Receptacles | 4 × NEMA L6-30R |
| Rack Height | 0U |
| Form Factor | Rack-mount, Tower, Wall-mount |
| Mounting Location | Rear of UPS/EBM, side of rack, wall |
| Dimensions (H × W × D) | 5.12 × 11.22 × 5.12 in |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 0–95% non-condensing |
| Compliance | RoHS |
| Certifications | cUL Listed, NOM |
| Warranty | 3-Year Limited Warranty |
