Description

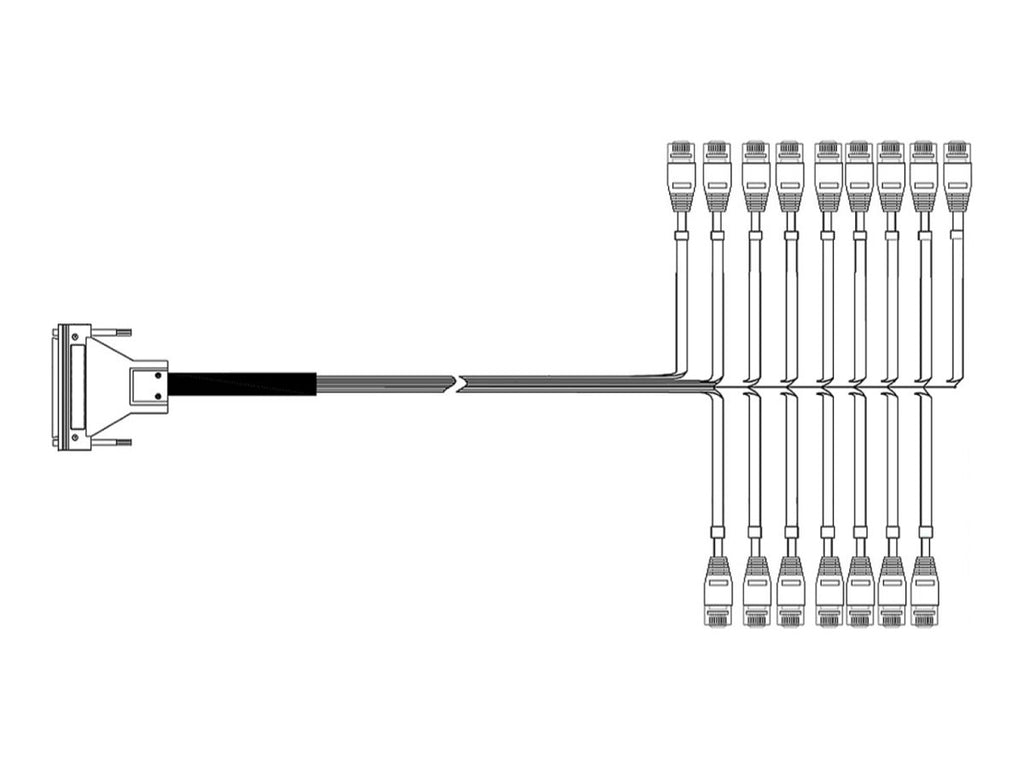

The AudioCodes M3100-PATCH-PL-KIT-S is a straight-through trunk-cable and patch-panel kit designed for seamless connectivity of T1/E1 trunks in Mediant 3100 deployments. Each kit includes four (4) DB-68-to-RJ-48 cable assemblies, each providing 16 RJ-48 male connectors, plus a matching 1U 16-port patch panel, enabling clean rack-mounted cable organization.
Built for reliability and interoperability, this straight-through DB-68 (male) to RJ-48 (male) cable supports 100–120 Ohm, 26-AWG cabling and includes thumbscrews for secure DB-68 attachment. With a 2.1-meter length, the kit ensures flexible, structured cabling inside telecom racks while maintaining optimal signal integrity for high-density trunk connections.
Ideal for service providers, enterprise telephony environments, and high-capacity T1/E1 deployments requiring organized, standards-compliant patching.
| Specification | Details |
|---|---|
| Brand | AudioCodes |
| SKU | M3100-PATCH-PL-KIT-S |
| Cable Type | Straight-through trunk cable |
| Connector (End 1) | 68-pin D-Sub (DB-68), male |
| Connector (End 2) | 16 × RJ-48, male |
| Length | 2.1 m |
| American Wire Gauge (AWG) | 26 AWG |
| Electrical Impedance | 120 Ohm |
| Color | Black |
| Patch Panel Included | Yes – 16-port 1U rack-mount panel |
| Features | Thumbscrews; structured RJ-48 breakout; straight-through wiring |
| Packaged Quantity | Pack of 4 (specifications shown for a single assembly) |
| Category | Network Cable |
| UNSPSC | 26121609 |
| Compatibility | AudioCodes Mediant 3100 DB-68 trunk interfaces (S1–S4) |
