Description

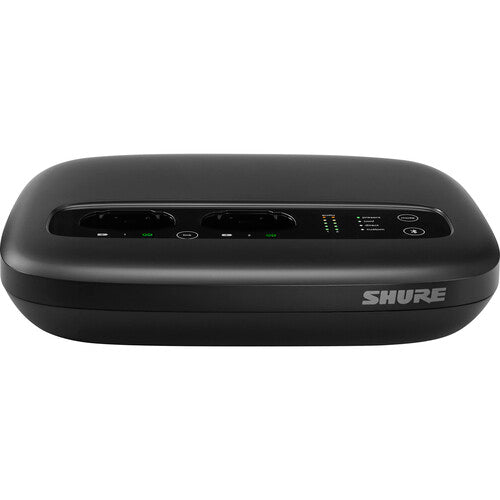

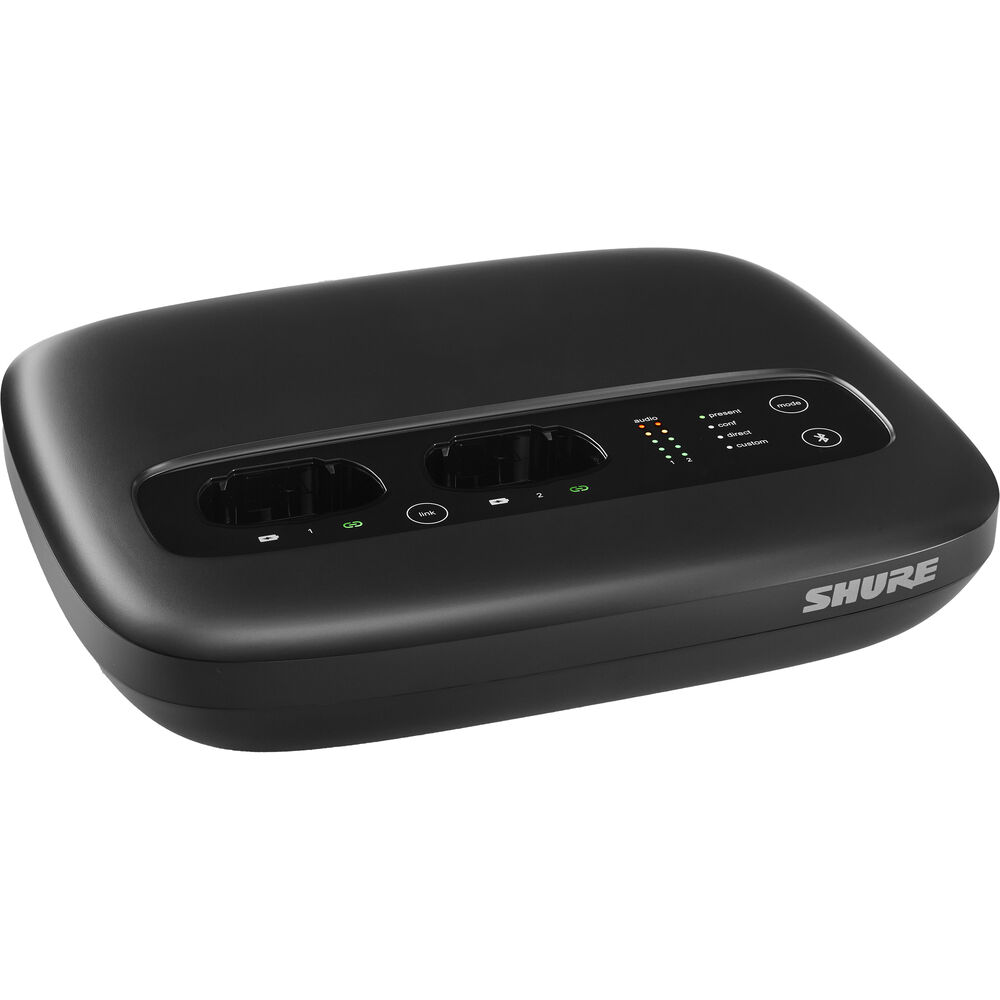

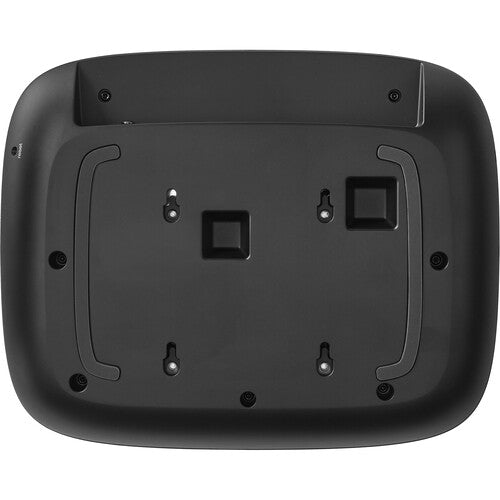

The Shure MXWAPXD2 Access Point Transceiver is the central control hub of the MXW neXt 2 wireless conferencing system, purpose-built for modern hybrid environments such as corporate meeting rooms, classrooms, and training spaces. Designed to deliver seamless collaboration between in-room and remote participants, this all-in-one unit combines wireless audio transmission, charging, DSP processing, and audio interfacing into a single compact tabletop solution.
Engineered for flexibility, the MXWAPXD2 supports a wide range of Shure MXW neXt 2 transmitters including bodypack, handheld, and boundary microphones, allowing you to tailor your setup for any application. Integrated IntelliMix DSP ensures exceptional audio clarity with advanced features such as automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control, delivering consistent and intelligible sound in every session.
With comprehensive connectivity options including Dante, analog I/O, and USB-C, the MXWAPXD2 easily integrates with conferencing platforms, sound systems, and networked audio environments. Automatic frequency management within the 1.9 GHz DECT band ensures reliable, interference-free operation, while AES-256 encryption safeguards your communications.
Designed for both permanent installations and rapid deployment, this transceiver simplifies setup and scaling, supporting expansion up to 80 channels in high-density mode. Whether used standalone or within a larger networked system, the MXWAPXD2 delivers professional-grade performance, reliability, and scalability for enterprise collaboration environments.
| Specification | Details |
|---|---|
| Compatibility | Shure MXW neXt 2 MXW1X, MXW2X, MXW6X Transmitters |
| System Type | Access Point Transceiver with Integrated Charging and DSP |
| Wireless Technology | DECT (1.9 GHz Band) |
| Channel Capacity | 2 Channels Base, Expandable to 40 (Standard) / 80 (High Density) |
| Operating Range | Up to 150 ft |
| Audio Processing | IntelliMix DSP (Automixer, AEC, Noise Reduction, AGC, EQ) |
| Encryption | AES-256 Secure Encryption |
| Audio Networking | Dante Digital Audio Networking |

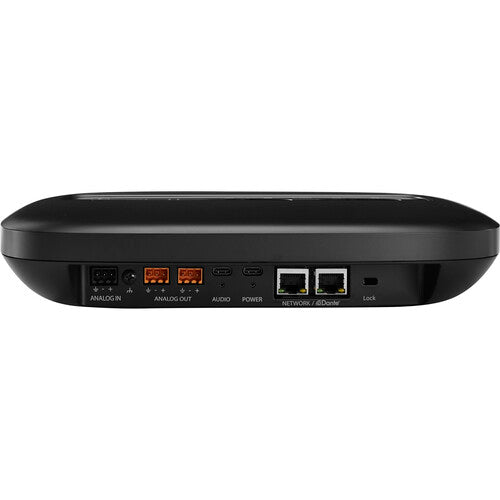

| Audio I/O | 2x 3-Pin Block Inputs, 2x 3-Pin Block Outputs |
| USB Connectivity | 1x USB-C (Power Only), 1x USB-C (Audio/Video I/O) |
| Network Ports | Dual RJ45 Dante Ports for Audio and Control Separation |
| Power Source | USB-C Powered |

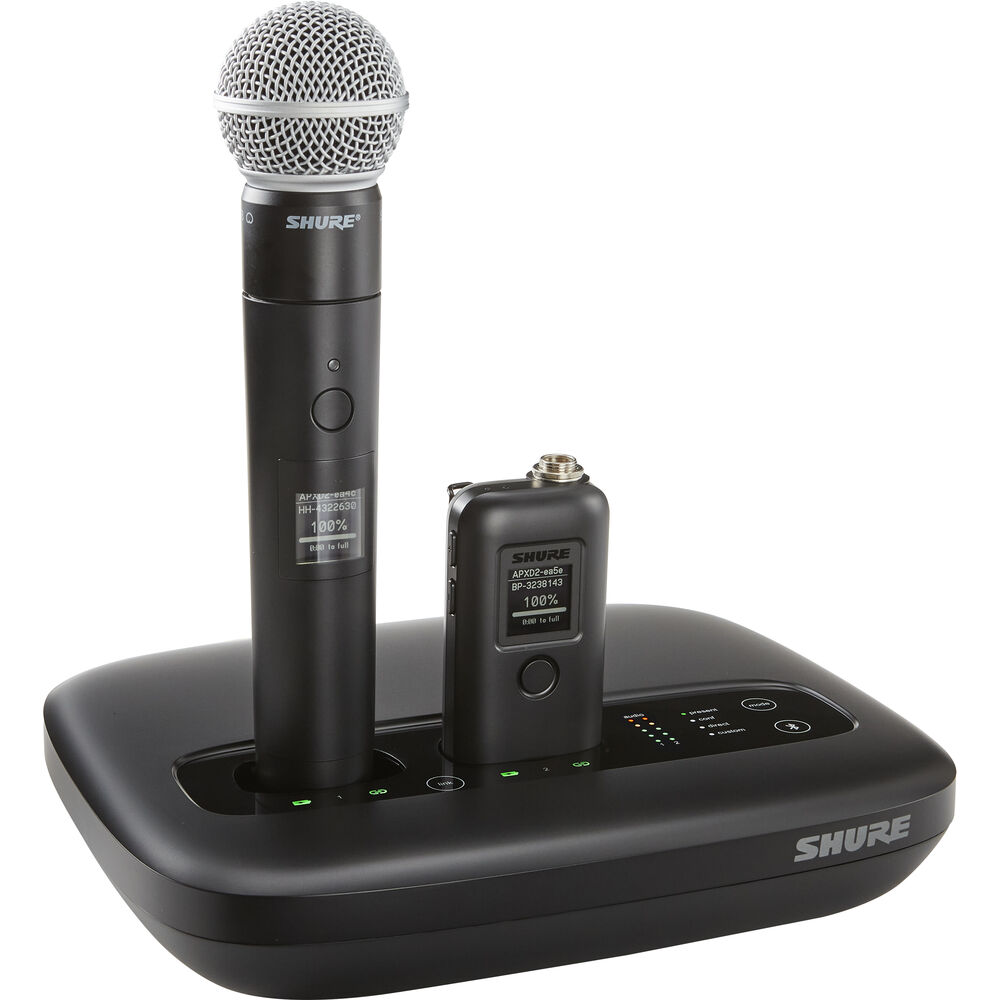

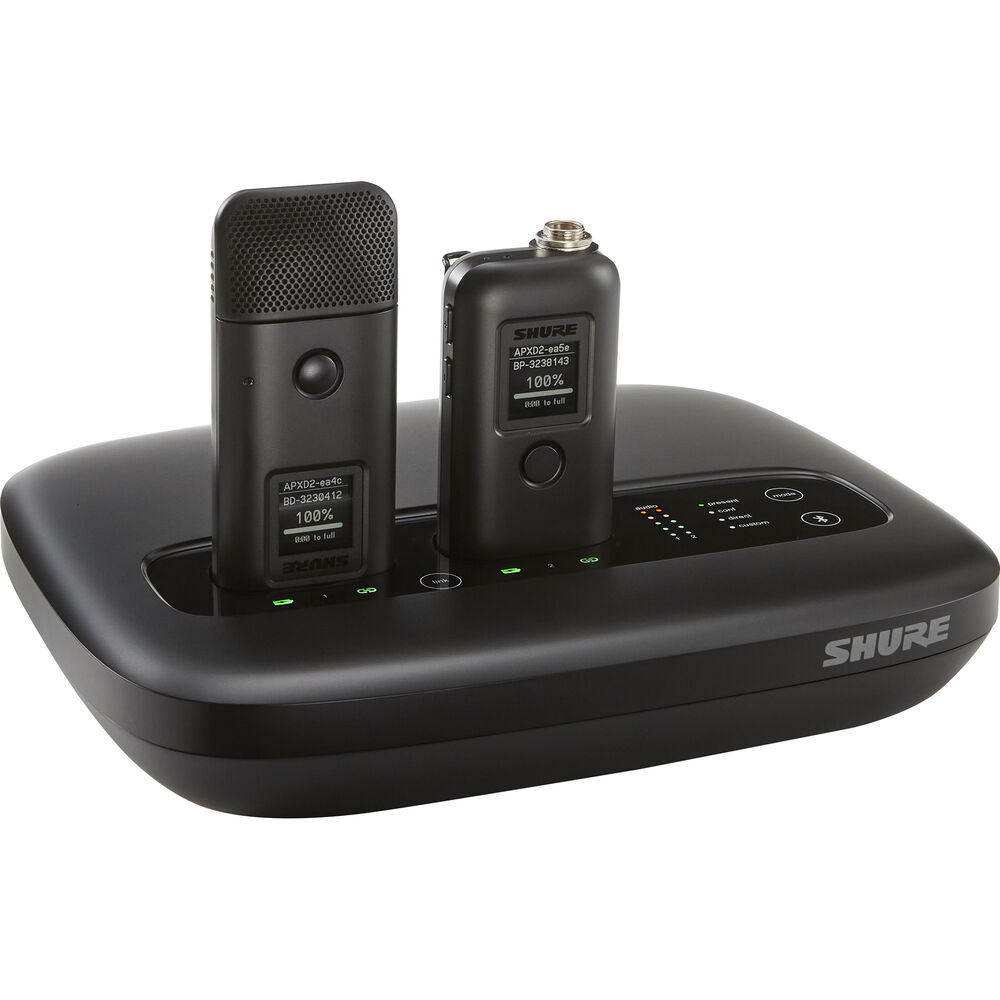

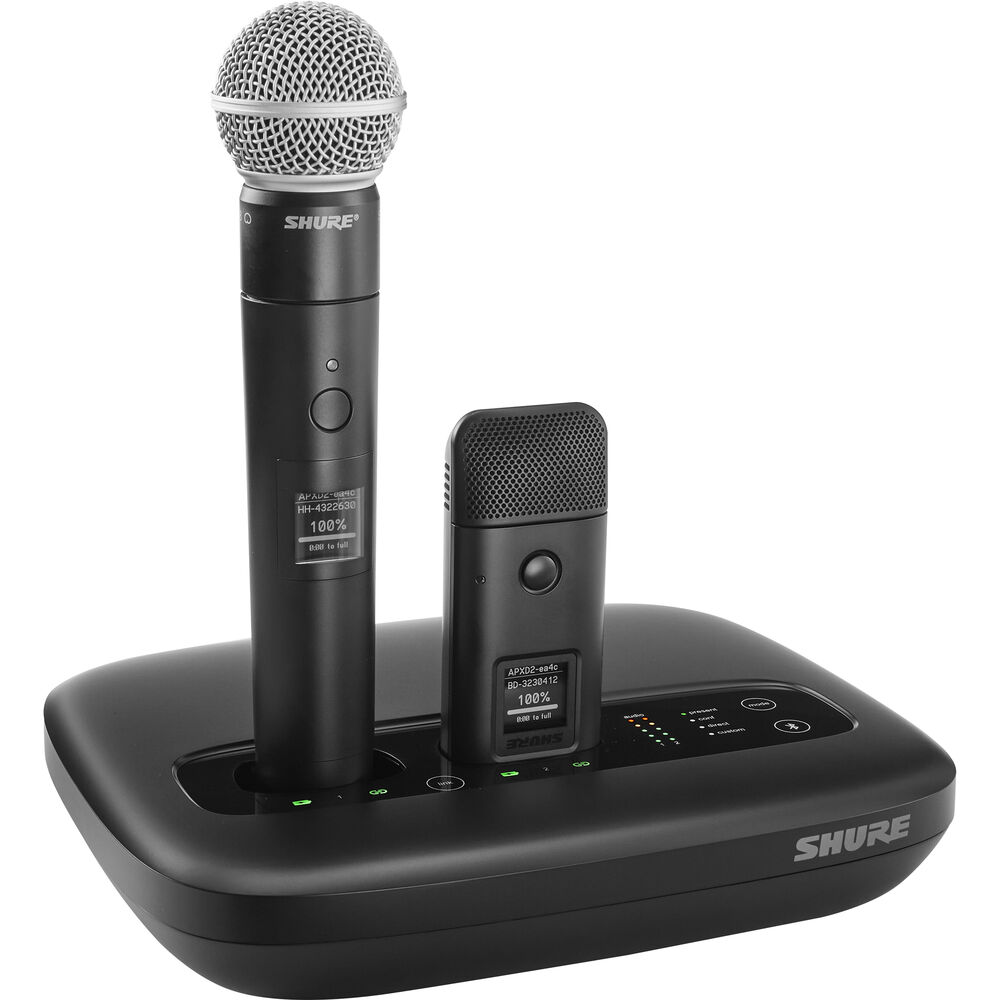

| Microphone Support | Bodypack, Handheld, Boundary Transmitters (Sold Separately) |

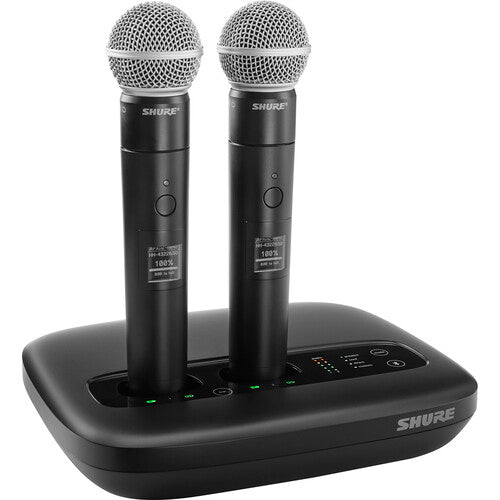

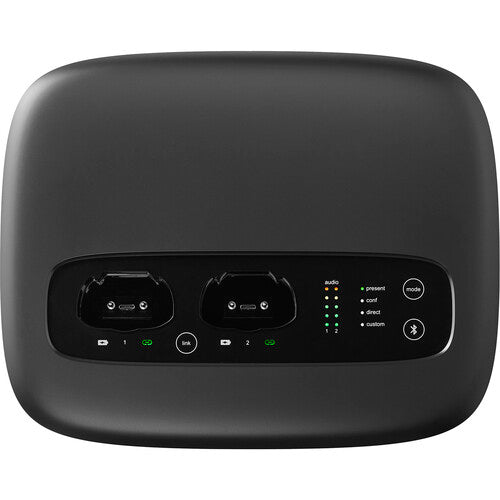

| Charging Capability | Integrated Charging for 2 Transmitters |
| Frequency Management | Automatic DECT Autoscan and Interference Avoidance |
| Use Case | Conferencing, Classrooms, Presentations, Hybrid Collaboration |
| Mounting | Tabletop or Installed Deployment |
| Color | Black |
| Dimensions | 15.5 x 9.2 x 2.5 inches |
| Weight | 3.71 lb |
| Environmental Protection | Designed for Indoor Use Only |
