Description

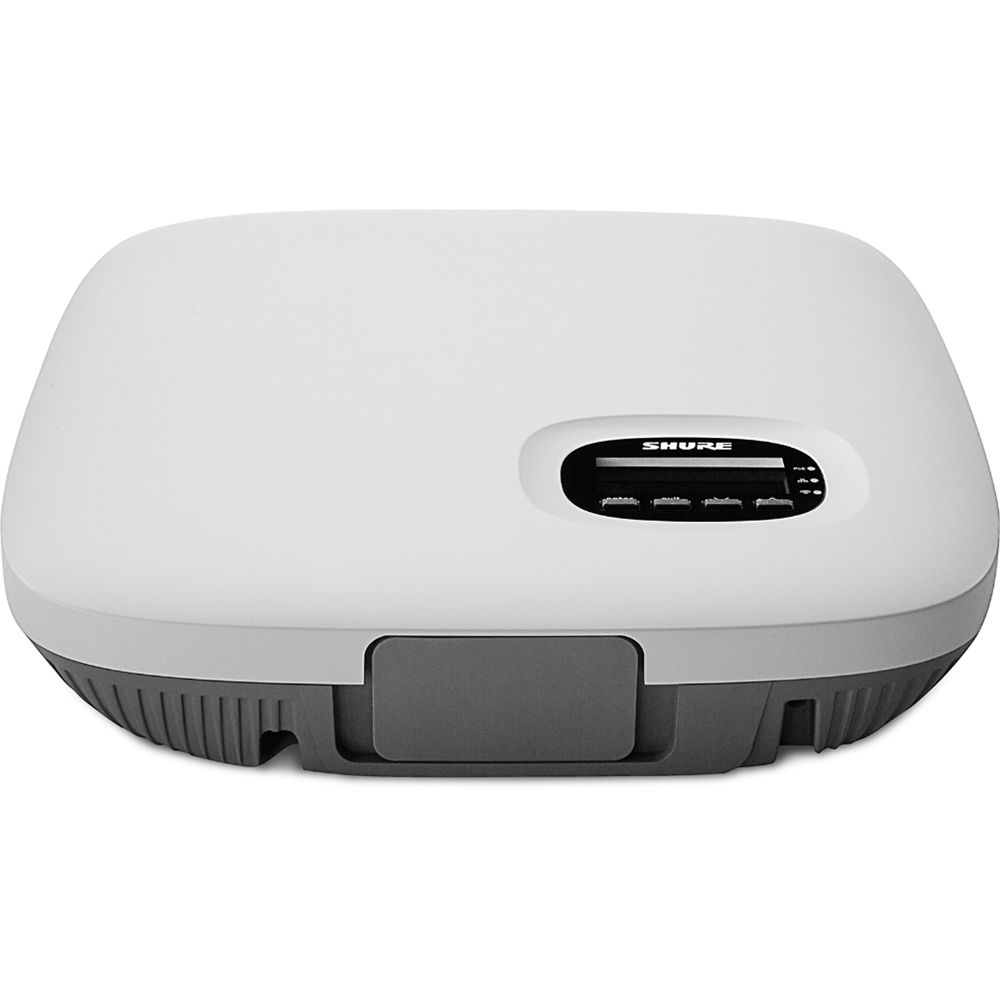

The Shure Microflex Complete Wireless Access Point Transceiver (MXCWAPT-A) is the central control hub for the Microflex Complete Wireless conferencing ecosystem, designed to deliver secure, scalable, and high-performance wireless audio for professional meeting environments. Engineered for reliability in complex RF conditions, it manages audio routing, frequency coordination, and system control for up to 125 wireless conference units.
Operating across both 2.4 GHz and 5 GHz frequency bands, the MXCWAPT-A automatically scans and selects the cleanest channels while dynamically avoiding interference to ensure uninterrupted communication. With integrated Dante digital audio networking and analog I/O, it seamlessly connects into modern AV infrastructures, enabling flexible deployment across boardrooms, government facilities, and large conference venues.
The unit simplifies installation with a single Ethernet connection that carries power, audio, and control, reducing setup time and cable clutter. Advanced AES-128 wireless encryption safeguards confidential discussions, while intuitive controls and real-time system monitoring ensure smooth operation for technicians and administrators alike.
| Specification Category | Details |
|---|---|
| System Role | Wireless Access Point Transceiver for Microflex Complete Wireless |
| Wireless Capacity | Supports up to 125 conference units |
| Frequency Bands | 2.4 GHz ISM and 5 GHz UNII (including DFS channels) |
| RF Management | Automatic frequency coordination with interference detection and avoidance |
| Wireless Range | Up to 45 meters line-of-sight (environment dependent) |
| Audio Networking | Dante digital audio (10 inputs / 10 outputs), AES67 support |
| Analog Audio Outputs | XLR, balanced, up to 4.3 dBV |
| Analog Audio Inputs | XLR, balanced, line and auxiliary level support |
| Frequency Response | 22 Hz to 20 kHz (analog input), 1 Hz to 20 kHz (analog output) |
| Total Harmonic Distortion | As low as 0.01% typical |
| Dynamic Range | Up to 115 dB (A-weighted) |
| Encryption | AES-128 wireless encryption for secure communication |
| Network Interface | Gigabit Ethernet with PoE (802.3af Class 0) |
| Control Interface | Embedded browser-based interface for remote management |
| Connectivity | Single Ethernet cable for power, audio, and control |

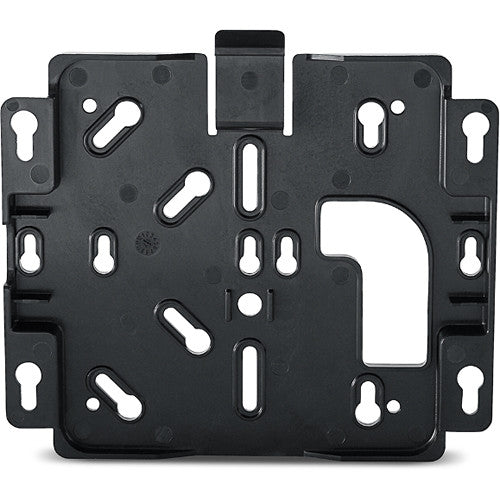

| Mounting Options | Wall or ceiling mount (mounting hardware included) |
| Indicators | LED status for power, network, and wireless activity |

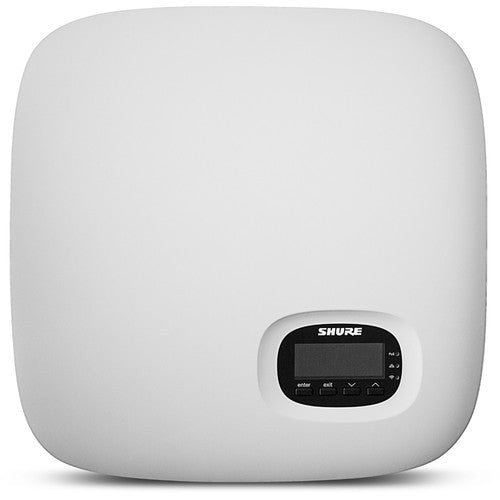

| Display | Integrated display for basic configuration |
| Power Consumption | 12.95 W maximum, 6.5 W typical |
| Dimensions | 47.8 mm x 242.5 mm x 241.8 mm |
| Weight | 1.15 kg |
| Operating Temperature | -7°C to 49°C |
| Construction | Molded plastic with die-cast aluminum components |
